Software Defined Networking Is it really the future of networking? And are the big switch vendors finished? 0 Data Centers a network crunch More Traffic Complexity More Dollars Less Latency Infiniband Fiber Channel More Servers

slide-1
SLIDE 1

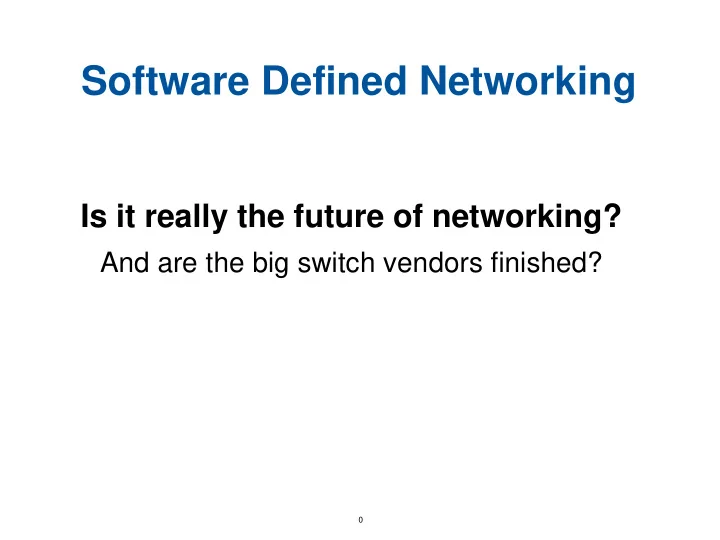

Software Defined Networking

Is it really the future of networking?

And are the big switch vendors finished?

slide-2
SLIDE 2

Data Centers – a network crunch

1

Infiniband Fiber Channel Ethernet

More Servers Complexity Less Latency More Traffic More Dollars

slide-3
SLIDE 3

Network Switching

  • Traditional networks:
  • Decentralised switches with data plane and control plane on same device
  • Is OpenFlow the saviour?
  • Centralised managed controller
  • OpenFlow data plane switches
  • Potential to …
  • Automate configuration
  • Improve network efficiency
  • Reduce TCO

2

slide-4
SLIDE 4

Data Centre Switch Market

  • $6+ billion equipment market
  • Vendors have been consolidating
  • 2010: Top three vendors had 82% of the port

shipments

3

slide-5
SLIDE 5

Beyond the Data Centre: SP Networks

  • Service Provider routers and switches: $13 billion

equipment market

  • Top four have 85% of the market value
  • What’s the future for Software Defined

Networking?

  • Does OpenFlow have enough momentum?
  • Will proprietary boxes continue to rule?

4

slide-6
SLIDE 6

5

Network headaches

Ugh: plumbing!

  • Static/inflexible
  • Homogeneous/closed
  • Unvirtualized
  • Labour-intensive
  • Error-prone
  • Point Band-Aids
  • 10/100Gbps
  • Hyperscale DCs, IPv6
slide-7
SLIDE 7

6

Network business value

Source: Gartner

slide-8
SLIDE 8

7

Custom Hardware Custom Hardware Custom Hardware Custom Hardware Custom Hardware

OS OS OS OS OS

Network OS

Feature Feature

Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature

Transition to SDN/OpenFlow

Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature Feature

slide-9
SLIDE 9

8

Packet Forwarding Packet Forwarding Packet Forwarding Packet Forwarding Packet Forwarding

Simple solution

Network OS

Control Program Feature Feature Feature Open interface to packet forwarding

  • Separation of control/forwarding planes
  • Features provided by ordinary software
