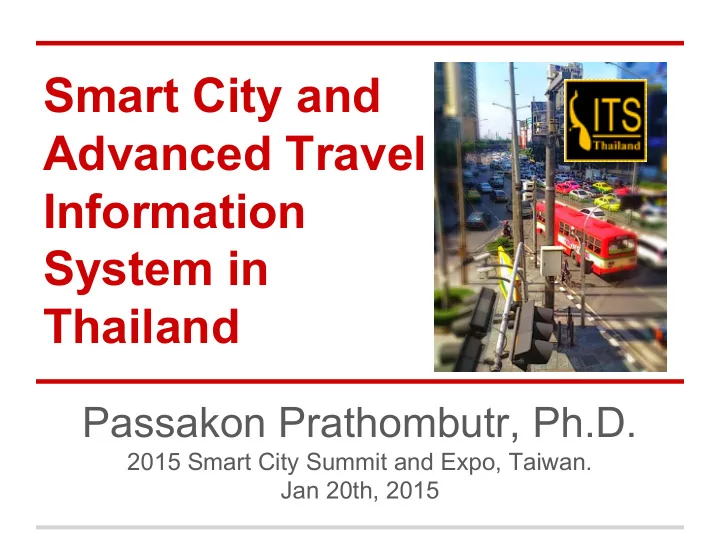

Smart City and Advanced Travel Information System in Thailand

Passakon Prathombutr, Ph.D.

2015 Smart City Summit and Expo, Taiwan. Jan 20th, 2015

Outline

• About Thailand
• Smart City and Transportation
• ITS and ATIS in Thailand
• Traffic Information Center
• Conclusion and Challenges

About Thailand

land: 510,890 sq km population: 67 million GDP: $9,900 (2013) roadway: 180,053 km Vehicle:31.4milliion(2012) (motorcycle 62.23%)

SRC: www.cia.gov and vigportal.mot.go.th Taipei Bangkok Population 8M 15M Area (km2) 271.8 1,568,7 Vehicle 2014 8.2M avg speed(km/hr) 26 Trip/day 17M

http://www.numbeo.com/cost-of-living/compare_cities.jsp? country1=Taiwan&city1=Taipei&country2=Thailand&city2=Bangkok

1 TWD = 1 THB

City Infrastructure

http://www.iec.ch/whitepaper/pdf/iecWP-smartcities-LR-en.pdf

http://www.iec.ch/whitepaper/pdf/iecWP-smartcities-LR-en.pdf

Step-by-step approach to becoming smarter

Key Technologies in Transport

• Pervasive sensor networks

○ Fixed sensor: traditional infrastructure ○ Mobile probe: OBU, smartphone ○ Human: Social media, wearable device

• Low-cost communication

○ WiFi, 4G, 5G, V2X ○ Smart Grid

• Software as a Service and Service Platform

○ SaaS in Transport ○ Mobile app ○ ITS Platforms

Issues and Necessity

• Transportation: 35% of total energy consumption

(700,000 MTHB/year)

• Cost of land transportation: 2.12 THB/ton/km (train

0.95 THB/ton/km), yet land transportion ratio is still as high as 87.5%

• Logistic costs is high (14.3% of GPD and 7.1% is

from transportation)

• 8,675 road accident death toll in 2013 (world 3rd

worst)

ECONOMIC LOSS ECONOMIC LOSS EFFICIENCY/COMPETIVENESS SAFETY, QUALITY OF LIFE

Expressway mostly in BKK

BRT BTS MRT Airport link

10 lines in 8 years 464 Km, 5.36 Mpassenger-trip/day

Source: Prof. Hayashi President of WCTRS

Factor-Driven Efficiency-Driven Innovation-Driven

Competitiveness & Sustainability

SRC: World Economic Forum : The Global Competitiveness Report 2014-2015

ITS Civil Construction Traditional Traffic Control

ITS Goals for Smart City

• Environment friendly/Energy saving
• Efficiency/Convenient
• Safety

USER CENTRIC

crowdsourcing Big Data

Thai ITS Master Plan phase II

Storage Sensor

ITS as a Service

DATA INFORMATION SERVICE

Analytic Business Process Communications Interface

Uber Taxi WAZE FTMS Easy Pass Red light camera API Image processing Modeling Prediction Estimation V2V m2m fiber optic Cloud Storage Data Set Location Table GPS RF-ID CCTV Magnetic Radar Human Open Data Open Source Open API

Infrastructure

Storage Sensor

ITS as a Service

DATA INFORMATION SERVICE

Analytic Business Process Communications Interface

Uber Taxi WAZE FTMS Easy Pass Red light camera API Image processing Modeling Prediction Estimation V2V m2m fiber optic Cloud Storage Data Set Location Table GPS RF-ID CCTV Magnetic Radar Human Open Data Open Source Open API

Infrastructure

Open Source/Algorithm Data Sharing/Open Data Integrated Processes sharing

ATIS

Exaple of TIS Apps on Android

Sensors(Microwave, Inductive loop), CCTV, Call-in, Social Network, Mobile probe(GPS, Mobile device) DATA (Traffic, Incident, Weather and etc)

Data Analytics Communications VMS RDS-TMC, TPEG, RTIC Radio/TV Mobile app Navigator Call center

Concept of Service Innovation Platform

API Hub

The change in ICT makes change in ITS

Cloud Computing Speech recognition Crowdsourcing Social Media Image Processing Smart Phone Open Data Multi-GNSS Big Data Open Source WAVE (802.11p) V2X API Wireless Sensor Network

Traveller Information

Since 2008 we focused on Traffic information. Yesterday Invest on probe

• Taxi
• Smartphone
• Fleet vehicle

Today we go for Big Data while the GPS is built-in with new car.

Live Traffic with CCTV + mobile app

Yesterday We got only the congestion level color on the map. Today We got live stream and lot of mobile apps.

Public source to Crowd source Fixed CCTV Phone camera

Yesterda y Today

Today V2V, I2V, V2X Automated Vehicle Yesterday Human sense

The TIS will be moved to transient, local information for a small cluster.

It is about a Business Model

Data Exchange at iTIC

The Intelligent Traffic Information Center Foundation or iTIC was officially approved the registration by Ministry of Interior as a non-profit organization on June 14, 2010 with a registered capital of 500,000 Baht supported by Thai ITS Association.

Besides iTIC, ITS Thailand also supports other technologies: T-SQUARE by Toyota Tsusho, the member of ITS Thailand

Toyota Tsusho Electronics (Thailand) Co., Ltd.

Combat for high quality traffic info …

• From about 10K taxi GPS data, we can produce high density

(about 20,000 road links) and high accuracies (above 70%) traffic information for Bangkok metropolitan area

Confidential & Proprietary

Toyota Tsusho Electronics (Thailand) Co., Ltd.

Confidential Proprietary

Best Time to Leave Recommendation

Origin Point Destination Point

Travel Routes

Origin-To-Destination Estimated Travel Time

Suggest Best Time to Leave from Origin Select desired time

• f arrival

…

Historical Traffic

Rush Hour Non-Rush Hour

TSQUARE high quality “travelling time”

Toyota Tsusho Electronics (Thailand) Co., Ltd.

FM-RTIC VS RDS-TMC

RDS-TMC FM-RTIC

Show Traffic Time High Quality (TSquare quality) High Density Traffic (13 times of RDS-TMC)

Sukhumvit Road. Rama I Road.

▪ FM-RTIC is capable to broadcast traffic info. 13 times more than RDS-TMC. ▪ FM-RTIC is most appropriate for Asia megacities such as BKK, Jakarta, etc.

Confidential & Proprietary

Toyota Tsusho Electronics (Thailand) Co., Ltd.

Confidential Proprietary

• 1. Instant average speed of Bangkok taxis:

Bangkok Congestion Index, travelling time prediction/estimation

Taxi GPS Data VICS/RTIC Link Road Network

Taxi GPS Data

• 3. Instant Average speed of taxi on each road of

Bangkok

• 2. Instant numbers of taxi passengers (get
• n/off) and their OD (Original-Destination):

demand hotspot, demand prediction

• 5. Estimated instant traffic volume of Bangkok

roads.

• 4. Anomaly/incident detection from changes in

speed from average over Bangkok roads.

GPS and Traffic Info Big Data Analysis

TSQUARE Big Data Analysis Services

HDFS

(Hadoop Distributed File System)

HIVE

(SQL)

PIG

(Scripting)

Map-Reduce

(Distributed Data processing)

HBASE

(DB with real-time access)

TSQUARE Big Data = HADOOP

HADOOP CLUSTERS

Toyota Tsusho Electronics (Thailand) Co., Ltd.

TSQUARE Traffic info with B2B partners

• This private approach TSquare is now ready to provide its B2B

services to all automotive and tier1 suppliers

Confidential & Proprietary

Conclusion and Challenges

• Technology(ICT) changes, Solution

changes, Lifestyle changes then turn loop.

• Taipei and Bangkok have many things in
• common. We should share solutions!
• In Smart City not only IoT but Human,

infrastructure and Vehicle are connected.

• Automated Vehicle and Connected Vehicle

are the trends of ITS, and also TIS.

• Good Business Model will make the

sustainable service. (like Uber, Waze)

Conclusion and Challenges

• ITS as a Service: We need a Service

Platform with Open Standard, Open Data.

• Customise to fit culture/life style.
• Next steps for BKK are last-mile, door-to-

door solution, and bike/car sharing. Let’s share the solution (business matching).

• Collaborations (among public authorities-

academia-private sectors) are essential and effective to taggle the problems and maybe the only way to successful deployment

Thank you

prathom@nectec.or.th

Backup slides

Large-Scale Agent-Based Traffic Simulation for Advanced Traveler Information Strategies ◌ิ◌ั by Apirath Phusittrakool

Source: Prof. Hayashi President of WCTRS

Source: Prof. Hayashi President of WCTRS

Smart City

• Definition
• The Trend of Smart City
• The Smart City and Digital Economy
• How to become the Smart City? at which

areas? Strategy? Co-design? Sustainability?

• Threat (AEC, Special Economic Zone)
• Prioritized the areas?
• What kinds of Service infrastructure

needed? Platforms and Technologies?

• Service Science/ Service Innovation/Design

IEEE Smart City

• Smart city brings together technology,

government and society to enable the following characteristics: ○ a smart economy ○ smart mobility ○ a smart environment ○ smart people ○ smart living ○ smart governance

Platform

• Cloud-based Services
• Internet of Things
• Smart grid, Smart meter
• Open data
• Mobile phone
• Social Media
• Crowd sourcing/funding
