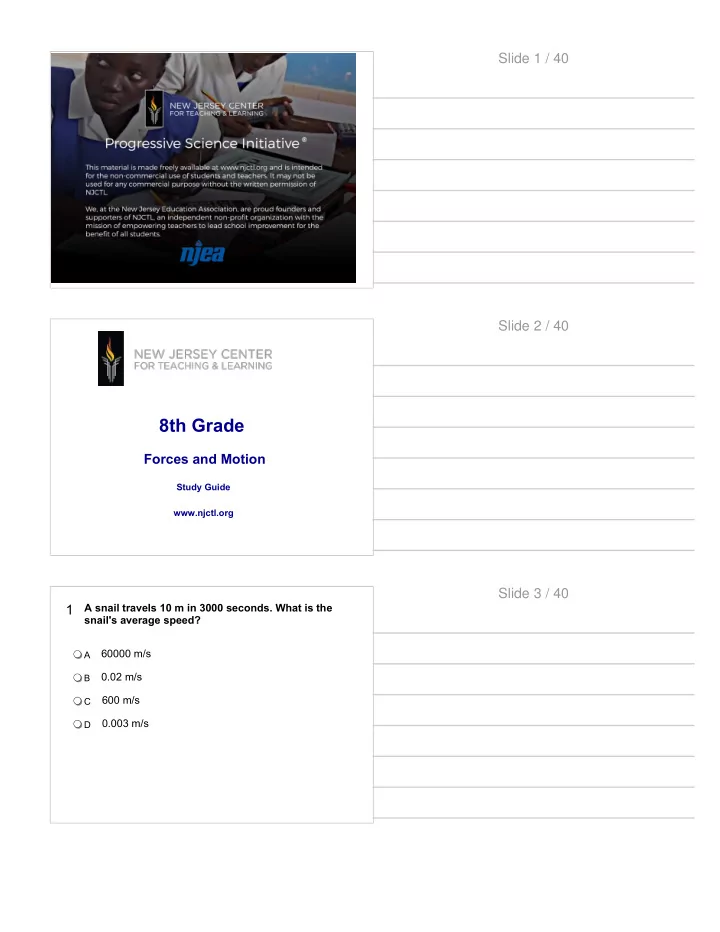

SLIDE 1
Slide 1 / 40
8th Grade
Forces and Motion
Study Guide www.njctl.org
Slide 2 / 40 1
A snail travels 10 m in 3000 seconds. What is the snail's average speed?
A
60000 m/s
B
0.02 m/s
C
600 m/s
D
0.003 m/s
Slide 3 / 40
SLIDE 2 2
A blimp travels at 3 m/s for 1000 s. What distance does the blimp cover in that time?
A
500 m/s
B
3000 m
C
4500 m/s
D
500 m
Slide 4 / 40
3 When your teacher times your mile run at 8.2
minutes, that means your speed was 0.12 mi/min. Was this your average speed or your instantaneous speed?
A Average Speed B Instantaneous Speed
Slide 5 / 40
4 Does a speedometer measure the average speed or
the instantaneous speed?
A Average Speed B Instantaneous Speed
Slide 6 / 40
SLIDE 3 5 A swordfish travels for two hours. The first hour he covers 110 kilometers, and the second hour he covers 110 kilometers. What is the average speed of the swordfish? A 55 km/h B 84 km/h C 110 km/h D 194 km/h
Hint: Remember that average speed is total distance travelled divided by total time
Slide 7 / 40
6 A dog walks outside to go the bathroom every day. If she walks outside at a speed of 3 meters per second and walks 150 meters before she uses the bathroom, how long does it take her? A 50 seconds B 2 minutes C 188 seconds D 90 seconds
Slide 8 / 40
7 Carlos and Gina are riding on their horses to go into
- town. They travel 140 meters in 14 seconds going
- west. What is their velocity?
A 490 m/s west B 10 m/s west C 490 m/s D 10 m/s
Slide 9 / 40
SLIDE 4 8 A car travels 200 km/h west for 2 hours. The car then travels 150 km/h east for one hour. What is the car's position relative to its starting position? A 50 km west B 150 km west C 250 km west D 50 km east
Slide 10 / 40 9
A nitro-methane powered top fuel dragster launches from rest to race against an opponent. Why did the car accelerate?
A
increased speed
B
decreased speed
C
changed direction
Slide 11 / 40
10 A driver hits the brakes to slow down at an
- intersection. As the car's speed is decreasing it has
A positive acceleration B negative acceleration C no acceleration D more information is needed
Slide 12 / 40
SLIDE 5 11 Which of the following graphs depicts the
acceleration of a runner speeding up to pass someone. A B C
x
Y
Speed (m/s) Time (s) x
Y
Speed (m/s) Time (s)
x
Y
Speed (m/s) Time (s)
D
x
Y
Speed (m/s) Time (s)
Slide 13 / 40
12 Which of the following speed vs time graphs corresponds to the position vs time graph shown in the graph below?
A B C
Slide 14 / 40
13 A ball is traveling down a hill at 4 m/s. If the ball increases in speed to 8 m/s in 4 seconds, what is the acceleration of the ball? A 4 m/s B 4 m/s/s C 1 m/s D 1 m/s/s
Slide 15 / 40
SLIDE 6 14 Forces are all around us. Which of the following do you think are examples of forces? (choose all that apply) A Gravity B Friction C Muscles D Wind
Slide 16 / 40
15 What is the SI unit for force? A Pounds B Kilograms C Newtons
Slide 17 / 40 16 A +20 N force acts on a car and at the same time,
a -30 N force acts on the car. What is the net force acting on the car and is it balanced? A
B
C
D + 30 balanced
Slide 18 / 40
SLIDE 7 17 The force of gravitation between an object and a
planet is increased as they move away from each
True False
Slide 19 / 40 18 A 100 kg kid is on the moon, where g = 1.67 m/s2 .
What is the boy's weight? A 83.5 kg B 167 kg C 167 N D 29.9 N
Slide 20 / 40
19 What is the net force acting on the object below?
7 N
Slide 21 / 40
SLIDE 8 20 Is the object in equilibrium? Yes No
7 N
Slide 22 / 40
21 What is the net force acting on the object below?
25 N
Slide 23 / 40
22 Is the object in equilibrium? Yes No
25 N
Slide 24 / 40
SLIDE 9
23 Acceleration due to gravity on Jupiter is 26.1 m/s2 . How much would a 25 kg person weigh on Jupiter?
Slide 25 / 40
24 Acceleration due to gravity on Earth's Moon is 1.67 m/s2 . How much would a 113 kg person weigh on Earth's Moon?
Slide 26 / 40 25 Inertia is the reluctance any material object has
to change its state of motion. True False
Slide 27 / 40
SLIDE 10
26 The law of inertia applies to:
A moving objects B nonmoving objects C both moving and nonmoving objects
Slide 28 / 40
27 Which object has the greatest inertia? A Car B Tennis Ball C Freight Train
Slide 29 / 40 28 A ball will accelerate and increase its velocity
when it feels an unbalanced force. True False
Slide 30 / 40
SLIDE 11
29 When the force acting on an object decreases,
the resulting acceleration will: A remain constant B increase C decrease
Slide 31 / 40 30 When an object's mass is decreased but the
applied force stays the same, the resulting acceleration will: A remain constant B increase C decrease
Slide 32 / 40
31 You are riding your bicycle to the park to meet a few friends. As you ride, you apply a force of 40 N and accelerate at a rate of 0.4 m/s2 . What is the total mass of the bicycle and you? A 75 kg B 100 kg C 120 kg
Slide 33 / 40
SLIDE 12
32 When you sit on a chair, the chair pushes back
with force equal to your weight. True False
Slide 34 / 40
33 Which of the following statements pertains to the third law of motion? A Action and Reaction pairs always act on the same object. B Mass is indirectly proportional to acceleration. C An object at rest will remain at rest unless acted on by an unbalanced force. D If a force occurs, action reaction forces are present.
Slide 35 / 40 34 How can a small toy have the same momentum as
a large car? A toy has large speed B both car and toy are at rest C toy has no mass D A & B
Slide 36 / 40
SLIDE 13
35 If a 3 kg toy truck is moving at 4 m/s, what is the
toy's momentum? A 3 m/s B 2 kgm/s C 12 kgm/s D 12 m/s
Slide 37 / 40
36 What two factors does momentum depend on? A mass and volume B mass and acceleration C mass and velocity D mass and force
Slide 38 / 40 37 The law of conservation of momentum states that
the total momentum after a collision increases from its value before the collision. True False
Slide 39 / 40
SLIDE 14
38 According to Newton's 3rd law, action reaction pairs are equal and opposite to each other. Why do these paired forces sometimes cause different motions if they are equal?
Slide 40 / 40
