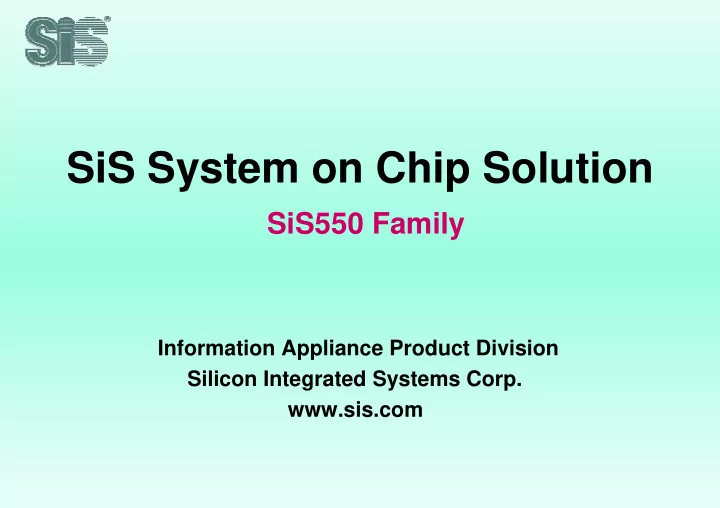

SiS System on Chip Solution

SiS550 Family

Information Appliance Product Division Silicon Integrated Systems Corp. www.sis.com

S i S C

• n

f i d e n t i a l

Agenda

• IAPD Introduction
• SoC Target Products
• SiS Total Solution
• Partners Introduction

S i S C

• n

f i d e n t i a l

IA Product Division

• Became a Division on May 1, 2002
• Key members

Director & GM Yee-Wei Huang Ph.D. R&D Alex Yeh Mkt/FAE/Sales Jason Tsai

• Mission

Provide premium system solutions for post-PC information appliance market

S i S C

• n

f i d e n t i a l

SoC Target Products

iDVD Thin Client POS Home Gateway WebPAD iBOX HDTV Home Theater VOD ScreenPhone Stock Machine Pocket PC / IPC

S i S C

• n

f i d e n t i a l

SiS Total Solution

WinCE Linux Windows Software Software Hardware Hardware 550 551 552

STB, Home Gateway WebPAD, Tablet, Pocket PC Thin Client, IPC,Car PC LCDPC, ScreenPhone, POS WWW & Email DVD, VCD, VOD CD, MP3, Game

S i S C

• n

f i d e n t i a l

Hardware Solution

S i S C

• n

f i d e n t i a l

SOC Family

HDTV Home Theater Car PC VOD iDVD Thin Client POS Home Gateway WebPAD / iBOX ScreenPhone Stock Machine Pocket PC / IPC

X86 CPU 2D Graphics DFP / TV-out TFT / DSTN PCI / USB / IDE 6-Channel Audio LPT / CIR Flash ROM Interface

552

SmartCard Memory Stick

550 +

MPEG-2 Decoder VIP Consumer Digital

Audio Interface MP: now MP: now MP: now 551 +

551 550

Pin-to-Pin Pin-to-Pin

Entertainment Entertainment Security Security

S i S C

• n

f i d e n t i a l

SoC Road Map Driving Forces

• Low Power Consumption

– Low power process technology – Power management circuitry

• Enhanced Performance

– Core frequency/architecture – Hardware accelerator

• Enrich functionality

– High-level Integration – Chip set solution

• Product Oriented Design

– Reference platform

S i S C

• n

f i d e n t i a l

SiS550 Block Diagram

ATA 33/66/100

CF Card

Pri CRT

RGB

SiS301 x86 CPU

SiS550

Joystick PC133 SDRAM

DFP TV 2nd CRT

LPC S/IO

AC’97 Codec

AC’97 AMR 802.11 Wireless V.90 Modem TFT/DSTN LCD PCI USB LPT KB / MS CIR Flash ROM Floppy

S i S C

• n

f i d e n t i a l

SiS551 Block Diagram

ATA 33/66/100

CF Card

Pri CRT

RGB

SiS301 x86 CPU

SiS551

Memory Stick TFT/DSTN LCD Joystick PC133 SDRAM

DFP TV 2nd CRT

LPC S/IO

AC’97 Codec

AC’97 AMR V.90 Modem 802.11 Wireless PCI USB LPT SmartCard KB / MS CIR Flash ROM Floppy

S i S C

• n

f i d e n t i a l

SiS552 Block Diagram

ATA 33/66/100

CF Card

Video Decoder

Pri CRT

RGB

SiS301

AC’97 Codec

AC’97 AMR

x86 CPU DVD Accelerator

SiS552

Consumer Digital Audio I/F SmartCard LPT VIP CIR Memory Stick TFT/DSTN LCD PC133 SDRAM

2nd CRT TV

V.90 Modem

DFP

PCI 802.11 Wireless USB KB / MS

LPC S/IO

Joystick Flash ROM Floppy

SiS Hardware Advantages

Highest Integration Level

SiS550 integrates CPU, MPEG-2 decoder, Smart Card and many more in

• ne SOC chip!

Diverse Expandability

PCI, USB, Memory Stick etc, SiS550 works with whatever device you desire!

Low Cost, Low Power Lowest BOM cost, Fanless, 3.5W max. power consumption Versatile Adaptability

Suitable for various products, STB, WebPAD,Thin Client, ScreenPhone.

Compact Size

Benefiting from integration, your device can be as compact as possible!

S i S C

• n

f i d e n t i a l

Software Solution

S i S C

• n

f i d e n t i a l

SiS Evaluation Platform - Linux

S i S C

• n

f i d e n t i a l

SiS Evaluation Platform - WinCE

S i S C

• n

f i d e n t i a l

Software Advantages

Complete Turn-key Service S/W supports from ? BIOS, Linux BIOS, Drivers, OS kernels, to application. Immediate boot Boot in a BLINK!! Absolute Flexibility Compatible with DOM, DOC for WinCE and Linux Full Function, Small size All the functions you need within 8MB/16MB/32MB

S i S C

• n

f i d e n t i a l

Design Tools

• Circuit and Layout (Evaluation Board)
• Documents (Datasheet , Design Guide)
• Drivers (Windows 98, CE ,CE.NET, Linux)
• S/W Evaluation Kit (Win98, CE, CE.NET,

Linux)

• Partner/Solution Coordination

S i S C

• n

f i d e n t i a l

Customers’ Products (1)

STB (SiS550) Satellite

• IP over DVB
• Ethernet hub/switch

CarPC (SiS550)

• GPS
• Wireless LAN

S i S C

• n

f i d e n t i a l

Customers’ Products (2)

Kiosk (SiS552)

• LCD PC
• Touchscreen
• DVD

Projector Gateway(SiS550)

• Connect with projector
• Immediate slide show
