Signal to noise ratio estimation in passive correlation based imaging Adrien SEMIN Joint work with J. Garnier, G. Papanicolaou and C. Tsogka Institute of Applied and Computational Mathematics Foundation for Research and Technology - Hellas P


slide-1
SLIDE 1

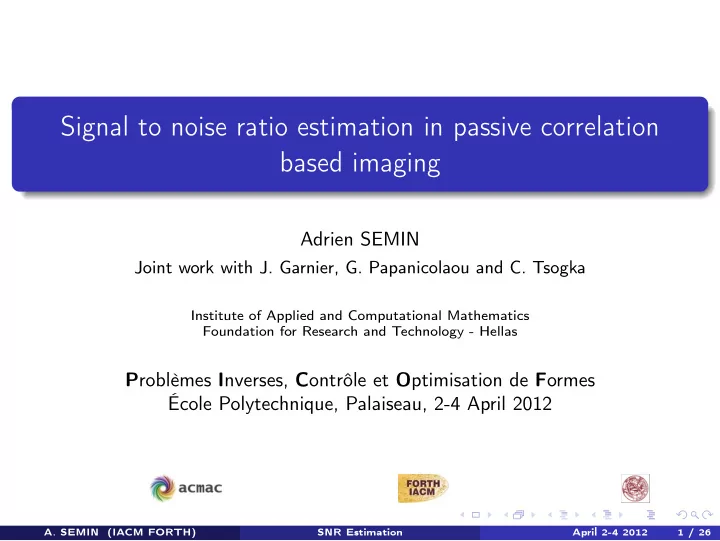

Signal to noise ratio estimation in passive correlation based imaging

Adrien SEMIN

Joint work with J. Garnier, G. Papanicolaou and C. Tsogka

Institute of Applied and Computational Mathematics Foundation for Research and Technology - Hellas

Problèmes Inverses, Contrôle et Optimisation de Formes École Polytechnique, Palaiseau, 2-4 April 2012

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 1 / 26

slide-2
SLIDE 2

Table of contents

1

Introduction

2

Mathematical model Wave equation Cross correlations

3

Migration imaging

4

Numerical results

5

Conclusion

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 2 / 26

slide-3
SLIDE 3

Table of contents

1

Introduction

2

Mathematical model Wave equation Cross correlations

3

Migration imaging

4

Numerical results

5

Conclusion

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 3 / 26

slide-4
SLIDE 4

Cross-correlations of ambient noise recordings

We consider here the problem of imaging using passive incoherent recordings due to ambient noise sources.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 4 / 26

slide-5
SLIDE 5

Cross-correlations of ambient noise recordings

We consider here the problem of imaging using passive incoherent recordings due to ambient noise sources. Idea : use cross-correlations between pairs of sensors (receivers) to retrieve information about the Green’s function in the background medium.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 4 / 26

slide-6
SLIDE 6

Cross-correlations of ambient noise recordings

We consider here the problem of imaging using passive incoherent recordings due to ambient noise sources. Idea : use cross-correlations between pairs of sensors (receivers) to retrieve information about the Green’s function in the background medium. achieved either with equi-distribution of sources or through multiple scattering R.L. Weaver and O.I. Lobkis, “Ultrasonics without a source : thermal fluctuation correlations at MHz frequencies”, Phys. Rev. Lett. 87 (13), 134301, 2001.

  • R. Snieder, “Extracting the Green’s function from the correlation of coda

waves : a derivation based on stationary phase”, Phys. Rev. E 69, 046610, 2005.

  • C. Bardos, J. Garnier and G. Papanicolaou, “Identification of Green’s

functions singularities by cross-correlation of noisy signals”, Inverse Problems, 24, 015011, 2008.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 4 / 26

slide-7
SLIDE 7

Our goal

Our aim is to use these cross-correlations in order to image reflectors (embedded in clutter).

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 5 / 26

slide-8
SLIDE 8

Our goal

Our aim is to use these cross-correlations in order to image reflectors (embedded in clutter). To do so we will use coherent imaging methods, such as travel time migration (and coherent interferometry (CINT)).

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 5 / 26

slide-9
SLIDE 9

Our goal

Our aim is to use these cross-correlations in order to image reflectors (embedded in clutter). To do so we will use coherent imaging methods, such as travel time migration (and coherent interferometry (CINT)). Here we will focus on Signal to Noise Ratio estimation in passive correlation based imaging.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 5 / 26

slide-10
SLIDE 10

Our goal

Our aim is to use these cross-correlations in order to image reflectors (embedded in clutter). To do so we will use coherent imaging methods, such as travel time migration (and coherent interferometry (CINT)). Here we will focus on Signal to Noise Ratio estimation in passive correlation based imaging. Application : Structural Health Monitoring

  • E. Larose, O.I. Lobkis, and R. L. Weaver, “Passive correlation imaging of

a buried scatterer”, J. Acoust. Soc. Am., 119 (6), 2006.

  • K. Sabra et al, “Structural health monitoring by extraction of coherent

guided waves from diffuse fields”, J. Acoust. Soc. Am. 123 (1), 2008.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 5 / 26

slide-11
SLIDE 11

Table of contents

1

Introduction

2

Mathematical model Wave equation Cross correlations

3

Migration imaging

4

Numerical results

5

Conclusion

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 6 / 26

slide-12
SLIDE 12

Mathematical model

We consider a domain Ω containing a reflector O

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 7 / 26

slide-13
SLIDE 13

Mathematical model

We consider a domain Ω containing a reflector O We consider u(t, x) solution of the time-dependent wave equation        ∂2u ∂t2 (t, x) − c2

0∆u = n(t, x)

in Ω \ O u(t, x) = 0

  • n ∂O

+ PML (to model free-space problem)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 7 / 26

slide-14
SLIDE 14

Mathematical model

We consider a domain Ω containing a reflector O We consider u(t, x) solution of the time-dependent wave equation        ∂2u ∂t2 (t, x) − c2

0∆u = n(t, x)

in Ω \ O u(t, x) = 0

  • n ∂O

+ PML (to model free-space problem) c0 is homogeneous propagation speed.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 7 / 26

slide-15
SLIDE 15

Mathematical model

We consider a domain Ω containing a reflector O We consider u(t, x) solution of the time-dependent wave equation        ∂2u ∂t2 (t, x) − c2

0∆u = n(t, x)

in Ω \ O u(t, x) = 0

  • n ∂O

+ PML (to model free-space problem) c0 is homogeneous propagation speed. n(t, x) models noise sources.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 7 / 26

slide-16
SLIDE 16

Noise source term

n(t, x) is a zero mean stationary (in time) random process : E {n(t, x)} = 0

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 8 / 26

slide-17
SLIDE 17

Noise source term

n(t, x) is a zero mean stationary (in time) random process : E {n(t, x)} = 0 n(t, x) satisfies the following cross-correlation relation E {n(t1, x1)n(t2, x2)} = F(t2 − t1)K(x1)δ(x1 − x2)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 8 / 26

slide-18
SLIDE 18

Noise source term

n(t, x) is a zero mean stationary (in time) random process : E {n(t, x)} = 0 n(t, x) satisfies the following cross-correlation relation E {n(t1, x1)n(t2, x2)} = F(t2 − t1)K(x1)δ(x1 − x2)

F(t) is a real-valued even function, has its maximum on t = 0 and has a positive Fourier transform

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 8 / 26

slide-19
SLIDE 19

Noise source term

n(t, x) is a zero mean stationary (in time) random process : E {n(t, x)} = 0 n(t, x) satisfies the following cross-correlation relation E {n(t1, x1)n(t2, x2)} = F(t2 − t1)K(x1)δ(x1 − x2)

F(t) is a real-valued even function, has its maximum on t = 0 and has a positive Fourier transform K(x) characterize the spatial support of noise sources.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 8 / 26

slide-20
SLIDE 20

Cross correlations

assume that we know u(t, x1) and u(t, x2) the time-dependant wave fields recorded by two sensors at x1 and x2 on a time interval [0, T]

20 40 60 80 100 −2 −1 1 2 20 40 60 80 100 −2 −1 1 2

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 9 / 26

slide-21
SLIDE 21

Cross correlations

assume that we know u(t, x1) and u(t, x2) the time-dependant wave fields recorded by two sensors at x1 and x2 on a time interval [0, T]

20 40 60 80 100 −2 −1 1 2 20 40 60 80 100 −2 −1 1 2

their cross-correlation function over the time interval [0, T], and with time lag τ is given by CT (τ, x1, x2) = 1 T

  • u(t, x1)u(t + τ, x2)dt
  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 9 / 26

slide-22
SLIDE 22

Properties

The expectation of CT (with respect to the distribution of the sources) is independent of T : E {CT (τ, x1, x2)} = C(1)(τ, x1, x2) with C(1)(τ, x1, x2) = 1 2π

  • ˆ

D(ω, x1, x2)ˆ F(ω)e−ıωτdω ˆ D(ω, x1, x2) =

  • ˆ

G(ω, x1, y) ˆ G(ω, x2, y)K(y)dy

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 10 / 26

slide-23
SLIDE 23

Properties

The expectation of CT (with respect to the distribution of the sources) is independent of T : E {CT (τ, x1, x2)} = C(1)(τ, x1, x2) with C(1)(τ, x1, x2) = 1 2π

  • ˆ

D(ω, x1, x2)ˆ F(ω)e−ıωτdω ˆ D(ω, x1, x2) =

  • ˆ

G(ω, x1, y) ˆ G(ω, x2, y)K(y)dy The empirical cross correlation CT is a statistical stable self-averaging quantity, i.e. : CT (τ, x1, x2)

T →∞

− → C(1)(τ, x1, x2)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 10 / 26

slide-24
SLIDE 24

Table of contents

1

Introduction

2

Mathematical model Wave equation Cross correlations

3

Migration imaging

4

Numerical results

5

Conclusion

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 11 / 26

slide-25
SLIDE 25

Assumptions

noise sources are spatially localised (gray region) passive sensors (xj)1jJ are located between the sources and the reflector

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 12 / 26

slide-26
SLIDE 26

Stationary phase analysis

Stationary phase analysis done by J. Garnier and G. Papanicolaou shows that the cross correlation C(1)(τ, x1, x2) between two sensors x1 and x2 has two peaks

  • J. Garnier and G. Papanicolaou, “Passive sensor imaging using cross

correlations of noisy signals in a scattering medium”, SIAM J. Imaging Sciences, Vol. 2, pp. 396–437, 2009.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 13 / 26

slide-27
SLIDE 27

Stationary phase analysis

Stationary phase analysis done by J. Garnier and G. Papanicolaou shows that the cross correlation C(1)(τ, x1, x2) between two sensors x1 and x2 has two peaks

  • ne peak (direct arrival) at the travel time between x1 and x2

|x1 − x2| c0

  • J. Garnier and G. Papanicolaou, “Passive sensor imaging using cross

correlations of noisy signals in a scattering medium”, SIAM J. Imaging Sciences, Vol. 2, pp. 396–437, 2009.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 13 / 26

slide-28
SLIDE 28

Stationary phase analysis

Stationary phase analysis done by J. Garnier and G. Papanicolaou shows that the cross correlation C(1)(τ, x1, x2) between two sensors x1 and x2 has two peaks

  • ne peak (direct arrival) at the travel time between x1 and x2

|x1 − x2| c0

  • ne peak (reflected arrival) at the sum of the travel times between xi and the

reflector |x1 − zO| c0 + |zO − x2| c0

  • J. Garnier and G. Papanicolaou, “Passive sensor imaging using cross

correlations of noisy signals in a scattering medium”, SIAM J. Imaging Sciences, Vol. 2, pp. 396–437, 2009.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 13 / 26

slide-29
SLIDE 29

Daylight imaging functional

To keep only the interesting peak that concerns the reflector, the image at a search point z is computed using the following daylight imaging functional : ID(z) =

J

  • j,l=1

C(1),sym

coda

(τ(z, xl) + τ(z, xj), xj, xl),

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 14 / 26

slide-30
SLIDE 30

Daylight imaging functional

To keep only the interesting peak that concerns the reflector, the image at a search point z is computed using the following daylight imaging functional : ID(z) =

J

  • j,l=1

C(1),sym

coda

(τ(z, xl) + τ(z, xj), xj, xl), τ(z, xj) is the travel time between z and xj : τ(z, xj) = |z − xj| c0

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 14 / 26

slide-31
SLIDE 31

Daylight imaging functional

To keep only the interesting peak that concerns the reflector, the image at a search point z is computed using the following daylight imaging functional : ID(z) =

J

  • j,l=1

C(1),sym

coda

(τ(z, xl) + τ(z, xj), xj, xl), τ(z, xj) is the travel time between z and xj : τ(z, xj) = |z − xj| c0 Csym

T,coda is defined by

C(1),sym

coda

(t, xj, xl) =

  • C(1)(t, xj, xl) + C(1)(−t, xj, xl)
  • 1]τ(xj,xl),+∞[(t).
  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 14 / 26

slide-32
SLIDE 32

Daylight imaging functional

To keep only the interesting peak that concerns the reflector, the image at a search point z is computed using the following daylight imaging functional : ID(z) =

J

  • j,l=1

C(1),sym

coda

(τ(z, xl) + τ(z, xj), xj, xl), Csym

T,coda is defined by

C(1),sym

coda

(t, xj, xl) =

  • C(1)(t, xj, xl) + C(1)(−t, xj, xl)
  • 1]τ(xj,xl),+∞[(t).

Proposition

If we consider that the reflector is far enough from the receivers and T is large enough, then we can approximate ID(z) by ID(z) ≃ 2

J

  • j,l=1

CT (τ(z, xl) + τ(z, xj), xj, xl),

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 14 / 26

slide-33
SLIDE 33

Table of contents

1

Introduction

2

Mathematical model Wave equation Cross correlations

3

Migration imaging

4

Numerical results

5

Conclusion

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 15 / 26

slide-34
SLIDE 34

Simulation setup

wave equation on the rectangle [0, 50λ] × [−15λ, 15λ], with a reflector located on [44λ, 46λ] × [−λ, λ], random distribution of sources has support on the rectangle ΩS = [0, 4λ] × [−15λ, 15λ], we record the solution u of the wave equation at J recievers located at xj = (5λ, (j − (J + 1)/2)λ/2), for 1 j J, c0 = 3km s−1,

Figure: Geometry of the passive sensor imaging problem for a daylight illumination.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 16 / 26

slide-35
SLIDE 35

Source term

Dependence in space : K(x) is given by K(x) = 1 |ΩS|1ΩS(x)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 17 / 26

slide-36
SLIDE 36

Source term

Dependence in space : K(x) is given by K(x) = 1 |ΩS|1ΩS(x) Dependence in time : F(t) is given by F(t) = 1 3T

  • F(τ)F(t + τ)dτ

F(t) = sin(B(t − T/2)) B(t − T/2) cos(2πf(t − T/2)) exp

  • −(t − T/2)2

2c2

t

  • B = 0.3 Hz is the bandwidth

f = 0.3 Hz is the central frequency ct = 2.5 s is the correlation time

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 17 / 26

slide-37
SLIDE 37

Computation

Space discretization is done by 8-th order mixed spectral finite elements with Gauss-Lobatto points Time discretization is done by 4-th order Runge-Kutta. We implement the source term by n(t, x) = 1 √Ns

Ns

  • s=1

δ(x − xs) ˆ F−1 (rsF(F)) (t)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 18 / 26

slide-38
SLIDE 38

Computation

Space discretization is done by 8-th order mixed spectral finite elements with Gauss-Lobatto points Time discretization is done by 4-th order Runge-Kutta. We implement the source term by n(t, x) = 1 √Ns

Ns

  • s=1

δ(x − xs) ˆ F−1 (rsF(F)) (t) rs(ω) is a random distribution satisfying rs(−ω) = rs(ω) and following expectations : E {rs(ω)} = 0 and E {rs(ω1)rs(ω2)} = 1 3δ(ω1 + ω2)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 18 / 26

slide-39
SLIDE 39

Daylight imaging functional

Figure: Daylight imaging functional for the homogeneous medium. J = 21

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 19 / 26

slide-40
SLIDE 40

Daylight imaging functional

Figure: Daylight imaging functional for the homogeneous medium. J = 31

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 19 / 26

slide-41
SLIDE 41

Daylight imaging functional

Figure: Daylight imaging functional for the homogeneous medium. J = 41

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 19 / 26

slide-42
SLIDE 42

Daylight imaging functional

Figure: Daylight imaging functional for the homogeneous medium. J = 51

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 19 / 26

slide-43
SLIDE 43

SNR ratio

A good question that naturally arise is “Under what conditions do we obtain such a good image” ?

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 20 / 26

slide-44
SLIDE 44

SNR ratio

A good question that naturally arise is “Under what conditions do we obtain such a good image” ? In other words, “What are the parameters that control the quality of the image, and how” ?

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 20 / 26

slide-45
SLIDE 45

SNR ratio

A good question that naturally arise is “Under what conditions do we obtain such a good image” ? In other words, “What are the parameters that control the quality of the image, and how” ? A partial answer to this question is that the signal to noise ratio (SNR) of the image increases with the number of the receivers, where SNR = |ID|(z∗) maxz=z∗|ID|(z) where z∗ is the point where the image admits its maximal value and z = z∗ means that squares of size 2λ × 2λ centered at z and z∗ do not intersect.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 20 / 26

slide-46
SLIDE 46

SNR ratio versus number of receivers

20 25 30 35 40 45 50 55 60 65 1.5 2 2.5 3 3.5 4 4.5

Figure: SNR computation versus number of receivers (B = 0.3 Hz, T = 800 s)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 21 / 26

slide-47
SLIDE 47

SNR ratio versus time

2000 4000 6000 8000 10000 12000 14000 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Figure: SNR computation versus time (J = 21, B = 0.3 Hz)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 22 / 26

slide-48
SLIDE 48

SNR ratio versus scaled bandwidth

0.2 0.4 0.6 0.8 1 0.5 1 1.5 2 2.5 3 3.5 4 4.5

Figure: SNR computation versus scaled bandwith (J = 61, T = 800 s)

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 23 / 26

slide-49
SLIDE 49

SNR interpretation

SNR ratio is linear with respect to number of receivers

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 24 / 26

slide-50
SLIDE 50

SNR interpretation

SNR ratio is linear with respect to number of receivers SNR ratio is linear with respect to square root of time

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 24 / 26

slide-51
SLIDE 51

SNR interpretation

SNR ratio is linear with respect to number of receivers SNR ratio is linear with respect to square root of time SNR ratio is linear with respect to square root of bandwidth

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 24 / 26

slide-52
SLIDE 52

SNR interpretation

SNR ratio is linear with respect to number of receivers SNR ratio is linear with respect to square root of time SNR ratio is linear with respect to square root of bandwidth We can summarize these results by SNR ∼ J √ BT

  • J. Garnier, G. Papanicolaou, A. Semin and C. Tsogka, “Signal to Noise Ratio

estimation in passive correlation based imaging”, preprint, 2011.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 24 / 26

slide-53
SLIDE 53

Table of contents

1

Introduction

2

Mathematical model Wave equation Cross correlations

3

Migration imaging

4

Numerical results

5

Conclusion

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 25 / 26

slide-54
SLIDE 54

Conclusion and perspectives

SNR analysis consistent with theory

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 26 / 26

slide-55
SLIDE 55

Conclusion and perspectives

SNR analysis consistent with theory Exploit higher order cross-correlations to improve SNR ?

  • J. Garnier and G. Papanicolaou, “Fluctuation theory of ambient noise

imaging”, C. R. Geoscience, 2011.

  • B. Froment, M. Campillo and P. Roux, “Reconstructing the Green’s

function trough iteration of correlations”, C.R. Geoscience, 2011.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 26 / 26

slide-56
SLIDE 56

Conclusion and perspectives

SNR analysis consistent with theory Exploit higher order cross-correlations to improve SNR ?

  • J. Garnier and G. Papanicolaou, “Fluctuation theory of ambient noise

imaging”, C. R. Geoscience, 2011.

  • B. Froment, M. Campillo and P. Roux, “Reconstructing the Green’s

function trough iteration of correlations”, C.R. Geoscience, 2011. Perspective : SNR analysis for inhomogeneous media.

  • A. SEMIN

(IACM FORTH) SNR Estimation April 2-4 2012 26 / 26
