SI View Aquatic Center Schematic Design Aquatic Center Bather Loads 667 Total Pool Bather Load Bathers Rec 260 Bathers Lap 341 Bathers Spl. Pad 144 Bathers Slide 1 Bather Recreation and Leisure Pool Pool Highlights 4,600 Square

SLIDE 1

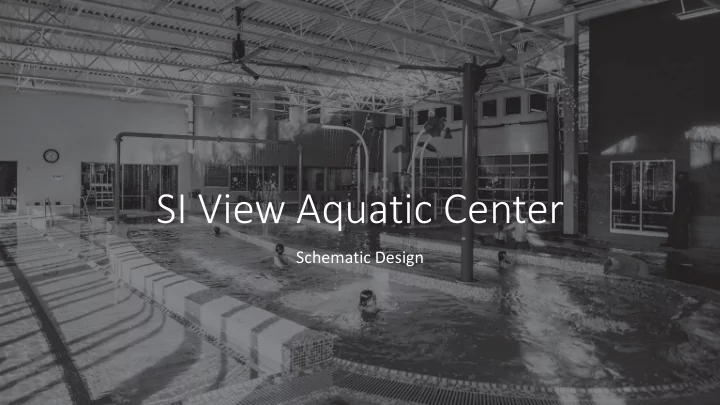

SI View Aquatic Center

Schematic Design

SLIDE 2

Spl. Pad

Pool Bather Load

Aquatic Center Bather Loads

Rec Lap

260 Bathers 341 Bathers 144 Bathers 667 Total Bathers 1 Bather

Slide

SLIDE 3

Recreation and Leisure Pool

Pool Highlights

4,600 Square Feet
Depths from 0’-0” to

6’-3”

Beach Entry
Interactive Water

Features

River Current with

Water Features and Sprays

Flexible 3-Lane 25-

Yard Lap Area

SLIDE 4

Recreation and Leisure Pool

Interactive Play Features & Beach Entry River Current and Play Features Flexible Programmatic Space Social Spaces

SLIDE 5

Competition / Lap Pool

Pool Highlights

25-Meters x 25-Yards
6,216 Square Feet
Depths from 3’-6” to

7’-0”

10 8’-0” 25-Yard Lap

Lanes

8 8’-0” 25-Meter Lanes
25-Yard Floating Cage

Water Polo

1-Meter and 3-Meter

Springboards

Removable Climbing

Wall

Removable Climbing

Wall Springboards

SLIDE 6

Competition / Lap Pool

Water Sports Flexible Programmatic Space

SLIDE 7

Water Slides / Splashpad

WaterSlide Highlights

14’ High Enclosed

Body Slide

109’ Long Slide
Slide Leaves Building

and Returns

Flume Can Be Different

Colors, Levels of Translucency

Riders Can Use

Without Passing Swim Test Splashpad Highlights

2,000 Square Feet
No Standing Water
Infinite Variety of

Shapes / Features / Experiences

Multiple Zones for Age

Appropriate Play

Can Be Themed
Can Include Climb-On

Structure

No Life Guard

Required

SLIDE 8

Water Slide

SLIDE 9
