Medford Aquatic Center Conceptual Design Medford Aquatic Center Overall Layout Medford Aquatic Center Bather Loads Pool Bather Load Rec 260 Bathers Lap 341 Bathers 667 Total Spl. Pad 65 Bathers Bathers Slides 2 Bathers Recreation and

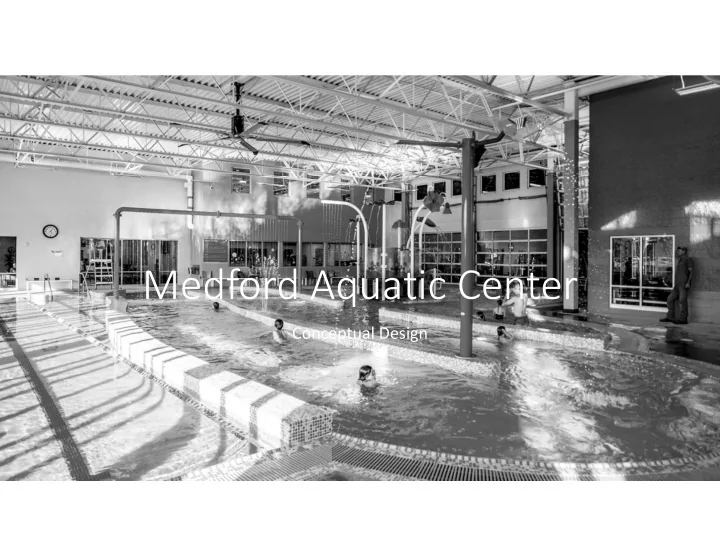

SLIDE 1

Medford Aquatic Center

Conceptual Design

SLIDE 2

Medford Aquatic Center Overall Layout

SLIDE 3

Spl. Pad

Pool Bather Load

Medford Aquatic Center Bather Loads

Rec Lap

260 Bathers 341 Bathers 65 Bathers 667 Total Bathers 2 Bathers

Slides

SLIDE 4

Recreation and Leisure Pool

Pool Highlights

6,500 Square Feet
Depths from 0’-0” to

6’-6”

Beach Entry
Interactive Climb-On

Structure

Interactive Water

Features

River Current with

Water Features and Sprays

Vortex
Flexible 3-Lane 25-

Yard Lap Area

SLIDE 5

Recreation and Leisure Pool

Interactive Structure and Play Features & Beach Entry River Current and Play Features Vortex Flexible Programmatic Space Social Spaces

SLIDE 6

Competition / Lap Pool

Pool Highlights

33-Meters x 25-Yards
8,150 Square Feet
Depths from 3’-6” to

7’-0”

13 8’-0” 25-Yard Lap

Lanes

11 All-Deep Lanes
25-Yard Floating Cage

Water Polo

25-Yard Fixed Cage

Water Polo

SLIDE 7

Competition / Lap Pool

Water Sports Flexible Programmatic Space

SLIDE 8

Water Slides / Splashpad

WaterSlide Highlights

22’ High Enclosed

Body Slides

164’ and 176’ Long

Slides

Slides Leave Building

and Return

One “Speed” Slide
One “Loopy” Slide
Flumes Can Be

Different Colors, Translucency

Riders Can Use

Without Passing Swim Test Splashpad Highlights

1,500 Square Feet
No Standing Water
Infinite Variety of

Shapes / Features / Experiences

Multiple Zones for Age

Appropriate Play

Can Be Themed
Can Include Climb-On

Structure

No Life Guard

Required

SLIDE 9
