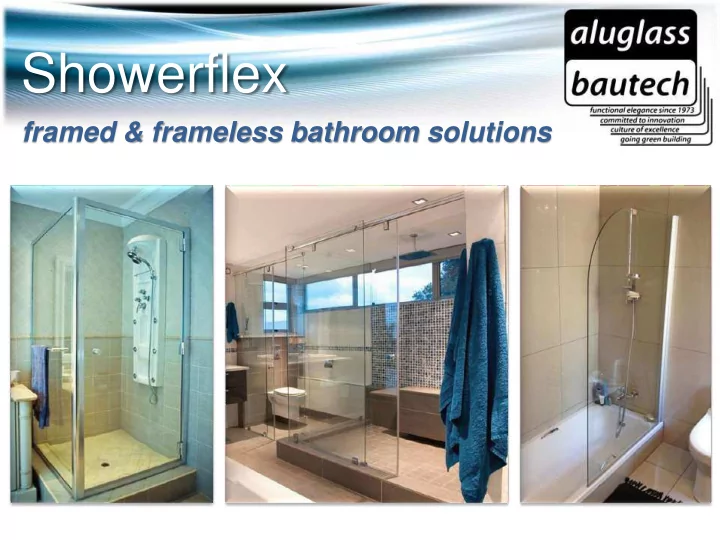

Showerflex

framed & frameless bathroom solutions

• Showerflex framed showerdoors
• SF framed product range
• SF framed guideline
• SF framed examples
• SF framed finishes
• Showerflex frameless showerdoors
• SF frameless guideline
• SF frameless hinge configurations
• SF frameless pivot
• SF frameless finishes
• Bathroom solutions
• Projects to be proud of...

Introduction

• since 1994, Aluglass Bautech has designed, manufactured,

supplied and installed Showerflex shower doors

• best materials and quality workmanship
• associated with SASEMA (South Africa Shower Enclosure

Manufacturers Association)

• conform with prescribed safety standards and manufacturing

specifications of SASEMA

• serve both

 residential markets  commercial markets (eg. hotels and gyms)

• frameless and framed ranges are custom made
• all fittings are coated solid brass with little risk of degradation or

discolouration

Showerflex framed showerdoors

SF framed product range

• hinge
• hinge without top &

bottom rails

• hinge-wide
• pivot
• pivot-wide
• bathscreen
• fixed panels

SF framed guideline

Type of door description min width max width max height glass thickness (mm) (mm) (mm) (mm)

Hinge Hinge positioned on side of frameless glass door closing into frame. 500 900 2100 6 Hinge between walls without top and / bottom rail Hinge positioned on side of frameless glass door closing into frame. 500 900 2100 6 Hinge-wide No frame between door leaf and side panel-

• nly magnetic seal.

800 2000 2100 6 Pivot Pivot block positioned on top and bottom of frameless door closing onto frame. Domestic purposes only, not recommended for commercial or public use 600 800 2100 6 Pivot-wide No frame between door leaf and side panel-

• nly magnetic seal.Domestic purposes only,

not recommended for commercial or public use 900 2000 2100 6 Bathscreen narrow style long hinge mounted against wall with frameless glass 650 1000 1800 6 Fixed panel framed or fixed panel with or without cut-outs 200 1400 2100 4 - 6

Hinge without top and bottom rails Hinge Hinge - wide Pivot Bathscreen

SF framed examples

Extrusion finishes

• white powder coated
• natural anodised
• polished gold anodised
• polished silver anodised
• polished brass anodised
• powder coated to

specification Glass finishes

• clear
• tinted
• sandblasted
• patterned

SF framed finishes

Showerflex frameless showerdoors

Type of door Series description # of hinges max width max height glass thickness (mm) (mm) (mm)

frameless hinge Geneva series Hinge positioned on side of frameless glass door closing

• nto magnetic seal of

frameless panel 2 711 2100 8, 10 or 12 frameless hinge Vienna series Hinge positioned on side of frameless glass door closing

• nto magnetic seal of

frameless panel 2 914 2100 8, 10 or 12 frameless pivot Prima series Pivot block positioned on top and bottom of frameless door closing onto magnetic seal of frameless panel 2 787 2100 8 or 10

SF frameless guideline

SF frameless hinge configurations

Wall mount hinge door with in-line panel. Towel rail handle on door. Corner shower with fixed panel, return panel and wall mounted hinge door. Towel rail handle on door. Wall mounted hinged door between 2 walls. Towel rail handle on door. Frameless bath screen with fixed panel and hinged leaf.

SF frameless hinge configurations examples

SF frameless pivot

SF frameless finishes

Hardware finishes

• satin chrome
• polished chrome
• polished brass

Glass finishes

• clear
• tinted
• sandblasted

Bathroom solutions

Not ONLY custom made shower & bath enclosures, but toilet and other glass enclosures to suit YOUR desired look.

Projects to be proud of...

Michelangelo Towers Melrose Arch Apartments Raphael Apartments Mercure Hotel Midrand Davinci Penthouse Holiday Inn Village Walk City Lodges across South Africa Sandhurst Towers Radisson Hotel Gabon and many residential homes….
