SEMI AUTOMATIC INSERTION AND VERIFICATION OF BALL AND SCREW-ON PRESENTATION GRAIN ON PUMP BODY La Procmatech Srl , ottempera tutte le disposizioni previste dagli artt. 11, 12 e 13 del D.Lgs. 196/2003, nonch l'applicazione degli ar tt. dal 33 al 41

SLIDE 1

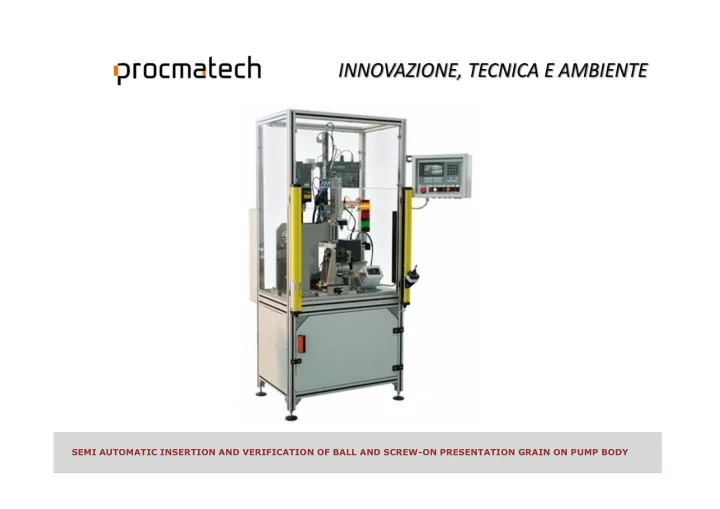

SEMI AUTOMATIC INSERTION AND VERIFICATION OF BALL AND SCREW-ON PRESENTATION GRAIN ON PUMP BODY

SLIDE 2

La Procmatech Srl, ottempera tutte le disposizioni previste dagli artt. 11, 12 e 13 del D.Lgs. 196/2003, nonché l'applicazione degli ar tt. dal 33 al 41 di cui al Capo II del suddetto Decreto.

SLIDE 3

PLANT insertion and verification bench for the presence of ball and screwing on the pump body SECTOR Automotive ELEMENT PROCESSED BODY PUMP

THEORETICAL PRODUCTION CADENCE (at 100% efficiency)

Cicle: Max. 12 Sec/Pez MINIMUM EFFICIENCY 95% MAIN FEATURES The semiautomatic bench allows the insertion of the sphere and subsequently the screwing of the grain on the pump body. The operations performed are:

Positioning of the pump body in the relative workpiece holder
Closing the pump casing
Insertion of the sphere and control of its presence
Manual insertion and screwing of the grain
Screw tightening of the grain and torque / angle control
Pump marking
Unlocking and removing the finished pump

NOTE Command logic with PLC Operator panel Automatic transfer of the pump body between two workstations Safety light curtain operator area COMPONENTS Manual element loading / unloading (1 operator) MAIN INTEGRATED SYSTEM ❑ Verification system for the presence of a sphere by means of a potentiometric travel transducer placed near ❑ automatic on sled ❑ Automatic screwing system with torque / angle control ❑ Micropercussion marking system (good pieces).
