Seismic Hazard in the United States Open Lecture Seminar JNES/IAEA Kashiwazaki Seismic Symposium Niigata Institute of Technology Dr. Annie Kammerer, P.E. November 2010 1 Nuclear Renaissance 2 Recent Earthquakes & Existing US plants

slide-1
SLIDE 1

1

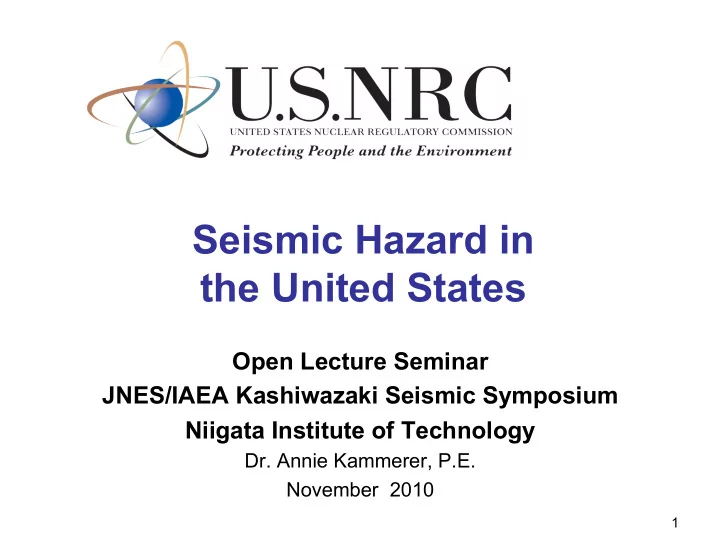

Seismic Hazard in the United States

Open Lecture Seminar JNES/IAEA Kashiwazaki Seismic Symposium Niigata Institute of Technology

  • Dr. Annie Kammerer, P.E.

November 2010

slide-2
SLIDE 2

2

Nuclear Renaissance

slide-3
SLIDE 3

Recent Earthquakes & Existing US plants

3

Plants Earthquakes

slide-4
SLIDE 4

Fault Map of California

slide-5
SLIDE 5

5

Diablo Canyon Nuclear Plant San Luis Obispo California

slide-6
SLIDE 6

Fault Map of California

6 Santa Barbara

slide-7
SLIDE 7
  • Dr. Hardebeck USGS
slide-8
SLIDE 8

8

Plate Tectonics

slide-9
SLIDE 9

USGS Global Tectonics Map

9

slide-10
SLIDE 10

Tectonic Map of Japan

Faults and earthquakes 1900-2007

10

slide-11
SLIDE 11

USGS Global Tectonic Map

11

slide-12
SLIDE 12

Global Seismicity

NASA DATM

12

slide-13
SLIDE 13

13

US National Seismic Hazard Map

slide-14
SLIDE 14

WHY?

14

slide-15
SLIDE 15

Super continent Gondwana and Pangea just before the formation of the Atlantic Ocean

Atlantic Geoscience Society

15

slide-16
SLIDE 16

Images Courtesy of Ron Blakey, Northern Arizona University compiled for this presentation by Greg Willis of the Northern Virginia Community College 16

Video: Formation of the US

slide-17
SLIDE 17

Separation of the Super Continents

Rifting that formed Atlantic Ocean

17

slide-18
SLIDE 18

Surface rift zones in the U. S. (in purple)

18

slide-19
SLIDE 19

Surface rift zones in the U. S. (in purple)

19

slide-20
SLIDE 20

Bouguer gravity map of United States

20

slide-21
SLIDE 21

Bouguer gravity map of United States

21

slide-22
SLIDE 22

General Tectonic Zones

22

Plate Boundary Mountain Building Failed Rifts Meteor Impact

slide-23
SLIDE 23

National Seismic Hazard Map

23

Mountain Building Failed Rifts Meteor Impact Plate Boundary

slide-24
SLIDE 24

North American Glaciations

24

10,000 years ago 18,000 years ago

slide-25
SLIDE 25

Subduction of the Farallon Plate

Figures by NASA and Levander et al (1999)

25

slide-26
SLIDE 26

Subduction of the Farallon Plate

Figures by University of Munich and Wannamaker et al.

26

slide-27
SLIDE 27

Earthquakes in New Madrid

United States Geological Survey

27

slide-28
SLIDE 28

Intensity Map of New Madrid Earthquake 1811

National Earthquake Information Center

28

Actual Map of Observations USGS Prediction

slide-29
SLIDE 29

29

slide-30
SLIDE 30

Quarternary Fault and Fold Database

United States Geological Survey

30

slide-31
SLIDE 31

Damaging Earthquakes 1750 to 1996

United States Geological Earthquakes

31

slide-32
SLIDE 32

But, we have to build things so…

WHAT DO WE DO?

32

slide-33
SLIDE 33

Basic steps in seismic hazard…

  • Characterize all possible earthquake

sources that may cause shaking at your location

  • Determine the level of shaking those

sources can cause at your location

33

slide-34
SLIDE 34

To characterize the sources and develop a regional source model, you need to synthesize many kinds of data

Source model

Seismicity Geology Tectonics Magnetics Gravity Paleo- seismic GPS Crustal stress Crustal geophysics

34

slide-35
SLIDE 35

Often data doesn’t agree or the picture is incomplete, so a logic tree is used to show alternative models

Source Characterization model Seismicity Geology Tectonics Magnetics Gravity Paleo- seismic GPS

35

Branch 3 Branch 2 Branch 1

Source Branch Option 1 Branch

  • ption 1

Branch

  • ption 2

Branch Option 2 Branch

  • ption n
slide-36
SLIDE 36

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS trace
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

36

slide-37
SLIDE 37

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS trace
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

37

slide-38
SLIDE 38

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS trace
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

38

slide-39
SLIDE 39

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS trace
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

39

slide-40
SLIDE 40

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS trace
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

40

slide-41
SLIDE 41

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS (geodetics)
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

41

slide-42
SLIDE 42

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS trace
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

42

slide-43
SLIDE 43

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS trace
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

43

slide-44
SLIDE 44

Data types

  • Recorded & historic

seismicity

  • Geology
  • Tectonics
  • Magnetics
  • Gravity
  • GPS trace
  • Crustal Stresses
  • Surface geophysics
  • Paleoseismic

44

slide-45
SLIDE 45

There are two general types of sources

  • Fault sources
  • Area sources

– Also called distributed seismicity or background sources – Session on distributed seismicity at the workshop

45

Area Source Site

slide-46
SLIDE 46

46

Characterization of Area Sources

Figure from Hardebeck (USGS)

slide-47
SLIDE 47

Magnitude recurrence relationships

47

3 4 5 6 7 8

Annual Rate of Earthquakes Earthquake Magnitude

slide-48
SLIDE 48

So we now know about the earthquake sources, but…

WHAT DOES IT MEAN TO ME?

48

slide-49
SLIDE 49

Ground motion prediction equations

49

Peak Ground Acceleration (g)

slide-50
SLIDE 50

Uncertainty

  • Aleatory variability

– Randomness inherent in nature

  • Epistemic uncertainty

– Model uncertainty resulting from incomplete data, not fully understanding the processes involved, or from using a simplified model

50

slide-51
SLIDE 51

New Japanese code for nuclear plant accounts for uncertainty and beyond design basis ground motions

  • Assesses plants for earthquake motions

beyond what the extreme events used for design and review

  • Very important for increased safety
  • Acknowledges that an exceedance can
  • ccur (though highly unlikely)

51

slide-52
SLIDE 52

We have the sources, we have ground motion prediction equations…

WHAT NOW?

52

slide-53
SLIDE 53

Deterministic seismic hazard assessment

53

  • “Worst case” scenario analysis based on

known faults

  • Need both fault information

(seismic source characterization)

  • …and ground motion prediction equations
  • Challenging to determine the worst case
  • Uncertainty in fault addressed through

conservative assumptions

slide-54
SLIDE 54

Probabilistic seismic hazard assessment

54

Find effects of all possible earthquakes, multiply each by the likelihood it will actually happen, combine the events

slide-55
SLIDE 55

Once we have the ground motion levels, we can design the plants

  • Design of the plants includes a lot of

“seismic margin”

  • This means that the structures, systems,

and components can survive loads much high then the design shaking levels

  • This is why the KKNPP performed well,

even given very high shaking levels

55

slide-56
SLIDE 56

Also use defense-in-depth approach

  • Redundancy in systems
  • Design well, but plan actions to be

taken in unlikely situations

  • Multiple layers of defense and

containment to fully contain nuclear materials in worse cases

56

slide-57
SLIDE 57

US actions in response

  • The 2007 earthquake

had lessons for the NRC as well

  • Currently implementing

“ShakeCAST” system to improve preparedness, situational awareness, and our ability to get information to the public

57

slide-58
SLIDE 58

58

Questions?
