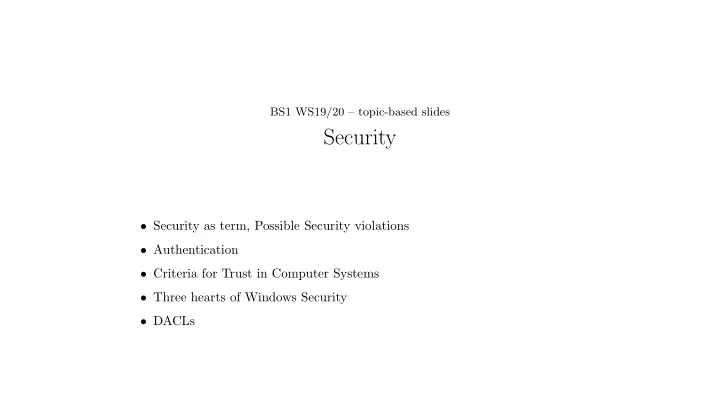

BS1 WS19/20 – topic-based slides

Security

• Security as term, Possible Security violations
• Authentication
• Criteria for Trust in Computer Systems
• Three hearts of Windows Security
• DACLs

Operating Systems 20

A Look at Security

• System is secure if its resources are utilized and access is as

intended under all circumstances

• Security violations:
• Unauthorized reading of data (theft of information) – Confjdentiality
• Unauthorized modifjcation of data – Integrity
• Unauthorized destruction of data – Integrity, Availability
• Security measures:
• Physical
• User authorization
• Weakness at high-level security may circumvent low-level

(operating system) measures

Operating Systems 21

Authentication

• Username/password, biometric ID, smartcards, 2FA
• Special case of keys/capabilities
• System generated vs. User generated passwords

(hard to remember/easy to guess)

• Paired passwords: system selects one/user responds appropriately
• How to store passwords securely
• ne-way functions executed on passwords

–

easy to calculate but hard to invert

• Shadow passwords

–

restricted access to password fjles

Operating Systems 22

A1 Verified Design B3 Security Domains B2 Structured Protection (Trusted XENIX) B1 Labeled Security Protection (HP-UX, Trusted IRIX, Tru64 UNIX) C2

Controlled Access Protection (highest level considered practical for general purpose OS)

C1 Discretionary Access Protection (obsolete) D Minimal Protection (e.g. DOS)

Trusted Computer System Evaluation Criteria

Operating Systems 23

Common Criteria

• New standard, called Common Criteria (CC), is the new standard

for software and OS ratings

• Consortium of US, UK, Germany, France, Canada, and the Netherlands in 1996
• Became ISO standard 15408 in 1999
• For more information, see http://www.commoncriteriaportal.org/ and

http://csrc.nist.gov/cc

• CC is more fmexible than TCSEC trust ratings
• includes concept of Protection Profjle to collect security requirements into easily

specifjed and compared sets, and the concept of Security Target (ST) that contains a set of security requirements that can be made by reference to a PP

Operating Systems 24

A Note About Physical Security

• Security is harder to maintain if someone has physical access:
• attackers can always destroy data
• attackers can retrieve and modify unencrypted data by booting a live system

–

File System Protection Mechanisms don’t apply

• Complete Encryption is the only way to secure data on systems

that can have compromised physical security (like laptops).

Operating Systems 25

Security Components

System Service Dispatcher System Threads User Mode

Kernel Mode

Object Mgr. Windows USER, GDI File System Cache

I/O Mgr

Device & File Sys. Drivers Plug and Play Mgr. Power Mgr. Security Reference Monitor Virtual Memory Processes & Threads Local Procedure Call Graphic s Drivers Kernel (kernel mode callable interfaces) Configura- tion Mgr (registry) WinLogon MSGINA LSASS

Active Directory

LSA Server

SAM Server

MSVC1_0.dll Kerberos.dll LSA Policy

Event Logger Active Directory

SAM

Operating Systems 26

The three hearts of Windows Security

• Local Security Authority (LSA) -

as local user-mode process

• Heart of user authentication on local machine
• LSA - on domain controller
• Heart of user authentication on networked machines
• Security Reference Monitor (SRM)
• Heart of object access protection

Operating Systems 27

Security Components

• Local Security Authority
• User-mode process (\Windows\System32\Lsass.exe) that implements

policies (e.g. password, logon), authentication, and sending audit records to the security event log

• LSASS policy database: registry key HKLM\SECURITY

WinLogon MSGINA LSASS NetLogon

Active Directory

LSA Server SAM Server MSVC1_0.dl Kerberos.dll

LSA Policy

Event Logger

Active Directory SAM

Operating Systems 28

LSASS Components

• Security Account Manager (SAM) Service
• A set of subroutines (\Windows\System32\Samsrv.dll ) responsible for managing

the database that contains the usernames and groups defjned on the local machine

• SAM database: A database that contains the defjned local users and groups,

along with their passwords and other attributes. This database is stored in the registry under HKLM\SAM.

• Password crackers attack the local user account password hashes stored in the

SAM

Operating Systems 29

LSASS Components

• Active Directory
• A directory service that contains a database that stores information about objects

in a domain

• A domain is a collection of computers and their associated security groups that

are managed as a single entity

• The Active Directory server, implemented as a service, \Windows\System32\

Ntdsa.dll, that runs in the Lsass process

Operating Systems 30

Protecting Objects

• bject access is gated by the Security Reference Monitor (SRM)
• performs access validation at the time that an object is opened by a process
• Access validation is a security equation that consists of the following:
• Desired Access: the type of access that is being requested.

–

must be specifjed up front,

–

include all accesses that will be performed on the object as a result of the validation.

• Token: identifjes the user that owns the process, including their privileges

–

Threads can adopt a special type of token called an “impersonation token” that contains the identify of another account.

• The object’s Security Descriptor

–

contains a Discretionary Access Control List (DACL),

–

describes the types of access to the object users are allowed.

Operating Systems 31

Handles and Security

If the validation succeeds, a handle is created in the process requesting access and through which the process can accesses the resource

• Changing security on an object only afgects subsequent opens
• Processes that have existing handles can continue to access objects with the

accesses they were granted

• E.g. changing permissions on a share won’t afgect currently connected users

Operating Systems 32

Access Control Lists

• ACL is a set of Access Control List Entries (ACEs)
• 2 types: access-allowed / access-denied
• Each ACE contains SID and access mask
• Order of ACEs in ACL is important:
• First-Fit algorithm
• frequently: access-denied ACEs fjrst
• implemented by explorer GUI
• ther schemes possible

Operating Systems 33

Access Control Entries (ACEs)

• Each ACE includes an access mask
• Defjnes all possible actions for a particular object type
• Each object can have up to 16 specifjc access types

(specifjc access mask)

• Standard types apply to all objects:
• SYNCHRONIZE – allow a process to wait on signaled state,
• WRITE_OWNER – assign write owner,
• WRITE_DAC – write access to discretionary ACL,
• READ_CONTROL – access to security descriptor,
• DELETE – grant/deny delete access
• Generic types
• FILE_GENERIC_READ, FILE_GENERIC_WRITE, FILE_GENERIC_EXECUTE

Operating Systems 34

Discretionary Access Control Lists DACLs

• DACLs consist of zero or more Access Control Entries
• A security descriptor with no DACL allows all access
• A security descriptor with an empty (0-entry) DACL denies all access
• An ACE is either “allow” or “deny”

Read, Write, Delete, ... SID Access Mask ACE Type

Operating Systems 35

Access Check - recap

• ACEs in the DACL are examined in order
• Does the ACE have a SID matching a SID in the token?
• If so, do any of the access bits match any remaining desired accesses?
• If so, what type of ACE is it?

–

Deny: return ACCESS_DENIED

–

Allow: grant the specifjed accesses and if there are no remaining accesses to grant, return ACCESS_ALLOWED

• If we get to the end of the DACL and there are remaining desired accesses, return

ACCESS_DENIED

Operating Systems 36

Example: Access granted

Security Token User ID: FredMgr Group Ids: Users Mgrs Everyone Privileges: None Desired access read/write File object Security descriptor AccessAllowed FredMgr Read (RX) AccessAllowed Mgrs Special Access(RW) AccessAllowed Everyone Special Access(X) ACE ACE ACE Discretionary Access Control List

Operating Systems 37

Example: Access denied

Security Token User ID: FredMgr Group Ids: Users Mgrs Everyone Privileges: None Desired access read/write File object Security descriptor AccessDenied Mgrs (No Access) AccessAllowed FredMgr Read(RX) AccessAllowed Everyone Write(W) ACE ACE ACE Discretionary Access Control List

Operating Systems 38

UNIX File Protection

• Access rights can be independently defjned for:
• (u) user

Owner of a fjle (defaults to creator)

• (g) group

Group

• (o) other

all other users of the system

• Example:

$> ls -lisa total 2 421908 1 drwxr-xr-x 2 apolze 1024 Jan 7 15:06 . 116884 1 drwxr-xr-x 13 apolze 2048 Jan 7 15:06 .. 116992 0 -rw------- 1 apolze 0 Jan 7 15:05 Mail.txt 116991 0 -rw-rw‐rw‐ 1 apolze 0 Jan 7 15:05 test.c
