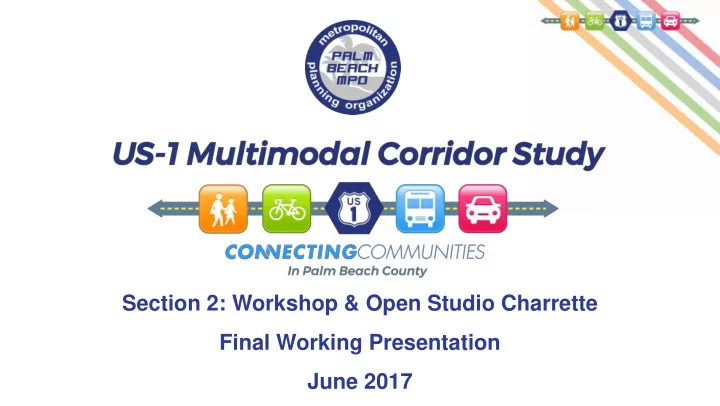

Section 2: Workshop & Open Studio Charrette Final Working Presentation June 2017 Project Corridor ~42 MILES 14 COMMUNITIES HIGHEST BUS RIDERSHIP Consultant Teams Kimley-Horn Kittelson & Associates, Inc. Treasure Coast
SLIDE 2
SLIDE 3
Consultant Teams
▪ Kimley-Horn ▪ Kittelson & Associates, Inc. ▪ Treasure Coast Regional Planning Council
SLIDE 4
Project Goals
▪ Multimodal Corridor Vision ▪ Implementable Plans ▪ Connect Pedestrian & Bicycle Facilities ▪ Upgrade & Expand Transit Service ▪ Community Health, Safety & Economic Development
SLIDE 5
Project Corridor
▪ Section 1: Boca Raton ▪ Section 2: Delray Beach, Boynton Beach & Gulf Stream ▪ Section 3: Hypoluxo, Lantana & Lake Worth ▪ Section 4: West Palm Beach ▪ Section 5: Riviera Beach, Lake Park & North Palm Beach ▪ Section 6: Juno Beach, Jupiter & Palm Beach Gardens
SLIDE 6
Transportation Improvement Program (TIP) Projects FY 17-21
SLIDE 7
Transportation Improvement Program (TIP) Projects FY 17-21
▪ FM# 436896-1 (Lowson Boulevard/SW 10th Street from Military Street to SE 6th Avenue)
SLIDE 8
Transportation Improvement Program (TIP) Projects FY 17-21
▪ FM# 436896-1 (Lowson Boulevard/SW 10th Street from Military Street to SE 6th Avenue) ▪ FM# 438395-1 (George Bush Boulevard from NE 2nd Avenue to SR A1A)
SLIDE 9
Transportation Improvement Program (TIP) Projects FY 17-21
▪ FM# 436896-1 (Lowson Boulevard/SW 10th Street from Military Street to SE 6th Avenue) ▪ FM# 438395-1 (George Bush Boulevard from NE 2nd Avenue to SR A1A) ▪ FM# 437834-1 (US-1/SR 5 from north of George Bush Boulevard to North of Murano Bay Drive)
SLIDE 10
Key Findings
- High transit ridership
- Critical pedestrian/bicycling safety issue, especially at night
- Employment corridor
- Redevelopment occurring
- Concentrations of lower income, lower education populations
- Concentrations of transit-dependent and minority populations
SLIDE 11
Health Impact Assessment
SLIDE 12
Health Indicator Short List
- Mental Health / Depression Admissions
- Preventative Health Care Visits
- Obesity / Diabetes
- Respiratory Disease / Asthma
- Households with access to healthy food sources within
15 min
Households with access to jobs within 30 min Taxable land value Households with access to health care facilities within 30 min Households with access to educational facilities within 30 min Quality of Life / Social Interaction Bike and Pedestrian Crash Rates Transit ridership / mode split
SLIDE 13
Enhanced Transit
Source: Kittelson and Associates
SLIDE 14
Function
▪ U.S. 1 is a “Main Connector” serving downtown areas in the eastern core of Palm Beach County ▪ U.S. 1 distributes people to businesses, neighborhoods, and important community destinations
SLIDE 15
The Davises- Boynton Beach
SLIDE 16
SLIDE 17
SLIDE 18
The Davis Family- Journey Home
SLIDE 19
SLIDE 20
SLIDE 21
SLIDE 22
“Dangerous By Design”
SLIDE 23
“Dangerous By Design”
SLIDE 24
SLIDE 25
“Dangerous By Design”
SLIDE 26
Beautiful but dysfunctional
SLIDE 27
SLIDE 28
SLIDE 29
Recap of Workshop/Open Studio Charrette
▪ Group Walking Tour/Activity ▪ Build-a-Street ▪ Priority Pyramid ▪ Intersection Design ▪ Site Locations for BRT Stops
SLIDE 30
Roadway Character Potential Station Areas
SLIDE 31
Lindell Blvd to Tropic Blvd
▪ 124 feet of Right-of-Way
▪ Designated Bike Lanes Two-Way Cycle Tracks in both directions ▪ Street Trees ▪ Bio Swale between Travel Lane & Two-Way Cycle Tracks
SLIDE 32
Gulfstream Blvd to Boynton Beach Blvd
▪ 100 feet of Right-of-Way
▪ Bio Swale between Travel Lane & Designated Bike Lanes
SLIDE 33
Stanley Weaver Canal to NE 15th Ave
▪ 102 feet of Right-of-Way
▪ Buffer between Travel Lane and Designated Bike Lane
SLIDE 34
NE 15th Ave to Miner Rd
▪ 92 feet of Right-of-Way
▪ Sidewalk on the west side ▪ Buffered Bike Lanes Separated Bike Lane
SLIDE 35
US-1 at Lindell Blvd
SLIDE 36
US-1 at Linton Blvd
SLIDE 37
US-1 at George Bush Blvd
SLIDE 38
US-1 at Ocean Ave
SLIDE 39
US-1 at NE 15th Ave
SLIDE 40
SLIDE 41
Priority Pyramid
SLIDE 42
Conceptual Stop Locations
Major Cross Street Bus Transfer >60 Bus Riders / Day Bolt Stop Connection to Rail Proximity to Destination Lindell Blvd X Linton Blvd X X X X Atlantic Ave X X X X X X Gulfstream Blvd Woolbright Rd X X Boynton Beach Blvd X X X X X X Gateway Blvd X X
Boca Raton Delray Beach Gulf Stream Boynton Beach Hypoluxo Lake Worth Lantana West Palm Beach Riviera Beach Lake Park North Palm Beach Palm Beach Gardens Juno Beach Jupiter
PGA Blvd Indiantown Rd Northlake Blvd Blue Heron Blvd Okeechobee Blvd Southern Blvd Forest Hill Blvd Lake Worth Rd Lantana Rd Boynton Beach Blvd Atlantic Ave Yamato Rd Glades Rd
42
SLIDE 43
Transit Characteristics
SLIDE 44
Key Priorities 1 2 3 4 4
SLIDE 45
Typical BRT Station
8’ 10’ 5’ 20’ 30’ 10’ 4’ 6’
Boarding Area Transit Shelter Information Kiosk Bike Racks
SLIDE 46
▪ Introduce Green Space ▪ Locate Stops in Existing Space; Improve Cross- Connectivity ▪ Be Context Sensitive
SLIDE 47
▪ Reconnect The Network ▪ Locate Stop at Existing Mid-Block Crossing ▪ Build on Planned Development (Phased) ▪ Introduce Green Space ▪ Mix Uses ▪ Be Context Sensitive
SLIDE 48
▪ Reconnect The Network ▪ Front Buildings on Priority Streets ▪ Build on CRA Planned Development ▪ Connect to TRCL ▪ Facilitate Street Crossings ▪ Mix Uses ▪ Be Context Sensitive
SLIDE 49
▪ Reconnect The Network ▪ Front Buildings on Priority Streets ▪ Improve Transit Stations ▪ Mix Uses ▪ Be Context Sensitive
SLIDE 50
Workshop/Charrette Schedule
SLIDE 51
Workshop/Charrette Schedule
SLIDE 52
Schedule
SLIDE 53
Schedule
We are Here
