SDIO: a new peripheral attack vector Research Project 2 Thom Does Dana Geist thom.does@os3.nl dana.geist@os3.nl Introduction Secure Digital Input Output (SDIO) Adds I/O functions to SD PDAs, tablets, laptops SDIO

slide-1
SLIDE 1

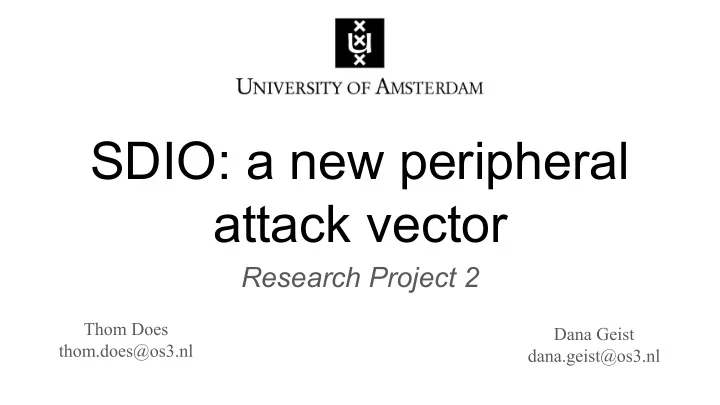

SDIO: a new peripheral attack vector

Research Project 2

Thom Does thom.does@os3.nl Dana Geist dana.geist@os3.nl

slide-2
SLIDE 2

Introduction

  • Secure Digital Input Output (SDIO)

○ Adds I/O functions to SD ○ PDAs, tablets, laptops

  • SDIO presents similarities with USB
  • BadUSB attack (2014)

○ Inject keystrokes ○ Rogue DHCP

  • Seemingly no protections to prevent

BadUSB-like attacks

2

slide-3
SLIDE 3

Research Question

Could SDIO be used as a new attack vector on SDIO-aware hosts?

3

slide-4
SLIDE 4

State of art

  • No previous research on SDIO as an attack vector
  • SD/SDIO specifications

○ Only simplified version available without license

  • SD card hack (2013)

○ Several microSD cards were tested ○ Reversed engineered firmware ○ Developed novel applications for microcontroller

4

slide-5
SLIDE 5

Attack path: WLAN SDIO card

Step 1

5

slide-6
SLIDE 6

Attack path: WLAN SDIO card

Step 1

6

slide-7
SLIDE 7

Attack path: WLAN SDIO card

Step 1

7

slide-8
SLIDE 8

Attack path: WLAN SDIO card

Step 2

8

slide-9
SLIDE 9

Attack path: WLAN SDIO card

Step 3

9

slide-10
SLIDE 10

SDIO Stack

10

slide-11
SLIDE 11

Physical Layer: SPI vs. SD

SPI SD Wide variety of applications Used by SD cards and readers Well-known “open” protocol License required Simple (one data line) More complex (commands, data lines) Supported natively by many MCUs Special purpose MCUs or bitbanging Fallback protocol for SD Default for SD

11

slide-12
SLIDE 12

SDIO Layer

  • Maintained by SD association
  • Documentation requires licensing
  • Defines SDIO commands

○ Formats ○ Initialization ○ Transfer modes

  • Master-Slave based protocol

○ The card reader is the Master ○ The SDIO card is the slave

12

slide-13
SLIDE 13

Business Logic Layer

  • Multiple manufacturers
  • Standardized and manufacturer

specific interfaces

○ Firmware ○ Drivers

  • Each interface is an attack surface

○ WLAN, bluetooth, GPS

  • Manipulate higher-level applications

○ DHCP-client, command injection, navigation system

13

slide-14
SLIDE 14

SDIO Model

14

slide-15
SLIDE 15

SDIO Model: Host’s drivers

15

slide-16
SLIDE 16

How can the host system be exploited?

16

slide-17
SLIDE 17

How can the host system be exploited?

17

slide-18
SLIDE 18

How can the host system be exploited?

18

slide-19
SLIDE 19

Build SDIO device from scratch (SPI)

If host supports SPI

  • Use low cost microcontrollers

to implement protocol

  • Build low cost sniffers to ease

the development

  • Use open source software to

analyze the protocol

  • Not all hosts support SPI

19

slide-20
SLIDE 20

Build SDIO device from scratch (SD)

If host supports SD only

  • Most microcontrollers do not natively

support the protocol

  • Using commodity hardware for

bitbanging could be cumbersome

  • No open source protocol analyzers tools
  • Complex solutions like FPGA + IP core

software

○ Expensive ○ Steep learning curve ○ Requires business logic programming

20

slide-21
SLIDE 21

Modify existing firmware

  • Get the firmware
  • Find hooking points
  • Rewrite specific functions
  • Two main options:

○ Firmware embedded in SD card ○ Firmware loaded to device by the driver

21

slide-22
SLIDE 22

SDIO-based vs. USB-based attacks

SDIO attack BadUSB Hosts Laptops, tablets, PDAs Desktops, laptops, printers, routers Devices Limited vendors and applications Many vendors and applications Stealthiness Embedded in port Protruding from port Ease of exploitation No “off-the-shelf” products USB Armory, Rubber Ducky, known vulnerable firmware

22

slide-23
SLIDE 23

Discussion

  • Licensing required by SD Association
  • Attack feasible but:

○ Time consuming ○ Expensive ○ Not possible to create general purpose malicious firmware

  • Likelihood

○ Affects SDIO aware hosts only ○ Kernel module needs to be loaded

  • Impact:

○ Wide range of attacks possible

  • Mitigation: vendors should sign or encrypt their firmware

23

slide-24
SLIDE 24

Conclusions

  • SDIO cards are supported by various types of hosts

○ Laptops, phones, tablets, PDAs

  • SDIO is an attack vector

○ No protections found

  • Firmware might be modified, or developed from scratch

○ SD is more effective than SPI

  • Currently, SDIO-based attacks seem less likely than USB-based attacks

○ Ease of exploitation ○ Number of vendors / products supporting SDIO ○ Kernel module needs to be loaded

24

slide-25
SLIDE 25

References

Research material:

  • SDIO specifications

○ https://www.sdcard.org/downloads/pls/index.html

  • BADUSB - On Accessories that Turn Evil by Karsten Nohl + jakob Lell

○ https://www.youtube.com/watch?v=nuruzFqMgIw

  • SD card hack

○ http://hackaday.com/2013/12/29/hacking-sd-card-flash-memory-controllers/

  • A Microcontroller-based HF-RFID Reader Implementation for the SD-Slot

○ http://www.thinkmind.org/download.php?articleid=icds_2011_4_30_10048 Images:

  • https://www.parallella.org/create-sdcard/
  • http://www.techrific.com.au/2005/06/wifi-sd-card-spectec-in-stock.html
  • http://www.actel.com/ipdocs/iW-SDIO_Slave_demo_board_DS.pdf
  • https://www.sdcard.org/developers/overview/sdio/index.html

25
