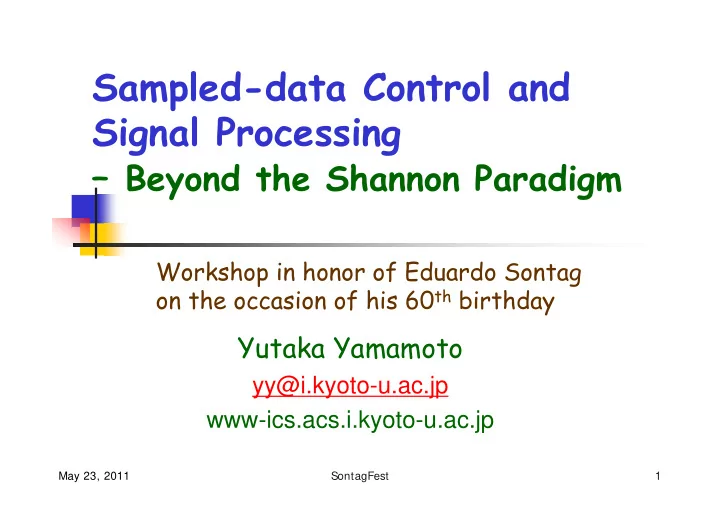

SLIDE 1

May 23, 2011 SontagFest 1

Sampled-data Control and Signal Processing – Beyond the Shannon Paradigm

Yutaka Yamamoto

yy@i.kyoto-u.ac.jp www-ics.acs.i.kyoto-u.ac.jp Workshop in honor of Eduardo Sontag

n the occasion of his 60th birthday

SLIDE 2

Thanks to

One of the very rare pictures of Eduardo with a Tie： at my (YY) fest

My schoolmate, dear friend, colleague, and even a teacher

SLIDE 3

May 23, 2011 SontagFest 3

Outline

Current signal processing paradigm

Via Shannon ⇒ Upper limit in high frequencies

CAN BE SAVED via sampled-data control

theory

Some examples

SLIDE 4

May 23, 2011 SontagFest 4

Message of this talk

We can do better in signal processing using

sampled-data control theory

⇒ Optimal recovery of freq.

components beyond the Nyquist

freq. (= 1/2 of sampling freq.)

SLIDE 5

May 23, 2011 SontagFest 5

Let’s first listen to a demo

Red： Original（up to 22kHz） Blue： downsampled to 11k, and then processed 4 times upsampled via YY filter

アプリケーション

Did you hear the difference?

SLIDE 6

May 23, 2011 SontagFest 6

Part I: Current digital signal processing – Basics☺

SLIDE 7

May 23, 2011 SontagFest 7

Sampling continuous-time signals

h 2h 3h 4h 5h 6h 7h h 2h 3h 4h 5h 6h 7h

This does not produce a sound

SLIDE 8

h 2h 3h 4h 5h 6h 7h

Old CD players

h 2h 3h 4h 5h 6h 7h

More recent players

Oversampling DA converter

Hold device is necessary

Simple 0-order hold

SLIDE 9

h 2h 3h 4h 5h 6h 7h h 2h 3h 4h 5h 6h 7h

Questions

SLIDE 10

May 23, 2011 SontagFest 10

Typical problem: Sampling → Aliasing

Intersample information can be lost If no high-freq. components beyond the

Nyquist frequency (= 1/2 of sampling freq.) → unique restoration

→ Whittaker-Shannon-Someya sampling theorem

SLIDE 11

May 23, 2011 SontagFest 11

Sampling Theorem

Band limiting hypothesis ⇒ unique

recovery

ω

π/h I deal Filter

SLIDE 12

May 23, 2011 SontagFest 12

CD recording

Nyquist freq.

ω

Freq. domain

energy distribution Recorded signal Band-limiting filter Sampling frequency: 44.1kHz Nyquist frequency: 22.05kHz Alleged audible limit: 20kHz

SLIDE 13

Digital Recording (CD): sharp anti-aliasing filter No signal components beyond 20kHz Very sharp anti-aliasing filter But you won’t be able to hear them anyway??

SLIDE 14

May 23, 2011 SontagFest 14

Effect of a band-limiting filter

Big amount of ringing due to the Gibbs phenomenon

Very unnatural sound of CD

SLIDE 15

May 23, 2011 SontagFest 15

Mosquito Noise-another Gibbs phoenomenon

Truncated freq. response

モスキートノイズ Mosquito noise

SLIDE 16

May 23, 2011 SontagFest 16

What can we do?

SLIDE 17

May 23, 2011 SontagFest 17

Part II: Review of Sampled- data Control Theory

SLIDE 18

May 23, 2011 SontagFest 18

Sampled-data Control Systems – What are they?

Discrete-time controller

P(s) K(z)

Continuous-time plant
sample/hold devices

H

Optimal platform for digital signal processing P(s): signal generator; K(z): digital filter Problem: mixture of continuous- and discrete-time

SLIDE 19

May 23, 2011 SontagFest 19

Difficulties

Plant P(s) is continuous-time Controller K(z) is discrete-time The overall system is not time-

invariant

No transfer function No steady-state response No frequency response

SLIDE 20

May 23, 2011 SontagFest 20

Response against a sinusoid

H

1 1

2 +

s

) ( 2 1

2 2 h h

e z e

− −

t t r ) 20 1 sin( ) ( π + =

SLIDE 21

θ π θ ) 20 1 sin( ) ( + = v

Response

SLIDE 22

May 23, 2011 SontagFest 22

What to do? & solutions

A new technique: lifting (1990)

that turns SD system to discrete- time LTI

∃ digital controller that makes

cont.-time performance optimal

SLIDE 23

Lifting of Functions

f(t)

) (

0 θ

f ) (

1 θ

f ) (

2 θ

f ) (

3 θ

f

SLIDE 24

Does this make a difference?

--Yes
ptimization

2

H

1 1

2

+ + s s ] [z K

h

S

h

H ) (t y ) (t w ) (t u ] [k yd ] [k ud

a) Discrete-time H2 with no intersample consideration b) sampled-data design

SLIDE 25

May 23, 2011 SontagFest 25

Time Response

Discrete-time H2 design Sampled-data H2 design

a) Discrete-time H2 with no intersample consideration b) sampled-data design

SLIDE 26

May 23, 2011 SontagFest 26

Can this be used for signal processing?

SLIDE 27

May 23, 2011 SontagFest 27

Part III: How can sampled-data theory help?

SLIDE 28

May 23, 2011 SontagFest 28

With a little bit of a priori information…

× 8 . +

× 2 .

SLIDE 29

May 23, 2011 SontagFest 29

Utilizing analog characteristic

Imaging Nyquist freq.

ω

1

ω

1 2

/ 2 ω π ω − = h

Freq. domain

energy distribution conventional new

SLIDE 30

Imaging components

upsample Original frequency response Filtering

Interpolate with zeros

SLIDE 31

Sampled-data Design Model

Problem:

) (s F M ↑

) (z K

M h/

H

h +

mhs

e−

w e

upsampler sampling

Exogenous signals ∈ L2 Band-limiting filter (musical instruments)

Contrinuous-time delay

Signal reconstruction

Reconstruction error

Sampled-data H∞ control problem

Find K[z] satisfying

SLIDE 32

May 23, 2011 SontagFest 32

Interpolator via the proposed method

Proposed Square wave resp.

Virtually no ringing

SLIDE 33

May 23, 2011 SontagFest 33

Response of the Johnston filter

Big amount of ringing due to the Gibbs phenomenon

SLIDE 34

May 23, 2011 SontagFest 34

Part IV: Application to Sound Restoration

SLIDE 35

May 23, 2011 SontagFest 35

アプリケーション

Sound restoration

アプリケーション

SLIDE 36

May 23, 2011 SontagFest 36

YYLab

SLIDE 37

May 23, 2011 SontagFest 37

DSP (TI C6713) Analog Output Digital readout (44.1kHz) via

ptical Fiber

cable

SLIDE 38

MDLP4(66kbps)

Example in MD(mini disk) players Example in MD(mini disk) players This “YY filter” is implemented in custom LSI sound chips by SANYO Coop., and being used in MP 3 players, mobile phones, voice recorders. The cumulative sale has reached

ver 20 million units.

By the courtesy of SANYO Corporation

After “YY”

More natural high

freq. response

Faithful recover of high. Freq.

SLIDE 39

0.381
0.521
0.527
0.753
0.804
0.831
1.041
1.104
1.386
1.495
1.726
1.847
1.960
2.191
2.700
2.759
3.0
2.5
2.0
1.5
1.0
0.5

0.0

AAC, 128kbps+YY WMA, 128kbps+YY AAC, 128kbps MP3, 128kbps+YY AAC, 96kbps+YY WMA, 128kbps MP3, 128kbps WMA, 96kbps+YY AAC, 96kbps MP3, 96kbps+YY WMA, 96kbps AAC, 64kbps+YY WMA, 64kbps+YY MP3, 96kbps AAC, 64kbps WMA, 64kbps

PEAQ値

Effect evaluation on compressed audio via PEAQ program

Tested on 100 compresed

music sources via PEAQ (Perceptual Evaluation of

Audio Quality)

PEAQ values:

0…indistinguishable from CD

1…distinguishable but does

not bother the listener

2…not disturbing
3…disturbing
4…very disturbing
Note how YY improves

the sound quality

Compression formats: MP3, AAC, WMA Bitrates: 64kbps, 96kbps, 128kbps Showing average values

good

bad

By the courtesy of SANYO corporation

http://en.wikipedia.org/wiki/PEAQ

SLIDE 40

May 23, 2011 SontagFest 40

Part V: Application to Images

SLIDE 41

May 23, 2011 SontagFest 41

Same Problems as Sounds

Block and Mosquito noise Lack of sufficient bandwidth Mosquito noise – Gibbs phenomenon Can sampled-data filter help?

SLIDE 42

May 23, 2011 SontagFest 42

Original ⇓ 2 downsample and hold YYa I nterpolation Via equiripple filter

4times upsample+ twice downsample via YY

SLIDE 43

May 23, 2011 SontagFest 43

Another application: How can we zoom “digitally”?

SLIDE 44

May 23, 2011 SontagFest 44

Interpolation via bicubic filter

SLIDE 45

May 23, 2011 SontagFest 45

Interpolation via sampled-data filter

SLIDE 46

May 23, 2011 SontagFest 46

Summarizing

Analog signal generator model Error frequency response to be

minimized (doesn’t exist in the conventional approach)

⇐ sampled-data H∞ control

SLIDE 47

May 23, 2011 SontagFest 47
