SAGE : Can we detect gravitational waves with CubeSats? S . Lacour, P . Bourget, M. Nowak, F . Vincent, V . Lapeyrere, L. David, A. Le Tiec, A. Kellerer, O. S traub, J. Woillez PICSAT Photometer 100ppm Technology demonstrator for

slide-1
SLIDE 1

S . Lacour, P . Bourget, M. Nowak, F . Vincent, V . Lapeyrere,

  • L. David, A. Le Tiec, A. Kellerer, O. S

traub, J. Woillez

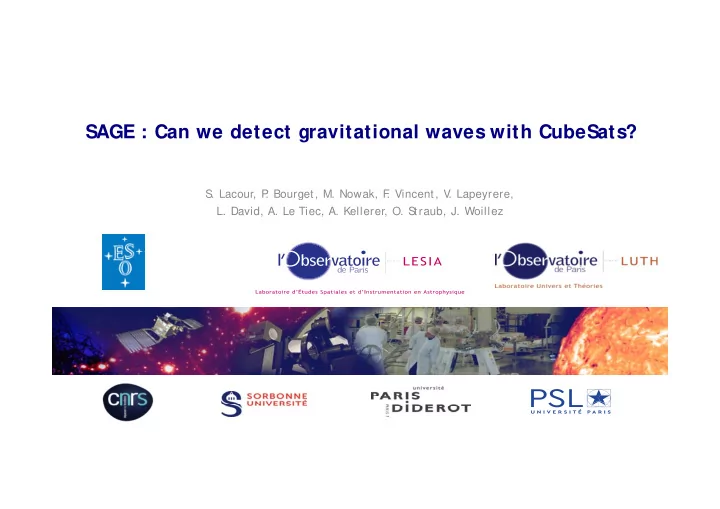

SAGE : Can we detect gravitational waves with CubeSats?

slide-2
SLIDE 2
  • Photometer 100ppm
  • Technology demonstrator for single mode

fibre

  • Development started Mach 2015
  • Launched January 2018 on PS

L V C-40

  • Lost contact in Mars 2018

GDR Ondes Gravitationnelles 2

PICSAT

slide-3
SLIDE 3

GDR Ondes Gravitationnelles 3

Pricing

slide-4
SLIDE 4
  • Michelson interferometer in space
  • 2.5 millions kilometers arm length

GDR Ondes Gravitationnelles 4

LISA

A B C

Proof masses Laser

From LISA White Book 2017

slide-5
SLIDE 5

GDR Ondes Gravitationnelles 5

LISA

  • 2 off axis telescopes 30cm
  • 2 optical bench with bulk interferometers
  • 2 accelerometer (5 centimeters cubes)
  • 1 Disturbance R

eduction S ystem (thrusters)

  • Thermal stability !
slide-6
SLIDE 6

GDR Ondes Gravitationnelles 6

LISA = > SAGE

  • 2 off axis telescopes 30cm => 10cm mirrors
  • 2 optical bench with bulk interferometers => Fibered interferometry
  • 2 accelerometer (5 centimeters cubes)
  • 1 Disturbance R

eduction S ystem (thrusters)

  • Thermal stability ! => 100mW laser beam only
slide-7
SLIDE 7
  • 60°intertwined telescopes:

GDR Ondes Gravitationnelles 7

SAGE

slide-8
SLIDE 8

Phase Modulator f2 Phase Modulator f1

S pacecraft A

L a s e r D2 D1 D3 99.99% 0.01% 99% 1% 1e‐8 50% 50% 99.99% 0.01% 99% 1% 1e‐8 12 12 11 13 12 Spacecraft B Spacecraft C

GDR Ondes Gravitationnelles 8

slide-9
SLIDE 9

GEO 42000km 72 000 km => 0.25s Satellite A Satellite C a) t=0s Satellite B

GDR Ondes Gravitationnelles 9

slide-10
SLIDE 10

b) t=0.25s

GDR Ondes Gravitationnelles 10

slide-11
SLIDE 11

c) t=0.5s

GDR Ondes Gravitationnelles 11

slide-12
SLIDE 12

d) t=0.75s 220 000 km interferometer 1 s light travel time Measurement at zero OPD Satellites on ballistic trajectory

GDR Ondes Gravitationnelles 12

slide-13
SLIDE 13

GDR Ondes Gravitationnelles 13

TDI

φ12(t) = 21(t + ∆ 21) − 12(t) + L 21(t) φ21(t) = 12(t + ∆ 12) − 21(t) + L 12(t) φ11(t) = 1/ 2( 12(t) − 13(t)) φ13(t) = 31(t + ∆ 31) − 13(t) + L 21(t) φ31(t) = 13(t + ∆ 13) − 31(t) + L 12(t) h(t) = φ12(t) + φ21(t − ∆ 12) + 2φ11(t − ∆ 12 − ∆ 21) + φ13(t − ∆ 12 − ∆ 21) + φ31(t − ∆ 31 − ∆ 12 − ∆ 21) − φ13(t) − φ31(t − ∆ 13) − φ11(t − ∆ 13 − ∆ 31) − φ12(t − ∆ 13 − ∆ 31) − φ21(t − ∆ 21 − ∆ 13 − ∆ 31) + 2φ11(t) − 2φ11(t − ∆ 21 − ∆ 12 − ∆ 13 − ∆ 31) h(t) = L 12(t) + L 21(t − ∆ 12) + L 13(t − ∆ 12 − ∆ 21) + L 31(t − ∆ 12 − ∆ 21 − ∆ 13)) − L 13(t) − L 31(t − ∆ 13) − L 21(t − ∆ 13 − ∆ 31) − L 12(t − ∆ 13 − ∆ 31 − ∆ 12)

slide-14
SLIDE 14

GDR Ondes Gravitationnelles 14

SAGE ?

Graph From ESA Gravitation Observatory Advisory team, final report 2016

slide-15
SLIDE 15

GDR Ondes Gravitationnelles 15

1 pm (73 000 km arm length)

slide-16
SLIDE 16

GDR Ondes Gravitationnelles 16

Sensitivity of SAGE

Solar Wind Solar Wind 9 µN/m2 1‐6 µN/m2

slide-17
SLIDE 17

GDR Ondes Gravitationnelles 17

Sensitivity of SAGE

slide-18
SLIDE 18

GDR Ondes Gravitationnelles 18

Sensitivity of SAGE

Radiation Pressure

slide-19
SLIDE 19

GDR Ondes Gravitationnelles 19

Sensitivity of SAGE

slide-20
SLIDE 20

GDR Ondes Gravitationnelles 20

Sensitivity of SAGE

Radiation Pressure Solar Wind

slide-21
SLIDE 21

Diffraction analysis

  • Diffraction + fiber inj ection coupling cause an energy loss of 1.5 10-10

between the two satellites: 100mW=>15pW

GDR Ondes Gravitationnelles 21

72 000 km 1km 250mW 2.5nW s hcλ 2Pphot ons = 23pm/ p H z

slide-22
SLIDE 22

GDR Ondes Gravitationnelles 22

Sensitivity of SAGE

Photon Noise Radiation Pressure Solar Wind

slide-23
SLIDE 23

Sensitivity of SAGE

GDR Ondes Gravitationnelles 23

slide-24
SLIDE 24

But…

  • No 104 IMBH?

GDR Ondes Gravitationnelles 24

  • A. Sesana, M. Volonteri, and F. Haardt, 2007
  • M. Colpi, A. Sesana, 2018
slide-25
SLIDE 25

But…

  • No 104 IMBH?

GDR Ondes Gravitationnelles 25

  • A. Sesana, M. Volonteri, and F. Haardt, 2007
  • M. Colpi, A. Sesana, 2018
slide-26
SLIDE 26

But…

  • Technical challenges:

– Orbitography – Thermal expansion (20pm/ sqrt(Hz)

GDR Ondes Gravitationnelles 26

slide-27
SLIDE 27

GDR Ondes Gravitationnelles 27

To conclude

LIGO timeline
