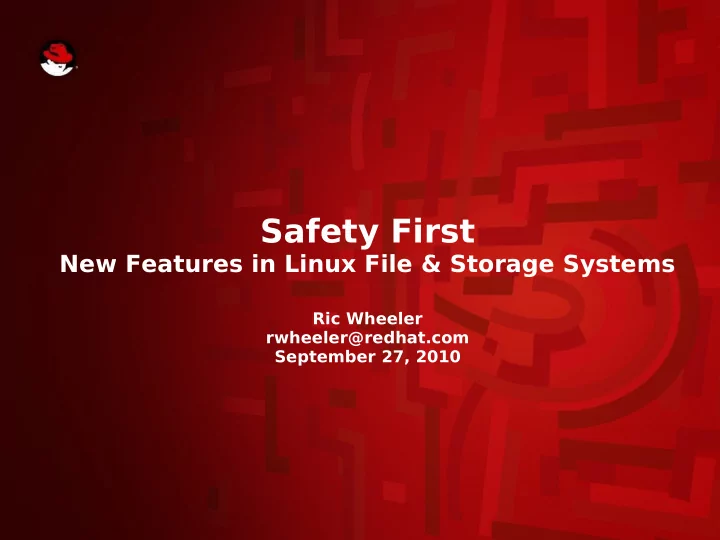

Safety First

New Features in Linux File & Storage Systems

Ric Wheeler rwheeler@redhat.com September 27, 2010

2

Overview



Why Care about Data Integrity



Common Causes of Data Loss



Data Loss Exposure Timeline



Reliability Building Blocks



Examples



Grading our Progress



Questions?

3

Why Care about Data Integrity



Linux is used to store critical personal data

• On Linux based desktops and laptops
• Linux based devices like Tivo, cell phones or a home NAS storage device
• Remote backup providers use Linux systems to backup your personal data



Linux servers are very common in corporate data centers

• Financial services
• Medical images
• Banks



Used as the internal OS for appliances

4

Linux has one IO & FS Stack



One IO stack has to run on critical and non-critical devices

• Data integrity is the only “safe” default configuration
• Sophisticated users can choose non-default options that might disable data

reliability features



Trade offs need to be done with care

• Some configurations can hurt data integrity (like ext3 writeback mode)
• Some expose data integrity issues (non-default support for write barriers)



Where possible, the system should auto-configure these options

• Detection of battery or UPS can allow for mounting without write barriers
• Special tunings for SSD's and high end arrays to avoid barrier operations
• Similar to the way we auto-configure features for other types of hardware

5

Common Causes of Data Loss



Uncountable ways to lose data

• Honesty requires vendors that sell you a storage device should provide some

disclaimer about when – not if - you will lose data



Storage device manufacturers work hard to

• Track the causes of data loss or system unavailability of real, deployed

systems

• Classify those instances into discrete buckets
• Carefully select the key issues that are most critical (or common) to fix first



Tracking real world issues and focusing on fixing high priority issues requires really good logging and reporting from deployed systems

• Voluntary methods like the kernel-oops project
• Critical insight comes from being able to gather good data, do real analysis

and then monitor how your fixes impact the deployed base

6

User Errors



Accidental destruction or deletion of data

• Overwriting good data with bad
• Restoring old backups to good data



Service errors

• Replacing the wrong drive in a RAID array
• Not plugging in the UPS



Losing track of where you put it

• Too many places to store a photo, MP3, etc



Misunderstanding or lack of knowledge about how to configure the system properly



Developers need to be responsible for providing easy to use system in order to minimize this kind of error!

7

Application Developer Errors



Some application coders do not worry about data integrity to begin with

• Occasionally on purpose – speed is critical, data is not (can be rerun)
• Occasionally by ignorance
• Occasionally by mistake



For application authors that do care, we make data integrity difficult by giving them poor documentation:

• rename: How many fsync() calls should we use when renaming a file?
• fsync: just the file? File and parent directory?
• Best practices that change with type of storage, file system type and file

system journal mode



Primitives need to be clearly understood & well documented

• Too many choices make it next to impossible for application developers to

deliver reliable software



“Mostly works” is not good enough for data integrity

8

OS & Configuration Errors



Configuration Errors

• Does the system have the write barrier enabled if needed?



Bugs in the IO Stack

• Do we use write barriers correctly to flush volatile write caches?
• Do we properly return error codes so the application can handle failures?
• Do we log the correct failure in /var/log/messages in a way that can point the

user to a precise component?

9

Hardware Failures



Hard disk failures



Power supply failures



DRAM failures



Cable failures

10

Disasters



Name your favorite disaster

• Fire, Flood, Blizzards....
• Power outage
• Terrorism



No single point of failure requires that any site has a method to have a copy at some secondary location

• Remote data mirroring can be done at the file level or block level
• Backup and storage of backup images off site
• Buy expensive hardware support for remote replication, etc

11

Data Loss ExposureTimeline



Rough Timeline:

• State 0: Data creation
• State 1: Stored to persistent storage
• State 2: Component failure in your system
• State 3: Detection of the failed component
• State 4: Data repair started
• State 5: Data repair completed



Minimizing the time spent out of State 1 is what storage designers lose sleep

• ver!

12

What is the expected frequency of disk failure?



Hard failures

• Total disk failure
• Read or write failure
• Usually instantaneously detected



Soft failures

• Can happen at any time
• Usually detection requires scrubbing or scanning the storage
• Unfortunately, can be discovered during RAID rebuild



Note that this is not just a rotating disk issue

• SSDs wear out, paper and ink fade, CDs deteriorate, etc

13

How long does it take you to detect a failure?



Does your storage system detect latent errors in

• Hours? Days? Weeks?
• Only when you try to read the data back?



Most storage systems do several levels of data scanning and scrubbing

• Periodic reads (proper read or read_verify commands) to insure that any latent

errors are detected

• File servers and object based storage systems can do whole file reads and

compare data to a digital hash for example

• Balance is needed between frequent scanning/scrubbing and system

performance for its normal workload

14

How long does it take you to repair a failure?



Repair the broken storage physically

• Rewrite a few bad sectors (multiple seconds)?
• Replace a broken drive and rebuild the RAID group (multiple hours)?



Can we repair the damage done to the file system?

• Are any files present but damaged?
• Do I need to run fsck?
• Very useful to be able to map an IO error back to a user file, metadata or

unallocated space



Repair the logical structure of the file system metadata

• Fsck time can take hours or days
• Restore any data lost from backup



Users like to be able to verify file system integrity after a repair

• Are all of my files still on the system?
• Is the data in those files intact and unchanged?
• Can you tell me precisely what I lost?

15

Exposure to Permanent Data Loss



Combination of the factors described:

• Robustness of storage system
• Rate of failure of components
• Time to detect the failure
• Time to repair the physical media
• Time to repair the file system metadata (fsck)
• Time to summarize for the user any permanent loss



If the time required to detect and repair is larger than your failure rate, you will lose data!

16

Storage Downtime without Data Loss Counts



Unavailable data loses money

• Banking transactions
• Online transactions



Data unavailability can be really mission critical

• X-rays are digital and used in operations
• Digital maps used in search



Horrible performance during repair is downtime in many cases

• Minimizing repair time minimizing this loss as well

17

How Many Concurrent Failures Can Your Data Survive?



Protection against failure is expensive



Storage systems performance



Utilized capacity



Extra costs for hardware, power and cooling for less efficient storage systems



Single drive can survive soft failures



A single disk is 100% efficient



RAID5 can survive 1 hard failure & soft failures



RAID5 with 5 data disks and 1 parity disk is 83% efficient



RAID6 can survive 2 hard failures & soft failures



RAID6 with 4 data disks and 2 parity disks is only 66% efficient!



Fancy schemes (erasure encoding schemes) can survive many failures



Any “k” drives out of “n” are sufficient to recovery data



Popular in cloud and object storage systems

18

Example: MD RAID5 & EXT3



RAID5 gives us the ability to survive 1 hard failure

• Any second soft failure during RAID rebuild can cause data loss since we

need to read each sector of all other disks during rebuild

• Rebuild can begin only when we have a new or spare drive to use for rebuild



Concurrent hard drive failures in a RAID group are rare

• ... but detecting latent (soft) errors during rebuild are increasingly common!



MD has the ability to “check” RAID members on demand

• Useful to be able to de-prioritize this background scan
• Should run once every 2 to 4 weeks



RAID rebuild times are linear with drive size

• Can run up to 1 day for a healthy set of disk drives



EXT3 fsck times can run a long time

• 1TB FS fsck with 45 million files ran 1 hour (reports in the field of run time up

to 1 week!)

• Hard (not impossible) to map bad sectors back to user files using

ncheck/icheck

19

EXT4 Improvements



Checksums are computed for the journal transactions

• Help detect corrupted transactions on replay of the journal after a crash
• Do not cover user data blocks



Extent based allocation structures do support quicker fsck

• Uninitialized inodes can be skipped –upstream patches posted that will help

mkfs eventually

• Preallocated data blocks can be flagged as unwritten which will let us avoid

writing blocks of zero data

• These features – especially on larger file systems – need thorough testing!



Better allocation policies lead to faster fsck times

• Directory related blocks are stored on disk in contiguous allocations
• High file count fsck times are 6-8 times faster

20

Updated Example: MD RAID5 & EXT4



RAID5 gives us the ability to survive 1 hard failure

• Any second soft failure during RAID rebuild can cause data loss since we

need to read each sector of all other disks during rebuild

• Rebuild can begin only when we have a new or spare drive to use for rebuild



Concurrent hard drive failures in a RAID group are rare

• ... but detecting latent (soft) errors during rebuild are increasingly common!



MD has the ability to “check” RAID members on demand

• Useful to be able to de-prioritize this background scan
• Should run once every 2 to 4 weeks



RAID rebuild times are linear with drive size

• Can run up to 1 day for a healthy set of disk drives



EXT4 fsck times are much improved

• 1TB FS fsck with 45 million files ran under 7 minutes – much faster

than the ext3 1 hour time

• 1 billion file ext4 fsck finished in 2.5 hours!
• Credit goes to better meta-data layout

21

Native Support for Sector Level Scans



Data protection schemes need ways to detect partial failures

• Background scans of storage are essential parts of high end storage
• Need to run at a rate which allows you to detect partial failures before double

failures occur

• Need to balance impact on performance against frequent scanning
• Over-zealous scanning can prematurely age storage devices



File System Level Scans

• BTRFS has data and metadata checksums which enable a full scan can be

done by simply reading each file

• Ext4 has some meta-data checksums



Block level scanning

• READ_VERIFY command can be used for SCSI and S-ATA to read from

platter to device cache without transfer of data to host

• Checks un-allocated space as well

22

Better API's For Data Integrity



Enhanced API's between the block layer and file systems

• Ability to retry a given mirror for a RAID1 device?
• Better and more specific error values – EIO is not always enough



New system calls?

• Support for batching of expensive calls like fsync()?
• Exporting transactions to user space?



Better documentation on existing API's like fsync(), O_DIRECT writes and rename()



Better documentation on the data path

• write() moves data from application buffer to page cache
• fsync() without write barrier or normal page flushing moves data from page

cache to storage device and its write caches

• fsync() with write barrier returns only when data has been flushed from storage

write cache

• O_DIRECT write bypasses page cache but still can end up in a volatile

storage device cache

23

Grading our Progress



How do we know if we are getting better?

• Define data loss and data unavailability
• Gather real data on installed systems
• Gather real data on field failures



Good information allows us to focus on fixing real issues

• Rate of bad incidents should go down as we advance
• Blips in the rate help us focus on bad code, bad hardware, etc



Providing robust test suites that are easy to run by both experienced QA testers and developers



Providing extensive and correct documentation for developers

• For kernel developers internally
• For application developers
• For system administrators
• For end users

24

Questions?



Project Wiki Pages:

• http://btrfs.wiki.kernel.org
• http://ext4.wiki.kernel.org
• http://xfs.org
• http://oss.sgi.com/projects/xfs



Contact Information

• Ric Wheeler
• rwheeler@redhat.com
