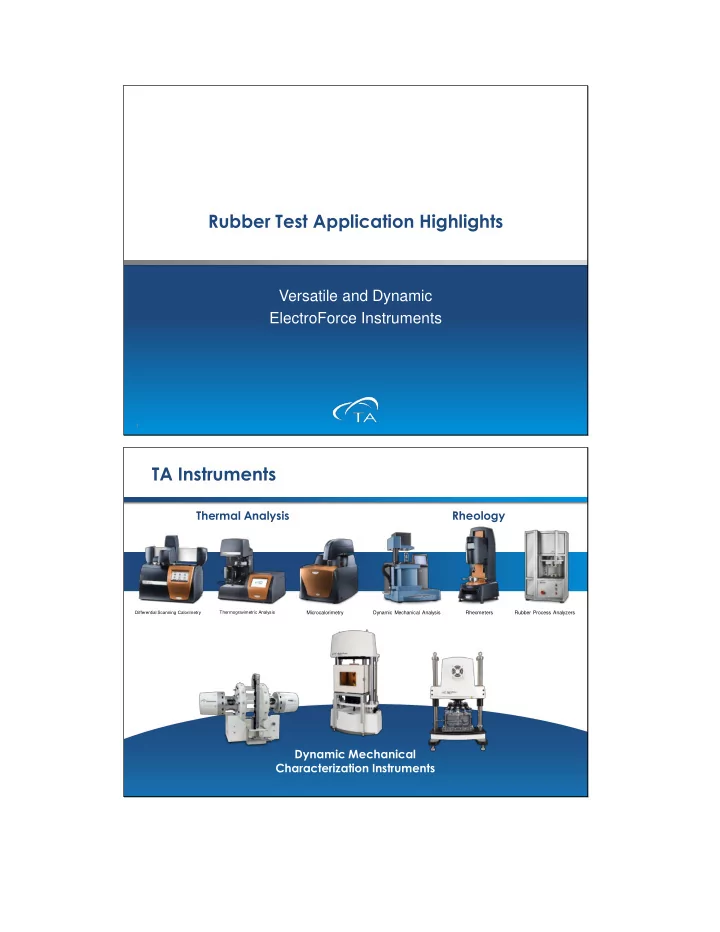

Rubber Test Application Highlights

Versatile and Dynamic ElectroForce Instruments

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

TA Instruments

2

Thermal Analysis Rheology Dynamic Mechanical Characterization Instruments

Differential Scanning Calorimetry Thermogravimetric Analysis

Microcalorimetry Dynamic Mechanical Analysis Rheometers Rubber Process Analyzers

Dynamic Mechanical Characterization Instruments

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Soft Stiff

Engineered Materials

kPa MPa GPa TPa

“Effective Stiffness”

Rubber Tires Elastomers Metals Asphalt Stiff Polymers Composites Fibers Foils Thin Films Soft Polymers

https://www.giant-bicycles.com/en-us/bikes/series/xtc.advanced.ss/26045/

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Elastomers- Rubber

• DMA
• Heat Build Up
• Fatigue

Application Examples

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Rubber

Dynamic Mechanical Analysis (DMA) Example Purpose of Study

• Supplier comparison
• Three suppliers of BR rubber

component

• Identify mechanical property

differences

Test Method

• Strain Amplitude Sweep - Tension
• 0.01 to 15% Room Temp
• Temperature Sweep - Tension
• 1MPa 0.3MPa
• -75 to 0C

5

Material & Geometry

• 70% NR + 30% BR
• 2mm x 13mm section
• 10-20mm gage length

Instrument

• ElectroForce 3230

(450 N)

• Temp Chamber
• Tensile Grips

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Results

Rubber DMA

• Strain Sweep
• Minor difference in

Loss Modulus

• Temp Sweep
• Negligible difference

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Rubber

Heat Build Up Example Purpose of Study

• BR Supplier comparison in heat

build up, aka blow-out, test

Test Method

• Leveraged ASTM D-623
• 2.0 kPa Mean Stress
• +/- 12.7% Strain
• 30Hz
• 50 C

7

Material & Geometry

• 70% NR + 30% BR
• Rubber Cylinders
• 20mm Dia
• 20mm Height

Instrument

• ElectroForce 3330

(3000 N)

• Temp Chamber
• Phenolic Platens

with Temp Sensor

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Results

Rubber Heat Build Up

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Results

Rubber Heat Build Up

• Temperature Rise
• Similar Temps
• Different blow-out

performance

• Mean Deflection
• similar results

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Results

Rubber Heat Build Up

• Temperature Rise
• Similar Temps
• Different blow-out

performance

• Different mixing

methods yield significantly different results

• Mean Deflection
• Confirms difference in

mixing methods

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Rubber

Fatigue Example Purpose of Study

• Compare tensile fatigue of rubber

compounds for tire beads

• Evaluate rubber lifetime at expected

service temperatures

Test Method

• Pulse waveform
• 70 C Ambient
• 2.774Hz (30km/hr)
• Stress Ratio ~0.1

11

Material & Geometry

• Tension dog-bone samples
• Approx 2mm x 3mm mid-section

x 10mm long

Instrument

• ElectroForce 3330

(3000 N)

• Temp Chamber
• Multi-Specimen

Fixture

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Results

Rubber Fatigue

6-Specimen Fixture with Load Sensors

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

Results

Rubber Fatigue

• SN Curves Obtained
• Data is fit to

exponential line to compare mat’ls

σmax

n cycles 1M 0.1M

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

ELECTROFORCE INSTRUMENTS

TAINSTRUMENTS.COM TAINSTRUMENTS.COM 15

ElectroForce 3200

• Up to 450 N Force
• 13mm Stroke
• +75mm Static Opt
• 150 to 315C Temp
• 0 to 300Hz

ElectroForce 3300

• Up to 3kN Force
• 25mm Stroke
• +150mm Static Opt
• 150 to 350C Temp
• 0 to 100Hz

TAINSTRUMENTS.COM TAINSTRUMENTS.COM

ElectroForce Motor Technology

Linear Motor Technology

• Superior Power Density
• Powerful rare earth magnets
• Moving magnet design
• Highly efficient
• Durability and Maintenance free
• Advanced flexure design
• Non-contact construction
• No moving wires/leads
• No seals, bearing or hydraulic
• il/pumps
