NZ Heavy Haulage Association The Overdimension and Overweight Transport Industry Ara Thono Phoi to We Ar Wellsford llsford Roa oad d of of Na National ional Significance: ignificance: Phoi to to Wa Warkworth kworth Section

slide-1
SLIDE 1

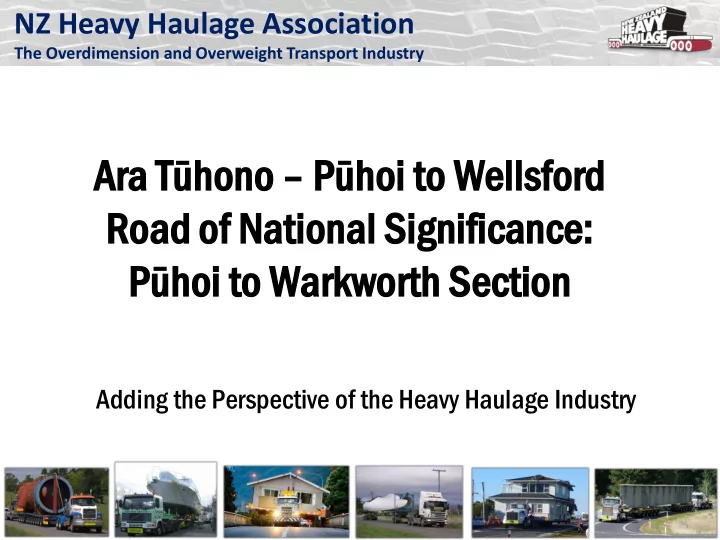

Ar Ara Tūhono – Pūhoi to We Wellsford llsford Roa

  • ad

d of

  • f Na

National ional Significance: ignificance: Pūhoi to to Wa Warkworth kworth Section ction

Adding the Perspective of the Heavy Haulage Industry

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

slide-2
SLIDE 2

PRESENTAT SENTATION ION OVERVIEW RVIEW *General support for the RoNS project proceeding The significance of the Heavy Haulage sector Concern with the design envelope constraints Advocate for full interchange at Puhioi

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

slide-3
SLIDE 3

THE HE HE HEAVY VY HA HAULAGE LAGE IND NDUSTRY STRY Specialist sector of the road transport industry Transport loads for clients that are:

  • Wide
  • High
  • Long
  • Heavy

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

slide-4
SLIDE 4

THE HE HE HEAVY VY HA HAULAGE LAGE IND NDUSTRY STRY Approval for transporting loads is by specialist permit from:

NZTA – Overdimension NZTA and Road Controlling Authorities – Weight Power Line Owners – Height Chorus & other providers – Height

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

slide-5
SLIDE 5

THE HE HE HEAVY VY HA HAULAGE LAGE IND NDUSTRY STRY Need to transport loads on routes to cope:

  • Dimension requirements
  • Structural requirements

Usually few routes that meet the demands A key role for the Association is to advocate for routes to be designed and maintained for OD/OW

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

slide-6
SLIDE 6

THE HE HE HEAVY VY HA HAULAGE LAGE IND NDUSTRY STRY

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

slide-7
SLIDE 7

Total al Weight 91T 1T Cra rane ne on Culham Tra ranspo nsporter rter

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

slide-8
SLIDE 8

THE HE HE HEAVY VY HA HAULAGE LAGE IND NDUSTRY STRY Poyners rs – No Nort rthland nd & A Auckland ckland Ho Housemove ver

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

slide-9
SLIDE 9

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

THE HE HE HEAVY VY HA HAULAGE LAGE IND NDUSTRY STRY Poyners rs – No Nort rthland nd & A Auckland ckland Ho Housemove ver

slide-10
SLIDE 10

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

THE HE HE HEAVY VY HA HAULAGE LAGE IND NDUSTRY STRY Rhode des for r Roads ds – Wark rkworth worth Contractor ractor

slide-11
SLIDE 11

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS For many years Association has sought: 11.5m wide and 6.5m high

slide-12
SLIDE 12

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS Divided Road situation:

slide-13
SLIDE 13

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS These figures are derived from the fact that the Rules for OD loads allow:

11.0m width 6.5m height

Without special engineering permission

slide-14
SLIDE 14

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS Analysis of OD permits shows that: In any year 4000 loads moved over 4.5m wi wide de Of these:

  • 82% are up to 10m in width
  • 97% are up to 11m in width

1 in 7 loads in this band

slide-15
SLIDE 15

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS: : Analysis of OD permits shows that: In any year 4700+ loads moved over 4.25m high Of these:

  • 93% are over 5.8m in height (200mm clearance)
  • 98% are over 6.3m in height (200mm clearance)

1 in 20 loads in this band

slide-16
SLIDE 16

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS NZTA’s general route dimensions are: 10m wide 6m high In discussion with NZTA  cost/benefit analysis whether to increase the general dimension criteria

slide-17
SLIDE 17

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS The Association has submitted to this RoNS project that dimensions should be increased to: 11.5m width 6.5m height On this project, there appears to be only one

  • verhead bridge at 6.0m (Moirs Hill Road

Underpass)

slide-18
SLIDE 18

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS: : HE HEIGHT HT The Association has not sighted any analysis of the cost to increase the height of this bridge to 6.5m Recomme mmenda ndation: tion: That the cost and logistics of increasing minimum heights to 6.5m should be investigated. Note: This may include sign gantries and toll gantries

slide-19
SLIDE 19

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS: : WIDTH The Association has not sighted any analysis of the cost to standardise available width to 11.5m Recomme mmenda ndation: tion: That the cost and logistics of increasing minimum widths to 11.5m should be investigated. Note: This may include lightpoles and signage

slide-20
SLIDE 20

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS Benefits of transporting OD/OW Loads on RoNS route:

  • Two lane divided road
  • No on-coming traffic  safer
  • Less exposure due to quicker travel duration
  • Better road camber, less hills/down-hills, less

roading restrictions

slide-21
SLIDE 21

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

ROUT UTE E REQUIREMENTS UIREMENTS: : WEIGHT HT The Association advocates that road surfaces and structures are built to allow loads travelling on

  • verweight permits.

In practice this means complying with the standard HN-HO-72 It appears that NZTA have agreed with this. NZHHA find this outcome acceptable

slide-22
SLIDE 22

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE This Association seeks a full interchange (including north-facing on-off ramps) at Puhoi This is to allow access on/off for OD/OW loads to use the RoNS road

slide-23
SLIDE 23

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE At present the OD/OW route is as follows (north): Travel on SH17 over Johnstone’s Hill Join SH1 at northern tunnel exit Travel north on SH1 through Warkworth Note: At present no travel permitted for OD/OW loads through Toll road tunnels

slide-24
SLIDE 24

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE The proposed design for the Puhoi interchange will

  • nly allow:
  • Traffic heading north through tunnels to exit
  • Traffic heading south on existing SH1 to access

the Toll Road to head south through Tunnels

slide-25
SLIDE 25

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE OD/OW loads moving no nort rth h over Johnstone’s Hill:

  • Will not be able to access the Puhoi-Warkworth

RoNS road

  • Will need to travel on the existing SH1 instead
  • Retains the current on-coming traffic

management requirements

  • A number of weight restricted bridges on current

SH1

slide-26
SLIDE 26

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE OD/OW loads moving sou

  • uth from Whangarei:
  • Will not be able to access the Puhoi-Warkworth

RoNS road

  • Will need to travel on the existing SH1 through

Warkworth instead

  • Retains the current on-coming traffic

management requirements

  • Weight restricted bridges on current SH1
slide-27
SLIDE 27

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE Makes sense to allow OD/OW loads on RoNS Better road for large loads Nil safety risk for on-coming traffic

slide-28
SLIDE 28

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE The current SH1 through Warkworth will revert to Council ownership:

  • Difficult to maintain as OD/OW route
  • Experience of restrictions through Orewa
  • Prefer most large loads to use RoNS route
slide-29
SLIDE 29

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE Alternative solution: Allow OD/OW Loads through the Toll Road Tunnels Possibility, but the tunnel width/height restrictions  Some loads will always need to travel over the Hill

slide-30
SLIDE 30

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE Local Transport Effects:

  • Eg. Rhodes for Roads at Warkworth
  • Not able to access the RoNS route for deliveries

in/out of Puhoi from base at Warkworth

  • Will need to continue to use existing SH1,

despite a better road being constructed

slide-31
SLIDE 31

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

FU FULL PUHOI HOI INT NTERCH RCHAN ANGE GE Association Recommendation:

  • NZTA should cost the construction of the north-

facing aspects of the interchange at Puhoi

  • NZTA should also evaluate the potential future

cost of constructing the full interchange

  • Assess in real terms whether it would be more

cost-effective to construct this now.

slide-32
SLIDE 32

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

SUMM MMARY ARY: The Association wishes the Board to future-proof the requirements for this RoNS Project:

  • Height / width requirements that meet a greater

percentage of overdimension loads travelling

  • Costing a full interchange at Puhoi to allow

access for OD/OW Loads

slide-33
SLIDE 33

NZ Heavy Haulage Association

The Overdimension and Overweight Transport Industry

Eden en Park Park Rede devel elop

  • pmen

ment: t: Prefabricated Overdimension Loads Whangarei to Auckland
