Remote controlled tractor TECHNICAL with attachments SPECIFICATIONS LV300 Green Climber: REMOTE CONTROLLED TRACTOR WITH FLAIL Capable of working on 60 slopes Extendable tracks Side-shifting of attachment Engine: EPA - TIER 4 final

SLIDE 1

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Tel. +39 0872.50221 – fax +39 0872.50231 E-mail: sales@mdbsrl.com

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

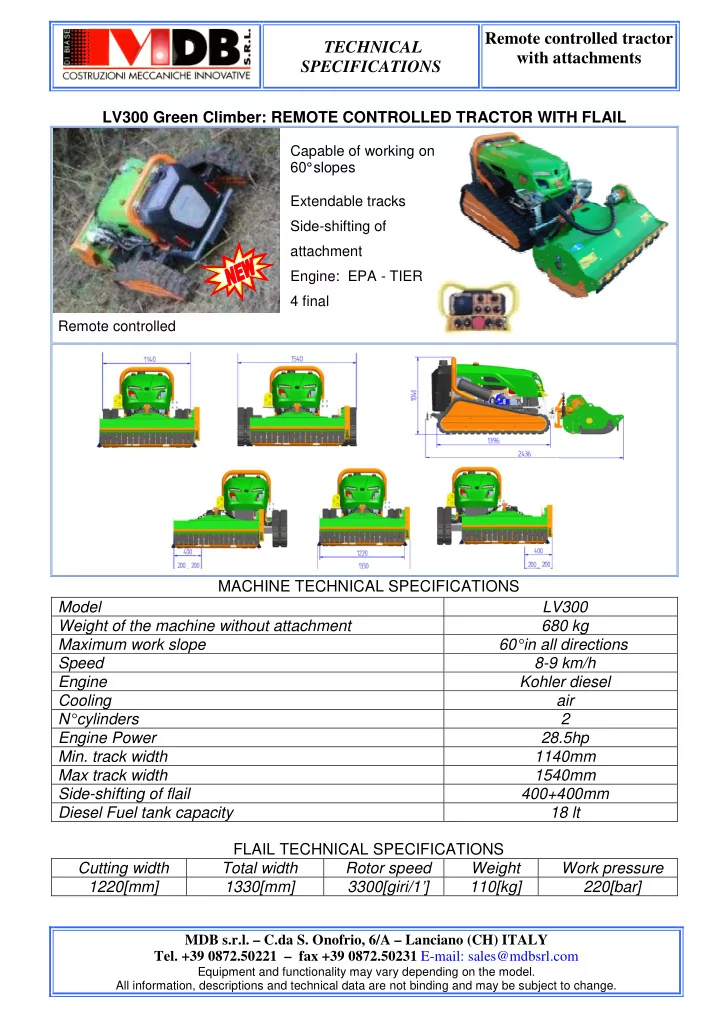

LV300 Green Climber: REMOTE CONTROLLED TRACTOR WITH FLAIL

Capable of working on 60° slopes Extendable tracks Side-shifting of attachment Engine: EPA - TIER 4 final Remote controlled

MACHINE TECHNICAL SPECIFICATIONS Model LV300 Weight of the machine without attachment 680 kg Maximum work slope 60° in all directions Speed 8-9 km/h Engine Kohler diesel Cooling air N° cylinders 2 Engine Power 28.5hp

Min. track width

1140mm Max track width 1540mm Side-shifting of flail 400+400mm Diesel Fuel tank capacity 18 lt FLAIL TECHNICAL SPECIFICATIONS Cutting width Total width Rotor speed Weight Work pressure 1220[mm] 1330[mm] 3300[giri/1’] 110[kg] 220[bar]

SLIDE 2

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Tel. +39 0872.50221 – fax +39 0872.50231 E-mail: sales@mdbsrl.com

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

LV300 The market position of the LV300 machine is to be considered in between the Mini Green Climber and the Green Climber because of its weight, dimensions and engine power. Technical characteristics are as follows:

Kohler Diesel Engine air cooled (with EPA Tier 4 Final emission) 28,5HP

with an extra of 3 litres of oil in the engine;

remote controlled electric 2 position accelerator (min working rpm);
a bigger oil radiator with reversible fan;
new design;
remote controlled extendable undercarriage (the same system as Green

Climber);

fast hydraulic connection (the same system as Green Climber);
remote controlled hydraulic side-shifting (the same system as Green

Climber);

led lights;
200mm wide reinforced rubber track;
in-line hydraulic pumps (the same system as Green Climber);
15lt diesel tank;
remote controlled hydraulic lifting system of the flail;
2 hydraulic lines (same as Green Climber)

GREEN CLIMBER LV 300 strong points Widening undercarriage tracks: The widening of the undercarriage tracks make Green Climber unstoppable on any slope. If in extreme conditions the width of 1140mm is not enough to avoid capsizing risk, the track width can be increased to 1540mm to gain stability and balance. Green Climber LV300 has the lowest centre of balance among its category. The movement is remote controlled. Attachment side-shifting Green Climber LV300 allows many movements with the accessory: lifting, tilting and side-shifting. All movements are remote controlled. The side-shifting allows up to 400mm of side- shifting on each side. The side-shifting has 2 advantages:

it allows to work in areas where the machine cannot move: near ditches, walls or

under structures that are lower than the machine (solar panels guardrails etc);

it balances the machine weight when working in extreme slopes ( moving it towards

uphill direction).

SLIDE 3

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Tel. +39 0872.50221 – fax +39 0872.50231 E-mail: sales@mdbsrl.com

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

Perfect traction on extreme slopes LV300 comes with a special patented system that guarantees engine lubrication in any direction and up to 60 degrees on slopes. The track widening system, together with the electronic steering trimmer correction, gives Green Climber a perfect traction on extreme slopes. Availability of different attachments Green Climber can use any type of attachment that complies with its power and weight. All attachments can be easily attached: Green Climber comes with a fast coupling plate and a fast coupling hydraulic system. All attachment movements are manoeuvred with the remote control. Remote control. The remote control system can reach a distance of up to 150 mt and controls start/stop engine, acceleration, and all the movements of the attachment. Furthermore, it has a self-correcting steering system that, in case of a very steep slope it corrects the normal inclination of the machine towards the descent. The front-rear-left-right movements are commanded by a single joystick: this allows the operator to always have a free hand for other machine commands . There is a battery charger on board for the remote control so that there is always a freshly charged battery available. Mower

The LV300 Green Climber is supplied with a flail with a choice of

different models of knives or hammers. It is a professional mower for roadside maintenance capable of cutting grass, bushes, canes and small trees (up to 6-8 cm diam.). Air filter Double step air filtering system to assure good "engine breathing" with “spin” pre-filter system. It has a rotating device that avoids debris to enter the main air filter; this improves the engine performance and reduces fuel consumption.

SLIDE 4

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Tel. +39 0872.50221 – fax +39 0872.50231 E-mail: sales@mdbsrl.com

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

Undercarriage A specially designed undercarriage to avoid de-tracking risks. The tracks traction motors have electronic variable speed (EVS) rather than 2 speed. The EVS always gives the maximum torque and power at any speed. Hydraulic system The hydraulic system is fully proportional allowing the operator to have smooth movements and to control the machine drive and attachments perfectly. The whole hydraulic system is designed to work with lower pressure and temperatures; this will have benefits on the system itself and all parts will last longer. Display

service countdown
rpm
oil radiator with reversible fan control with soft start
remote controlled switch on\off engine
fast disassembly with single connector ip69
dirty air filter alert
low fuel alert
overheat alert
low oil pressure alert

Availability of different types of tracks Standard profile High profile Metal spikes Additional LV300 Green Climber specs included in the price:

Hood that covers and protects the engine, air filter, etc;
Proportional distributors;
Led headlights to work even when it is dark;
18 lt fuel tank for a longer working autonomy;
Rollbar;
Electronic control panel + beepers + warning lights which give information about

the state of the machine: low fuel level, oil pressure, overheating, etc.;

Battery charger on board the machine for the remote control complete with extra

battery so that there's always a charged battery available;

Towing hook;
All electric/electronic components have fast coupling systems for rapid and easy

changing.

SLIDE 5

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Tel. +39 0872.50221 – fax +39 0872.50231 E-mail: sales@mdbsrl.com

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

Advantages of LV 300 Green Climber: it only requires a single operator to carry out the work of 10 people! it is not necessary to block the lane and therefore does not create traffic congestion it can be easily transported on a trailer or a small van it can reach areas with very steep slopes (up to 60° ) in any direction thanks to the patented system of the engine lubrication 10 times faster in performance compared to traditional systems maximum safety: the remote control and the special protection of the mower deck prevent objects being thrown towards the operator agility to avoid obstacles such as trees, road signs or other objects it can work at a longer distance compared to boom mowers low operative costs compared to traditional systems

perative costs much lower than tractors with boom mowers

high flexibility and productivity with all attachments (all movements are remote controlled) total safety for operators in any circumstance

Availability of different attachments Green Climber can use any type of attachment that complies with its power and weight. All attachments can be easily attached: the LV300 Green Climber comes with a fast coupling plate and a fast coupling hydraulic system.

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

LV300 Green Climber: REMOTE CONTROLLED TRACTOR WITH FLAIL

Capable of working on 60° slopes Extendable tracks Side-shifting of attachment Engine: EPA - TIER 4 final Remote controlled

MACHINE TECHNICAL SPECIFICATIONS Model LV300 Weight of the machine without attachment 680 kg Maximum work slope 60° in all directions Speed 8-9 km/h Engine Kohler diesel Cooling air N° cylinders 2 Engine Power 28.5hp

1140mm Max track width 1540mm Side-shifting of flail 400+400mm Diesel Fuel tank capacity 18 lt FLAIL TECHNICAL SPECIFICATIONS Cutting width Total width Rotor speed Weight Work pressure 1220[mm] 1330[mm] 3300[giri/1’] 110[kg] 220[bar]

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

LV300 The market position of the LV300 machine is to be considered in between the Mini Green Climber and the Green Climber because of its weight, dimensions and engine power. Technical characteristics are as follows:

with an extra of 3 litres of oil in the engine;

Climber);

Climber);

under structures that are lower than the machine (solar panels guardrails etc);

uphill direction).

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

The LV300 Green Climber is supplied with a flail with a choice of

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

Availability of different types of tracks Standard profile High profile Metal spikes Additional LV300 Green Climber specs included in the price:

the state of the machine: low fuel level, oil pressure, overheating, etc.;

battery so that there's always a charged battery available;

changing.

TECHNICAL SPECIFICATIONS Remote controlled tractor with attachments

MDB s.r.l. – C.da S. Onofrio, 6/A – Lanciano (CH) ITALY

Equipment and functionality may vary depending on the model. All information, descriptions and technical data are not binding and may be subject to change.

high flexibility and productivity with all attachments (all movements are remote controlled) total safety for operators in any circumstance

Availability of different attachments Green Climber can use any type of attachment that complies with its power and weight. All attachments can be easily attached: the LV300 Green Climber comes with a fast coupling plate and a fast coupling hydraulic system.

Best regards MDB srl
