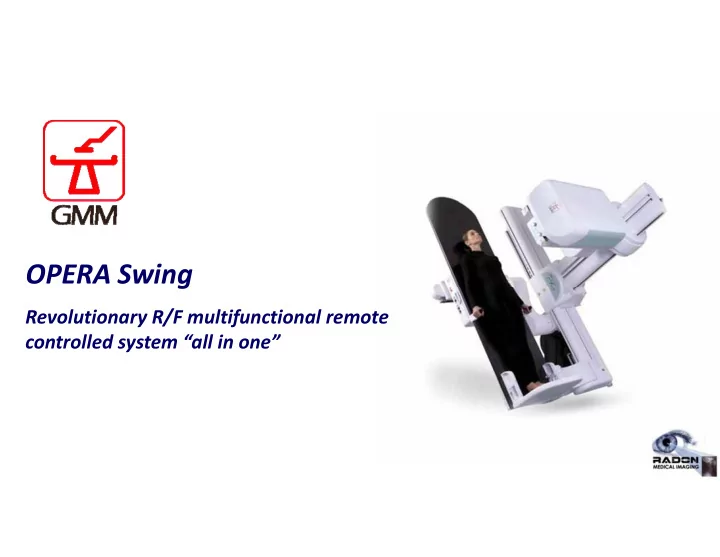

SLIDE 1

OPERA Swing

Revolutionary R/F multifunctional remote controlled system “all in one”

SLIDE 2

OPERA Swing

RF multifunctional remote controlled systems

Applications

Musculoskeletal
Chest
Genitourinary
Gastrointestinal
Vascular
Stitching
Tomography
Mylography
Swallows
ERCP

SLIDE 3

OPERA Swing

RF multifunctional remote controlled systems

Easy table access with the adjustable table/floor distance , height adjustable from 18” to 43”

Patient positioning

Comfortable and safe patient accessibility due to the over hanging table top.

SLIDE 4

OPERA Swing

RF multifunctional remote controlled systems

A complete range of automatic projections allows a safe and easy exposure without moving the patient.

Patient movement not required

SLIDE 5

OPERA Swing

RF multifunctional remote controlled systems

Foot side Head side

Lateral projections

SLIDE 6

OPERA Swing

RF multifunctional remote controlled systems

Standard examinations

The +/‐ 90° tilting movement ensures the safe and easy execution of routine and specialized examinations, as well as for optional tomographic and stitching

procedures. Table full motion weight limit is 500 LBS

SLIDE 7

OPERA Swing

RF multifunctional remote controlled systems

+90° position ‐90° position

Source to Image Distance up to 78” (ex. chest)

SLIDE 8

OPERA Swing

RF multifunctional remote controlled systems

Table top procedures

SLIDE 9

OPERA Swing

RF multifunctional remote controlled systems

Detector over the tabletop Detector under the tabletop

Full operation with detector over and under the tabletop

SLIDE 10

OPERA Swing

RF multifunctional remote controlled systems

Transverse Longitudinal

Optional GMM stretcher with patient weight load up to 500 LBS

Stretcher positioning directly over the detector

SLIDE 11

OPERA Swing

RF multifunctional remote controlled systems

In room console Main console

User interface

SLIDE 12

OPERA Swing

RF multifunctional remote controlled systems

Clinical images (contrast ‐ angio)

SLIDE 13

OPERA Swing

RF multifunctional remote controlled systems

Clinical images (bones)

SLIDE 14

OPERA Swing

RF multifunctional remote controlled systems

Clinical images (bones & chest)

SLIDE 15

OPERA Swing

RF multifunctional remote controlled systems

Clinical images – (tomo & optional stitching)

SLIDE 16

OPERA Swing

RF multifunctional remote controlled systems

Patient footrest
Device for footrest on head

side

Handgrips
Compression belt
Shoulder‐rest
Ankle‐support
Legs‐support
Head contention device
Wireless in room console on

trolley

Elevating stretcher
Pad for patient tabletop
Pad for stretcher
Bar for baby restraint
Pediatric cradle
Rubber lead operator

protection

In Room patient

communication

Double R/F remote foot pedal

Accessories

SLIDE 17

OPERA Swing

RF multifunctional remote controlled systems

2880x2880x16 bit image matrix
43x43 cm useful area
Radiography & Continuous/Pulsed Fluoroscopy
Optional features:
Stitching
Digital Subtraction Angiography (RF4343)
Full DICOM compliant

OPERA D4000RF

OPERA D4000RF is based on PIXIUM RF digital flat panel detectors available in two models: RF4343 and RF4343FL. Designed to replace conventional RF system using CR in spot film and fluoroscopy with image intensifier.

SLIDE 18

OPERA Swing

RF multifunctional remote controlled systems

RF4343FL RF4343 Useful area Image resolution Frames rate Frames rate Continuous fluoroscopy 43 x 43 cm 960 x 960 x 16 bit 16 fps 18 fps 30 x 30 cm 1024 x 1024 x 16 bit 12 fps 15 fps 20 x 20 cm 672 x 672 x 16 bit 20 fps 30 fps 15 x 15 cm 1024 x 1024 x 16 bit 6 fps 15 fps Pulsed fluoroscopy 43 x 43 cm 960 x 960 x 16 bit 12 fps max 15 fps max 30 x 30 cm 1024 x 1024 x 16 bit 12 fps max 15 fps max 20 x 20 cm 672 x 672 x 16 bit 12 fps max 15 fps max 15 x 15 cm 1024 x 1024 x 16 bit 6 fps max 15 fps max Radiography 43 x 43 cm 2880 x 2880 x 16 bit 2 fps max 3 fps max 43 x 43 cm 1440 x 1440 x 16 bit 6 fps max 8 fps max

Operative modalities

SLIDE 19

OPERA Swing

RF multifunctional remote controlled systems

Radon is looking for luminary sites within our sales territory, discounts available of up to 10% for becoming a luminary site

Opera Swing Universal R/F System ‐ with Dynamic Flat Panel Pricing with following features:

Anatomically Programmed High Frequency Generator 65 KW
90/90 Tilting R/F Table, with 94.5" x 25.5" (240x65 cm) carbon fiber

table top for complete head to foot access to the patient.

Variable high tabletop from 17.7" to 43.3" (45 cm to 110 cm) from

floor, maximum patient weight 500lbs (227 kg.) in all positions.

Unique detector mounting allows the possibility of the detector under
r above the tabletop for direct contact examinations, allowing for

lateral projections without the need for an overhead suspension..

Dynamic Flat Panel Detector Thales/Trixell Pixium RF4343 (17”X17”)
In room Monitor cart with one 19” LCD Monitor
Air Kerma Dose Rate Meter
Full DICOM included
Installation
4 days applications training

SLIDE 20
