REDD+ project case studies in FFPRI Dr. Mitsuo Matsumoto Director REDD Research and Development Center, Forestry and Forest Products Research Institute (FFPRI) 1 Contents Present situation of REDD+ Activities of REDD R & D Center

slide-1
SLIDE 1

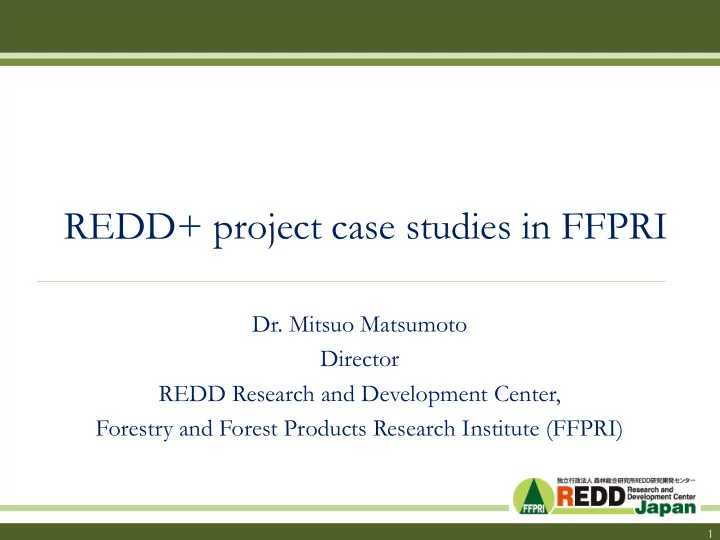

REDD+ project case studies in FFPRI

  • Dr. Mitsuo Matsumoto

Director REDD Research and Development Center, Forestry and Forest Products Research Institute (FFPRI)

1

slide-2
SLIDE 2

Contents

  • Present situation of REDD+
  • Activities of REDD R & D Center
  • Joint Crediting Mechanism (JCM)

2

slide-3
SLIDE 3

REDD+

  • REDD+ （REDD-plus）

– Reducing Emissions from Deforestation and forest Degradation and the role of conservation, sustainable management of forests and enhancement of forest carbon stocks in Developing countries

  • REDD: Activities for reducing emissions from

deforestation and forest degradation

  • +: Activities for maintaining and increasing forest

carbon stocks

3

slide-4
SLIDE 4

Background of REDD+

  • About 20% of carbon emissions

was from deforestation and forest degradation in 1990s and 12 % was in after 2010s.

  • REDD+ gives incentives

(economic compensation) for emission reductions or removals achieved by REDD+ activities.

  • It is also effective for conserving

biodiversity and economy of local people.

4

Cited from CIFOR “Can money grow trees?”

CO2 Emission

Reference Scenario Real emission Reduced emission Beginning of REDD program

Year

slide-5
SLIDE 5

History to REDD+ in UNFCCC

  • COP11, Montreal, 2005

– PNG and and Costa Rica proposed “Avoiding deforestation”

  • COP13, Bali, 2007

– REDD was listed in Bali Roadmap

  • COP14, Posnan, 2008

– REDD became REDD+

  • COP15, Copenhagen, 2009

– Copenhagen accords show the needs of a new mechanism of REDD+

  • COP16, Cancun, 2010

– Cancun agreement outlines a framework of REDD-Plus and shows a set of clear guidelines and a work plan for the coming year.

  • COP17, Durban, 2011

– Durban ACs decides to launch a process for a new protocol from 2020

  • COP18, Doha, 2012

– Discussion on modalities of National Forest Monitoring System and MRV

  • COP19, Warsaw, 2013

– The Warsaw framework for REDD+ 5

slide-6
SLIDE 6

Activities of REDD R&D Center

  • REDD R&D Center was

established at FFPRI in July 2010.

  • It carries out research and

development on REDD+ and provides related entities with technical supports.

  • The goal of the Center is to

contribute building a society balancing sound forests and regional development and conserving global environment through REDD+ activities.

6

slide-7
SLIDE 7

Research and Development

  • Development of NFMS and MRV systems

– Remote sensing – Ground-based inventory and Allometory equations – in Cambodia, Malaysia, Paraguay

  • Socio-economic analysis

– Driver analysis, Safeguards – in Cambodia, Malaysia

  • Development of REDD+ Methodologies

– Development of REDD Cookbook – Development of Guidelines for JCM

7

slide-8
SLIDE 8

Field survey Remote sensing

Total carbon stock = Σ ( Forest areai x Mean carbon stocki ) Mean carbon stock i Forest area i

Image classification Verification Plot survey Allometry

Decision of forest classes

Evergreen Deciduous Others

e.g. Rubber, Mangrove

Forest carbon monitoring for REDD+

8

slide-9
SLIDE 9

Challenges on forest monitoring by Remote sensing

Phenology in deciduous forests

雲 雲陰 水域 植生 非植生

Clouds in rain forests

slide-10
SLIDE 10

Producing mosaic image using multiple images within a year

Forest Non- forest Water Cloud Shadow Clouds and their shadows effects on the classification results.

It is need to produce mosaic image with multiple images within a year.

slide-11
SLIDE 11

Standardization of images with algorithm for reducing the effect of seasonality

SPOT images (upper: the end of dry season, lower: the beginning of dry season) Reduction of effect of seasonality by standardizing images with developed algorithm.

slide-12
SLIDE 12

Land cover map using standardized images

slide-13
SLIDE 13
  • Technical guidance on REDD-

plus for policy makers,

  • rganizations and experts
  • English & Japanese
  • 151 pages
  • 36 Recipes
  • Reference guide
  • Written by 28 experts
  • Downloadable form the Web of

REDD R&D Center

13

REDD-plus Cookbook

slide-14
SLIDE 14

Contents of the Cookbook

Introduction

Chapter 1 - About REDD-plus Chapter 2 - Designing a forest monitoring system

Planning

Chapter 3 - Basic knowledge needed for REDD+ implementation Chapter 4 - Measurement, reporting and verification (MRV) of forest carbon Chapter 5 - Monitoring by the stock change method

Technical

Chapter 6 - Preparation of REDD+ implementation Chapter 7 - Estimation of forest area using remote sensing Chapter 8 - Permanent sample plot method Chapter 9 - Estimation models for forest carbon stocks

References

slide-15
SLIDE 15

Design of Recipe

slide-16
SLIDE 16

Reference guide

slide-17
SLIDE 17

Movie for REDD+ Introduction

  • Title: “Toward Implementation of REDD+ -Climate

change and forest conservation-”

  • 25 minutes full version and 10 minute short version
  • Eight languages

– Japanese, English, French – Portuguese, Spanish – Khmer, Lao, Indonesian

  • Available via Internet

– Visit The Web of REDD R&D Center

  • Contact to REDD Research & Development Center

– E-mail: redd-rd-center@ffpri.affrc.go.jp

17

slide-18
SLIDE 18

Learning Event in Forest Day 4 in COP16, Cancun

Raising Public Awareness / Supporting Activities

18

Presentation in Forest Day 5 in COP17, Durban

International seminar held in Feb 2011, 2012 and 2013, Tokyo

Side event by FFPRI in COP18, Doha

slide-19
SLIDE 19

What is JCM?

19

  • Japanese government is constructing The Joint Crediting

Mechanism (JCM) as an potential mitigation measure

  • Japan’s low carbon technologies, products, systems, services and

infrastructure support emission reduction and removals in host countries

  • The scheme of JCM looks like CDM, but JCM is managed by

Joint Committees under agreement between Japan and host countries

Quoted from the Web of New Mechanism Information Platform

slide-20
SLIDE 20

Agreed Countries on JCM

  • 11 countries agreed on JCM

– Mongolia – Bangladesh – Ethiopia – Kenya – Maldives – Vietnam – Laos – Indonesia – Costa Rica – Palau – Cambodia

20

slide-21
SLIDE 21

REDD+ under the JCM

  • Activities of the JCM are adopted by each Joint

Committee

  • REDD+ is expected as an activity of the JCM
  • But the methodologies of MRV for REDD+ have not

developed enough

  • REDD+ Guidelines are required now

21

slide-22
SLIDE 22

REDD-plus Guidelines for JCM

  • “Guidelines for Implementing REDD-plus”
  • Developed by FFPRI voluntarily
  • It is expected to contribute to the formal

guidelines which will be developed by the Joint committees.

  • Contents

– Chap 1: Introduction

  • Background
  • Discussion on REDD-plus in Japan
  • Purpose of the guideline

– Chap 2: Requirements to projects

  • Essential requirements
  • Requirements to elements of projects

– Chap 3: Requirements to methodologies

  • Basic requirements
  • Requirements to elements of methodologies

22

slide-23
SLIDE 23

Key Points

  • Required accuracy of forest map classification

– International standards indicate “suitable accuracy” for estimation of GHG emission reduction and removals – Experiences and practices from projects and studies show feasible accuracy of forest map classification – The accuracy of classification of Forest/non-forest should be above 80%, and the one of each forest type should be above 70%.

23

slide-24
SLIDE 24

Thank you

24

Visit the Web of REDD R&D Center http://www.ffpri.affrc.go.jp/redd-rdc/en/
