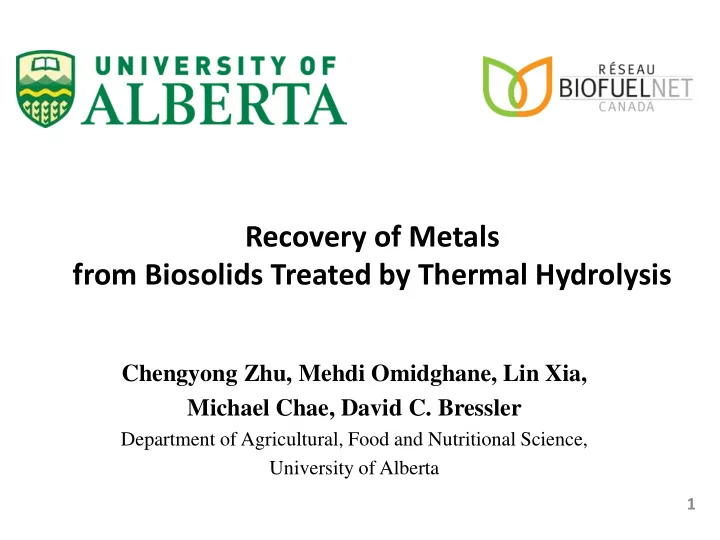

Recovery of Metals from Biosolids Treated by Thermal Hydrolysis

Chengyong Zhu, Mehdi Omidghane, Lin Xia, Michael Chae, David C. Bressler

Department of Agricultural, Food and Nutritional Science, University of Alberta

1

Uses of Metals

Metals

Images from: Google Images

2

Declining Ore Grades

http://www.csiro.au/en/Research/MRF/Areas/Resourceful-magazine/Issue-07/Producing-more-from-less

Year 3

What Are Biosolids?

Edmonton Waste Management Centre-Clover Bar

Image: https://reducedimpactfamily.wordpress.com/2010/03/01/our-visit-edmonton-waste-management-center/

Biosolids are defined as wastewater sludge destined for beneficial use (Mangory et al). Main components: water, organic matter, trace elements…

4

Incorporation of Biosolids into LTH Technology for Production of Biofuel

Lipids Hydrolysis Reactor Water Aqueous Waste

Free Fatty Acids

Pyrolysis Reactor Hydrocarbons By-products Two-step Thermal Lipid To Hydrocarbon Technology

Biosolids

Solid phase & Aqueous Phase

Source: Maher, 2007(with modifications) 5

Recovery of Metal Values from Biosolids?

• Economic Values

Take Al for example: Annual production of biosolids: 25, 000 dry tonnes Content of Al: 30,000 mg/kg Recovery rate: 90% Unit price: 0.72 USD/LB

≈1.0 Million USD

http://www.edmonton.ca/city_government/utilities/biosolids-management.aspx

6

Recovery of Metal Values from Biosolids?

• Toxicity

Pb, Cu, As Cr, Hg, Ni Pb, Cu, As Cr, Hg, Ni Pb, Cu, As Pb, Cu, As Pb, Cu, As Cr, Hg, Ni

Image modified from: http://2015.igem.org/Team:Bielefeld-CeBiTec/Project/HeavyMetals

7

Results

• Settling of hydrolyzed biosolids

0 min 5 min 24 h

8

Results

• Metal distribution after thermal hydrolysis(280oC, 60 min)

Al Ti Cr Fe Mn Cu Zn Ag Y Aqueous Phase (mg/L) 3.69 ± 0.89 0.039 ± 0.011 0.245 ± 0.058 6.66 ± 1.14 1.78 ± 0.17 0.038 ± 0.013 2.91 ± 0.11 0.005 ± 0.005 0.005 ± 0.001 Solid Phase (mg/kg) 3817 6 ± 1716 1571 ± 278 298 ± 37 21922 ± 1645 397 ± 14 814 ± 28 1047 ± 38 3.21 ± 1.08 8.64 ± 0.38 9

Solid Phase

Acids Bases

Metal leachates Metals

Electrowinning

Proposed Scheme of Metal Recovery Concentrated Pure Metal Solutions

Purification

Results

• Leach metals with sulfuric acid (3h, 200rpm, 25 oC, solid(g):

sulfuric acid(mL)=1(g):10 (mL) )

Recovery Percentage of Metals (%)

H2SO4 Al Ti Cr Fe Mn Cu Zn 0.5 M 31.6 ± 0.6 20.1 ± 5.9 42.5 ± 1.6 40.4 ± 0.5 43.6 ± 0.9 18.4 ± 10.8 44.0 ± 1.0 1 M 60.9 ± 4.2 25.4 ± 11.0 65.3 ± 3.4 70.8 ± 2.5 73.6 ± 1.3 9.4 ± 0.6 73.4 ± 3.8 1.5 M 68.4 ± 13.2 28.4 ± 11.6 70.7 ± 11.8 77.3 ± 13.4 77.9 ± 11.7 10.3 ± 1.8 77.8 ± 13.4 2 M 66.7 ± 8.1 29.3 ± 13.7 69.1 ± 7.3 75.0 ± 8.9 75.8 ± 8.4 10.4 ± 1.6 74.7 ± 8.9 11

Future Plans

• Optimize leaching metals with sulfuric acid
• Leach metals with other acids
• Recovery of metals

12
