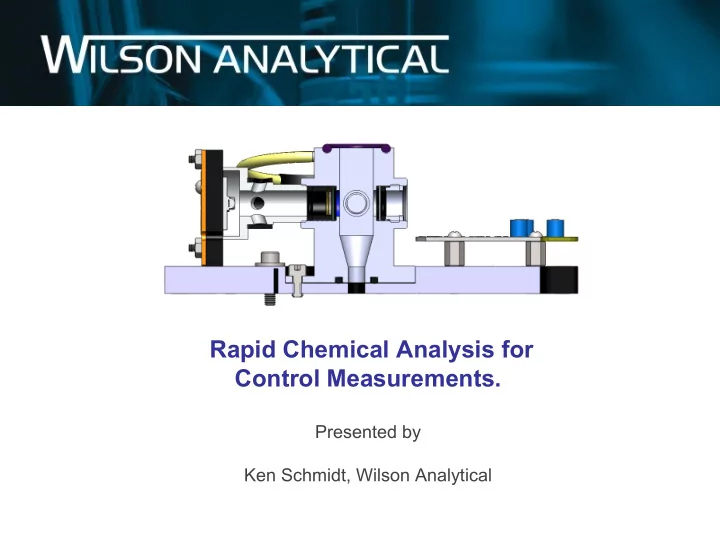

Rapid Chemical Analysis for Control Measurements.

Presented by Ken Schmidt, Wilson Analytical

You collect the samples in the field… But where do you analyze them?

www.wilsonanalytical.com

• Sampling and chain of custody errors
• Degradation of sample quality with time
• High cost of third-party analyses or

maintaining in-house lab infrastructure

• Poor statistics, as the number of samples taken

and transported is usually minimized

• Delays in problem diagnosis and hence

remedial action

Inherent Problems with the Status Quo: Central Laboratory Analysis

www.wilsonanalytical.com

Excellence Required in:

• Chemical Analysis
• Mechanical Design and Fabrication
• Optical and Electronic Design
• Miniaturization of equipment
• Field Robustness and Ease of Use

The Solution: Rugged, Portable Analytical Equipment

Final Integration into a complete analytical solution

www.wilsonanalytical.com

UV/Visible Absorbance: Colorimetric Analysis

• Must have coloured samples or colour-change reagents
• Moderate sensitivity and prone to interference

Optical Spectroscopy : Rapid Chemical Analysis of Liquids

www.wilsonanalytical.com

UV/Visible Absorbance: Colorimetric Analysis

www.wilsonanalytical.com

Oilfield Absorbance-Based Measurements

• Chloroform Extraction-Dye Coupling (Corrosion Inhibitors)
• pH and titrations
• Sample digestion followed by purple phosphate-molybdate

complex formation (Scale Inhibitors)

• Other reagent-based analyses (Hach Tests)

www.wilsonanalytical.com

Fluorescence Emission Analysis

• Must have fluorescent samples or fluorescent reagents
• Excellent sensitivity and fairly immune to interference

Optical Spectroscopy : Rapid Chemical Analysis of Liquids

www.wilsonanalytical.com

Fluorescence Emission Analysis

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• Tracing with Fluorescent Dyes (Water Flows and Solvents)
• Intrinsically Fluorescent Materials (Corrosion Inhibitors)
• Fluorescently-tagged Analytes (Scale Inhibitors)
• Nanochemistry-based fluorescent reagents (In Progress)

www.wilsonanalytical.com

Absorbance and Fluorescence Measurements Out of the Lab

How ?

www.wilsonanalytical.com

Wilson Analytical’s rugged technology brings the accuracy of laboratory instruments directly to the field or to a process lab location

Wilson Instruments use Dependable LED Technology for Light Sources

No flash lamps

• r other delicate

light sources Monochromatic Inherently Robust Versatile

In combination with a USB-driven micro-spectrometer for Detection

Small No moving parts Full spectrum detection

www.wilsonanalytical.com

Lab on a Tailgate

www.wilsonanalytical.com

Wilson Analytical’s unique QuatBox technology brings the accuracy of laboratory fluorescence methods directly to the field in one easy-to-use, ruggedized package

The Wilson LabBox

• Lab model, no field-use

features

• Same high performance as

the QuatBox

• Same internal ruggedness
• Fluorescence or Absorbance

measurements

• Attractively priced
• Well suited to “rough” labs
• Perfect for process control

measurements

www.wilsonanalytical.com

The Wilson X-Probebox

• Highly stabilized, high-
• utput LED Light Source
• Integrated Spectrometer
• Works with fiber optic

probes

• Dipping, reflection,

fluorescence or other

• For external samples or in-

line process analysis systems

www.wilsonanalytical.com

The New Wilson Open Platform System

• Easily interchangeable

highly stabilized, high-

• utput LED Light Sources

complete with optical filters

• Easily interchangeable

Sample Holders complete with optical filters (for solids

• r liquids)
• Easily interchangeable

Spectrometers coupled to system electronics

www.wilsonanalytical.com

The New Wilson Open Platform System

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• Tracing with Fluorescent Dyes (Water Flows, Oil Soluble Products)
• Less than 1 ppb

detection limit for FL dyes

• Dyes only follow the

solvent, not the actives

Direct Environmental Measurements in the Field

• ppm level detection limits for

petroleum and its conjugated aromatic compounds (PAH’s, NA’s, TPH) in water

Tailings Ponds Oil Spills

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• Intrinsically Fluorescent Materials (Corrosion Inhibitors)

www.wilsonanalytical.com

• Reliable data can be obtained within minutes of sampling
• Custom designed, intuitive software makes it easy to use

• 1 ppm detection limit for most

continuously applied corrosion inhibitors containing APQ’s

• No sample preparation other

than filtration and dilution

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• No APQ’s ? Using other bases? Fluorescent Imidazolines!

www.wilsonanalytical.com

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• Intrinsically Fluorescent Materials (Corrosion Inhibitors)

Batch Inhibitors are Next

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• Intrinsically Fluorescent Materials (Frac Tracers)

www.wilsonanalytical.com

www.wilsonanalytical.com

For more info, contact

• Dr. David Antoniuk

antoniuk.david@gmail.com Tel: (780) 554-7398

Fluorescent Silica Nanoparticles (FSNP)

www.wilsonanalytical.com

Fluorescent Silica Nanoparticles (FSNP)

• Applied Quantum Materials has developed a suite of nanoparticles for the
• il industry that can be used as a non-toxic, thermally stable reservoir

tracer.

• AQM’s materials are designed to be stable at downhole temperatures of

250 ᵒC, and are made to be compatible with fracking solutions by adjusting their surface chemistry.

• Appropriately sized silica nanoparticles infused into a fracture fluid can

penetrate the newly opened fractures during the pressurized fracturing stage.

• Detection of FSNP to ppb can be made with Wilson Analytical

spectrometers.

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• Fluorescently-tagged Actives (Kemira Scale Inhibitors)
• Polyacrylamides?

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• Nanochemistry-based fluorescent reagents (sulfide in water)

• Zeng. Inorg. Chem. 2012, 51, 2454−2460

www.wilsonanalytical.com

Oilfield Fluorescence-Based Measurements

• Nanochemistry-based fluorescent reagents (Scale Inhibitors)

Aluminum-Morin Complex:

• FL signal is quenched by

Scale Inhibitor Binding to Al (a Turn-Off reagent)

• Working FL Turn-On Reagents

www.wilsonanalytical.com

The Future of Wilson Instrumentation

• In-instrument sample

mixture separation

• Detection of multiple

analytes at one time using a single instrument

www.wilsonanalytical.com

Current Oilfield Water Analysis

www.wilsonanalytical.com

Full Oilfield Water Analysis at the Point of Sampling

The WaterBox

www.wilsonanalytical.com

The WaterBox

• Based on Capillary Electrophoresis, which uses electrical separation of

anions (-ve ions) and cations (+ve ions) in water with optical detection

• Designed to give accurate results under field conditions, even with brines
• Full oilfield water chemical analysis of all cations and anions, corrosion

and scale inhibitor residuals

• Answers in less than 30 minutes directly in the field

www.wilsonanalytical.com

The WaterBox

• Advanced anion profiles for Corrosion Work and Pipelines

Organic Acids Sulphur speciation (sulphide, sulphate, sulphite, …)

• Advanced ion profiles for Fracturing Applications

Borates Nitrates Multiple Simultaneous Frac Tracers (64+)

• Advanced anion profiles for Oilsands applications

Silicates Napthenic Acids

www.wilsonanalytical.com

Portable H2S Analyzer for Liquid Hydrocarbons

H2S Off-Gassing Potential? Transport Canada to Regulate

www.wilsonanalytical.com

Portable H2S Analyzer for Liquid Hydrocarbons

www.wilsonanalytical.com

Contact us:

Ken Schmidt Phone: (780) 702-0610 Email: ken@wilsonanalytical.com
