R. C. Airships developed in IIT Bombay Prof. Rajkumar S. Pant Aerospace Engineering Department IIT Bombay AE-664 Lighter-Than-Air Systems Capsule-1 Genesis of LTA Systems @ IIT Bombay PADD AE-664 Lighter-Than-Air Systems Capsule-1 Program on

slide-1
SLIDE 1

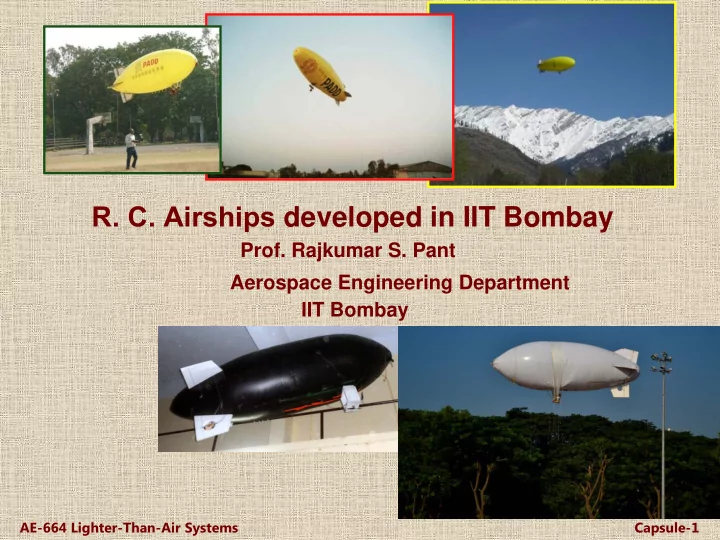

AE-664 Lighter-Than-Air Systems Capsule-1

  • R. C. Airships developed in IIT Bombay
  • Prof. Rajkumar S. Pant

Aerospace Engineering Department

IIT Bombay

slide-2
SLIDE 2

AE-664 Lighter-Than-Air Systems Capsule-1

PADD

Genesis of LTA Systems @ IIT Bombay

slide-3
SLIDE 3

AE-664 Lighter-Than-Air Systems Capsule-1

Program on Airship Design & Development

 Carried out from 2001 to 2003  Seven Member Team headed by Prof. S. K. Sane, IITB

  • 4 from IITB & 3 from Industry ( ADRDE, ADA, AAI)
  • One Independent Consultant

 Establish Techno-Economic Feasibility

  • Operation, Design & Development of Airships in India

 Promote Usage

  • Multiple roles; Pax/Cargo, CasEvac, Tourism, ………

 Develop Technology Base

  • Enhance existing expertise in Parachutes & Aerostats

 Explore avenues of Joint Development

  • National & Global Partners
  • Private Sector participation
slide-4
SLIDE 4

AE-664 Lighter-Than-Air Systems Capsule-1

Tasks Completed in PADD

 Project Definition Report

  • Design and Development of Two Airships
  • Cargo and Passengers in Lower Himalayas, UK

 Demo airship & PaxCargo Airship

  • Payload = 100 kg & 1500 kg
  • @ Hot (ISA+15) and High (3500 m) conditions
  • Operation at lower altitudes also explored

 Feasibility Report for leasing a few airships

slide-5
SLIDE 5

AE-664 Lighter-Than-Air Systems Capsule-1

Methodology for Airship initial sizing

 Estimate Volume (or Payload) of non-rigid a/s  Meeting user-specified and operating reqmt.  Useful for…

  • Conceptual design studies
  • Determine sensitivity of operational requirements
  • n configuration related parameters
  • Investigating what-if scenarios
  • Carrying out MDO of an airship system
slide-6
SLIDE 6

AE-664 Lighter-Than-Air Systems Capsule-1

 Methodology for Determination of Baseline

Specifications of a Non-Rigid Airship

 Paper AIAA-2003-6830, Proceedings of AIAA's 3rd Annual

Aviation Technology, Integration, and Operations (ATIO) Forum, Denver, Colorado, Nov. 17-19, 2003.

 Technical Note, AIAA Journal of Aircraft, Vol. 45, No. 6,

  • pp. 2177-2182, Nov-Dec 2008.

Key Publications

slide-7
SLIDE 7

AE-664 Lighter-Than-Air Systems Capsule-1

Pax ax/ C / Cargo Air Airship ip Demo emo Airsh ship Demo emo Airsh ship Sus uspensi pension c n car

Key Output of PADD

slide-8
SLIDE 8

AE-664 Lighter-Than-Air Systems Capsule-1

REMOTELY CONTROLLED AIRSHIPS

Design, Fabrication & Flying

slide-9
SLIDE 9

AE-664 Lighter-Than-Air Systems Capsule-1

Parameter MICRO MINI MACRO Length (m) 4.99 6.42 8.00 Envelope Volume (m3) 6.8 8.6 26.6 Payload (kg) 1.0 3.0 6.0 Endurance (min) 15 18 25

  • Max. Speed (m/s)

7 10 12 Engine Power (HP) 0.41 0.60 2.0

Micro, Mini and Macro R C Airships

slide-10
SLIDE 10

AE-664 Lighter-Than-Air Systems Capsule-1

Mic icro RC

  • RC Air

Airship p (2002 2002)

Volume = 6.8 m3 Length = 5 m Engine Displacement = 2.49 cc Power = 0.41 BHP @ 17000 RPM Payload = ~ 1 kg

  • Max. Speed = 25 km/h

Endurance = 15 min with 200 ml fuel

  • No. of Flight days = 4

at IIT Gymkhana First Flight Video

slide-11
SLIDE 11

AE-664 Lighter-Than-Air Systems Capsule-1

Min ini RC RC Air Airshi hip (200 003)

Length = 5 m Volume = 8.64 m3 Payload = ~3.0 kg

  • Max. Speed = 36 kmph

Endurance = 15 min with 300 ml fuel

  • No. of Flight days = 6 at Pune,

Bangalore, Coimbatore Pune Trial Video

slide-12
SLIDE 12

AE-664 Lighter-Than-Air Systems Capsule-1

Moo Mooring Mas Mast

Gimbal Mechanism

Mooring Mast in Use

slide-13
SLIDE 13

AE-664 Lighter-Than-Air Systems Capsule-1

Macro RC

  • RC Air

Airship p (2009 2009)

Length = 8 m Volume = 26.59 m3 Payload = 6.0 kg Flight Altitude = SASE, Manali, 6572 ft Engine Displacement = 10.0 cc Power = 2 BHP @ 14000 RPM Flight Video On-Board Camera View

slide-14
SLIDE 14

AE-664 Lighter-Than-Air Systems Capsule-1

Jus ust af after ter releas release e at at SASE H Helipad elipad

14

slide-15
SLIDE 15

AE-664 Lighter-Than-Air Systems Capsule-1

DEVELOPMENT OF AUTONOMOUS OUTDOOR AIRSHIP

Aim of the project

slide-16
SLIDE 16

AE-664 Lighter-Than-Air Systems Capsule-1

 Data collection applications which require

long endurance flight

 Ability to Hover at a location  Independent of LOS of Flyer or ground

station

Need for Autonomous Airship

slide-17
SLIDE 17

AE-664 Lighter-Than-Air Systems Capsule-1

 Investigate the efficacy of

  • outdoor remotely controlled airship
  • autonomous airships
  • as a platform for aerial observation and data collection

 Obtain an insight into issues related to

  • operational capabilities
  • limitations

Objectives

slide-18
SLIDE 18

AE-664 Lighter-Than-Air Systems Capsule-1

 Methodology for airship conceptual sizing and design  6-DOF dynamic model of the airship

  • suitable for controller design & computer simulation

 Study strategies for autonomous control system  Implement the best one an airship

Tasks to be done

slide-19
SLIDE 19

AE-664 Lighter-Than-Air Systems Capsule-1

Baseline specifications

Parameter Value Net lifting capacity @ sea-level 2 kg

  • Max. permissible wind for safe operation

10 m/s

  • Max. speed

15 m/s Deployment altitude 200 m Cruising altitude (AGL) 100 m Endurance at cruising condition 30 min Control Range 1 km

slide-20
SLIDE 20

AE-664 Lighter-Than-Air Systems Capsule-1

FABRICATION AND SYSTEM INTEGRATION

Outdoor Autonomous Airship

slide-21
SLIDE 21

AE-664 Lighter-Than-Air Systems Capsule-1

Gondola Design and Fabrication

CAD Model Fabricated Gondola

slide-22
SLIDE 22

AE-664 Lighter-Than-Air Systems Capsule-1

System Integration & Testing

Nose Battens Yaw motor on Fin Fins on Envelope

slide-23
SLIDE 23

AE-664 Lighter-Than-Air Systems Capsule-1

Fully Assembled Airship

slide-24
SLIDE 24

AE-664 Lighter-Than-Air Systems Capsule-1

Attaching Nose Battens to Mast

slide-25
SLIDE 25

AE-664 Lighter-Than-Air Systems Capsule-1

Field Trials (29 & 30 Nov 2013)

slide-26
SLIDE 26

AE-664 Lighter-Than-Air Systems Capsule-1

The Test Crew

Jônatas Sant’ Anna Santos, ALTAVE

slide-27
SLIDE 27

AE-664 Lighter-Than-Air Systems Capsule-1

INDOOR & OUTDOOR AIRSHIPS

Student Projects

slide-28
SLIDE 28

AE-664 Lighter-Than-Air Systems Capsule-1

KVPY Summer Project I

slide-29
SLIDE 29

AE-664 Lighter-Than-Air Systems Capsule-1

KVPY Summer Project I

Demo Flight, August 2004

Rahul Sangole, PVG CoET, Pune Rohit Belapurkar, MIT, Pune Kshitija Deshpande PIET, Pune June-August 2004

slide-30
SLIDE 30

AE-664 Lighter-Than-Air Systems Capsule-1

RC Capsule Airship

Shailesh Agashe, Ketan Palashikar, Gaurav Nakanekar, Rahul Sangole

PVG’s COET, Pune, 2006

Demo Flight, March 2006

Speed & eed & Direction

  • n Cont
  • ntrol

Sp Spot tu t turn

slide-31
SLIDE 31

AE-664 Lighter-Than-Air Systems Capsule-1

IN INDO DOOR A R AIR IRSHI HIPS

Student Projects

slide-32
SLIDE 32

AE-664 Lighter-Than-Air Systems Capsule-1

TAMUBlimp Project (2011)

slide-33
SLIDE 33

AE-664 Lighter-Than-Air Systems Capsule-1

Demonstration Flight

slide-34
SLIDE 34

AE-664 Lighter-Than-Air Systems Capsule-1

ZEPHYR 2013 BLIMP

Semi-Outdoor Blimp

slide-35
SLIDE 35

AE-664 Lighter-Than-Air Systems Capsule-1

Indoor Airship 2013

slide-36
SLIDE 36

AE-664 Lighter-Than-Air Systems Capsule-1

Lift Test

slide-37
SLIDE 37

AE-664 Lighter-Than-Air Systems Capsule-1 Design Inputs Payload 0.3 kg Fabric Density 190 gsm Shape Zhiyuan Output Support Equipment 1.0 kg Length 4.2 m Volume 3.6 m3

Semi-outdoor Airship

slide-38
SLIDE 38

AE-664 Lighter-Than-Air Systems Capsule-1

1st Feb 2013: Structures Lab IITB

Test Flight (Indoor)

slide-39
SLIDE 39

AE-664 Lighter-Than-Air Systems Capsule-1

2nd Mar 2013: Victor Menezes Convention Centre IITB

Test Flight (Semi-Outdoor)

slide-40
SLIDE 40

AE-664 Lighter-Than-Air Systems Capsule-1

BIOMIMETIC AIRSHIP

Recent Project

slide-41
SLIDE 41

AE-664 Lighter-Than-Air Systems Capsule-1

Existing Biomimetic LTA Systems

41

slide-42
SLIDE 42

AE-664 Lighter-Than-Air Systems Capsule-1

Other Biomimetic LTA systems 42

slide-43
SLIDE 43

AE-664 Lighter-Than-Air Systems Capsule-1

Selection of Shape

 Performance  Fineness ratio  Swimming styles

Butterfly fish

slide-44
SLIDE 44

AE-664 Lighter-Than-Air Systems Capsule-1

Design Issues in Biomimetic Systems

 Performance

44

  • Fin shapes
  • Swimming style
slide-45
SLIDE 45

AE-664 Lighter-Than-Air Systems Capsule-1

INDOOR BIOMIMETIC AIRSHIP

LTA Systems Laboratory, IIT Bombay

slide-46
SLIDE 46

AE-664 Lighter-Than-Air Systems Capsule-1

Key Fabrication Issues

  • Material= Nano-clay coated polyester
  • Shape = Butterfly Fish
  • Joining Process = Heat Sealing
slide-47
SLIDE 47

AE-664 Lighter-Than-Air Systems Capsule-1

Assembled Airship
