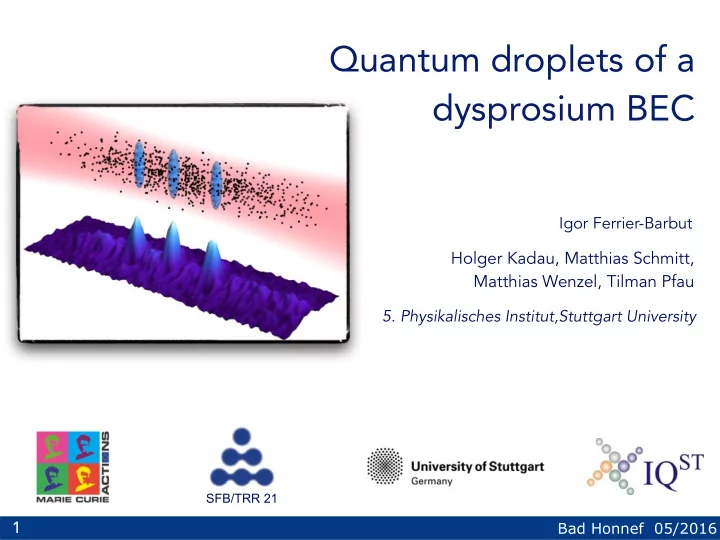

Quantum droplets of a dysprosium BEC Igor Ferrier-Barbut Holger - - PowerPoint PPT Presentation

Bad Honnef 05/2016

1

Quantum droplets of a dysprosium BEC

Igor Ferrier-Barbut

SFB/TRR 21

Holger Kadau, Matthias Schmitt, Matthias Wenzel, Tilman Pfau

• 5. Physikalisches Institut,Stuttgart University

Bad Honnef 05/2016

2

Can one form a liquid of dilute ultracold bosons?

Bad Honnef 05/2016

2

Beyond mean-field energy of the weakly-interacting Bose gas

E V = g n2 2 (1 + 128 15√π √ n a3 + · · · )

mean-field LHY, quantum fluctuations

• Phys. Rev 106, 1135 (1957)

Can one form a liquid of dilute ultracold bosons?

Bad Honnef 05/2016

2

What if these two contributions could be tuned to have opposite signs?

• G. E. Volovik, The Universe in a Helium Droplet, (Oxford University Press, 2009)
• D. S. Petrov, Phys. Rev. Lett. 115, 155302 (2015).

Beyond mean-field energy of the weakly-interacting Bose gas

E V = g n2 2 (1 + 128 15√π √ n a3 + · · · )

mean-field LHY, quantum fluctuations

• Phys. Rev 106, 1135 (1957)

Can one form a liquid of dilute ultracold bosons?

Bad Honnef 05/2016

2

What if these two contributions could be tuned to have opposite signs?

• G. E. Volovik, The Universe in a Helium Droplet, (Oxford University Press, 2009)
• D. S. Petrov, Phys. Rev. Lett. 115, 155302 (2015).

Beyond mean-field energy of the weakly-interacting Bose gas

E V = g n2 2 (1 + 128 15√π √ n a3 + · · · )

Toy model:

E V = e = α n2 + β n5/2

mean-field LHY, quantum fluctuations

• Phys. Rev 106, 1135 (1957)

Can one form a liquid of dilute ultracold bosons?

Bad Honnef 05/2016

2

What if these two contributions could be tuned to have opposite signs?

• G. E. Volovik, The Universe in a Helium Droplet, (Oxford University Press, 2009)
• D. S. Petrov, Phys. Rev. Lett. 115, 155302 (2015).

Beyond mean-field energy of the weakly-interacting Bose gas

E V = g n2 2 (1 + 128 15√π √ n a3 + · · · )

Toy model:

E V = e = α n2 + β n5/2

• 10
• 5

5 10 10-4 0.001 0.010 0.100 1 10 100

α/β κT (a.u)

κT = 1 n2 ∂n ∂μ

gas liquid

Gas - liquid transition!

mean-field LHY, quantum fluctuations

• Phys. Rev 106, 1135 (1957)

Can one form a liquid of dilute ultracold bosons?

Bad Honnef 05/2016

2

What if these two contributions could be tuned to have opposite signs?

• G. E. Volovik, The Universe in a Helium Droplet, (Oxford University Press, 2009)
• D. S. Petrov, Phys. Rev. Lett. 115, 155302 (2015).

Beyond mean-field energy of the weakly-interacting Bose gas

E V = g n2 2 (1 + 128 15√π √ n a3 + · · · )

Toy model:

E V = e = α n2 + β n5/2

• 10
• 5

5 10 10-4 0.001 0.010 0.100 1 10 100

α/β κT (a.u)

κT = 1 n2 ∂n ∂μ

gas liquid

Gas - liquid transition!

mean-field LHY, quantum fluctuations

• Phys. Rev 106, 1135 (1957)

Can one form a liquid of dilute ultracold bosons?

n0 ∝ ✓α β ◆2

Bad Honnef 05/2016

3

Dipolar Bose-Einstein condensates

Bad Honnef 05/2016

3

Dipolar Bose-Einstein condensates

Vc(r) = 4π~2a m δ(r)

Contact interaction

Bad Honnef 05/2016

3

Dipolar Bose-Einstein condensates

Vc(r) = 4π~2a m δ(r)

Contact interaction

θ

r

~ µ

~ µ

Vdd(r) = µ0 µ2 1 − 3 cos2θ 4π r3

Dipole-dipole interaction

Bad Honnef 05/2016

3

Dipolar Bose-Einstein condensates

Vc(r) = 4π~2a m δ(r)

Contact interaction

θ

r

~ µ

~ µ

Vdd(r) = µ0 µ2 1 − 3 cos2θ 4π r3

Dipole-dipole interaction

Dipolar length Scattering length

a

Characteristic length scales:

add = m µ0 µ2 12π ~2

Bad Honnef 05/2016

3

Dipolar Bose-Einstein condensates

Vc(r) = 4π~2a m δ(r)

Contact interaction

θ

r

~ µ

~ µ

Vdd(r) = µ0 µ2 1 − 3 cos2θ 4π r3

Dipole-dipole interaction

Dipolar length Scattering length

a

Characteristic length scales:

add = m µ0 µ2 12π ~2

Relative dipolar strength: εdd = add

a

Bad Honnef 05/2016

4

Dipolar Bose-Einstein condensates

Mean-field e(~

r ) = g n(~ r )2 2 + n(~ r ) 2 Z d~ r Vdd(~ r 0 − ~ r ) n(~ r 0)

~ B

κ = Rr Rz

2Rr 2Rz

Bad Honnef 05/2016

4

Dipolar Bose-Einstein condensates

Mean-field

emf(0) = g n2 2 (1 − εddf(κ)) e(~ r ) = g n(~ r )2 2 + n(~ r ) 2 Z d~ r Vdd(~ r 0 − ~ r ) n(~ r 0)

~ B

κ = Rr Rz

2Rr 2Rz

Bad Honnef 05/2016

4

Dipolar Bose-Einstein condensates

Mean-field

0.01 0.10 1 10 100

• 2.0
• 1.5
• 1.0
• 0.5

0.0 0.5 1.0

κ f(κ)

emf(0) = g n2 2 (1 − εddf(κ)) e(~ r ) = g n(~ r )2 2 + n(~ r ) 2 Z d~ r Vdd(~ r 0 − ~ r ) n(~ r 0)

~ B

κ = Rr Rz

2Rr 2Rz

Bad Honnef 05/2016

5

Dipolar Bose-Einstein condensates

Beyond mean-field

∆e = 128 15√π √ na3 Q5(εdd)

Bad Honnef 05/2016

5

Dipolar Bose-Einstein condensates

Beyond mean-field

∆e = 128 15√π √ na3 Q5(εdd)

LHY Dipolar enhancement

Lima & Pelster, PRA 84, 041604 (2011), ibid 85, 063609 (2012)

Q5(εdd) = 1 + 3 2ε2

dd + · · ·

Bad Honnef 05/2016

5

Dipolar Bose-Einstein condensates

Beyond mean-field

∆e = 128 15√π √ na3 Q5(εdd)

LHY Dipolar enhancement

Lima & Pelster, PRA 84, 041604 (2011), ibid 85, 063609 (2012)

Q5(εdd) = 1 + 3 2ε2

dd + · · ·

e(0) = g n2 2 ✓ 1 − εddf(κ) + 128 15√π (1 + 3 2ε2

dd)

√ a3√n0 ◆

Bad Honnef 05/2016

5

Dipolar Bose-Einstein condensates

Beyond mean-field

∆e = 128 15√π √ na3 Q5(εdd)

LHY Dipolar enhancement

Lima & Pelster, PRA 84, 041604 (2011), ibid 85, 063609 (2012)

Q5(εdd) = 1 + 3 2ε2

dd + · · ·

e(0) = g n2 2 ✓ 1 − εddf(κ) + 128 15√π (1 + 3 2ε2

dd)

√ a3√n0 ◆ α β

Bad Honnef 05/2016

5

Dipolar Bose-Einstein condensates

Beyond mean-field

∆e = 128 15√π √ na3 Q5(εdd)

LHY Dipolar enhancement

Lima & Pelster, PRA 84, 041604 (2011), ibid 85, 063609 (2012)

Q5(εdd) = 1 + 3 2ε2

dd + · · ·

e(0) = g n2 2 ✓ 1 − εddf(κ) + 128 15√π (1 + 3 2ε2

dd)

√ a3√n0 ◆ α/β < 0

for

κ ⌧ 1, εdd > 1

Liquid-like state possible!

α β

Bad Honnef 05/2016

5

Dipolar Bose-Einstein condensates

Beyond mean-field

∆e = 128 15√π √ na3 Q5(εdd)

LHY Dipolar enhancement

Lima & Pelster, PRA 84, 041604 (2011), ibid 85, 063609 (2012)

Q5(εdd) = 1 + 3 2ε2

dd + · · ·

e(0) = g n2 2 ✓ 1 − εddf(κ) + 128 15√π (1 + 3 2ε2

dd)

√ a3√n0 ◆ α/β < 0

for

κ ⌧ 1, εdd > 1

Liquid-like state possible!

n0 ∝ ✓α β ◆2 α β

Bad Honnef 05/2016

5

Dipolar Bose-Einstein condensates

Beyond mean-field

∆e = 128 15√π √ na3 Q5(εdd)

LHY Dipolar enhancement

Lima & Pelster, PRA 84, 041604 (2011), ibid 85, 063609 (2012)

Q5(εdd) = 1 + 3 2ε2

dd + · · ·

e(0) = g n2 2 ✓ 1 − εddf(κ) + 128 15√π (1 + 3 2ε2

dd)

√ a3√n0 ◆ α/β < 0

for

κ ⌧ 1, εdd > 1

Liquid-like state possible!

n0 ∝ ✓α β ◆2 α β

See poster by R. Bisset and arXiv:1601.04501 (2016) by F . Wächtler and L. Santos

Bad Honnef 05/2016

6

µ = 9.93 µB

Dysprosium (164Dy)

Dysprosium Bose-Einstein condensates

Bad Honnef 05/2016

6

Dipolar length

add = m µ0 µ2 12π ~2 = 132 a0

Scattering length a

Tang et al., PRA 92, 022703 (2015) Maier et al., PRA 92, 060702(R) (2015)

abg = 92(8) a0

µ = 9.93 µB

Dysprosium (164Dy)

Dysprosium Bose-Einstein condensates

Bad Honnef 05/2016

6

Dipolar length

add = m µ0 µ2 12π ~2 = 132 a0

Scattering length a

Tang et al., PRA 92, 022703 (2015) Maier et al., PRA 92, 060702(R) (2015)

abg = 92(8) a0

εdd = add a

εdd = 1.42

abg

at

µ = 9.93 µB

Dysprosium (164Dy)

Dysprosium Bose-Einstein condensates

Bad Honnef 05/2016

6

Dipolar length

add = m µ0 µ2 12π ~2 = 132 a0

Scattering length a

Tang et al., PRA 92, 022703 (2015) Maier et al., PRA 92, 060702(R) (2015)

abg = 92(8) a0

εdd = add a

εdd = 1.42

abg

at

µ = 9.93 µB

Dysprosium (164Dy)

Dysprosium Bose-Einstein condensates

2 4 6 8 10

B (G)

10-2 10-1 100

N (a.u.)

Many Feshbach resonances

Bad Honnef 05/2016

7

Our experiment

High resolution phase-contrast imaging, 1 µm resolution at 421 nm (32.5 MHz broad), single shot

Bad Honnef 05/2016

8

Oblate dipolar BECs

κ > 1

Trap aspect ratio λ = ωz/ωr = 2.9(1)

Bad Honnef 05/2016

8

Oblate dipolar BECs

κ > 1

• L. Santos et al., PRL 90, 250403 (2003)
• Uniform case ( ):

Roton-Maxon dispersion relation Varies with axial trapping and short-range interactions Softening → “roton instability”

κ → ∞

Trap aspect ratio λ = ωz/ωr = 2.9(1)

Bad Honnef 05/2016

9

Rosensweig / normal field instability of classical ferrofluids

Rosensweig, R. Ferrohydrodynamics. Cambridge University Press (1985).

Bad Honnef 05/2016

9

Rosensweig / normal field instability of classical ferrofluids

Rosensweig, R. Ferrohydrodynamics. Cambridge University Press (1985).

Incompressible, variable magnetization Competition between: Surface tension, gravity vs. dipole-dipole interaction

Bad Honnef 05/2016

9

Rosensweig / normal field instability of classical ferrofluids

Dispersion relation of surface waves: Softening of a minimum at the instability

Rosensweig, R. Ferrohydrodynamics. Cambridge University Press (1985).

Incompressible, variable magnetization Competition between: Surface tension, gravity vs. dipole-dipole interaction

Bad Honnef 05/2016

10

Sequence

• Form BEC close to a Feshbach resonance

λ = ωz/ωr = 2.9(1)

Bad Honnef 05/2016

10

B

B0 a

1 εdd = add a a ∼ add 1.4

Sequence

• Form BEC close to a Feshbach resonance

λ = ωz/ωr = 2.9(1)

Bad Honnef 05/2016

10

B

B0 a

1 εdd = add a a ∼ add 1.4

Sequence

• Form BEC close to a Feshbach resonance
• lower a down to abg

λ = ωz/ωr = 2.9(1)

Bad Honnef 05/2016

10

B

B0 a

1 εdd = add a a ∼ add 1.4

Sequence

• Form BEC close to a Feshbach resonance
• lower a down to abg

λ = ωz/ωr = 2.9(1)

Bad Honnef 05/2016

11

Results

Uniform BEC

• H. Kadau, M. Schmitt, M.Wenzel, C. Wink, T. Maier, I. F-B, T. Pfau , Nature 530, 194 (2016)

B=BBEC

Bad Honnef 05/2016

11

Results

Uniform BEC

εdd = 1.4

B=B1

12 µm 12 µm

• H. Kadau, M. Schmitt, M.Wenzel, C. Wink, T. Maier, I. F-B, T. Pfau , Nature 530, 194 (2016)

B=BBEC

Bad Honnef 05/2016

12

In Fourier space

F [¯ n(x, y)] (kx, ky)

¯ n(x, y)

x

kx ky

• H. Kadau, M. Schmitt, M.Wenzel, C. Wink, T. Maier, I. F-B, T. Pfau , Nature 530, 194 (2016)

Bad Honnef 05/2016

12

In Fourier space

Angular averaging

2 4 6 8 0. 0.02 0.04 k (μm-1) S(k)

BEC droplets Extra spectral weight between 1.5 µm-1 and 5 µm-1 Quantitative marker of the transition F [¯ n(x, y)] (kx, ky)

¯ n(x, y)

x

kx ky

• H. Kadau, M. Schmitt, M.Wenzel, C. Wink, T. Maier, I. F-B, T. Pfau , Nature 530, 194 (2016)

Rosensweig instability of a dipolar BEC SYQMA 2015

13

Dynamics and lifetime

Long lived, several hundred ms

0 2 4 6 810 20 200 400 600 800 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4000 8000 12000 t (ms) Relative spectral weight Number in droplets

Relative spectral weight Number

Droplet formation dynamics

• H. Kadau, M. Schmitt, M.Wenzel, C. Wink, T. Maier, I. F-B, T. Pfau , Nature 530, 194 (2016)

Bad Honnef 05/2016

14

Simulations

Wächtler and Santos, arXiv:1601.04501 (2016)

Elongated droplets, experimentally: κ 6 0.2 Presence of a dilute “halo”

Bad Honnef 05/2016

14

Simulations

Wächtler and Santos, arXiv:1601.04501 (2016)

Elongated droplets, experimentally: κ 6 0.2 Presence of a dilute “halo”

Bad Honnef 05/2016

15

Probing droplets in a waveguide

Bad Honnef 05/2016

15

Probing droplets in a waveguide

Bad Honnef 05/2016

15

Probing droplets in a waveguide

Bad Honnef 05/2016

15

Probing droplets in a waveguide

• I. F-B, H. Kadau, M. Schmitt, M.Wenzel, T. Pfau, arXiv:1601.03318 PRL (2016)

x y 0 ms 5 ms 10 ms 15 ms 20 ms

Bad Honnef 05/2016

15

Probing droplets in a waveguide

• I. F-B, H. Kadau, M. Schmitt, M.Wenzel, T. Pfau, arXiv:1601.03318 PRL (2016)

x y 0 ms 5 ms 10 ms 15 ms 20 ms

5 10 15 d (µm) 5 10 15 20 tWG (ms) 1 10 100 σ (µm) BEC Droplets

Bad Honnef 05/2016

10 20 30 40 0.0 0.2 0.4 0.6 0.8 1.0 Δatof (a0) ΔEy (units of ℏω y)

16

∆E ' ∆g 2 ¯ n = 2π~2 m ∆atof ¯ n

Measuring density

Bad Honnef 05/2016

10 20 30 40 0.0 0.2 0.4 0.6 0.8 1.0 Δatof (a0) ΔEy (units of ℏω y)

16

10 20 30 40 0.0 0.2 0.4 0.6 0.8 1.0 Δatof (a0) ΔEy (units of ℏω y)

∆E ' ∆g 2 ¯ n = 2π~2 m ∆atof ¯ n

¯ n = 1.7(1) × 1020 m−3

Measuring density

Bad Honnef 05/2016

16

∆E ' ∆g 2 ¯ n = 2π~2 m ∆atof ¯ n

0.01 0.10 1 10

• 0.6
• 0.4
• 0.2

0.0 0.2 0.4 0.6 n0 (1020 m-3) 1 g ∂μ ∂n

¯ n = 1.7(1) × 1020 m−3

Measuring density

• I. F-B, H. Kadau, M. Schmitt, M.Wenzel, T. Pfau, arXiv:1601.03318 PRL (2016)

Bad Honnef 05/2016

17

n0 ∝ ✓α β ◆2 ∝ 1 a3 ✓εddf(κ) − 1 1 + 3

2ε2 dd

◆2

Density and lifetime scaling

Bad Honnef 05/2016

17

n0 ∝ ✓α β ◆2 ∝ 1 a3 ✓εddf(κ) − 1 1 + 3

2ε2 dd

◆2

Density and lifetime scaling

Hypothesis: no quantum fluctuations, but a three-body repulsion:

Xi and Saito PRA, 93, 011604 Bisset and Blakie, PRA 92, 061603

e = g3 6 n2

Bad Honnef 05/2016

17

n0 ∝ ✓α β ◆2 ∝ 1 a3 ✓εddf(κ) − 1 1 + 3

2ε2 dd

◆2

Density and lifetime scaling

Hypothesis: no quantum fluctuations, but a three-body repulsion:

Xi and Saito PRA, 93, 011604 Bisset and Blakie, PRA 92, 061603

e = g3 6 n2 n0 ∝ g (εddf(κ) − 1) g3

Bad Honnef 05/2016

17

n0 ∝ ✓α β ◆2 ∝ 1 a3 ✓εddf(κ) − 1 1 + 3

2ε2 dd

◆2

Density and lifetime scaling

Lifetime under three-body losses:

τ = 1/L3hn2i

˙ N N = L3hn2i

Hypothesis: no quantum fluctuations, but a three-body repulsion:

Xi and Saito PRA, 93, 011604 Bisset and Blakie, PRA 92, 061603

e = g3 6 n2 n0 ∝ g (εddf(κ) − 1) g3

Bad Honnef 05/2016

17

n0 ∝ ✓α β ◆2 ∝ 1 a3 ✓εddf(κ) − 1 1 + 3

2ε2 dd

◆2

Density and lifetime scaling

Lifetime under three-body losses:

τ = 1/L3hn2i

˙ N N = L3hn2i

τ(a1)/τ(a2) = (n(a2)/n(a1))2

The lifetime increases with a!

Hypothesis: no quantum fluctuations, but a three-body repulsion:

Xi and Saito PRA, 93, 011604 Bisset and Blakie, PRA 92, 061603

e = g3 6 n2 n0 ∝ g (εddf(κ) − 1) g3

• I. F-B, H. Kadau, M. Schmitt, M.Wenzel, T. Pfau, arXiv:1601.03318 PRL (2016)

Bad Honnef 05/2016

18

Density and lifetime scaling

n0 ∝ ✓α β ◆2 ∝ 1 a3 ✓εddf(κ) − 1 1 + 3

2ε2 dd

◆2

Bad Honnef 05/2016

18

Density and lifetime scaling

0.92 0.94 0.96 0.98 1.00 0.1 1.

af / ai τ f / τ i

Quantum fluctuations Three-body

n0 ∝ ✓α β ◆2 ∝ 1 a3 ✓εddf(κ) − 1 1 + 3

2ε2 dd

◆2

• I. F-B, H. Kadau, M. Schmitt, M.Wenzel, T. Pfau, arXiv:1601.03318 PRL (2016)

Bad Honnef 05/2016

19

Identification of a new liquid-like phase existing thanks to quantum fluctuations Observation of a finite-wavelength instability (related to the roton instability) Experimental verification of the density and scaling in the liquid- like phase

Summary

Bad Honnef 05/2016

19

Identification of a new liquid-like phase existing thanks to quantum fluctuations Observation of a finite-wavelength instability (related to the roton instability) Experimental verification of the density and scaling in the liquid- like phase

0.92 0.94 0.96 0.98 1.00 0.1 1.

af / ai τ f / τ i

Quantum fluctuations Three-body

Summary

Bad Honnef 05/2016

20

Thanks for your time!

• M. Wenzel
• T. Pfau
• H. Kadau
• M. Schmitt
• I. F.B.
