Quad module development for pixel layer upgrades Katie Dunne Student Instrumentation Meeting - July 21 2017 FE-I4B Quad Module RD53A arrives September this year Preparation for arrival of RD53A has been building test quad modules using


slide-1
SLIDE 1

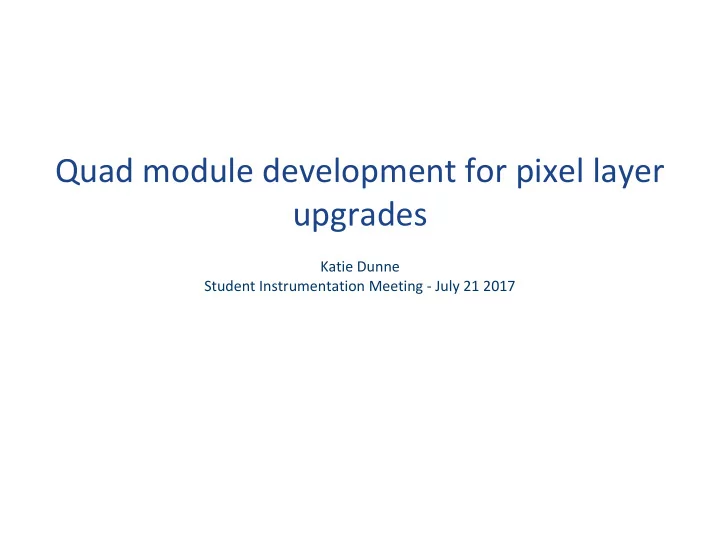

Quad module development for pixel layer upgrades

Katie Dunne Student Instrumentation Meeting - July 21 2017

slide-2
SLIDE 2

FE-I4B Quad Module

Student Instrumentation Meeting Katie Dunne 2

  • RD53A arrives September this year
  • Preparation for arrival of RD53A has been building test quad

modules using FEI4B

  • Provides experience with flex circuit board design, module

handling/loading

  • Baseline power distribution design for HL-LHC is serial power
  • FE-I4B contains regulators suitable for serial power

distribution (like RD53A)

slide-3
SLIDE 3

Student Instrumentation Meeting Katie Dunne 3 Data Acquisition System

42 mm 36 mm

Quad Module Design

Digital Regulator Analog Regulator Vin Vout

slide-4
SLIDE 4

Student Instrumentation Meeting Katie Dunne 4

Shunt-LDO Regulators

Shunt Circuit Internal Resistor External Resistor

8k / 16k Analog / Digital

  • Fig. FEI4B Integrated Circuit Guide v2.3
  • Shunt maintains constant current mode by burning excess current
  • External resistors chosen so that

○ Analog Current = 350 mA ○ Digital Current = 150 mA

slide-5
SLIDE 5

Student Instrumentation Meeting Katie Dunne 5

Shunt-LDO Regulators Performance

Measured current fluctuation during front end configuration of one module PrmpVbp GDAC controls analog current - higher PrmpVbp ~ higher analog current FEC shunt circuit not connected Other FEs shunt current up to break down after PrmpVbp ~80

slide-6
SLIDE 6

Quad Module Status

Student Instrumentation Meeting Katie Dunne 6

Name Sensor Functionality Comment

QM_1_Rosencrantz

Dummy (not bump bonded) FEA, FEB, FEC, FED

QM_2_Guildenstern

Dummy (not bump bonded) FEA, FEB, FEC, FED

QM_3_Titania

  • FEB, FEC, FED

FEA readout errors

QM_4_Oberon

  • FEA, FEB, FEC, FED

QM_5_Hippolyta

  • - - -

All FEs readout errors. experimental wire bonding but shouldn’t affect readout

slide-7
SLIDE 7

Student Instrumentation Meeting Katie Dunne 7

A B C D Tuning: Quad Module 4

slide-8
SLIDE 8

Minimum Threshold

Student Instrumentation Meeting Katie Dunne 8

All FEs tuned to 1500e Decrement threshold GDAC by 1 Noise Scan Count pixels with Noise hit occupancy > 10-7 Minimum Threshold : <1% of pixels are noisy

slide-9
SLIDE 9

Student Instrumentation Meeting Katie Dunne 9

1% of pixels

581 ± 59 e- 1238 ± 42 e- 714 ± 52 e- 531 ± 102 e-

FEA 581 ± 59 e- FEB 1238 ± 42 e- FEC 714 ± 52 e- FED 531 ± 102 e-

Minimum threshold: Lowest GDAC before 1% of pixels are noisy

slide-10
SLIDE 10

Student Instrumentation Meeting Katie Dunne 10

Noise Occupancy: QM_1_Rosencrantz (dummy)

slide-11
SLIDE 11

Source Scan

Student Instrumentation Meeting Katie Dunne 11 Bias Voltage: -70V Source: Strontium-90 1.5 hour Self Trigger Scan

  • 70V Bias

2.1V Vin

A B D C

slide-12
SLIDE 12

RD53A Quad and Single Chip Flex

Student Instrumentation Meeting Katie Dunne 12

FEI4B RD53A

slide-13
SLIDE 13

Documentation

Student Instrumentation Meeting Katie Dunne 13

slide-14
SLIDE 14

Next Steps: Serial Power

Student Instrumentation Meeting Katie Dunne 14
