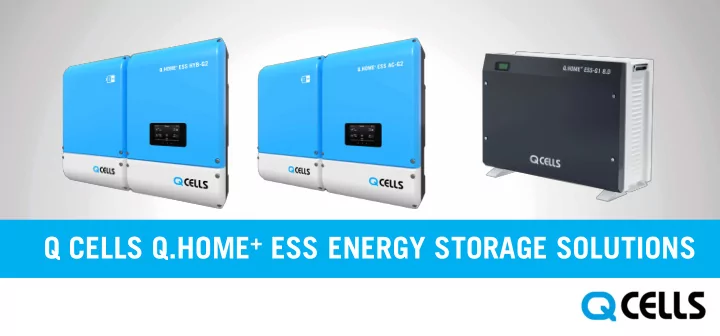

Q CELLS Q.HOME+ ESS ENERGY STORAGE SOLUTIONS

WHY DO WE NEED AN ENERGY STORAGE SYSTEM?

TYPICAL INSTALLATION

Q.HOME+ ESS HYB-G2

OVERVIEW Q.HOME+ ESS PORTFOLIO

SINCE 2017: Q.HOME+ ESS-G1

• 3.6 kWh, 5.5 kWh and 8.0 kWh
• ALL-IN-ONE system

FROM Q4/2018: Q.HOME+ ESS HYB-G2

• 4.0 kWh – 20.0 kWh
• Modular and scalable system

FROM Q1/2019: Q.HOME+ ESS AC-G2

• 4.0 kWh – 20.0 kWh
• Scalable system for retrofit

Q.HOME+ ESS-G1 − OPTIMISED CAPACITY FOR RESIDENTIAL HOUSES

HIGHLIGHTS OF THE ALL-IN-ONE GENERATION

• Compact and standing device
• Plug’n’Play
• Pre-configuration in the office
• Online software updates
• 10 year system and performance warranty
• ESS operation at negative temperature
• High cell security from Samsung SDI

Q.HOME+ ESS-G1 – THE PROVEN GENERATION

Q.HOME+ ESS-G1 3.6 Q.HOME+ ESS-G1 5.5 Q.HOME+ ESS-G1 8.0

Q.HOME+ ESS-G1 8.0 – THE 3 PHASE ALL-IN-ONE SYSTEM

ALL-IN-ONE STORAGE SOLUTION INCLUDING INVERTER, BATTERY AND MANAGEMENT SYSTEM

Q.HOME+ ESS HYB-G2 – THE MODULAR AND SCALABLE STORAGE SOLUTION

SCALABLE SOLUTION FOR OPTIMISED CONSUMPTION Scalable storage capacity from 4 kWh up to 20 kWh to suit the specific energy consumption. SMART DESIGN Modular design for easy and fast installation, remote control operated hybrid system with hybrid inverter, lithium-ion battery and battery charger.

Q.HOME+ ESS HYB-G2 – THE MODULAR AND SCALABLE STORAGE SOLUTION

PV INTERFACE (PV INPUT DATA) Number of individual MPP-Tracker 2

• Max. input total power

6.6 kWp UTILITY INTERFACE (AC INPUT AND OUTPUT) Nominal Grid Voltage / Phase 230 V / 1 Phase Nominal AC Output Power (to Utility Grid) 4.6 kW BATTERY ENCLOSURE Capacity(each module) 4 kWh Scalability 4 up to 20 kWh MECHANICAL DATA Dimensions (W x H x D) mm 468 X 722 X 213 mm Weight Inverter/Battery in kg 32/52 GENERAL DATA Operating Ambient Temperature Range

• 10 ~ 40 °C

Protection (IP) Rating IP54 USER INTERFACE Front Panel Display 5" TFT Touch LCD

Q.HOME+ ESS HYB-G2 – TECHNICAL SPECIFICATION

Q.HOME+ ESS HYB-G2 – THE SCALABLE GENERATION WITH HYBRID INVERTER

Smart design: modular and scalable Easy wall mounted installation Plug’n’Play Pre-configuration in the office possible Online software updates 10 years system and performance warranty ESS operation at negative ambient temperature High cell security from Samsung SDI Ready for Q.HOME CLOUD

Q.HOME+ ESS AC-G2 – THE MODULAR AND SCALABLE STORAGE SOLUTION

THE SCALABLE GENERATION FLEXIBLE AND SUITABLE FOR RETROFIT

• Smart design: modular and scalable
• AC-coupled solution
• Charge/discharge with 2 or 3 kW
• Battery capacity 4 – 20 kWh
• Ready for Q.HOME CLOUD

Q.HOME+ ESS AC-G2 – THE MODULAR AND SCALABLE STORAGE SOLUTION

Q.HOME MANAGER – THE SMART HOME ENERGY SOLUTION

THE Q CELLS ENERGY MANAGER IS COMPATIBLE WITH:

• Q.HOME+ ESS-G1 8.0
• Q.HOME+ ESS HYB-G2
• Q.HOME+ ESS AC-G2

Q CELLS ENERGY MANAGER

APP

• All energy flows
• Live, daily and historic data
• Independent smart home control

Q.HOME MANAGER

Q.HOME+ ESS-SYSTEM Q CELLS ENERGY MANAGER

Q.HOME+ E+ ESS ESS HYB-G2 G2 Lo Loads ds Gr Grid Pha hase se 3 3 Pha hase se 2 2 Pha hase se 1 1 Utility meter

SLA SLAVE VE

L1 L2 L3

ROUTER

MASTER ASTER

ESS ESS - meter 1

SLA SLAVE VE

Q CEL CELLS S Ene nerg rgy Man anage ager

Heat-pump, charging station etc.

Q CELLS ENERGY MANAGER FOR Q.HOME CLOUD WITH Q.HOME+ ESS HYB-G2

Q.HOME+ ESS AC-G2

Lo Loads ds Gr Grid Pha hase se 3 3 Pha hase se 2 2 Pha hase se 1 1 Utility meter

SLA SLAVE VE

L1 L2 L3

MASTER ASTER

ESS - meter 1

SLA SLAVE VE

ESS ESS - meter 2

SLA SLAVE VE

Q CEL CELLS S Ene nerg rgy Man anage ager Wärm rmepum pumpe pe, La Lade dest station e n etc.

Q CELLS ENERGY MANAGER FOR Q.HOME CLOUD SUITABLE FOR EXISTING PV SYSTEM USING Q.HOME+ ESS AC-G2

ROUTER

Q.HOME+ ESS-G1 8.0 Loads Grid Phase 3 Phase 2 Phase 1 Utility meter L1 L2 L3

MASTER

ESS - meter 1

SLAVE

Q CELLS Energy Manager

Heat-pump, charging station etc.

Q CELLS ENERGY MANAGER FOR Q.HOME CLOUD WITH Q.HOME+ ESS-G1 8.0

ROUTER

SLAVE
