Pulsar Process Measurement Mike Ward Alistair MacKinnon Stirling Technical Engineering Pulsar Process Measurement Agenda Intelligent pump controller benefits. Severn Trent Water Case Study. Intelligent Pump Control Benefits Include:-

slide-1

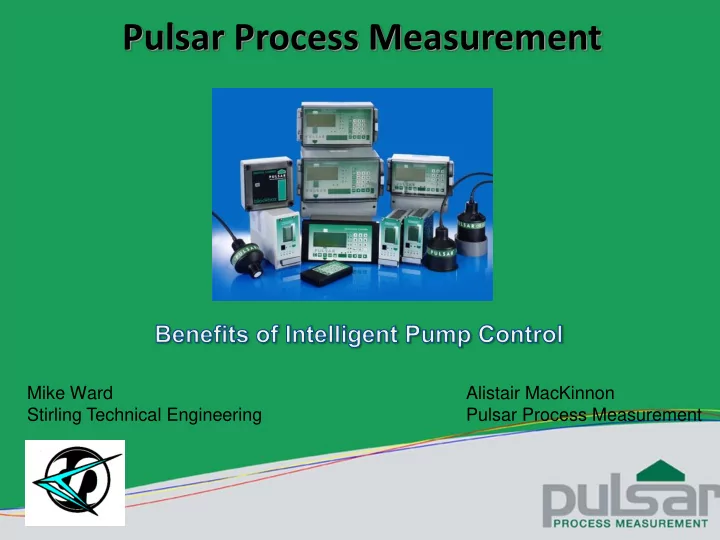

SLIDE 1

Pulsar Process Measurement

Mike Ward Stirling Technical Engineering Alistair MacKinnon Pulsar Process Measurement

slide-2
SLIDE 2

Agenda

  • Intelligent pump controller benefits.
  • Severn Trent Water Case Study.
slide-3
SLIDE 3

Intelligent Pump Control

Benefits Include:-

  • Time to spill.
  • Pumped Volume.
  • Auto Resets.
  • Pump Blockage and Burst Rising Main

indication.

  • Tariff Management.
  • Pump efficiency.
slide-4
SLIDE 4

Severn Trent Water

A Case Study

slide-5
SLIDE 5
  • Framework supplier for many years.
  • Solving problems such as:
  • Noise interference from VSD’s.
  • False echo recognition.
  • Long range applications.

History

slide-6
SLIDE 6

History

  • Approached to develop:
  • Time to spill.
  • Auto reset.
  • Burst rising main and pump blockage.
  • Real time flow.
  • 2 year project.
slide-7
SLIDE 7

Quantum Overview

10 Volt Free Contact Outputs RS485 Modbus / Profibus V0 & V1 Communications & Data Logging

(optional)

4-20mA Output RS232 configuration Port 4-20mA Output Pumps/Valves Alarms etc Supply Options 110-230v AC 24v DC 7 Digital Inputs Flowswitches/ Overloads etc Up to 40M integral Ultrasonic head.

slide-8
SLIDE 8

Time to Spill

slide-9
SLIDE 9

GIVE A ACCURATE TIME PREDICTION BEFORE A SPILL OCCURS

Time To Spill

slide-10
SLIDE 10

Time To Spill

ON

Inflow

ON

Inflow Outflow Outflow

30 MINUTES TO SPILL ALARM 30 MINUTES TO SPILL ALARM

slide-11
SLIDE 11

Auto Resets

slide-12
SLIDE 12

INTELIGENT AUTO RESET FOR TRIPPED PUMPS

Auto Reset

slide-13
SLIDE 13

Auto Reset

1

Inflow Outflow

3 2 1 2 1

X 2

Pump Failed Alarm Consecutive Pump Fails Pump Fails in 24hr period

PUMP 1

slide-14
SLIDE 14

Pump Blockage/Burst Rising Main.

slide-15
SLIDE 15

Blocked Rising Main

BLOCKED RISING MAIN CAUSING A REDUCED PUMPING RATE

slide-16
SLIDE 16

Pumping Rate Alarm Status 1 Time 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

BURST BLOCKAGE

ALARM!!!

OFF ON

Blocked Rising Main

slide-17
SLIDE 17

Burst Rising Main

BURSTS RISING MAIN CAUSING A INCREASE IN PUMPING RATE

slide-18
SLIDE 18

Pumping Rate Alarm Status 1 Time 1 2 3 4 5 6 7 8 9

ALARM!!!

1 2 3 4 5 6 7 8 9

BURST BLOCKAGE

OFF ON

ALARM!!!

Burst Rising Main

slide-19
SLIDE 19

Real Time Flow

slide-20
SLIDE 20

Real Time Flow

  • 10 sites selected out of 200 Quantum’s

already installed.

  • 2 x 4-20mA outputs monitored for flow and

level.

  • Magflow also recorded as a comparison.
  • Site data recorded by 8 channel logger to give

better resolution.

  • 6 months worth of data recordings.
slide-21
SLIDE 21

Real Time Flow

  • .7 l/s average between magflow and

Quantum.

  • Recordings over storm and dry weather

conditions.

  • Recorded at 2 minute intervals.
slide-22
SLIDE 22

Conclusions

  • To install a magflow cost £9,500 with flow meter

chamber.

  • Quantum Installation £3,500. (including auto

reset function and time to spill alarm)

  • Auto reset monitored over 2010 in 230 pumping

stations.

  • Successful reset day = no pump failure with an

auto reset and the number did not exceed 3.

  • Working on an average call out cost of £120.
  • Cost saving = £1,189 per site.
  • Additional cost saving with Tariff Management.

(not yet quantified)

slide-23
SLIDE 23

Thank You

Any Questions
