COMP 546 Lecture 13 Psychophysics Thurs. Feb. 22, 2018 1 How do we measure how well someone can perform a vision task? E.g. How well can one discriminate color or luminance (intensity) orientation depth from binocular

slide-1
SLIDE 1

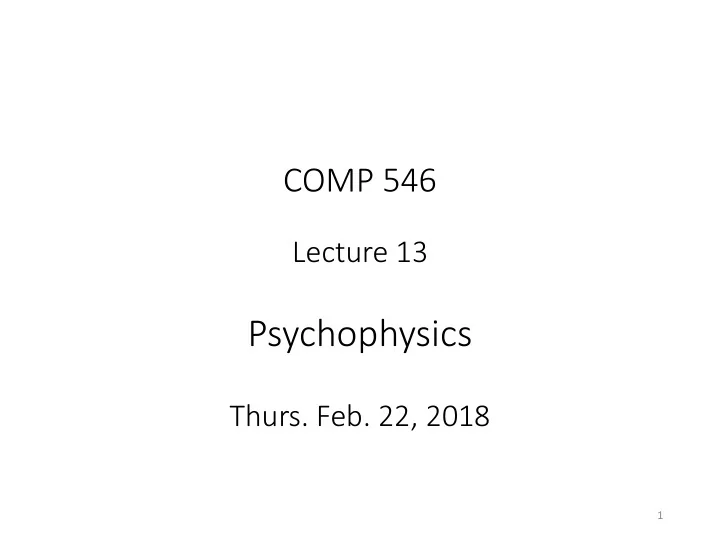

1

COMP 546

Lecture 13

Psychophysics

  • Thurs. Feb. 22, 2018
slide-2
SLIDE 2

2

How do we measure how well someone can perform a vision task? E.g. How well can one discriminate …

  • color or luminance (intensity)
  • orientation
  • depth from binocular disparity
  • 2D velocity
  • 3D surface shapes (slant, tilt, curvature, …)
  • …..
slide-3
SLIDE 3

3

"Psychophysics" : (loose definition) the study of mappings from physical variables to perceptual variables, as measured by behavioral response stimulus (physical) response (perceptual -- measured by behavior)

slide-4
SLIDE 4

Psychometric function

4

response stimulus

(independent variable, set by experimenter)

slide-5
SLIDE 5

5

Example 1a: discriminate brightness (increment or decrement?)

Percent response “increment”

𝐽0 𝐽0 + ∆𝐽

100

𝐽0 + ∆𝐽 𝐽0

50

slide-6
SLIDE 6

6

Example 1b: detect a brightness increment (left or right?)

Percent correct

𝐽0 𝐽0 + ∆𝐽

50 100

𝐽0 + ∆𝐽 𝐽0

slide-7
SLIDE 7

7

A: Q: Why are psychometric curves not step functions ?

slide-8
SLIDE 8

8

A:

  • Noise/randomness in the display or stimulus
  • Noise/randomness in the sensors/brain
  • Limited resolution: finite samples
  • Subjects press the wrong button (stop paying attention)

Q: Why are psychometric curves not step functions ?

slide-9
SLIDE 9

9

Example 1c: detect a brightness increment left or right? (with added noise)

50 100

𝐽0 𝐽0 + ∆𝐽

Percent correct (left or right?)

slide-10
SLIDE 10

Ideal Observer

10

Even an “ideal observer” who knows the code used to generate the images would not get 100% correct, because code uses a random number generator. One can compare human performance to that of an ideal observer. (Technical details omitted.)

slide-11
SLIDE 11

11

Psychophysical threshold 𝜐

stimulus variable 𝑡

percentage response 75 50 100

𝑡0 𝑡0 + 𝜐

Defines the stimulus level that gives a particular performance level e.g. 75% correct.

slide-12
SLIDE 12

12

Psychophysical threshold 𝜐

stimulus variable 𝑡

percentage correct 75 50 100

𝑡0 𝑡0 + 𝜐

Defines the stimulus level that gives a particular performance level e.g. 75% correct.

slide-13
SLIDE 13

13

How to estimate a threshold 𝜐 ?

stimulus variable 𝑡

percentage correct 75 50 100

𝑡0

slide-14
SLIDE 14

14

How to estimate a threshold 𝜐 ? Fit a (sigmoid shaped) curve.

stimulus variable 𝑡

percentage correct 75 50 100

𝑡0

slide-15
SLIDE 15

Overview

  • Psychometric function
  • Threshold
  • Examples
  • Contrast Sensitivity
  • Depth discrimination (binocular disparity)
  • 2D Motion
  • Slant from texture

15

slide-16
SLIDE 16

Luminance Contrast revisited (Assignment 1)

16

≡ 𝐽𝑛𝑏𝑦 − 𝐽𝑛𝑗𝑜 𝐽𝑛𝑏𝑦 + 𝐽𝑛𝑗𝑜

Michelson Contrast

It is always between 0 and 1.

slide-17
SLIDE 17

17

∆𝐽 𝐽 = (𝐽𝑛𝑏𝑦 − 𝐽𝑛𝑗𝑜)/2 (𝐽𝑛𝑏𝑦+ 𝐽𝑛𝑗𝑜)/2

Michelson contrast is commonly used for sine functions.

𝐽𝑛𝑗𝑜 𝐽𝑛𝑏𝑦

𝐽

slide-18
SLIDE 18

18

Example : Detecting a 2D sinusoid grating

(vertical or horizontal?)

slide-19
SLIDE 19

Luminance contrast thresholds depend on spatial frequency

19

contrast spatial frequency k

slide-20
SLIDE 20

Luminance contrast thresholds depend on spatial frequency

20

contrast spatial frequency k

slide-21
SLIDE 21

21

spatial frequency k (cycles per degree)

Measure threshold at each spatial frequency. (For 2D sinusoid e.g. 20x20 degrees)

contrast detection threshold

minimum threshold at 3-5 cycles per degree

slide-22
SLIDE 22

22

spatial frequency (k cycles per degree)

Contrast sensitivity ≡

1

contrast detection threshold

Contrast sensitivity

peak sensitivity at 3-5 cycles per degree

slide-23
SLIDE 23

Why?

23

spatial frequency (k cycles per degree)

Contrast sensitivity

slide-24
SLIDE 24

24

Assignment 1 Q2a

  • -

+

slide-25
SLIDE 25

25

Assignment 1 Q2a lecture 4 The shape of the contrast sensitivity function is believed to be a result of the range of DOG receptive fields (starting at the retina).

  • -

+

slide-26
SLIDE 26

Example 2a: Depth discrimination from binocular disparity

26

Is square closer or farther than background?

anaglyph Δ𝑎

slide-27
SLIDE 27

Assignment 2

Q1 (binocular disparity) Even if there is no noise added, there is uncertainty in the disparity.

27

slide-28
SLIDE 28

Example 2b: Depth discrimination for 2D sinusoidal binocular disparity

28

slide-29
SLIDE 29

29

[Bradshaw and Rogers 1999]

Why this dependence ?

Example 2b: Depth discrimination for 2D sinusoidal binocular disparity

slide-30
SLIDE 30

30

[Bradshaw and Rogers 1999]

Lowest threshold occurs at much lower (about

1 10 )

spatial frequency than for luminance contrast. Why ?

Example 2b: Depth discrimination for 2D sinusoidal binocular disparity

slide-31
SLIDE 31

𝜖 𝐽 𝜖𝑦

𝑤𝑦 +

𝜖 𝐽 𝜖𝑧 𝑤𝑧 + 𝜖 𝐽 𝜖𝑢 = 0

𝑤𝑦 𝑤𝑧

Example 3: 2D velocity estimation

(How to think about image noise in this task?)

31

slide-32
SLIDE 32

𝜖 𝐽 𝜖𝑦

𝑤𝑦 + 𝜖 𝐽

𝜖𝑧 𝑤𝑧 + 𝜖 𝐽 𝜖𝑢 = 0

𝑤𝑦 𝑤𝑧

One must estimate image derivatives (subject to “noise”)

32

This creates uncertainty in motion constraint line.

slide-33
SLIDE 33

Recall: Intersection of Constraints (IOC)

𝑤𝑦 𝑤𝑧

33

Uncertainty in the motion constraint lines leads to uncertain in the 2D velocity estimates.

slide-34
SLIDE 34

Assignment 2

Q5, Q6 (motion): Images are filtered with “shift detector” cells. Even if there is no noise added, there is uncertainty in the 2D velocity estimate.

34

slide-35
SLIDE 35

Example 4: Slant from texture

35

slide-36
SLIDE 36

36

Given two images of slanted surfaces, which surface has greater slant ?

𝜄+Dq 𝜄

slide-37
SLIDE 37

37

Slant discrimination threshold ∆𝜄

slant

percentage response 75 50 100

𝜄 𝜄 + ∆𝜄 Which is more slanted? 𝜄 versus 𝜄 + ∆𝜄 ?

slide-38
SLIDE 38

Thresholds ∆𝜄 depend on slant 𝜄. How and why?

38

0 deg 65 deg 65 deg 0 deg

slide-39
SLIDE 39

39

Results: Dq threshold is larger when q is smaller.

Dq Dq q q

slide-40
SLIDE 40

Recall: Texture cues for slant & tilt

(lecture 11)

  • size gradient (scale)
  • density gradient (position)
  • foreshortening gradient

40

slide-41
SLIDE 41
  • How reliable are the size, density, foreshortening

cues for an ideal observer ? (What assumptions need to hold to make to estimate slant from these cues?)

  • Do human observers have similar pattern of

responses as ideal observers?

41

slide-42
SLIDE 42

42

human observers “ideal” observers who know the probability model used to generate texture and who use various combinations of cues: size, density, foreshortening

Dq threshold is large when q is small for both human and ideal observers.

[Knill, 1998]

slide-43
SLIDE 43

Overview

  • Psychometric function
  • Threshold
  • Examples
  • Contrast Sensitivity
  • Depth discrimination (binocular disparity)
  • 2D Motion
  • Slant from texture

43

slide-44
SLIDE 44

Summary

Discrimination thresholds can tell us about:

  • underlying mechanisms

(how the brain codes of luminance, color, 2D orientation, disparity, 2D velocity, slant & tilt…)

  • inherent difficulty of the computational problem

that is due to randomness (“noise”)

44
