Psychophysical studies of visual object recognition Neurobiology 230. Harvard College/GSAS 78454 October 2, 2017 Jiye Kim What is psychophysics? Psychophysics is the study of the link between stimulus and perception and it quantitatively

slide-1
SLIDE 1

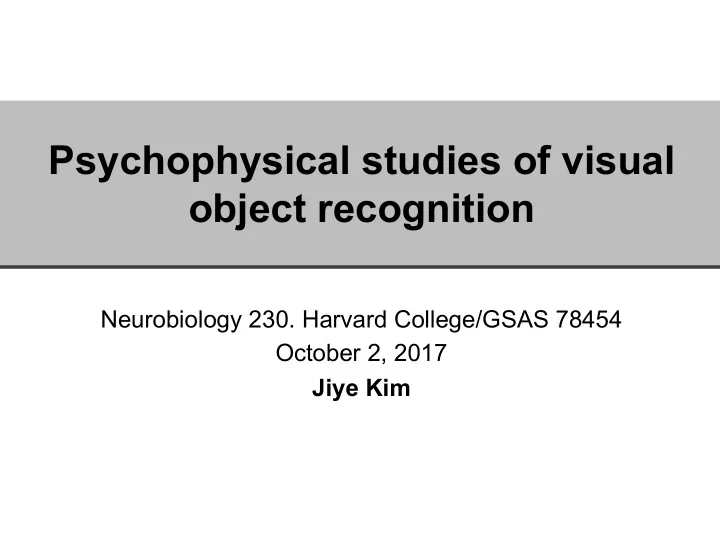

Psychophysical studies of visual

  • bject recognition

Neurobiology 230. Harvard College/GSAS 78454 October 2, 2017 Jiye Kim

slide-2
SLIDE 2

What is psychophysics?

Psychophysics is the study of the link between stimulus and perception and it quantitatively investigates the relationship between physical stimuli and the perception/ sensation/behavior they produce.

2

slide-3
SLIDE 3

3

Example psychophysical experiment

+ ? + ? Is the object an animate or inanimate object?

Yes! No!

slide-4
SLIDE 4

What do typical experiments measure?

Reaction time: The time taken by subjects to perform a task or

make a judgment. Reaction time can give an indication (or at least the upper bound) or how long the necessary psychological (and neural) processes take.

Performance: The accuracy of performing a task. Performance is

  • ften inversely related to reaction time.

Threshold: Stimuli can be varied (e.g., presentation duration) to

determine the threshold for detection or discrimination.

4

slide-5
SLIDE 5

Gestalt laws

5

Law of closure Law of similarity Law of proximity Law of symmetry Law of continuity Law of common fate

slide-6
SLIDE 6

Law of closure

6

We perceive objects such as shapes, letters, pictures, etc., as being whole when they are not complete. Specifically, when parts of a whole picture are missing, our perception fills in the visual gap.

slide-7
SLIDE 7

Law of similarity

7

We group similar elements into collective entities or totalities. This similarity might depend on relationships of form, color, size, or brightness

slide-8
SLIDE 8

Law of proximity

8

We group objects that are proximate to each other (either spatially or temporally) tend to be grouped together.

slide-9
SLIDE 9

Law of symmetry

9

[ ] { } [ ] { }

We group elements that are symmetrical to each other tend to be perceived as a unified group.

slide-10
SLIDE 10

Law of continuity

10

We perceive points that are connected by straight or curving lines are seen in a way that follows the smoothest path.

slide-11
SLIDE 11

Law of common fate

We perceive elements with the same moving direction as a collective unit.

slide-12
SLIDE 12

Hollistic process of face perception

12

Part-whole effect Inversion effect Composite face effect

slide-13
SLIDE 13

Parts vs wholes effect in face perception

13

Tanaka & Farah (1993)

Faces Houses Parts Whole

slide-14
SLIDE 14

Parts vs wholes effect in face perception

14

Tanaka & Farah (1993)

slide-15
SLIDE 15

Part-whole illusion

15

McKone et al (2013)

slide-16
SLIDE 16

Part-whole illusion

16

McKone et al (2013)

slide-17
SLIDE 17

Inversion effect

17

Inverted Upright

McKone et al (2013)

slide-18
SLIDE 18

Composite face effect

18

A B

slide-19
SLIDE 19

Composite face effect

19

slide-20
SLIDE 20

Properties of object recognition

20

Invariant object recognition Speed of visual recognition Recognition from minimal features The value of experience Invariant object recognition Speed of visual recognition Recognition from minimal features The value of experience

slide-21
SLIDE 21

Invariant recognition

21

x

A A A A A A A

Scale/size tolerance

slide-22
SLIDE 22

Size invariance in visual object priming

22

1st block 2nd block

same exemplar same size same exemplar different size different exemplar same size different exemplar different size

Biederman & Cooper (1992)

slide-23
SLIDE 23

Size invariance in visual object priming

23

Biederman & Cooper (1992) perceptual priming effect

slide-24
SLIDE 24

Position invariance in visual object priming

24

Biederman & Cooper (1991)

slide-25
SLIDE 25

Position invariance in visual object priming

25

Biederman & Cooper (1991)

slide-26
SLIDE 26

Properties of object recognition

26

Invariant object recognition Speed of visual recognition Recognition from minimal features The value of experience

slide-27
SLIDE 27

Speed of visual recognition

Irving Biederman

27

RSVP (Rapid Serial Visual Presentation)

slide-28
SLIDE 28

Probing the timing of the visual system

Fize et al. (2005)

28

Go- no go animal categorization task

slide-29
SLIDE 29

Properties of object recognition

29

Invariant object recognition Speed of visual recognition Recognition from minimal features The value of experience

slide-30
SLIDE 30

Object recognition from minimal features

30

Shimon et al (2016)

slide-31
SLIDE 31

MIRCs: MInimal Recognizable Configurations

31

Shimon et al (2016)

slide-32
SLIDE 32

MIRCs: MInimal Recognizable Configurations

32

Shimon et al (2016)

slide-33
SLIDE 33

Diagnostic features at the part-level

33

Biederman (1987) Non- recoverable Recoverable Original

slide-34
SLIDE 34

Properties of object recognition

34

Invariant object recognition Speed of visual recognition Recognition from minimal features The value of experience

slide-35
SLIDE 35

Visual recognition depends on experience

35

slide-36
SLIDE 36

Waterfall illusion

36

http://www.michaelbach.de/ot/mot-adapt/index.html
