providing ancillary services with and for more renewables in Belgium EUW2018, November 6 th Elias De Keyser, Next Kraftwerke Benelux This project has received funding from the European Unions Horizon 2020 research and innovation programme

slide-1

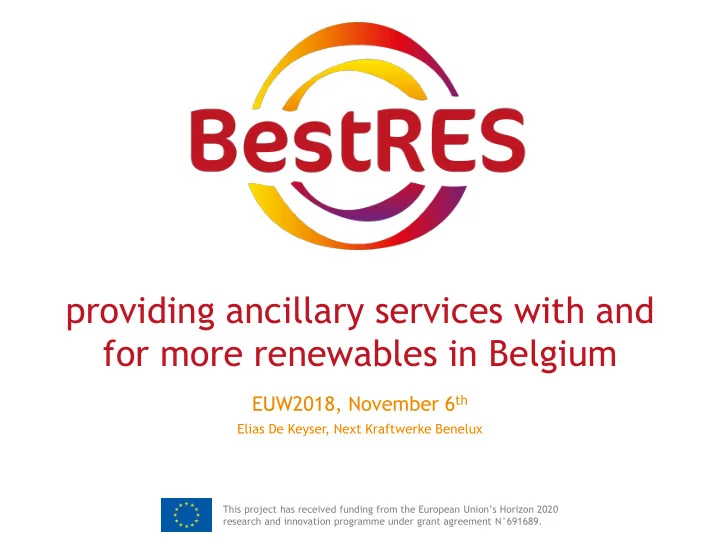

SLIDE 1

This project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement N°691689.

providing ancillary services with and for more renewables in Belgium

EUW2018, November 6th

Elias De Keyser, Next Kraftwerke Benelux

slide-2
SLIDE 2

OVERVIEW

  • Why we need more flexibility
  • The key: the Virtual Power Plant
  • Some examples: renewables providing flexibility
  • Conclusion
slide-3
SLIDE 3

Why we need more flexibility

3

slide-4
SLIDE 4

A STABLE ELECTRICITY GRID

  • In every AC-grid, a stable frequency is primordial
  • National grid operators are responsible to safeguard the balance

– Enforce balanced positions via BRP role – Organise markets to procure balancing power: FCR, aFRR, mFRR

slide-5
SLIDE 5

BELGIAN BALANCING POWER PRODUCTS

Primary reserves Secondary reserves Tertiary reserves

Very fast common European reserves to stabilize frequency deviations. Fast automatic reserves to restore the balance of the control area. Slower manual reserves to free up aFRR.

slide-6
SLIDE 6

BUT… THE ENERGY LANDSCAPE IS CHANGING

  • Three ‘megatrends’ in the Belgian energy sector:
slide-7
SLIDE 7

…WHICH PUTS THE BALANCING FRAMEWORK UNDER PRESSURE

  • More need for flexibility
  • Conventional providers: uncertain future and expensive (must-run)
slide-8
SLIDE 8

YET… A LOT OF FLEXIBILITY READY TO BE UNLOCKED

  • Small-scale flexibility under the radar
  • Entrance barriers:

– Insufficient scale – Failing to meet technical requirements – Licenses and fees – Lack of market and regulatory know-how

slide-9
SLIDE 9

AGGREGATION IN A VPP

Suppliable flexibility Demand for Balancing Power

Additional revenue stream

+

Lower balancing costs

+

slide-10
SLIDE 10

THE KEY: THE VIRTUAL POWER PLANT

10

slide-11
SLIDE 11

DEFINITION (SORRY!)

  • A virtual power plant is a…

technology platform

that connects distributed energy resources to markets and services which they might otherwise not have access to. (Bloomberg New Energy Finance)

slide-12
SLIDE 12

TECHNOLOGY PLATFORM: AGGREGATION BY DIGITALISATION

12

slide-13
SLIDE 13

CONNECTING DISTRIBUTED RESOURCES

  • Decentralised (at the DSO

level)

  • Also behind-the meter
  • Production AND consumption

(demand response)

  • A lean VPP is technology

agnostic!

slide-14
SLIDE 14

ACCESS TO MARKETS AND SERVICES

Ancillary services

– Balancing markets: FCR, aFRR, mFRR – Black-start

Local network support

– Voltage regulation – Congestion management

Optimal scheduling

– Optimising production / consumption schedules based on prices

Spot markets

– Trading in day-ahead, intraday, and imbalance markets

slide-15
SLIDE 15

SOME EXAMPLES

15

slide-16
SLIDE 16

EXAMPLE: RENEWABLE POWER TRADING ON SPOT MARKETS

16

slide-17
SLIDE 17

EXAMPLE: RENEWABLE POWER TRADING ON SPOT MARKETS

17

slide-18
SLIDE 18

EXAMPLE: ANCILLARY SERVICES (SECUNDARY RESERVE)

18 235 installations 334 installations 376 installations

slide-19
SLIDE 19

EXAMPLE: FCR IN BELGIUM

  • 2 MW – 2 MWh battery
  • The site:

– Factory – Local wind production

  • Applications:

– FCR – Self consumption wind – Imbalance price steering

slide-20
SLIDE 20

EXAMPLE: OPTIMAL SCHEDULE BASED ON PRICE SIGNALS

slide-21
SLIDE 21

PARTICULARITIES OF THE BELGIAN MARKET

  • Usually long term PPAs
  • Regional subsidy schemes
  • Solar PV mostly small-

scale

  • Ancillary service markets

not fully opened

  • Rules are biased towards

certain technologies

  • Tedious prequalification

process

slide-22
SLIDE 22

Conclusion

22

slide-23
SLIDE 23

WRAP UP

  • THE PROBLEM: due to renewables we need more flexibility
  • THE SOLUTION: we can use decentralized renewable assets to

provide that flexibility

  • THE ENABLER: the VPP clusters and automatically dispatches them
slide-24
SLIDE 24

24

@EliasDeKeyser @next_kraftwerke

FOLLOW US ONLINE!

linkedin.com/company/5400707/ www.next-kraftwerke.be

slide-25
SLIDE 25

EXTRA

25

slide-26
SLIDE 26

TECHNOLOGY PLATFORM

Communication Link between installation and VPP Fast and secure Cellular, built-in electricity lines, internet Remote controller Interface with installations Monitor production / consumption Relay dispatch instructions Algorithms To monitor and forecast aggregated production and consumption Dispatch installations optimally

slide-27
SLIDE 27

Owner

DIFFERENT VPP PLAYERS

Operator Platform Provider Asset owner System operator Utility / supplier

slide-28
SLIDE 28

THE BRAINS AND THE HANDS OF THE VIRTUAL POWER PLANT

Brains: algorithms and experienced traders Hands: the Next Box

slide-29
SLIDE 29

ENERGY STORAGE AND VPPs

29

slide-30
SLIDE 30

USE CASES FOR DECENTRALISED ENERGY STORAGE

  • Self consumption renewables
  • Reducing grid tariffs
  • Back up power
  • Optimal schedule based on price signals
  • Local grid support
  • Ancillary services

Local optimisation Aggregator needed!

Note: trend towards value stacking
