ProtoDUNE-ND: Containment Studies Near Detector Workshop Fermilab Mai 25th, 2019 Patrick Koller (patrick.koller@lhep.unibe.ch) marvelcinematicuniverse.fandom.com Simulations for ProtoDUNE-ND LAr Component ArgonCube 2x2 Demonstrator : 1.4 m

slide-1
SLIDE 1

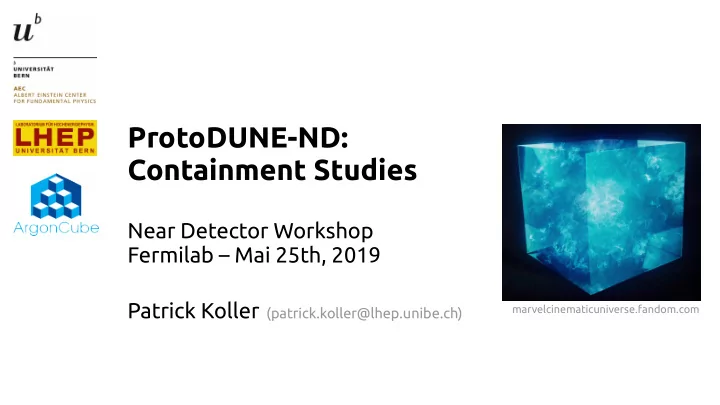

ProtoDUNE-ND: Containment Studies

Near Detector Workshop Fermilab – Mai 25th, 2019 Patrick Koller (patrick.koller@lhep.unibe.ch)

marvelcinematicuniverse.fandom.com

slide-2
SLIDE 2

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 2

Simulations for ProtoDUNE-ND LAr Component

ArgonCube 2x2 Demonstrator:

  • GEANT4 LAr simulation based on ArgonBox*

→ basic understanding of event shape and containment in 2x2

  • cryostat geometry included (by Chris/Rahul)
  • fjducial volume defjned for event vertices

–

30 cm from each side (~2x radiation length of LAr)

1.4 m 1.4 m 1.4 m

* https://github.com/dadwyer/argon_box

numu NC event

slide-3
SLIDE 3

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 3

Simulations for ProtoDUNE-ND LAr Component

Downstream Tracker:

  • Repurpose existing detector components in the MINOS-ND hall
  • Example downstream tracker using a small portion of MINERvA:

–

12 Tracker modules: 24 x 2 cm CH planes

–

10 ECal modules: 20 x (2 mm Pb + 2 cm CH) planes

–

20 HCal modules: 20 x (2.54 cm Fe + 2 cm CH) planes

  • Simple GEANT simulation (by Chris/Rahul):

–

LAr cylinder + Fe cylinder + Al cylinder + Tracker (1.4 x 1.4 m2 sheets)

1.4 m

slide-4
SLIDE 4

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 4

Simulations for ProtoDUNE-ND LAr Component

Neutrino Interactions:

  • high statistics GENIE* Monte Carlo sample
  • nly numu so far

→ nue under construction!

Beamline:

  • no beam-profjle

random vtx distribution within → 2x2

  • downstream tracker aligned with the center of 2x2

(maximum acceptance)

1.4 m

* v2.12.10 with “ValenciaQEBergerSehgalCOHRES” confjguration

slide-5
SLIDE 5

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 5

ProtoDUNE-ND with Tracker Simulation*

140 cm ~ 180 cm ~ 46 cm

ArgonCube 2x2 Demonstrator Tracker

* actual ProtoDUNE-ND layout may difger

slide-6
SLIDE 6

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 6

Containment Studies

  • Full event w/ and w/o muon
  • Showers

–

Pi0 → Roman Berner started working on a reconstruction algorithm*

–

EM (see backup slides)

–

Proton-induced (see backup slides)

  • Other topologies

–

Primary proton containment in the absence of mesons

–

Electron containment for nue in progess →

1.4 m

* continuing the work by Damian Göldi

slide-7
SLIDE 7

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 7

Event Containment

(~100k events)

2x2 stand-alone 2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

contained contained contained

slide-8
SLIDE 8

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 8

Event Containment Effjciency

(~100k events)

2x2 stand-alone 2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

slide-9
SLIDE 9

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 9

Example of an Uncontained Event

E_Nu: 6.54 GeV E_Mu: 5.38 Gev 2x2 contained energy: 1.10 GeV 2x2 + Tracker contained energy: 1.20 GeV primary muon

slide-10
SLIDE 10

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 10

Example of an Uncontained Event

E_Nu: 6.54 GeV E_Mu: 5.38 Gev 2x2 contained energy: 1.10 GeV 2x2 + Tracker contained energy: 1.20 GeV primary muon

→ It’s worth having a muon-range fjnder!

slide-11
SLIDE 11

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 11

Ignoring the Primary Muon Energy

So far: contained if > 0.9 Now: contained if > 0.9

Econtained Enu Econtained

1

Enu−Emu

1 Energy deposits by primary muon ignored

slide-12
SLIDE 12

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 12

Event Containment w/o Muon

(~100k events)

2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

contained contained

slide-13
SLIDE 13

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 13

Event Containment Effjciency w/o Muon

(~100k events)

2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

slide-14
SLIDE 14

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 14

Primary Proton Containment, no Mesons

(~1M events)

contained contained

2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

slide-15
SLIDE 15

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 15

Primary Proton Containment Effjciency, no Mesons

(~1M events)

2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

slide-16
SLIDE 16

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 16

Pi0 Containment

(~100k events)

2x2 stand-alone 2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

contained contained contained

slide-17
SLIDE 17

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 17

Pi0 Containment Effjciency

(~100k events)

2x2 stand-alone 2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

slide-18
SLIDE 18

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 18

Time-line for Fast* Neutron Tagging

  • Need a detaild photon propagation simulation for 2x2

→ defjne light-readout requirements

  • LArSoft ready for integration of geometries w/o wire planes (Kazu Terao)
  • First simple 2x2 geometry (GDML)** in co-op with Hunter Sullivan

–

implemented using NDGGD (despite lacking documentation)

** https://github.com/hcsullivan12/arc2x2ggd ** neutrons with energies > 1 MeV

slide-19
SLIDE 19

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 19

ArgonCube 2x2 Geometry (GDML)

slide-20
SLIDE 20

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 20

Outlook

  • The main goal is to investigate which sub-sets of events we will be able to

easily contain in the ProtoDUNE-ND LAr component.

  • Containment plots as a function of hadronic energy.
  • Account for dead material (mainly tracker).
  • More sophisticated simulations will be performed as soon as new

geometries are available.

  • Photon propagation simulation for 2x2.
slide-21
SLIDE 21

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 21

Backup

slide-22
SLIDE 22

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 22

EM-Shower Containment

(~100k events)

2x2 stand-alone 2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

contained contained contained

slide-23
SLIDE 23

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 23

EM-Shower Containment Effjciency

(~100k events)

2x2 stand-alone 2x2 stand-alone vtx in fjducial volume 2x2 + Tracker vtx in fjducial volume

slide-24
SLIDE 24

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 24

Proton-induced Shower Containment

(~100k events)

contained contained

2x2 stand-alone 2x2 + Tracker

slide-25
SLIDE 25

ProtoDUNE-ND: Containment Studies, Fermilab – Mai 25th, 2019 Patrick Koller 25

Proton-induced Shower Containment Effjciency

(~100k events)

2x2 stand-alone 2x2 + Tracker
