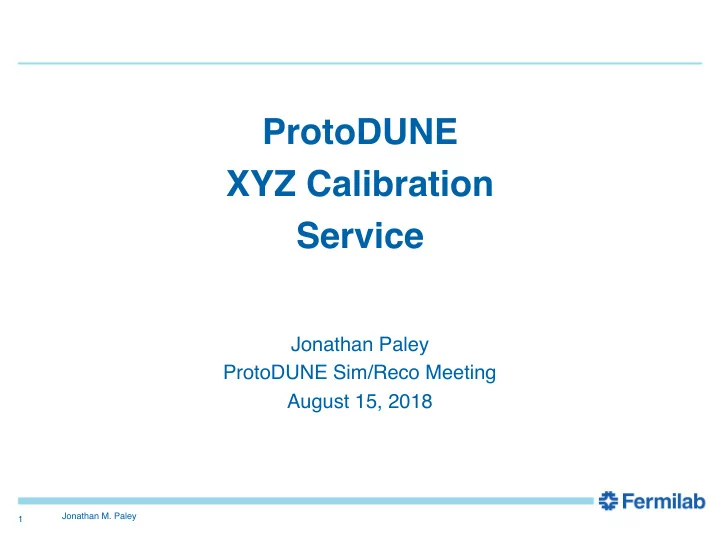

SLIDE 1

Jonathan M. Paley 1

ProtoDUNE XYZ Calibration Service

Jonathan Paley ProtoDUNE Sim/Reco Meeting August 15, 2018

SLIDE 2

Jonathan M. Paley

XYZ Calibrations

2

Corrections are to be applied to hits as a function of (x,y,z). Calibration

constants provided to me by Ajib Paudel.

There are also overall “normalization” corrections that need to be applied,

determined for each plane.

200 − 200

X Coordinate (cm)

0.2 0.4 0.6 0.8 1 1.2

Correction Plane 1 X Correction

200 400 600

Z Coordinate (cm)

100 200 300 400 500 600

Y Coordinate (cm)

0.5 1 1.5 2

Plane 1 Negative X Correction

SLIDE 3

Jonathan M. Paley

XYZ Calibrations - Database Implementation

3

The contents of the histograms and the normalization corrections have

been pushed to the calibration conditions database.

Currently, the condb is not set up to store “arrays” of data (experts are

considering how to implement this). So the individual (plane,[“side”],bins) are stored as channel numbers.

The validity time for the MC constants from Ajib is set to “0”. In the future,

when we have constants derived from data, I recommend we use the first run number of the data set used to derive the constants.

Constants are written to a .csv file (of a particular format), and then we use

the “writeConditionsCSVToDB” utility in nutools (part of larsoft) to push to the database.

Write permissions to the database are limited to those who will be

responsible for maintaining their tables. Please contact me if you have a table you want to write to.

SLIDE 4

Jonathan M. Paley

XYZ Calibrations - Offline Interface

4

Added two new packages to dunetpc: dune/Calib (contains the data

providers) and dune/CalibServices (contains the art services that provide pointers to the data providers).

Data provider class:

class XYZCalibProtoDUNE : public XYZCalib { public: XYZCalibProtoDUNE(); XYZCalibProtoDUNE(fhicl::ParameterSet const& pset); XYZCalibProtoDUNE(XYZCalibProtoDUNE const&) = delete; virtual ~XYZCalibProtoDUNE() = default; bool Configure(fhicl::ParameterSet const& pset); bool Update(uint64_t ts=0); virtual double GetNormCorr(int plane) override; virtual double GetXCorr(int plane, double x) override; virtual double GetYZCorr(int plane, int side, double y, double z) override; void SetIsMC(bool v) { fIsMC = v; } void SetNormCorr(int plane, double val); void SetXCorr(int plane, double x, double dx, double val); void SetYZCorr(int plane, int side, double y, double dx, double val); void SetUseCondb(bool v) { fUseCondbXYZCorr = v; } void SetXCorrFileName(std::string f) { fXCorrFileName=f; } void SetYZCorrFileName(std::string f) { fYZCorrFileName=f; } void SetNormCorrFileName(std::string f) { fNormCorrFileName=f; } void SetInterpolate(bool v) { fInterpolate = v; }

0 is negative, 1 is positive

SLIDE 5

Jonathan M. Paley

XYZ Calibrations - Offline Interface

5

Added two new packages to dunetpc: dune/Calib (contains the data

providers) and dune/CalibServices (contains the art services that provide pointers to the data providers).

Data provider class:

void SetIsMC(bool v) { fIsMC = v; } void SetNormCorr(int plane, double val); void SetXCorr(int plane, double x, double dx, double val); void SetYZCorr(int plane, int side, double y, double dx, double val); void SetUseCondb(bool v) { fUseCondbXYZCorr = v; } void SetXCorrFileName(std::string f) { fXCorrFileName=f; } void SetYZCorrFileName(std::string f) { fYZCorrFileName=f; } void SetNormCorrFileName(std::string f) { fNormCorrFileName=f; } void SetInterpolate(bool v) { fInterpolate = v; }

Can be used outside of art.

Simply instantiate the object, and call the appropriate methods to configure and load the constants.

Always set the data “type” (data
vs. mc) via the SetIsMC method.
Corrections are stored as Root

histograms, there is an option to use the Interpolate method. Default is to return the value of the bin.

SLIDE 6

Jonathan M. Paley

XYZ Calibrations - art Service

6

Added two new packages to dunetpc: dune/Calib (contains the data

providers) and dune/CalibServices (contains the art services that provide pointers to the data providers).

Data provider class:

void SetIsMC(bool v) { fIsMC = v; } void SetNormCorr(int plane, double val); void SetXCorr(int plane, double x, double dx, double val); void SetYZCorr(int plane, int side, double y, double dx, double val); void SetUseCondb(bool v) { fUseCondbXYZCorr = v; } void SetXCorrFileName(std::string f) { fXCorrFileName=f; } void SetYZCorrFileName(std::string f) { fYZCorrFileName=f; } void SetNormCorrFileName(std::string f) { fNormCorrFileName=f; } void SetInterpolate(bool v) { fInterpolate = v; }

Can read from an

independent .csv file if you don’t want to rely on the database.

Can also override specific

values, but this should only be done by experts.

SLIDE 7

Jonathan M. Paley

Standard approach of simply

providing pointer to the data provider class, and calling “Update” at “preBeginRun”.

Defaults are to use the constants

in the database, and to not interpolate (Tingjun reported non-negligible performance cost when interpolating).

XYZ Calibrations - art Service

7

Added two new packages to dunetpc: dune/Calib (contains the data

providers) and dune/CalibServices (contains the art services that provide pointers to the data providers).

Service class:

BEGIN_PROLOG protodune_xyzcalib : { service_provider: "XYZCalibServiceProtoDUNE" UseCondbXYZCorr: true Interpolate: false XCorrFileName: "" YZCorrFileName: "" NormCorrFileName: "" XCorrDBTag: "" YZCorrDBTag: "" NormCorrDBTag: "" } END_PROLOG
