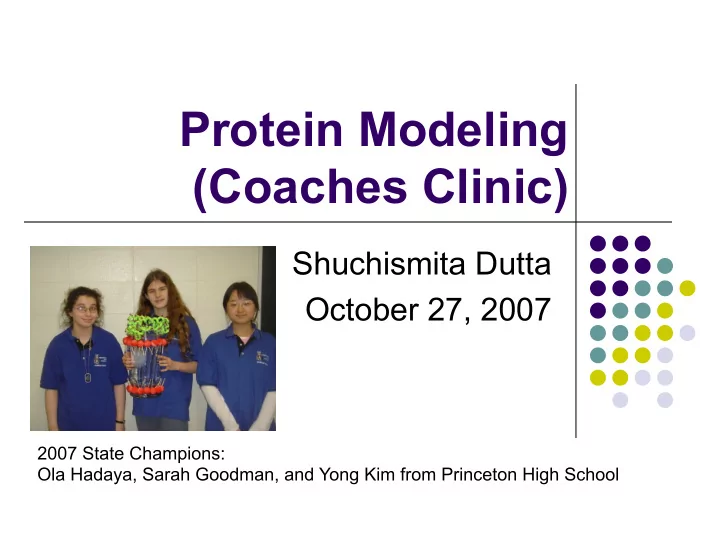

Protein Modeling (Coaches Clinic)
Shuchismita Dutta October 27, 2007
2007 State Champions: Ola Hadaya, Sarah Goodman, and Yong Kim from Princeton High School
Protein Modeling (Coaches Clinic) Shuchismita Dutta October 27, - - PowerPoint PPT Presentation
Protein Modeling (Coaches Clinic) Shuchismita Dutta October 27, - - PowerPoint PPT Presentation
Protein Modeling (Coaches Clinic) Shuchismita Dutta October 27, 2007 2007 State Champions: Ola Hadaya, Sarah Goodman, and Yong Kim from Princeton High School General Introduction Water Amino Acids Protein folding Water: love it or leave it
SLIDE 2
SLIDE 3
Water: love it or leave it
l Hydrogen bonds l Hydrophobic and Hydrophilic structures
SLIDE 4
Amino Acids
Hydrophobic Hydrophilic Acidic Basic
From www.bachem.com
SLIDE 5
Proteins
SLIDE 6
Primary Secondary Tertiary Quaternary …LWGK…
L W G K
Alpha-helix Beta chain of Hemoglobin Hemoglobin
Protein Structure
SLIDE 7
Some Rules to ‘Fold’ a Protein
l Covalent interactions
l Protein Sequence l Di-sulfide bridges
l Non-covalent interactions
l Hydrophobic interactions l Hydrogen bonds l Salt bridges (positive negative interactions) l Metal coordination
SLIDE 8
Protein Modeling: Toober and Thumb Tacks model
l 1Toober l 10 thumb tacks
l 1 Blue (Basic) l 1 Red (Acidic) l 4 Yellow (Hydrophobic) l 2 White (Hydrophilic) l 2 Green (Cysteine) http://www.3dmoleculardesigns.com/15_Tacks.pdf
SLIDE 9
Interaction rules
l Hydrophobic (yellows should be away from
water, and whites should be near water)
l Charge based (red and blue should pair up) l Disulphide (the greens should pair up to form
a bond)
SLIDE 10
PDB & Protein Models
Protein Structures Protein Data Bank Protein Modeling
SLIDE 11
Why Structure?
l Allows you to “visualize” the shape and
details of the protein
l Offers clues about the role in the body l May hold key to developing new medicines
and diagnostic procedures for diseases like avian flu, HIV, West Nile Virus, parts of the protein associated with Alzheimer’s disease, Cancers, etc.
shown: the ribosome
SLIDE 12
Understanding Protein Structures
X-ray
(X-ray crystallography)
NMR
(Nuclear Magnetic Resonance)
EM
(Electron Microscopy)
Protein Data Bank Free download for use
SLIDE 13
The Protein Data Bank
SLIDE 14
The Structure Explorer Page
SLIDE 15
The PDB file
SLIDE 16
The PDB file – con’t.
SLIDE 17
Visualization (RasMol or Jmol)
SLIDE 18
Structure Representation
Spacefill Wireframe Ribbons
SLIDE 19
WebMol
Graphics
KiNG Jmol Default image Protein Explorer
SLIDE 20
Zinc Finger Toober Model
l Download the 1ZAA pdb file (www.pdb.org) l Create image in Jmol, identify key features l Fold a Mini-Toober model
l Material modifications
l Blue thumb tack (N-terminus) l Red thumb tack (C-terminus) l Colored Pipe-cleaners to represent Cys, His, Arg18,
Phe16 and Leu22
SLIDE 21
NJSO 2008
Basic information
SLIDE 22
Information
l Regional and State level contests
l Protein Calmodulin (PDB ID 1CLL)
l Rules
l Pre-build: Bring in toober model and short abstract l On-site build: Build a designated part of 1CLL
using a mini-Toober and Jmol
l On-site exam: Answer questions about structure,
function, importance and history of modeled
- protein. Materials will be provided.
SLIDE 23
Molecule of the Month
SLIDE 24
Structure Explorer Page
SLIDE 25
Jmol
SLIDE 26
How we judge
Rubrics available from education.pdb.org/olympiad
SLIDE 27
Help
l Details and links at
http://education.rcsb.org/olympiad/
l If you have questions or to borrow the
