Proposal for West Columbus Boulevard as a Complete and Green street University of South Florida Department of Civil and Environmental Engineering CGN6933 Sustainable Transportation Spring 2018 Group Number 3 Group Members: 1. Hualong Tang

slide-1
SLIDE 1

Proposal for West Columbus Boulevard as a Complete and Green street

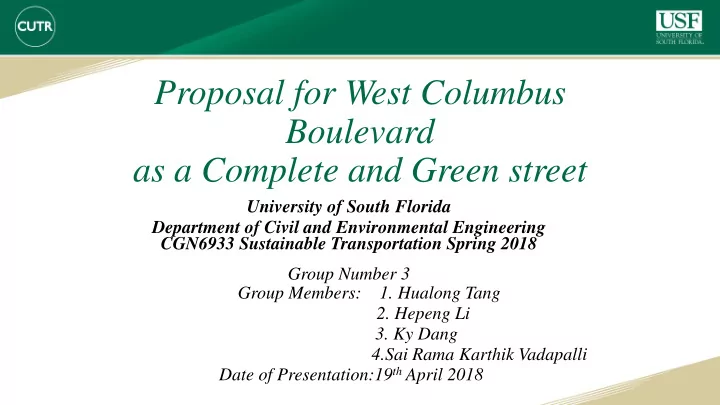

University of South Florida Department of Civil and Environmental Engineering CGN6933 Sustainable Transportation Spring 2018 Group Number 3 Group Members: 1. Hualong Tang

  • 2. Hepeng Li
  • 3. Ky Dang

4.Sai Rama Karthik Vadapalli Date of Presentation:19th April 2018

slide-2
SLIDE 2

Overview of The Presentation

  • Goals and Objectives
  • Design Concept
  • Activity Map of the Existing Conditions
  • 2025 Design Concept
  • 2040 Future Design Concept
slide-3
SLIDE 3

Goals and Objectives

  • 1. A safe and a complete street for every user and mode

a) Estimated reduction of crashes upto 23-30% b)Reducing speed limits at certain areas from 30MPH to 20MPH leading to a 15% reduction in crashes

  • 2. To promote better livability

a)Increasing system efficiency to about 70%

  • 3. Finally, to achieve sustainability by providing a happier environment in every

possible aspect

slide-4
SLIDE 4

Design Concept

FUNCTION AESTHETICS DURABILITY DESIGN

Why Good Design???

  • Increases Ridership
  • Improves Customer Experience
  • Improves Public Mentality
  • Reduces barrier between Public Vs Private

(Both get Benifited)

slide-5
SLIDE 5

Activity Map

N Dale Mabry Hwy N Himes Ave N Macdill Ave N Armenia Ave N Howard Ave W Columbus Dr

slide-6
SLIDE 6

2025 DESIGN CONCEPT

slide-7
SLIDE 7

Corridor ROWs

slide-8
SLIDE 8

Dale Mabry Highway

slide-9
SLIDE 9
slide-10
SLIDE 10

Dale Mabry Section – 130 feet

  • Side walk with tree: 4 feet
  • Side walk: 8 feet
  • Bike rack: 3 feet
  • Transit shelter: 9 feet
  • Side walk with traffic light: 2 feet
  • Bike lane: 6 feet (suitable for ROW > 85 feet)
  • Turn lane: 10 feet
  • Drive lane: 10 feet
slide-11
SLIDE 11

Mac Dill Avenue

slide-12
SLIDE 12
slide-13
SLIDE 13

Mac Dill Avenue Section – 85 feet

  • Side walk with tree: 4 feet
  • Side walk: 6 feet
  • Transit shelter: 9 feet
  • Side walk with traffic light: 1 feet
  • Turn lane: 10 feet
  • Drive lane: 10 feet
  • Planting strip: 5 feet
slide-14
SLIDE 14

Lincoln Ave

slide-15
SLIDE 15
slide-16
SLIDE 16

Lincoln Ave Section

  • Side walk: 6 feet
  • Transit shelter: 9 feet
  • Side walk with traffic light: 1 feet
  • Turn lane: 10 feet
  • Drive lane: 10 feet
  • Planting strip: 3 feet
slide-17
SLIDE 17

N Tampania Ave

slide-18
SLIDE 18
slide-19
SLIDE 19

N Tampania Ave

  • Transit shelter: 9 feet
  • Side walk with traffic light: 1 feet
  • Turn lane: 10 feet
  • Drive lane: 10 feet
slide-20
SLIDE 20

Traffic Demand Management

N Lincoln Ave —N Macdill Ave

slide-21
SLIDE 21

Traffic Demand Management

N Dale Mabry Hwy N Lincoln Ave N Macdill Ave N Habana Ave N Armenia Ave W Columbus Dr 0.25 mile 0.5 mile 0.75 mile 1 mile 1.25 mile 1.5 mile

slide-22
SLIDE 22

2025 Special Project – N St Vincent St

 Right turn only  Extend raised median, cross walk

N St Vincent St N St Vincent St

 Extended curb for cross walk  Traffic road divider/raised median

slide-23
SLIDE 23

2025 Special Project

 Right turn only  Traffic road divider/raised median

slide-24
SLIDE 24

Bus Stops

Increase Passenger Safety and Comfort

  • 1. Stable surface area
  • 2. Shelter, but the shelter should also

clearly distinguish a bus stop from the rest of the landscape.

  • Guide route and time information

and energy efficient LEDs

  • An alert system
slide-25
SLIDE 25

2025 Design Concept

Raised median and refuge Bicycle lane Bus stop Traffic road divider/raised median Traffic demand management

N Dale Mabry Hwy N Himes Ave W Columbus Dr N Macdill Ave N Armenia Ave N Howard Ave

slide-26
SLIDE 26

2040 DESIGN CONCEPT

slide-27
SLIDE 27

Smart microprocessing interlocking hexagonal solar units

Solar Roads

slide-28
SLIDE 28

Features

  • Clean energy generation
  • Load requirements
  • LED bulbs
  • Surface temperature
  • Recreate the court and

choose configuration

  • Pressure sensitive
slide-29
SLIDE 29

W Columbus Dr N Himes Ave N Macdill Ave N Armenia Ave N Howard Ave N Rome Ave N Dale Mabry Hwy

2040 Design Concept

slide-30
SLIDE 30

Project Bottle Stops

  • Soft Drink bottles are equipped with Solar powered LED lights to form

walls

  • During the day time, energy gets stored from the Sunlight
  • Uses stored energy to illuminate the structure at night
slide-31
SLIDE 31

On Street Parkings

Source: Energy Policy Simulator, Energy Innovation LLC.

Projection of U.S. market share of automobiles Forbes : 10 million self-driving cars on the road by 2020 1 in 4 cars being self-driving by 2030 Energy Policy Simulator: 1 in 2 cars is electric car by 2050 Less traffic congestion Less need for parking space More shared service

slide-32
SLIDE 32

Driveways Safety

slide-33
SLIDE 33

2040 Special Project – N Habana Ave and N Gomez Ave

 On-street parking  Plug-in charging station

slide-34
SLIDE 34

Roundabout Implementation

R

slide-35
SLIDE 35

Location For Roundabout

slide-36
SLIDE 36

According to Geometry Design of FHWA:

Type: Single-lane round about

Inscribed Circle Diameter: D = 30 metres

Design speed: S = 21 kmph

slide-37
SLIDE 37

Improve safety

 Low travel speeds  No light to beat  One way travel

slide-38
SLIDE 38

Roundabout Benefits

  • Improves safety
  • Reduces delay, improves traffic flow
  • Less expensive
  • Less space
slide-39
SLIDE 39

Tidal Lanes-Future Work

  • A tidal lane is a lane in which

traffic may flow in either direction, depending on certain conditions.

  • Typically, it is meant to

improve traffic flow during rush hours

  • Ideal for the Marti Cemetery

cross section and cross sections having a lesser road width

slide-40
SLIDE 40

2040 Design Concept

On-street parking, charging stations Solar Road Roundabout

N Dale Mabry Hwy N Himes Ave N Macdill Ave N Armenia Ave N Howard Ave W Columbus Drive

Tidal Road

slide-41
SLIDE 41

Future Works

  • Stormwater Management
  • Tidal Roads
  • Metro Station
slide-42
SLIDE 42

Thank You!

Hualong Tang, hualongtang@mail.usf.edu Ky Dang, kydang@mail.usf.edu Hepeng Li, hepeng@mail.usf.edu Sai Rama Karthik Vadapalli, vadapalli@mail.usf.edu
