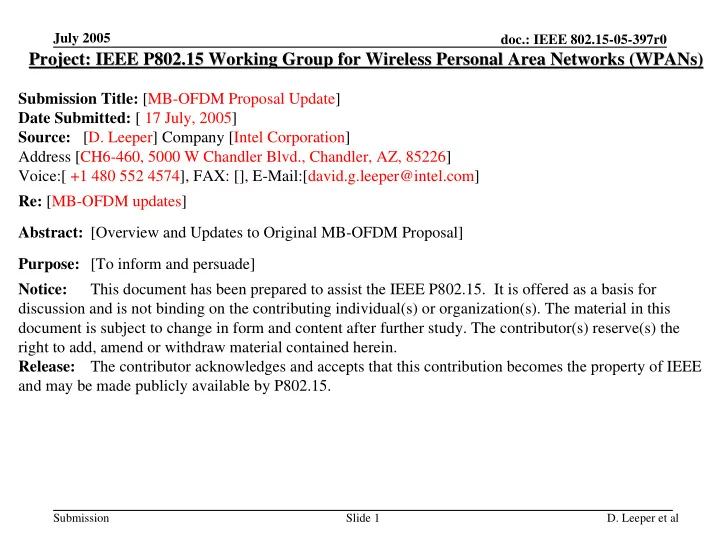

July 2005 doc.: IEEE 802.15-05-397r0 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks ( Project: IEEE P802.15 Working Group for Wireless Personal Area N etworks (WPANs WPANs) ) Submission Title: [MB-OFDM Proposal Update] Date Submitted: [ 17 July, 2005] Source: [D. Leeper] Company [Intel Corporation] Address [CH6-460, 5000 W Chandler Blvd., Chandler, AZ, 85226] Voice:[ +1 480 552 4574], FAX: [], E-Mail:[david.g.leeper@intel.com] Re: [MB-OFDM updates] Abstract: [Overview and Updates to Original MB-OFDM Proposal] Purpose: [To inform and persuade] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Submission Slide 1 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Agenda • A Brief History of MB-OFDM • Why OFDM is Preferred • What’s New in MB-OFDM Submission Slide 2 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Common Constraint for All UWB Proposals FCC Indoor Spectral Mask -- April 22, 2002 -40 Part 15 Limit Total Average Power Max = -45 EIRP Spectral Density (dBm / MHz) -41.3 + 10 Log (10.6-3.1) + 30 = -2.5 dBm -50 -55 Frequency EIRP -60 MHz dBm / MHz 960-1610 -75.3 -65 1610-1990 -53.3 1990-3100 -51.3 -70 3100-10600 -41.3 Above 10600 -51.3 -75 -80 1 1.5 2 3 4 5 6 7 8 9 10 Frequency (GHz) Submission Slide 3 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 UWB Evolution Starting Point: Traditional “Impulse UWB” Time Domain Frequency Domain ~1/Tp Tp Tp Tp Tp Tp < 1 nanosecond Submission Slide 4 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 UWB Evolution Intermediate Form: “Pulsed Multiband” UWB Time Domain Frequency Domain Impulse Tp Tp Tp Tp ~1/Tp UWB ~1/Ts ~1/Ts ~1/Ts ~1/Ts Pulsed Multiband Ts Ts UWB Ts Ts Submission Slide 5 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 UWB Evolution: UWB via MB-OFDM Original Proposal of Batra et al (Texas Instruments)** * T secs − N 1 ∑ π − Symbol Statistics (Still Valid) = N j 2 ( k ) t / T Z ( t ) C e 2 k • T = 312.5 ns***, N = 128 tones = k 0 • Tone spacing = 4.125 MHz * http://www.iec.org/online/tutorials/ofdm/ • Total bandwidth = 528 MHz ** IEEE P802.15-03/268r1, October, 2003 *** Including 70.08ns zero prefix & guard times Submission Slide 6 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Overview of Multi-Band OFDM • Key Idea #1: – Divide the spectrum into 528-MHz-wide bands Band Group #1 Band Group #2 Band Group #3 Band Group #4 Band Group #5 Band Band Band Band Band Band Band Band Band Band Band Band Band Band #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 3432 3960 4488 5016 5544 6072 6600 7128 7656 8184 8712 9240 9768 10296 f MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz • Advantages: – Transmitter and receiver process smaller baseband bandwidth signals (528 MHz). Submission Slide 7 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Overview of Multi-Band OFDM • Key Ideas #2, 3, 4: – Band Interleaving, Zero Prefixes, & Guard Intervals Zero Prefix 3168 Band # 1 3696 Band # 2 4224 Band # 3 4752 Time Guard Interval Freq (MHz) • Advantages: – Frequency diversity, full allowable Tx power – Robustness to Multipath – Tx/Rx settling times Submission Slide 8 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Example MB-OFDM UWB Tx chain 128 pt IFFT in 312.5ns 528 MHz IFFT Input Constellation Convolutional Bit Puncturer Insert Pilots DAC Scrambler Mapping Data Encoder Interleaver Add CP & GI exp( j 2 π f c t ) Interleaving Kernel 507.35MHz 128 pt IFFT, 100 QPSK/DCM data tones, 12 pilots, 10 Guards, 6 nulls Submission Slide 9 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 OFDM Fast Facts • Invented more than 40 years ago • Adopted & proven many times over – Asymmetric DSL (ADSL) – IEEE 802.11a/g/n, WiMax – Power Line Networking (HomePlug and HomePlug A/V) – Digital Audio (DAB) & Video (DVB) • A “natural” for the future – FCC’s Sought-After Cognitive Radios – Multimode Radios Submission Slide 10 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Why OFDM is Preferred(1) • OFDM is spectrally efficient: – IFFT/FFT operation ensures that sub-carriers do not interfere with one other. – Since the sub-carriers do not interfere, the sub-carriers can be brought closer together ⇒ High spectral efficiency. • OFDM has an inherent robustness against narrowband interference: – Narrowband interference will affect at most a couple of tones. ⇒ Do not have to drop the entire band because of narrowband interference. ⇒ Erase information from the affected tones, since they are known to be unreliable. Already-present FEC recovers lost information. Narrowband Interferer Tone Interferer IFFT Channel FFT H ( f ) freq � freq � Submission Slide 11 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Why OFDM is Preferred(2) • OFDM has excellent robustness to multipath. • FEC and DCM* compensate for faded tones. H ( f ) f IFFT Channel FFT H ( f ) freq � freq � * Dual-Carrier Modulation (new) Submission Slide 12 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Why OFDM is Preferred(3) • Typical channels have hundreds of paths • MB-OFDM captures energy from virtually all of them. OFDM Symbol IFFT Channel FFT h ( t ) Main Path h ( t ) FFT Path #2 integrates Path #3 energy over the N paths Path # #1 #2 # t Window for All paths received within Zero Prefix (60.6 ns) are collected by FFT input to FFT Submission Slide 13 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Why OFDM is Preferred(4) Power Spectral Density Estimate via W elch • Ability to comply with worldwide -45 regulations: -50 -55 – Channels and tones can be turned -60 dBm/MHz on/off dynamically to comply with -65 changing regulations. -70 – Can arbitrarily shape spectrum in -75 software with a resolution of ~4 MHz. -80 3.2 3.4 3.6 3.8 4 4.2 4.4 4.6 4.8 Frequency (GHz) 1 0 Notch bandwidth: 7.25 MHz • Additional notch depth via “Active 0 Notch depth: 30 dB Interference Cancellation” (AIC) AIC tones: 2(left) + 2(right) - 1 0 In-band tones: 3 (zeros) – Under consideration for inclusion in - 2 0 PSD (dB) AIC coef. quantization: 5 bit (see below) the MB-OFDM spec - 3 0 Interference cancellation: 6 bit – Modest addition to system complexity Transmitter DAC: 6 bit - 4 0 Total tones used for mitigation: 7 – Reference: H. Yamaguchi (TI), 10th - 5 0 Total number of computed AIC tones: 4 ECC TG3 Meeting, Copenhagen, July - 6 0 - 4 0 0 - 3 0 0 - 2 0 0 - 1 0 0 0 1 0 0 2 0 0 3 0 0 4 0 0 5 0 0 6 0 0 11, 2005 fr e q u e n c y (M H z ) Submission Slide 14 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 What’s New in MB-OFDM? • Fixed-Frequency Interleave (FFI) Codes • 106.7 Mbps Data Rate • Dual-Carrier Modulation (DCM) • Transmit Power Control (TPC) • Three-Stage Interleaver • Explicitly Recommended OOB Limits Submission Slide 15 D. Leeper et al

July 2005 doc.: IEEE 802.15-05-397r0 Fixed-Frequency Interleaving • Added three new time-frequency codes (TFCs): – New codes are equivalent to transmitting on a single frequency band (FDMA). – These new modes are referred to as Fixed-Frequency Interleaving (FFI). – Summary of all TFCs is shown below TFC Number Type Preamble BAND_ID 1 TFI 1 1 2 3 1 2 3 2 TFI 2 1 3 2 1 3 2 3 TFI 3 1 1 2 2 3 3 4 TFI 4 1 1 3 3 2 2 5 FFI 5 1 1 1 1 1 1 6 FFI 6 2 2 2 2 2 2 7 FFI 7 3 3 3 3 3 3 • Support for TFI and FFI is mandatory within the standard: – No hardware penalty for supporting FFI modes in addition to TFI modes. • Advantages of FFI modes: – Improved SOP performance. Submission Slide 16 D. Leeper et al
