Program Security CMPSC 443 - Spring 2012 Introduction Computer and - - PowerPoint PPT Presentation

CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

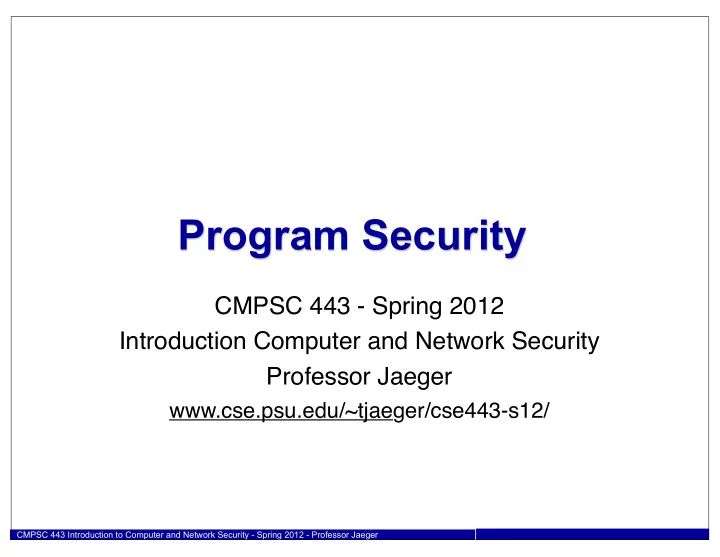

Program Security

CMPSC 443 - Spring 2012 Introduction Computer and Network Security Professor Jaeger

www.cse.psu.edu/~tjaeger/cse443-s12/

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

System Resources

• Programs often need system resources to function

– Libraries, configurations, environment variables, etc.

• Programs are often tasked to process particular system

resources

– User files, remote requests, etc.

• Adversaries can leverage the mechanisms designed to

retrieve system resources to compromise programs

– So, you have to prevent such attacks

• What are the types of system resources?

2

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Namespace Resolution

• Client (Process) requests a resource (File) from a

system name server (OS) by name

• Name server resolves name to a resource using its

namespace bindings

– Mapping between names and resources – E.g., File pathnames to directories and files

• Namespaces are used in many places

– Android Intents – XenStore key-values – D-Bus methods – URLs – DNS names

• Adversaries may control names, bindings, or resources

3

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Namespace Resolution Attacks

• Adversaries may choose names

– Use a maliciously crafted name to circumvent parsing and get to the resource they desire – Affect the construction of names (e.g., environment variables) to redirect the victim to a malicious resource

• Adversaries may control namespace bindings

– Create a link to direct the victim to a file of the adversaries choosing – May create malicious files in shared directories

• Adversaries may control resources themselves

– Victim may not know that an adversary can modify a particular resource that it expects to be safe

• Difficult to prevent these attacks as programs often

process untrusted names, bindings, and resources

4

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Threat Model

• How does the adversary gain access to namespace

resolution?

– Could have access to victim

• Can provide a name
• E.g., A client of a web server

– Could have access to name server

• Can update the namespace bindings
• E.g., An Android app can update Intents

– Could have access to resources

• Can modify the data in some of the resources
• E.g., A process on a file system
• The attacks to look for depend on the threat model

5

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Adversary-Controlled Names

• Maliciously-crafted names

– Multiple ways of naming lots of things

• Files

– /x/data or /y/z/../../x/data or /y/z/%2e%2e/x/data

• Lots of others -- URLs, DNS names, middleware-specific, etc.
• Get access to resources that the adversary normally

cannot (but, victim can)

– E.g., Windows system files – These are called Confused Deputy attacks

• Trick process into accessing untrusted resources

where safe are expected

– E.g., untrusted PHP files – These are called File Inclusion attacks

6

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Search Path Vulnerability

• Adversaries may craft malicious names using search

path environment variables

• When a program needs a library

– Dynamic linker crafts a file name using LD_PATH environment variables – May point to the directory in which the process was started

• Attack

– If the adversary can plant a malicious library in the user’s home directory – And start a privileged program from the user’s home directory – The dynamic linker will request libraries using a name whose prefix is the user’s home directory – Enabling the adversary to supply code to root processes

7

Page CSE497b Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Windows: Library Loads

• Search in directories for DLL of specified name

– Program Directory: directory of executable – System Directory: “presumably protected” directory – Working Directory: directory of process (where user exec’d from)

• Problem: Attacker may get file in working directory

– User likely does not even know the working directory of a process – Program Directory is always first

• SafeDllSearchMode

– Load from working before system directory if 0 – System before working if 1 – Default value is 1 in Windows2003 and 0 in XP

8

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Safe Name Usage

• Canonicalization

– Conversion to a single, “standard” name

• Rules of thumb

– Do not rely on names -- or anything -- from remote user

• At least not blindly

– Be careful if your program may be started by user in their

• wn directory
• Environment variables

– Convert them -- correctly -- to canonical format

• Enable checking against your rules

– Get a resource reference as soon as possible (e.g., inodes instead of filenames)

• Check that these right resources with stat commands

9

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

A Simple Program

01 SOCKET_DIR=/tmp/.X11-unix ... 02 set_up_socket_dir () { 03 if [ "$VERBOSE" != no ]; then 04 log_begin_msg "Setting up X server socket directory" 05 fi 06 if [ -e $SOCKET_DIR ] && [ ! -d $SOCKET_DIR ]; then 07 mv $SOCKET_DIR $SOCKET_DIR.$$ 08 fi 09 mkdir -p $SOCKET_DIR 10 chown root:root $SOCKET_DIR 11 chmod 1777 $SOCKET_DIR 12 do_restorecon $SOCKET_DIR 13 [ "$VERBOSE" != no ] && log_end_msg 0 || return 0 14 }

10

Code moves a directory if already exists to create a new one

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

A Simple Program

01 SOCKET_DIR=/tmp/.X11-unix ... 02 set_up_socket_dir () { 03 if [ "$VERBOSE" != no ]; then 04 log_begin_msg "Setting up X server socket directory" 05 fi 06 if [ -e $SOCKET_DIR ] && [ ! -d $SOCKET_DIR ]; then 07 mv $SOCKET_DIR $SOCKET_DIR.$$ 08 fi 09 mkdir -p $SOCKET_DIR 10 chown root:root $SOCKET_DIR 11 chmod 1777 $SOCKET_DIR 12 do_restorecon $SOCKET_DIR 13 [ "$VERBOSE" != no ] && log_end_msg 0 || return 0 14 }

11

Can mkdir fail then?

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Binding Attacks (Links)

• Adversary who has access to /tmp can create directory

for /tmp/.X11-unix

– victim code does not detect that problem

• Adversary can make this a link to /etc/shadow, and

later code makes this file world-writeable

– Adversary changes namespace bindings

• Two parts to the attack

– Change the namespace binding – Race condition to insert link between ‘mv’ and ‘mkdir’

• Adversary ability to change namespace binding is

fundamental to this attack

– Race conditions are much easier to create than you might think

12

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

File Squatting

• For directories where create access is shared with

adversaries

– Adversaries may predict the names of files/directories

• Create sub-directory in advance

– E.g., Adversaries predicted the .X11-unix directory in /tmp

• Also, works for files

– Adversary binds name to a file of their choice before the victim can – Then, the victim uses the adversary’s file instead

• Current Defense: Check for existence on creation

– open( name, O_CREAT | O_EXCL)

13

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

TOCTTOU Race Condition

• Victim checks the properties of a resource at a

particular name (time-of-check)

• Adversary changes the binding of that name to a

different resource (race)

– Via a symbolic link is the most common

• Victim is tricked into using a resource of the

adversary’s choice (time-of-use)

– E.g., the /etc/shadow resource was chosen in this case – Called TOCTTOU attack

• Current Defense: Prevent following of links

– Preventing use of adversary-controlled links to “safe” files is fundamental

14

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Multi-binding

• One name may refer to multiple resources
• Victim adds mapping of name to resource of their

control

– So does adversary – Name server allows multiple bindings to name

• Name server chooses either resource

– E.g., Chooses resource at random

• Is this for real?

– Yes, Android Intents and D-Bus methods both allow such binds

• Current Defense: ???

– Prevent use of adversary-controlled resources

15

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Binding Defenses

• More extensive defenses

– Safe sequence of system calls

• lstat (get inode #)
• access (check)
• open (use -- get fd)
• fstat (get inode # of fd)
• Does this work?

– Safe resources should only be accessed using safe names

• Prevents use of untrusted links to access safe resources
• What is a safe name? What is a safe resource?
• Can work for root-user, but is limited without program information
• Any binding defense must:

– it must have side information about the programs it protects, it must protect

• nly a subset of all programs, it must be vulnerable to DoS attacks, it must

have false-positives, or it must fail to prevent some race condition exploits

16

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Testing Programs for Binding Errors

• We have developed a test harness for finding binding

vulnerabilities

– Found 30+ vulnerabilities for new and mature programs

• The test harness enables

– Flexible adversary definition: Which bindings can adversaries change? – Flexible operations: Any system call that performs namespace resolution to get a resource – Generate test cases: Produce redirection to file of choice automatically – Detect vulnerabilities: Does victim use a redirected resource?

• Found the example using this tool

– Works for binaries and scripts

17

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Resource Attacks

• Systems allow for the sharing of resources

– So a process may access a resource that is under an adversary’s control – Even when expecting a safe resource

• What kinds of resources are under an adversary’s

control?

– files in the users’ home directories for root processes

• authorized_keys for OpenSSH
• user content for Apache

– logs for Apache – many others

• Problem: programmers do not know the deployment

environments of their programs accurately

18

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Resource Usage

• What does the process do with the retrieved

resources?

– Retrieve resources for clients

• Such resources may be adversary-controlled
• Editors, servers, etc.

– Retrieve resources for security-critical information

• Such resources must be safe
• Libraries, modules, configurations, etc.
• Need to know which to protect the process (invariants)

– If adversary provides the name, the process should retrieve adversary-accessible (and perhaps controlled) resource – If name is safe, the process should only retrieve adversary- controlled resources if updates are not security-critical – Etc.

19

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Resource Attack Defenses

• Access control

– System authorization policy

• They can be weak

– Root can access anything – All your user processes have the same permissions

• Some sharing is likely, and programs must defend

against it

– We will discuss this further over the next few lectures

20

Page CMPSC 443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Take Away

• Programs use system resources

– Retrieve resources using namespace resource

• However, adversaries can control aspects of

namespace resolution to create a variety of vulnerabilities

– Adversaries can provide names – Adversaries can change namespace bindings – Adversaries can control resources

• Programmers often fail to prevent such attacks

– A variety of ad hoc approaches to prevent such attacks

• Want a systematic goal to prevent these attacks

– Need to compute adversary access and identify security- critical program variables

21
