SLIDE 1

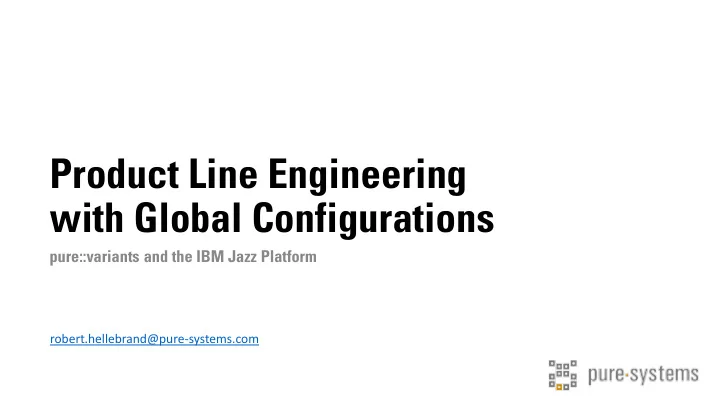

Product Line Engineering with Global Configurations
pure::variants and the IBM Jazz Platform
robert.hellebrand@pure-systems.com
Product Line Engineering with Global Configurations pure::variants - - PowerPoint PPT Presentation
Product Line Engineering with Global Configurations pure::variants - - PowerPoint PPT Presentation
Product Line Engineering with Global Configurations pure::variants and the IBM Jazz Platform robert.hellebrand@pure-systems.com Our Customers Products Everything is potentially reusable System System Requirements Test System System
SLIDE 2
SLIDE 3
System Requirements System Design HW/SW Requirements HW/SW Design Implementation Unit Test System Validation System Test HW/SW Test HW/SW Integration Test
Everything is potentially reusable
SLIDE 4
Growing complexity of assets, systems and interdependencies
SLIDE 5
Integrating Tools: Why not use Excel?
SLIDE 6
R R R R R R R
V1 V2 V1 V3 V2 V3 V1 V4 V2 V3 V1
Continuous Engineering Change in the Lifecycle
Branch Merge Release R Development Maintenance Vx Variant Integration
SLIDE 7
Variant Management Solution for Systems & Software Engineering
SLIDE 8
Requirements Test Cases Architecture Code Global Configuration Requirements Test Cases Architecture Code Global Configuration (Variant A) pure::variants transformation (Product Line) Feature Model Requirements Test Cases Architecture Code Global Configuration (Variant B) Requirements Test Cases Architecture Code Global Configuration (Variant C) Requirements Test Cases Architecture Code Global Configuration (Variant D)
SLIDE 9
External Car Light System
Feature Model
Role: Product Line Engineer Global Configuration (Product Line)
SLIDE 10
Feature Model
SLIDE 11
Configuring a new Variant
Error Markers and Auto-Resolve
Role: Application Engineer Global Configuration (Product Line)
SLIDE 12
Add Variant ‚BaseLight_Sweden‘
SLIDE 13
Global Configuration (Product Line)
Restricting Superset Requirements
DOORS NG Integration
Role: Requirements Engineer
SLIDE 14
SLIDE 15
Global Configuration (Product Line)
Deriving Variant-Specific Requirements
Transformation
Role: Requirements Engineer Global Configuration (Variant)
SLIDE 16
SLIDE 17
Global Configuration
Generate Variant-Specific Global Configurations
Role: Product Line Engineer / Application Engineer Global Configuration (Product Line) Global Configuration (Variant)
SLIDE 18
Global Configuration
- f Product Line
SLIDE 19
Transformation
SLIDE 20
Global Configuration
- f Variant
SLIDE 21
Coevolution of Product Line and Variants
Update Variant
Role: Product Line Engineer / Application Engineer
Global Configuration (Product Line) Global Configuration (Variant)
SLIDE 22
Update with Changesets
Derive Product Product Specific Changesets Derive new Product Start Product From PLE Update Product From PLE
SLIDE 23
Derive Product Product Specific Changesets Derive new Product Start Product From PLE Update Product From PLE
Update with Changesets
SLIDE 24
SLIDE 25
