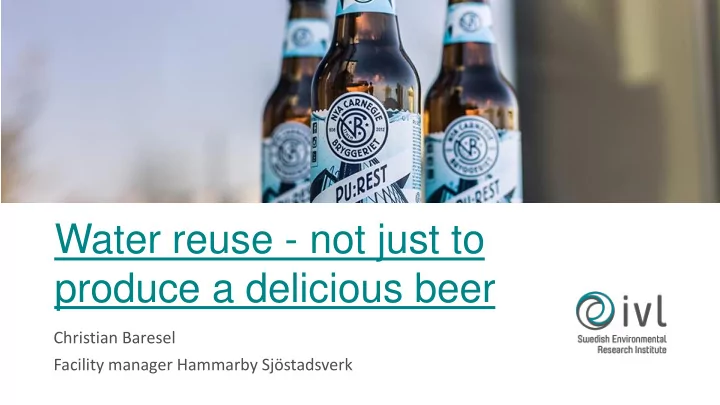

Christian Baresel Facility manager Hammarby Sjöstadsverk

Water reuse - not just to produce a delicious beer

Water reuse is not just an alternative anymore! Water reuse is the alternative for sustainable water use!

PRESENTATION TITLE

IVL |

Water supply Water supply WWTP WWTP

Quality

IN ≠ OUT Creates imbalance

IVL |

Availability?

Wastewater Reclaimed Water

  

ReUse project at IVL/KTH’s R&D-facility Hammarby Sjöstadsverk IVL in cooperation with Xylem

IVL |

Sustainability Factors

Best environmental, economic and technical solution

Environment LCA Social Quality Economic LCC

• Link economic, environmental, and social impacts to

reuse solutions

• The Life Cycle Assessment (LCA) informs on the

environmental impact of the solution

• Full system Life Cycle Cost (LCC) adapts the solution to the

economic limitation

• The adapted effluent quality leads to safety at the point of

use and social acceptance

• Optimal solutions vary based on plant size, local and

regional conditions, requirements, flexibility, etc.

IVL |

Outcomes?

• Various reuse effluent quality requirements can be achieved by treatment systems that are

ready to be implemented as they are based on available technologies.

• The total environmental impact does not need to be higher than conventional wastewater

treatment despite the fact that wastewater is treated to a reuse water quality

• In fact, the total environmental impact for some of the optimized ReUse-systems can be

lower than for traditional treatment systems as far as this can be quantified considering all benefits the reuse of wastewater generates!

• Costs for different reuse applications are in the same range or even lower than reported

costs for existing conventional wastewater treatment plants in Sweden!

 Thus, wastewater reuse is feasible today!

PRESENTATION TITLE

Xylem Reuse Solutions for the Modern Utility

ALEKSANDRA LAZIC – SENIOR PROCESS ENG.

Water Reuse – OXELIA Pilots (WWTP Zelienople)

Flowrate 5 – 25 GPM Ozone Generation System PSA O2 on-site concentrator + WEDECO GSO system Ozone Dose 0 or 2 -25 ppm Ozone Contact tank 2 × 300 gallon Filter Size 2’(L)× 2’(W)× 17’(H) (Full size filter) Filter Media 6’ of Spent GAC (ES 0.95mm, UC 1.7) 6’ of Anthracite (ES 0.95mm, UC 1.7)

OXELIA (Ozonation & biofilter) developed at Sjöstadsverket within the ReUse-project

Full scale installations - highlights

Project Technology Status Silicon Valley Advanced Water Purification Center, Santa Clara Valley Water District, San Jose, CA 8 MGD UV Disinfection System, closed vessel UV for advanced non-potable reuse, designed per NWRI 2012 guidelines In Operation / Permitted City of San Diego, CA Advanced Water Purification Facility Demonstration Plant Evaluating O3-BAF as an engineered barrier for advanced treatment train for future ~40 MGD plant In Operation Apple Valley, Hesperia, Victor Valley Reclamation Plants, Victor Valley Water Reclamation Authority, CA Open channel and closed vessel UV for three Title 22 facilities In Operation / Permitted Beneficial Reuse Project, University Area Joint Authority, State College, PA Ozone pretreatment for Reverse Osmosis to control fouling In Operation Terminal Island Water Reclamation Plant, Los Angeles Sanitation, CA 12 MGD UV/chlorine AOP for Indirect Potable Reuse, designed per DDW Groundwater Recharge Regulations In Operation / Permitted Second Changi Water Reclamation Plant, PUB, Singapore 50 MGD closed vessel UV Disinfection System, final treatment after MF and RO, designed per NWRI 2012 guidelines In Operation / Permitted

• St. Francis Wastewater Treatment Facility, St.

Francis, MN Open channel Duron UV system, reuse for irrigation and other uses, required CA Title 22 compliance Under Execution HRSD SWIFT Project Xylem OXELIA for organic removal In Operation Zandfliet DPR (Emergency Treatment Scheme) Xylem MiPRO photo (2 x LBX 1500e) Under Execution

SCVWD Case Study

• Silicon Valley Advanced

Water Purification Center (AWPC)

• Winner of 2015 Water

Reuse Project of the Year

• NPR (T22)
• Disinfection 12 x LBX

1000e UV Units

• Variable Design & Control

to Treat MF or RO effluent

• Accompanied by MiPRO

photo UV/H2O2 Pilot

Altamonte Springs, FL Case Study- Demo

Direct Potable Reuse Project for the Florida Water Reuse Commission Non RO based solution 1 x Oxelia Integrated Ozone & BAF: Incl 1 x GSO 30 Ozone Generator Incl 1 x Filter Column with XA Underdrain Incl 1 x YSI NiCaVIS & CarboVIS

https://www.youtube.com/watch?v=lB

• 7Im2Ra0I

https://www.youtube.com/watch?v=9 VGgUH_ieDo

HRSD SWIFT Facility: Oxelia – Integrated Ozone & BAF

Winner of US Water Prize 1 MGD Design Flow 1 x Oxelia Integrated Ozone & BAF:

Incl 2 x SMOevo 610 Ozone Generators Incl 4 x Filter Cells with XA Underdrain

Terminal Island, CA Case Study

• Terminal Island WRP – Owned and Operated by LASAN
• Indirect Potable Reuse
• Worlds1st Greenfield and large scale MiPRO UV/Cl2 AOP
• Incl 2 x K143 12/17 UV Reactors
• 12 MGD Design Flow
• Partnered with LASAN to pilot test all AOP options and select the AOP

which offered the best performance and cost. https://www.facebook.com/lacitysan/videos/10156335690 423418?sfns=mo

Rio Rancho, NM Case Study

• Cabezon WRF in Rio Rancho, New Mexico
• Indirect Potable Reuse
• 1st Permitted Aquifer Injection Facility in New Mexico
• MBR – AOP – GAC as an alternative to RO
• 2 x MiPRO O3/H2O2 AOP Systems
• Incl 2 x SMOevo 410 Ozone Generators
• 2 x PRO3MIX Ozone Introductions Systems for

Bromate Control

• 5-Log Virus Inactivation & <10 µg/L Bromate

THANKS!

Aleksandra Lazic Christian Baresel
