1 st Workshop | Webcon | 24 March 2020 PRHYDE-Protocol for heavy-duty hydrogen refuelling Call Identifier FCH-04-2-2019: Refuelling Protocols for Medium and Heavy-Duty Vehicles PRHYDE H 2 Protocol for heavy-duty Hydrogen refuelling

slide-1

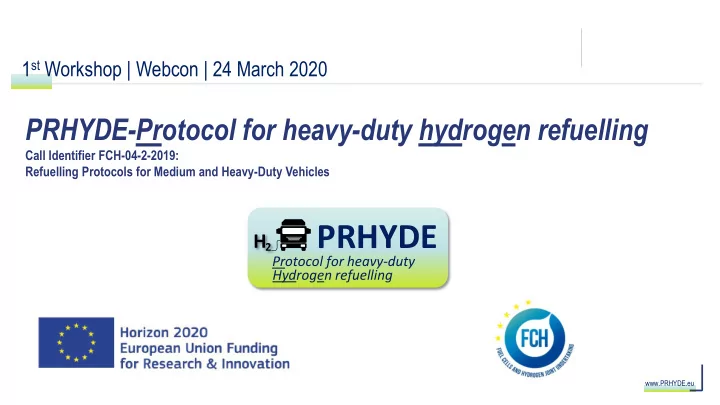

SLIDE 1

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu www.PRHYDE.eu

PRHYDE-Protocol for heavy-duty hydrogen refuelling

Call Identifier FCH-04-2-2019: Refuelling Protocols for Medium and Heavy-Duty Vehicles

1st Workshop | Webcon | 24 March 2020

PRHYDE

Protocol for heavy-duty

H2

Hydrogen refuelling

slide-2
SLIDE 2

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

AGENDA, 1st Workshop (1/2)

2

Time (CET) Subject

13:45 Join webinar 14:00 Introduction to project 14:10 Intentions of the project – detailed explanations for feedback / discussion:

i. State of the Art (including surveys) ii. General description of protocols to be developed iii. Modelling / simulations iv. Testing

Questions and answers 14:50 Current status regarding medium and heavy duty vehicles, including specifics on the hydrogen storage systems and refuelling system components used, also RCS requirements 15:20 Comfort break (10 minutes)

slide-3
SLIDE 3

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

AGENDA, 1st Workshop (2/2)

3

Time (CET) Subject

15:30 Current status regarding refuelling protocols for light, medium and heavy duty vehicles, including RCS requirements 16:00 State of the Art regarding dispensing system components used for medium and heavy duty vehicle fuelling stations 16:20 General Discussion / Submitted questions:

  • Any required modifications to the plans for the project
  • Requirements for future protocols

16:50 Summary and next steps 17:00 End

slide-4
SLIDE 4

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

4

Time (CET) Subject

13:45 Join webinar 14:00 Introduction to project 14:10 Intentions of the project – detailed explanations for feedback / discussion:

i. State of the Art (including surveys) ii. General description of protocols to be developed iii. Modelling / simulations iv. Testing

Questions and answers 14:50 Current status regarding medium and heavy duty vehicles, including specifics on the hydrogen storage systems and refuelling system components used, also RCS requirements 15:20 Comfort break (10 minutes)

slide-5
SLIDE 5

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Introduction

5

  • PRHYDE-Protocol for heavy-duty hydrogen refuelling

Refuelling Protocols for Medium and Heavy-Duty Vehicles

  • 01 JAN 2020 - 31 DEC 2021
  • The PRHYDE project has received funding from the Fuel Cells and Hydrogen 2 Joint

Undertaking under grant agreement No 874997. This Joint Undertaking receives support from the European Union’s Horizon 2020 research and innovation programme.

slide-6
SLIDE 6

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Objective of PRHYDE (1/3)

6

  • Determine relevant requirements for HDV fuelling - in particular with regards:

 to driving range,  fuelling time,  tank sizes,  average kg/fill,  SoC, and  customer impact, particularly taking the commercial boundary conditions of typical HDV operators into account

slide-7
SLIDE 7

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Objective of PRHYDE (2/3)

7

  • Determine limitations and gaps of current fuelling hardware capability (for HDV):

 Capability of state-of-the-art nozzle and receptacle to achieve the flow required for HDV and potential gaps  Capability of state-of-the-art vehicle data collection and communication hardware to achieve sufficiently reliable data collection and communication of vehicle data to station and potential gaps  Consider how a potential HDV fuelling protocol is to navigate and transition from current state-of- the-art component capability to a future required capability/norm

slide-8
SLIDE 8

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Objective of PRHYDE (3/3)

8

  • Develop concept(s) for HDV fuelling protocol(s)
  • Validate the impact of HDV fuelling protocol(s) concept(s) on achieving key metrics

(temperature and pressure) on the vehicle side

 through tank refuelling simulation with simplified model and CFD approaches  through experimental validations on fuelling of tank(s) at station(s).

  • Formulate recommendations (outcome of project) for HDV fuelling protocol(s) for use

in relevant standardization forums – with the aim of eventually achieving standardization.

slide-9
SLIDE 9

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

PRHYDE project partners

9

No. Participant organisation name Short name Country 1 Ludwig-Bölkow-Systemtechnik GmbH (Coordinator) LBST DE 2 Zentrum für BrennstoffzellenTechnik GmbH ZBT DE 3 Air Liquide SA AL FR 4 Engie Lab CRIGEN ENGIE FR 5 Toyota Motor Europe NV TME BE 6 ITM Power (Trading) Limited ITM UK 7 NEL Hydrogen AS NEL DK 8 Shell Deutschland Oil GmbH SHELL DE 9 Commissariat à l’énergie atomique et aux énergies alternatives CEA FR 10 Nikola Motor Company Nikola USA

Third linked partners: MAN and Toyota North America

slide-10
SLIDE 10

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Work plan

WP2 – State-of-the-art & specification WP3 – Protocol development WP4 – Simulations WP5 – Experimental validations

35MPa 50MPa 70MPa

WP6 – Recommendations and dissemination WP7 – Project coordination

Iterative process

WP2: Defining state-of-the-art on protocols, vehicles and component capabilities, gap analysis of current protocols, Specifying (new) tank categories, boundary conditions (flow temperature, connections etc.) target fueling times and quantities for the three pressure levels

Outcome: A detailed specification guiding the following protocol development and test efforts

WP3: Develop protocol approaches for the three pressure levels

Outcome: Protocol approaches for simulations (WP3) and test (WP4)

WP4: Modeling and Simulations of tank systems/categories to determine flow/temperature/pressure aspects

Outcome: Simulation results in order to assess impact of different protocol approaches

WP5: Experimental validation of protocol approaches at HRS(s)

Outcome: Validation of technical feasibility of protocol approaches

WP6: Formulate recommendations for standardization forums and dissemination

Outcome: Specific recommendations that can help create international standards on HDV hydrogen fueling

10

slide-11
SLIDE 11

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Work plan – workshops

11

Your inputs

  • from the surveys,
  • this 1st workshop and
  • further comments / inputs

will be reflected and discussed in The 2nd workshop on 23 April 2020

24th MAR 20 MAR / APRIL 20 APRIL 20 ~SEPT 20 ~ JUNE 2021

slide-12
SLIDE 12

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

12

Time (CET) Subject

13:45 Join webinar 14:00 Introduction to project 14:10 Intentions of the project – detailed explanations for feedback / discussion:

i. State of the Art (including surveys) ii. General description of protocols to be developed

  • iii. Modelling / simulations
  • iv. Testing

Questions and answers 14:50 Current status regarding medium and heavy duty vehicles, including specifics on the hydrogen storage systems and refuelling system components used, also RCS requirements 15:20 Comfort break (10 minutes)

slide-13
SLIDE 13

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Intentions of the project

13

  • Running order:

Subsection Presenter Slides WP2 Paul Karzel Included WP3 Claus Sinding Included WP4 Fouad Ammouri Included WP5 Antonio Ruiz Included

slide-14
SLIDE 14

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

WP2 SoA and specifications

14

  • Objectives

WP2 has as an aim to review the current state of art, set targets for future protocols and to perform a gap analysis between the status quo and the requirements of future protocols.

slide-15
SLIDE 15

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

State of the Art - High Level Introduction

15

Current refueling protocols are insufficient for use in heavy duty applications, as they do not support:

  • Fills to the required amount of hydrogen

Most refueling protocols are limited to 10 or 30kg.

  • Fills in the required speed / high enough transfer rates of hydrogen to the applications

The required flow rates for HD applications are just not supported by current protocols

  • The meeting of cost targets for hydrogen to customer

Current refueling protocols do not support the required cost decrease path to diesel parity by forcing the station to over-design

  • Clear but flexible criteria on how to fill an application with hydrogen

Either the protocols are too prescriptive or non-informative, such as with SAE-J-2601/2

slide-16
SLIDE 16

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

16

Work Package 3 (WP3)

  • Purpose

 To develop technical approaches for fuelling protocol(s) that meets WP2 spec  Specify fueling protocol(s) for use in validation tests (WP4, WP5)  Safety and risk assessment of fuelling protocol(s)  Optimization of fueling protocol(s) based on validation test results

slide-17
SLIDE 17

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Work Package 3 (WP3)

17

  • First steps

 Standard shall not provide prescriptive protocols  Standard shall provide process limits and guidelines on how to refueling HD vehicles.

slide-18
SLIDE 18

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Work Package 3 (WP3)

18

  • Assumptions on Hydrogen Single Vessel geometry and material properties

Type III Type IV

Description H35 H50 H70 Unit

Internal volume 0.350 0,531 0.350 m3 Internal length 2.52 2.7 2.52 m Internal radius 0.20 0.50 0.20 m Liner thickness 0.005 0.005 0.005 m Composite layer thickness 0.015 0.022 0.032 m Liner material density 945 945 945 kg.m-3 Liner material specific heat capacity 2100 2100 2100 J.kg-1.K-

1

Liner material thermal conductivity 0.5 0.5 0.5 W.m-

1.K-1

Composite wrapping material density 1494 1494 1494 kg.m-3 Composite wrapping material specific heat capacity 1120 1120 1120 J.kg-1.K-

1

Composite wrapping material conductivity 0.740 0.740 0.740 W.m-

1.K-1

Boss material density 7900 7900 7900 kg.m-3 Boss material specific heat capacity 500 500 500 J.kg-1.K-

1

Boss volume 0 m3 Boss contact surface with hydrogen 0 m2 Boss contact surface with ambient air 0 m2

Description H35 H50 Unit

Internal volume 0.350 0.50 m3 Internal length 4.433 2.52 m Internal radius 0.134 0.20 m Liner thickness 0.005 0.004 m Composite layer thickness 0.010 0.017 m Liner material density 2700 2700 kg.m-3 Liner material specific heat capacity 1106.

  • 1106. J.kg-1.K-1

Liner material thermal conductivity 164.

  • 164. W.m-1.K-1

Composite wrapping material density 1494 1494 kg.m-3 Composite wrapping material specific heat capacity 1120 1120 J.kg-1.K-1 Composite wrapping material conductivity 0.740 0.740 W.m-1.K-1 Boss material density 7900 7900 kg.m-3 Boss material specific heat capacity 500 500 J.kg-1.K-1 Boss volume 0 m3 Boss contact surface with hydrogen 0 m2 Boss contact surface with ambient air 0 m2

slide-19
SLIDE 19

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

WP4 simulations: to help establishing protocols for HD refuelling

Structure

To launch the different simulations, these elements are mandatory (should be defined in WP2 and 3):

  • Composite tank characteristics
  • HRS characteristics
  • Refuelling protocol basics

The different simulations (Air Liquide and Engie) needed:

  • Fast simulations (SOFIL / HYFIL) for the different refuelling

conditions

  • CFD calculations in some specific cases (outside the

applicability range of engineering models) Validation of some modelling cases with experimental results in WP5

19

slide-20
SLIDE 20

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

SOFIL: software to estimate gas temperature & mass when refuelling / defueling gas tanks for safety & energy

  • ptimization

In-house software @ R&D Air Liquide since 2010

Validated during HyTransfer project

  • On experimental fillings and CFD

results

  • For horizontal tanks type III/IV

Major benefits

  • Quick computations (~ min)
  • Precise

Simulation assumptions

  • 0D-gas
  • 1D-wall
  • 2D-piping discretization

Stations Filling Centers Storage tanks H2, O2, Ar,... Mass & energy balance equations SOFIL Refuelling Defueling

Refuelling protocols

Metallic or composite cylinder Pressure ramp rate Precooling T° Final pressure

slide-21
SLIDE 21

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

WP5 – Experimental Validation

21

Objective:

  • Execute and optimize a sequence of tests to validate the requirements and parameters

for developing a safe and efficient industry-accepted fueling protocol

 Consider the limits and boundaries of a compressed hydrogen storage system onboard heavy-duty FCEV for 350 bar, 500 bar, and 700 bar NWPs  Expand on the numerical experiment developed in WP4 and monitor, heat transfer, pressure, temperature and material behavior inside the storage vessel as well as safety implications on the entire storage system

slide-22
SLIDE 22

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

22

WP5 Experimental validation – 700 bar HF protocol

  • Nikola 1T Fueling Station: High pressure hydrogen storage

up to 1000 bar, capable of fueling trucks per modified fueling protocol, using enhanced SAE J2799 communications

  • Flow rate to be increased this

summer to allow for higher than 60g/s flow and expanded pre-cooling capability

slide-23
SLIDE 23

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

23

  • 700 bar type 4 vessel with on-tank valve with thermistor (temperature

sensor) and at end thermocouple and pressure transducer

WP5 Experimental validation – 700 bar HF protocol

  • Type IV tank available for further

instrumentation with an internal thermocouple tree (umbrella) arrangement to monitor temperatures at different internal positions.

  • Multiple 700 bar type 4 vessels as part of HSTA to support back to back fills
slide-24
SLIDE 24

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

WP5 Experimental validation – 350 bar HF protocol

24

  • ITM HRS: Birmingham
  • Combined “light duty” and bus station

 currently in build  designed by ITM for specific buses (TBC, but expected to use Type 3 tanks)  bus refuelling point completely separate system to light duty vehicle refuelling point (other than hydrogen generation equipment and low pressure storage)

  • Ability to fill both single tanks and complete tank systems expected
slide-25
SLIDE 25

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

WP5 Experimental validation – 350 bar HF protocol

25

  • ITM HRS: Birmingham
  • Final design for bus refuelling station being confirmed – anticipated:

 High pressure storage (800 kg @ ~50 MPa) with options:

  • Direct fill into vehicle (cascade) with pressure ramp control
  • Booster compression (if needed when storage pressure low)

 Non precooled hydrogen only  Communications option with vehicle on H35HF nozzle

slide-26
SLIDE 26

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

WP5 Experimental validation – 500/700 bar protocol

26

  • ZBT test field (Duisburg, Germany)
  • High pressure test facility for optimization of

H2 refueling stations

  • From H2 production to dispensing
  • Dispensers for 350 & 500/700 bar
  • Pre cooling max flow 160-180 g/s
  • Storage capacity 380 kg (@500bar) & 80 kg

(@900bar)

slide-27
SLIDE 27

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

WP5 Experimental validation – 500/700 bar protocol

27

  • ZBT test field (Duisburg, Germany)
  • Main dispenser:

 500/700 bar; max. flow: 60 g/s (-40°C)  350 bar; max. flow: 120 g/s (high flow, non cooled)

  • Second dispenser:

 500/700 bar; max. flow: 60 g/s (-40°C)  350 bar; max. flow: 60 g/s (-40°C)

slide-28
SLIDE 28

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

WP5 Experimental validation – 500/700 bar protocol

28

  • ZBT test field (Duisburg, Germany)
  • Fueling protocols

 SAE J2601 2010 / 2014 / 2016 / MC protocol  “Free” configurable fueling

  • Vehicle tanks:

 500 bar type 4, 211 l available  700 bar type 4, > 200 l to be purchased  Will be instrumented with thermocouple trees

slide-29
SLIDE 29

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

29

Time (CET) Subject 13:45 Join webinar 14:00 Introduction to project 14:10 Intentions of the project – detailed explanations for feedback / discussion:

i. State of the Art (including surveys) ii. General description of protocols to be developed iii. Modelling / simulations iv. Testing

Questions and answers

14:50 Current status regarding medium and heavy duty vehicles, including specifics on the hydrogen storage systems and refuelling system components used, also RCS requirements 15:20 Comfort break (10 minutes)

slide-30
SLIDE 30

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding medium and heavy duty vehicles

30

  • Running order:

Subsection Presenter Slides General Paul Karzel Included Survey responses Nick Hart Separate slide pack Nikola Antonio Ruiz Included Faun Georg Sandkühler Separate slide pack ULEMCo Sean O’Kane Deferred to a later date Toyota Vincent Mattelaer, Jacki Birdsall Included

slide-31
SLIDE 31

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Potential Applications

31

slide-32
SLIDE 32

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Fossil Parity requirements

32

3 governing factors identified:

  • Amount of energy stored => Range
  • Time to refuel
  • Cost equivalency
  • If these can be equal or better compared

to current (fossil) use cases, barriers to adaptation will be low Applications in comparison:

  • HD long haul trucks
  • Inland shipping vessels (4 types)
  • Passenger trains (regional transport)
  • Mainline locomotive
  • Hydrogen transport systems
  • Garbage trucks
  • City buses
  • Long distance coaches
slide-33
SLIDE 33

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Fossil Parity requirements

33

CHSS capacity [kg] Acceptable fill time [min] Average H2 flow [kg/min] N1 commercial vehicle 2-10 3-5 2 N2 commercial vehicle 10-40 10 4 N3 commercial vehicle 40-80 10 8 M2 passenger carrier 10-40 8 5 M3 passenger carrier 30-100 12 8 Train, low case 150 10 15 Train, high case 500 15 33* Transport system, low 300 30 10 Transport system, high 1500 60 25 Inland ship, bulk carrier 4.500 60 75** Inland ship, push barge 900 60 15 Inland ship, day cruise 300 60 5 Inland ship, river cruise 20.000 120 167**

*it is likely such a system would have at least two independent tank systems, therefore half the flowrate can be assumed. **it is currently unsure whether these applications are feasible to refuel with gaseous hydrogen in their current operational scheme. It is well possible that options can be found to shorten the distances between fills or switch to alternative modes of supplying molecules, such as swappable containers, LH2 or other alternatives.

slide-34
SLIDE 34

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding medium and heavy duty vehicles

34

Survey Responses Presenter: Nick Hart (ITM) Slides: See separate slide pack

slide-35
SLIDE 35

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding medium and heavy duty vehicles

35

Nikola Presenter: Antonio Ruiz Slides: Included below

slide-36
SLIDE 36

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Fuel cell trucks Hydrogen station

Hydrogen At scale:

  • H e a v y D u t y, C l a s s 8
  • O n b o a r d S t o r a g e : 8 0

K g

  • 7 5 0 - 1 , 2 0 0 K m R a n g e
  • 2 0 0 0 l b s - f t To r q u e
  • 1 0 0 0 H o r s e p o w e r
  • Z e r o Ta i l p i p e

E m i s s i o n s

  • B a t t e r y : 1 2 5 - 2 5 0 K w h r
  • 2 4 0 K w F u e l C e l l
  • F a s t F u e l i n g
  • 7 0 M P a H y d r o g e n

F u e l i n g f o r H e a v y - D u t y A p p l i c a t i o n

  • A v a i l a b l e A c r o s s

C o u n t r y

  • R e n e w a b l e E n e r g y

S t o r a g e

Nikola 40T Heavy Duty Class 8 & H2 Fueling

36

slide-37
SLIDE 37

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Hydrogen station

H e a v y d u t y l i g h t d u t y

Nikola H2 Fueling

37

slide-38
SLIDE 38

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

38

  • Alkaline Electrolysis “tried and

true” technology

  • Hydrogen Generation with

renewables + grid with low cost electricity

  • 70 MPa Hydrogen Fueling for

heavy-duty application

H2 Fueling from Electrolysis

slide-39
SLIDE 39

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

70MPa 80kg 15min

D e v e l o p i n g F a s t F u e l i n g D i s p e n s e r s I n A r i z o n a n o w :

  • Also offering LD passenger vehicle fueling

per SAE J2601

  • 8 Ton+/day station

(scalable up to 32 Ton/day H2 for depot)

Nikola H2 Fueling

slide-40
SLIDE 40

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

1st

H D H S TA i n t h e w o r l d

H e a v y - d u t y f u e l i n g p r o t o c o l d e v e l o p m e n t & t e s t i n g H y d r o g e n s t a t i o n f i e l d t e s t i n g & c o m m i s s i o n i n g F u r t h e r o p t i m i z a t i o n

  • f N i k o l a o n b o a r d

h y d r o g e n s t o r a g e s y s t e m

Hydrogen STATION Testing apparatus – HSTA

Nikola HD Hydrogen Station Test Apparatus

40

slide-41
SLIDE 41

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Nikola’s first H2 station at headquarters:

GASEOUS H 2 VEHICLE STATION – 1T STORAGE

slide-42
SLIDE 42

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

F i r s t d e m o s t a t i o n R & D H D s t a t i o n 1 s t 8 t / d a y s t a t i o n S t a r t t o t h e R a m p u p o f o v e r h u n d r e d s + s t a t i o n s

2019 2020 2022 2023

…beginning in North America Nikola Zero Emission Hydrogen Stations

42

slide-43
SLIDE 43

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

43

  • 70 MPa Hydrogen HD Fueling Protocol
  • 80 Kg onboard hydrogen storage system
  • 15+ minutes
  • H2 simulation + fueling lab testing needs
  • New HD H70 high flow nozzle, break-way and hose assembly
  • Hydrogen storage H70 receptacle check valve
  • New compressor for high flow 300g/s+
  • New station cooling capacity for T40 H70HF

HD H2 Fueling: Standards Development Needs

slide-44
SLIDE 44

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

44

Thank you!

Antonio Ruiz Head of Fuel Cell Vehicle C&S antonio.ruiz@nikolamotor.com www.nikolamotor.com

slide-45
SLIDE 45

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding medium and heavy duty vehicles

45

Faun Presenter: Georg Sandkühler Slides: Not available to public

slide-46
SLIDE 46

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding medium and heavy duty vehicles

46

Toyota Presenters: Vincent Mattelaer, Jacki Birdsall Slides: Included below

slide-47
SLIDE 47

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Refuelling of Toyota medium and heavy duty FCEVs

47

CaetanoBus H2.CityGold Five Type 4 tanks 35 MPa NWP 37.5 kg 20 years lifetime 15% lighter Toyota Sora Ten Type 4 tanks 70 MPa NWP 25 kg Toyota 7-eleven FC truck Three Type 4 tanks 70 MPa NWP 7.5 kg Hino FC truck Type 4 tanks 70 MPa NWP 600 km range ??? kg

(Outside of North America)

slide-48
SLIDE 48

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Toyota Project Portal

48

Six Type 4 tanks 70 MPa NWP 60 kg total Using current IrDA and new HD interface hardware Refueling targets: 60 kg in 10 min By end of year 2020

(Participating to PRHYDE)

slide-49
SLIDE 49

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu www.PRHYDE.eu

COMFORT BREAK

Back in 10 Minutes at 15:30

49

slide-50
SLIDE 50

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

50

Time (CET) Subject

15:30 Current status regarding refuelling protocols for light, medium and heavy duty vehicles, including RCS requirements 16:00 State of the Art regarding dispensing system components used for medium and heavy duty vehicle fuelling stations 16:20 General Discussion / Submitted questions:

  • Any required modifications to the plans for the project
  • Requirements for future protocols

16:50 Summary and next steps 17:00 End

slide-51
SLIDE 51

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Refuelling protocols

51

  • Running order:

Subsection Presenter Slides General Paul Karzel, Vincent Mattelaer Included Status SAE standards (SAE J2601, SAE J2600, SAE J2601-2) Nico Bouwkamp, Steve Mathison Separate slide pack Survey responses Nick Hart Separate slide pack NEL Claus Sinding Separate slide pack Air Products Joe Cohen Separate slide pack CEP (Germany) Benjamin Coiffier, Air Liquide Separate slide pack HySpeed project (Netherlands) Roel de Natris, TNO Separate slide pack

slide-52
SLIDE 52

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

State of the Art

52

  • Currently used refuelling protocols
  • LD: mostly SAE J 2601 (1-10kg)
  • LD: some proprietary protocols for type 3 CHSS vehicles, e.g. Symbio
  • MD: JPEC-S-0003 (up to 30kg)
  • Bus + train applications: boundary conditions from SAE J2601/2 (not a full protocol) with individual ramp

rates and configurations of the HRS

  • -> creates application specific issues when applications change
  • LH2 and CCH2 will be analyzed later – focus on GH2
slide-53
SLIDE 53

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Gap Analysis of existing protocols

53

  • Shortcomings of current protocols:

 Static, very conservative tables (unforgiving in operation)  Very narrow control margins on Temperature and Pressure (cost drivers)  Stacking of tolerances (e.g. Worst case tank model + hot/coald soak + most unfavourable heat capacities of components + ...)  Data on end temperatures of fills  High cost of precooling - often to unnecessarily high levels of accuracy and depth  Structure means that any other concept than a station with HP-buffer tanks (e.g. Direct compression) is almost impossible  Above limits add up and will not let us achieve fossil cost parity for larger applications  Limitations to 60g/s or 120g/s peak flow will not let us achieve refueling time parity for larger applications

slide-54
SLIDE 54

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Recommendations for future protocols

54

  • No tank size classes
  • No precooling classes (like MC method)
  • No worst case tank model
  • Ideally, target application is known well enough to predict a near optimal fill
  • Ideally, limitations of the station (e.g. Capacity, remaing stock, etc. are taken into account)
  • Ideally, customer can choose to fill for 5, 10, 50€ or so

WP2 recognizes need to fill CHSS with 0- ~8000kg in the mid term – protocol should be usable for all of

  • these. Most pressing need is to verify range most typically used for HD LH trucks and city buses, but protocol

should conceptually be capable of delivering the full range

slide-55
SLIDE 55

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Directive 2014/94/EU

55

  • Directive of Alternative Fuel Infrastructure (DAFI)

22/10/2014 17/11/2017 DAFI published in EU Journal Regulation 2018/674/EU

(Amendment for EN ISO 17268)

13/08/2019 Regulation 2019/1745/EU

(Amendment for EN 17124 & EN 17127)

(Replaced by ISO 19880-1) (Replaced by ISO 19880-1) All new or renewed public HRS must comply with:

  • Technical Spec:

ISO/TS 20100

  • H2 quality:

ISO 14687-2

  • Fuelling algorithm: ISO/TS 20100
  • Connection:

ISO 17268 18/11/2017 Regulation 2018/674/EU EN ISO 17268 24/05/2020 12/11/2021 Regulation 2019/1745/EU EN 17127 EN 17124 EN 17127 CEN/TC268/WG5 Q4/2021? New DAFI

EN17127 distinguishes: LDV: max. 60 g/s Other: up to 120 g/s

Will change to >60g/s in next update

slide-56
SLIDE 56

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Standards for stations

  • 1. One standard for connections

ISO 17268 EN/ISO 17268

  • 2. One standard for hydrogen quality

ISO 14687 + ISO 19880-8 EN 17124

  • 3. One (?) standard for hydrogen fuelling protocol

SAE J2601(-1) JPEC-S 0003

56

slide-57
SLIDE 57

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Standard for hydrogen fuelling protocol

57

5 kg 7 kg 25 kg

SAE J2601-1

Protocol exists No protocol H/W Standard available No hardware standard

JPEC-S 0003

slide-58
SLIDE 58

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

What in case of no protocol available?

  • 350 bar Tamb station made for type3 tanks fuelling a FCEV with type4 tanks

Item Result Conclusion/remark 1 Tank temperature Initial tank temp: 29.0°C Stop button pressed due to high temp.

  • Max. tank temp:

84.1 °C 2 Pressure Initial 3.1 MPa P too low because stop button pressed Final 20.9 MPa Maximum 20.9 MPa 3 SOC End of fuelling 31.76 % Too low 4 Fuelling time SAE 209.85 s Quite fast for Tamb protocol Customer ref 260 s 5 APRR Tambient 29°C Custom made APRR for fuelling type3 vessels Pinitial 3.1 MPa APRRtarget 0.98 MPa/min APRRmeasured 4.8 MPa/min 6

  • Max. flow rate

Initial pulse 10.53 g/s OK <200 g/s Second pulse None 7 Fuel temp control Within boundaries N/A No precooling

58

slide-59
SLIDE 59

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding refuelling protocols

59

Status SAE standards (SAE J2601, SAE J2600, SAE J2601-2) Presenters: Nico Bouwkamp, Steve Mathison Slides: See separate slide pack

  • :
slide-60
SLIDE 60

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding refuelling protocols

60

Survey Responses Presenter: Due to time constraints, these weren’t covered in the Webinar Slides: See separate slide pack

slide-61
SLIDE 61

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding refuelling protocols

61

NEL Presenter: Claus Sinding Slides: Not available to public

slide-62
SLIDE 62

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding refuelling protocols

62

Air Products Presenter: Joe Cohen Slides: See separate slide pack

slide-63
SLIDE 63

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding refuelling protocols

63

Clean Energy Partnership (Germany) Presenter: Benjamin Coiffier Slides: Not available to public

slide-64
SLIDE 64

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding refuelling protocols

64

HySpeed project (Netherlands) Presenter: Roel de Natris (TNO) Slides: Not available to public

slide-65
SLIDE 65

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

65

Time (CET) Subject

15:30 Current status regarding refuelling protocols for light, medium and heavy duty vehicles, including RCS requirements 16:00 State of the Art regarding dispensing system components used for medium and heavy duty vehicle fuelling stations 16:20 General Discussion / Submitted questions:

  • Any required modifications to the plans for the project
  • Requirements for future protocols

16:50 Summary and next steps 17:00 End

slide-66
SLIDE 66

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Dispensing system components

66

  • Running order:

Subsection Presenter Slides General Paul Karzel, Nick Hart Included Survey responses Nick Hart Separate slide pack H70HF Claus Sinding Included

slide-67
SLIDE 67

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Gap Analysis of existing Hardware

67

  • Nozzles and receptacles:

The most commonly used hardware is H70 LD with up to 60g/s flow

Buses and trains mostly use H35HF with up to 120 g/s

  • Neither of these give enough flowrate to refuel the applications

as needed

  • It is necessary to develop appropriate hardware (nozzles,

receptacles, breakaways, hoses, control valves, flow meters, etc.) for applications in the required ranges

  • It is highly recommended to create an intercompatibility

between pressure ranges to allow access to low cost

  • hydrogen. It is proposed to introduce a „ultra high flow“ class of

components, similar to LD:

↑Current ↑Proposed

slide-68
SLIDE 68

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Dispensing system components

68

Example of products on market for heavy duty applications: WEH "High flow nozzle" TK16 H2 corresponding receptacle:

  • TN1 H2

(ISO 17268 geometry) All provide mechanical interlocks to prevent light duty vehicles filling at inappropriate HRS

"nozzle for fast filling"

  • TK25 H2

corresponding receptacle:

  • TN5 H2
slide-69
SLIDE 69

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Current status regarding refuelling related components

69

Survey Responses Presenter: Due to time constraints, these weren’t covered in the Webinar Slides: See separate slide pack

slide-70
SLIDE 70

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

In Industr stry y Collabo llaborat ration ion Hardwar dware e Develo velopment pment Standar andardization dization

Vehicl cle e OEMs Ms Infrastr rastructur cture e Provi vider ers

H70HF Industry Group

70

slide-71
SLIDE 71

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Hardware Development

  • Objectives

1. Develop license-free, high-flow, heavy duty, fueling receptacle to promote as a global standard 2. Validate receptacle design with prototype hardware: Nozzle, hose and breakaway coupling

71

slide-72
SLIDE 72

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Hardware Development

  • Scope of Work

1. Procure prototypes – RFP circulated globally to potential suppliers in 2019 2. Test – based on existing standards with some modifications

1.

High Flow Target: 180 g/s (10.8 kg/min)

2.

H70 vehicles with onboard storage sizes 30-100kg 3. Publish – publish results and receptacle design establishing prior art and preventing patents and subsequent licensing of receptacle design 4. Standardize – submit receptacle design to global standard associated with fueling hardware: create new documents where necessary

72

slide-73
SLIDE 73

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Outlook

  • Interested organizations can contribute to the H70HF development efforts in ISO

a) ISO 19880 b) ISO 17268

73

slide-74
SLIDE 74

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

74

Time (CET) Subject

15:30 Current status regarding refuelling protocols for light, medium and heavy duty vehicles, including RCS requirements 16:00 State of the Art regarding dispensing system components used for medium and heavy duty vehicle fuelling stations 16:20 General Discussion / Submitted questions:

  • Any required modifications to the plans for the project
  • Requirements for future protocols

16:50 Summary and next steps 17:00 End

slide-75
SLIDE 75

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

General Discussion Submitted questions

75

  • Any required modifications to the plans for the project
  • Requirements for future protocols
slide-76
SLIDE 76

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

76

Time (CET) Subject

15:30 Current status regarding refuelling protocols for light, medium and heavy duty vehicles, including RCS requirements 16:00 State of the Art regarding dispensing system components used for medium and heavy duty vehicle fuelling stations 16:20 General Discussion / Submitted questions:

  • Any required modifications to the plans for the project
  • Requirements for future protocols

16:50 Summary and next steps 17:00 End

slide-77
SLIDE 77

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

Summary & next steps

77

Next steps:

  • Initial deliverables to be prepared by PRHYDE consortium and published
  • Follow-up (2nd) workshop on 23 April 2020:

 for dissemination of more detailed information about next activities within PRHYDE project  for dissemination of further input from outside of consortium (surveys etc)  to enable further feedback

slide-78
SLIDE 78

24 MAR 2020 1st Workshop - WEBCON

www.PRHYDE.eu

THANK YOU! Contact Info

78

Email: info@prhyde.eu

Nick Hart ITM Power Martin Zerta LBST Susanne Goeritz LBST Christopher Kutz LBST

Responsible person for dissemination and communication Coordinator of the project Ludwig-Boelkow-Systemtechnik GmbH, Daimlerstr. 15 - 85521 Munich - Germany http://www.lbst.de

Web: www.PRHYDE.eu
