PRESENTATION AND USE OF EH-POWERGROUND

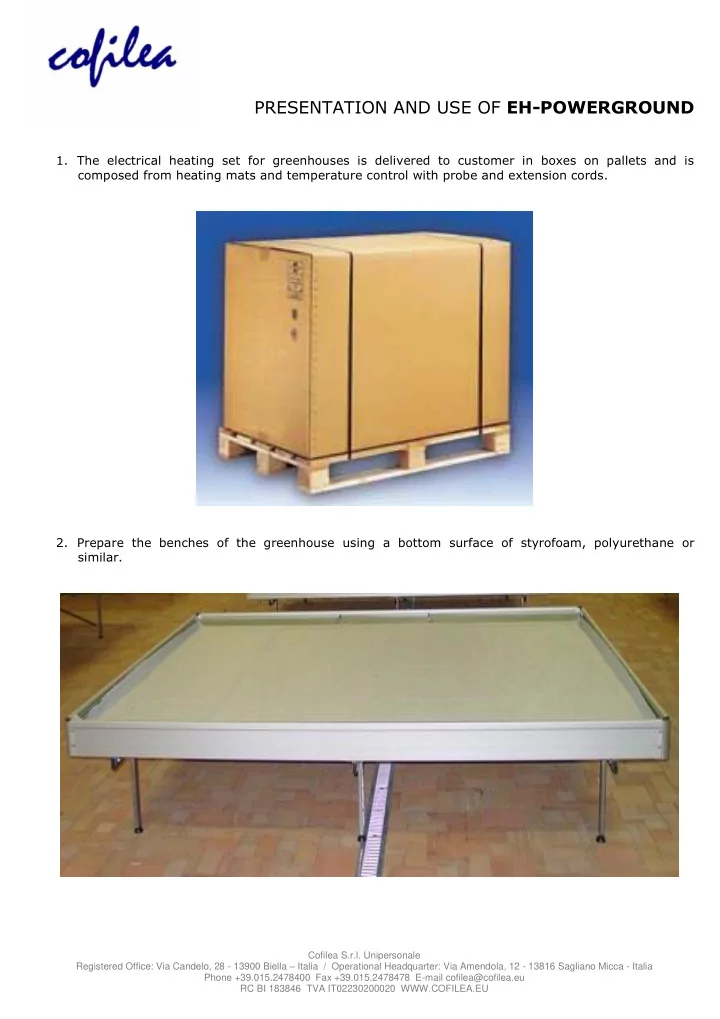

  • 1. The electrical heating set for greenhouses is delivered to customer in boxes on pallets and is

composed from heating mats and temperature control with probe and extension cords.

  • 2. Prepare the benches of the greenhouse using a bottom surface of styrofoam, polyurethane or

similar.

slide-2
SLIDE 2

Cofilea S.r.l. Unipersonale Registered Office: Via Candelo, 28 - 13900 Biella – Italia / Operational Headquarter: Via Amendola, 12 - 13816 Sagliano Micca - Italia Phone +39.015.2478400 Fax +39.015.2478478 E-mail cofilea@cofilea.eu RC BI 183846 TVA IT02230200020 WWW.COFILEA.EU

  • 3. Open the boxes and take the heating mats, the temperature control and the extension cords.
  • 4. The heating mats have to be connected to the temperature control according to the following

schedule:

slide-3
SLIDE 3

Cofilea S.r.l. Unipersonale Registered Office: Via Candelo, 28 - 13900 Biella – Italia / Operational Headquarter: Via Amendola, 12 - 13816 Sagliano Micca - Italia Phone +39.015.2478400 Fax +39.015.2478478 E-mail cofilea@cofilea.eu RC BI 183846 TVA IT02230200020 WWW.COFILEA.EU

  • 5. Unfold the heating mats on the bench with the labels towards the bottom, be careful not to overlap

the mats, you only may overlap the edges.

  • 6. Make some holes on the Styrofoam corresponding to the places where power cables are connected

to the mats to favor the passage of the cables themselves.

slide-4
SLIDE 4

Cofilea S.r.l. Unipersonale Registered Office: Via Candelo, 28 - 13900 Biella – Italia / Operational Headquarter: Via Amendola, 12 - 13816 Sagliano Micca - Italia Phone +39.015.2478400 Fax +39.015.2478478 E-mail cofilea@cofilea.eu RC BI 183846 TVA IT02230200020 WWW.COFILEA.EU

  • 7. Connect each heating mat, you need to use, to the temperature control directly by using their

connections and/or by using extension cords. Each temperature control must be linked only to same mat type (same item code).

  • 8. Insert the temperature probe into the special lodging of the heating mats (or directly into the

substrate of the seeds/cuttings trays).

  • 9. Connect the power supply of the temperature control.
slide-5
SLIDE 5

Cofilea S.r.l. Unipersonale Registered Office: Via Candelo, 28 - 13900 Biella – Italia / Operational Headquarter: Via Amendola, 12 - 13816 Sagliano Micca - Italia Phone +39.015.2478400 Fax +39.015.2478478 E-mail cofilea@cofilea.eu RC BI 183846 TVA IT02230200020 WWW.COFILEA.EU

10. Place seeds or cuttings trays on the heating mats. Set and control the thermal parameters of the thermostat*. *(before using EH-CONTROL, it must be read the manual of the thermostat very carefully) ATTENTION: Before using EH-POWERGROUND, it must be read the manual of the product very carefully.
