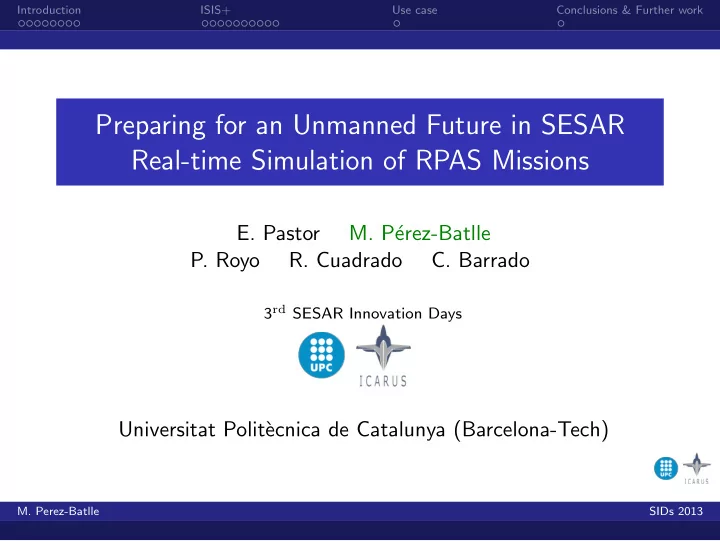

Preparing for an Unmanned Future in SESAR Real-time Simulation of RPAS Missions

• E. Pastor
• M. P´

erez-Batlle

• P. Royo
• R. Cuadrado
• C. Barrado

3rd SESAR Innovation Days

Universitat Polit` ecnica de Catalunya (Barcelona-Tech)

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

RPAS peculiarities Flight plan stages

Civil RPAS applications: Surveillance, SAR, terrain mapping...

Takeoff Departure Route Arrival Approach Landing Takeoff Departure Route Arrival Approach Landing Mission Re-Route

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

RPAS peculiarities The mission stage1

VFR-like missions in an IFR environment.

1Courtesy of NASA (V. Ambrosia); Google Earth background image used by

permission to the NASA Wildfire Research and Applications Partership project.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

RPAS peculiarities The mission stage2

• 2Courtesy of NASA
• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

RPAS peculiarities Performance dissimilarities

Performance Parameter RPAS Manned Aircraft Cruise airspeed ↓↓↓ ↑↑↑ Rate of climb ↓↓↓ ↑↑↑ Cruise altitude ≈ ≈ Endurance ↑↑↑ ↓↓↓

Other issues Datalink related:

Communication latency. Lost-link.

Contingency related:

Loss of control/navigation capabilities.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

RPAS Integration. State-of-the-art

Gaps for the integration of civil RPAS into the European aviation system3 have been

• identified. They are related to:

EC 1: Development of a methodology for the justification and validation of RPAS safety objective. EC 2: Secure command & control / data links / bandwidth allocation. EC 3: Insertion of RPAS into the air traffic management system, detect & avoid (air and ground) and situational awareness (including for small RPAS), weather awareness. EC 4: Security issues attached to the use of RPAS. EC 5: Safe automated monitoring, support to decision making and predictability

• f behaviour.

3European RPAS Steering Group. Roadmap for the integration of civil Remotely

Piloted Aircraft Systems into the European Aviation System, Jun 2013

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

Research goals Regarding the roadmap To provide an environment that permits the analysis of specific areas/gaps. Towards higher levels of automation To investigate the active interaction of the RPAS pilot and the ATCo through the extensive use of automation and information exchange. Higher automation to provide flexibility and situational awareness rather than become an obstacle to perform a safe

• peration.
• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

What we propose A novel real-time simulation environment Simulation of a realistic RPAS operation. ATC simulation environment that can integrate traffic and RPAS. Historical or predicted IFR traffic and its corresponding airspace structure.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

Outline

1 Introduction 2 ISIS+ 3 Use case 4 Conclusions & Further work

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

The ISIS+ ATM-RPAS simulation environment Characteristics Integration of two separated simulators:

ISIS: In charge of running an environment in which RPAS

• perations and subsystems can be tested.

eDEP4: Low cost, lightweight ATC simulation platform.

4Developed by EUROCONTROL Experimental Center

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

• ISIS. Internal architecture

Electrical Manager

VirtualfAutopilot System FlightfPlan Manager Contingency Manager

Base FlightfPlan

Autopilot Flight Monitor FlightfPlan Monitor RPAS Air Segment RPAS Ground Segment

Contingency Monitor Engine Manager Telemetry

Waypoints/ H/A/S Deflections Waypoints APfModes/ H/A/S Deflections Telemetry LA/TO Taxi Adjust LA/TO/Taxi WPfStatus BasefFP FPfUpdates ModefSelection LegfStatus LA/TO Taxi Adjust UAS Status UASfStatus PiCfReq Cont Exec Contingencies Catalog Reactions Catalog

Separation Monitor TIS-B ADS-B TCAS-like Awareness Data Fusion f Awareness Sensors

Traffic Stream Separation Conflict Reaction Reaction Update Reaction Exec Separation Conflict Detection Sep Conflicts Separation Resolution Data PiCf ReactionfExec Separation Detection Data UASfIntent

Separation Management

RPAS Air Segment

Flight Management

Air Segment VAS-FMo: In charge of abstracting from the particular autopilot.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

• ISIS. Internal architecture

Electrical Manager

VirtualfAutopilot System FlightfPlan Manager Contingency Manager

Base FlightfPlan

Autopilot Flight Monitor FlightfPlan Monitor RPAS Air Segment RPAS Ground Segment

Contingency Monitor Engine Manager Telemetry

Waypoints/ H/A/S Deflections Waypoints APfModes/ H/A/S Deflections Telemetry LA/TO Taxi Adjust LA/TO/Taxi WPfStatus BasefFP FPfUpdates ModefSelection LegfStatus LA/TO Taxi Adjust UAS Status UASfStatus PiCfReq Cont Exec Contingencies Catalog Reactions Catalog

Separation Monitor TIS-B ADS-B TCAS-like Awareness Data Fusion f Awareness Sensors

Traffic Stream Separation Conflict Reaction Reaction Update Reaction Exec Separation Conflict Detection Sep Conflicts Separation Resolution Data PiCf ReactionfExec Separation Detection Data UASfIntent

Separation Management

RPAS Air Segment

Flight Management

Air Segment FPMa-FPMo: The core of the autonomous operation of the RPAS under the supervision of the PiC.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

Flight Plan Manager (FPMa) FPMa Towards a high semantic level of flight plan specification. Usage of extended leg and path terminator concept (RNAV):

Basic (RNAV) legs: Control (extended RNAV) legs:

Iterator. Conditional.

Parametric (extended RNAV) legs.

Flight path generated using a reduced number of parameters.

Track to Fix Radius to Fix Hold to Fix

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

Flight Plan Manager (FPMa) FPMa Towards a high semantic level of flight plan specification. Usage of extended leg and path terminator concept (RNAV):

Basic (RNAV) legs: Control (extended RNAV) legs:

Iterator. Conditional.

Parametric (extended RNAV) legs.

Flight path generated using a reduced number of parameters.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

Flight Plan Manager (FPMa) FPMa Towards a high semantic level of flight plan specification. Usage of extended leg and path terminator concept (RNAV):

Basic (RNAV) legs: Control (extended RNAV) legs:

Iterator. Conditional.

Parametric (extended RNAV) legs.

Flight path generated using a reduced number of parameters.

parametric scans

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

• ISIS. Internal architecture

Electrical Manager

VirtualfAutopilot System FlightfPlan Manager Contingency Manager

Base FlightfPlan

Autopilot Flight Monitor FlightfPlan Monitor RPAS Air Segment RPAS Ground Segment

Contingency Monitor Engine Manager Telemetry

Waypoints/ H/A/S Deflections Waypoints APfModes/ H/A/S Deflections Telemetry LA/TO Taxi Adjust LA/TO/Taxi WPfStatus BasefFP FPfUpdates ModefSelection LegfStatus LA/TO Taxi Adjust UAS Status UASfStatus PiCfReq Cont Exec Contingencies Catalog Reactions Catalog

Separation Monitor TIS-B ADS-B TCAS-like Awareness Data Fusion f Awareness Sensors

Traffic Stream Separation Conflict Reaction Reaction Update Reaction Exec Separation Conflict Detection Sep Conflicts Separation Resolution Data PiCf ReactionfExec Separation Detection Data UASfIntent

Separation Management

RPAS Air Segment

Flight Management

Air Segment CMa-CMo: In charge of managing contingency situations.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

• ISIS. Internal architecture

Electrical Manager

VirtualfAutopilot System FlightfPlan Manager Contingency Manager

Base FlightfPlan

Autopilot Flight Monitor FlightfPlan Monitor RPAS Air Segment RPAS Ground Segment

Contingency Monitor Engine Manager Telemetry

Waypoints/ H/A/S Deflections Waypoints APfModes/ H/A/S Deflections Telemetry LA/TO Taxi Adjust LA/TO/Taxi WPfStatus BasefFP FPfUpdates ModefSelection LegfStatus LA/TO Taxi Adjust UAS Status UASfStatus PiCfReq Cont Exec Contingencies Catalog Reactions Catalog

Separation Monitor TIS-B ADS-B TCAS-like Awareness Data Fusion f Awareness Sensors

Traffic Stream Separation Conflict Reaction Reaction Update Reaction Exec Separation Conflict Detection Sep Conflicts Separation Resolution Data PiCf ReactionfExec Separation Detection Data UASfIntent

Separation Management

RPAS Air Segment

Flight Management

Air Segment Separation Management: In charge of dealing with separation issues with other collaborative traffic.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

• eDEP. Overview

eDEP

Airspace File Airspace Configuration Traffic File Map Files Resource Files Graphic Displays Resources Files

Characteristics Human-in-the-Loop ATC simulator. Provides access to the ATC controller’s capabilities and interactions. Two working stations are provided: Controller Working Position Pilot Working Position

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

ISIS-eDEP integration ISIS+ = eDEP + ISIS

Flight Plan Manager

Reaction Catalog Contingency Catalog Main Flight Plan Flight Plan Updates Contingecy Requests Reaction Requests

Flight Plan Monitor

Flight Monitoring

Flight Monitor

Proposed Reaction

X-Plane

Virtual Autopilot System

Navigation Display Reaction Manager Traffic Viewer CDTI

eDEP

UAS Telemetry & Trajectory Intent

ADS-B Receiver ADS-B Transmiter

ADS-B Messages

Separation Conflict Detection

X-Plane Multiplayer

UAS ADS-B IN & OUT

Separation Conflict Reaction

ADS-B Messages ADS-B Messages

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

HOLDW REBUL LERSW-WMOPAS

EnrouteW-WIn

Scan/Transfer Select Hold-X Select Hold-Area MOPAS Hold-Area BARBO Hold-Area ANETO Hold-Area MARIO Transfer Select Scan Select MARIOWto ANETO BARBOWto ANETO ANETOWto BARBO MOPASWto BARBO Scan-Area SW Scan-Area NE Hold-Area MOPAS Hold-Area BARBO Hold-Area ANETO Hold-Area MARIO Mission Loop

MissionWStage

HoldW-WEW- Select LERSW-WRETURN TURBO MSSW-WLEAVE A34W-WSEROX1Q A34W-WSEROX1P

EnrouteW-Wout

Description Departure, arrival and approach are also simulated. Mission is formed by two scan patterns and four hold patterns. Intensive use of conditional/repetitive control legs.

• M. Perez-Batlle

SIDs 2013

Introduction ISIS+ Use case Conclusions & Further work

Conclusions & further work Conclusions ISIS+ development to study and evaluate complex scenarios in which RPAS are integrated into non-segregated airspace. RPAS simulator is integrated with eDEP, an Eurocontrol air traffic simulator. Further work Some work need to be done to tackle specific RPAS airspace integration gaps
