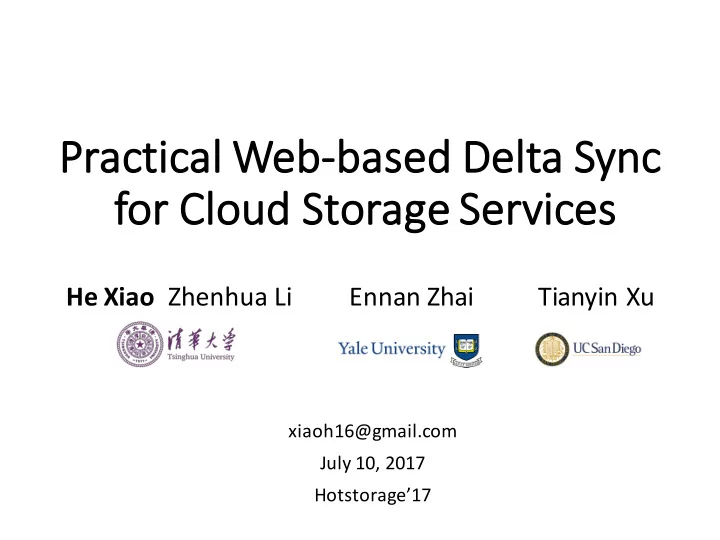

Pr Pract ctica cal Web-ba based d Delta Sy Sync fo for Cloud Storage Services

xiaoh16@gmail.com July 10, 2017 Hotstorage’17

Ne Network Traffic is Ov Overwhelming in in Clo loud Storag age

File Sync

2

Cloud Traffic has 30% CAGR (CompoundAverage Growth Rate)

Sever Client Network Traffic Users Vendors

De Delta Sync Improve ves Ne Network Ef Efficiency

Delta Sync is crucial for reducing cloud storage network traffic.

10 MB 1 B

Delta Sync

Delta Data

3

New File Old File Delta sync support in nine state-of-the-art cloud storage services 10 MB

Full Sync

New File Old File Full File

No No We Web-ba based d Delta Sync nc

Why web-based delta sync is not supported by today’s cloud storage services ?

4

Web Apps with local storage or log files need web-based Delta Sync Web is the most pervasive and OS- independent cloud storage access method

Web-based delta sync is essential for cloud storage web clients and web apps

Co Contribution

• We quantitatively study why web-based delta sync

is not offered by today’s cloud storage services.

• We build a practical web-based delta sync solution

for cloud storage services.

• By reversing traditional delta sync process, we make the
• verhead affordable at the web client side.
• By exploiting the locality of users’ edits and trading off

hash algorithms, we make the computation overhead affordable at the server side.

5

We WebRsync: : Imp mpleme ment Delta Sync on Web

• Implement rsync on real cloud storage with native web

tech: JavaScript + HTML5 + WebSocket

• rsync is the de facto solution of delta sync in cloud storage

JavaScript Implementation

• f Rsync

Web Server Local File System HTML5 FileAPI WebSocket Storage Backend Aliyun OSS / OpenStack Swift High-Speed Internal Network Web Browser C Implementation

• f Rsync

6

We WebRsync vs. rsync

7

Sync time of WebRsync vs rsync

Average Client CPU utilization

St Stagnation due to JavaScr Script’s Si Single- th thread Ev Event Loop Model

//print timestamp every 100ms setInterval(print(timestamp),100) //print the timestamp of every keystone( start or end of a task)

• n_start(task);

print(task.id, timestamp)

• n_finish(task);

print(task.id, timestamp)

8

StagMeter

• 1. Send meta data

Wait server

• 2. Checksum Search

and Comparison

• 3. Send tokens and literal bytes

Wait server High CPU Utilization when computing Timestamp Printing is suspended Web is under stagation state

St StagMeter on WebRsync

9

Sync Process (Second)

We WebR2sync: Client-si side Optimization Re Reverse Co Computation Process

Client Server

Request for Syncing File f’ Checksum List of f Segmentation Fingerprinting

Searching Comparing

Generate tokens and Literal Bytes Construct New File f ACK

10

WebRsync

We WebR2sync: Client-si side optimization Re Reverse Com

• mputation
• n Pr

Proce cess

• Web Reverse Rsync: Reverse complicatedcomputationfrom

server to client.

Client Server

Request for Syncing File f’ Segmentation Fingerprinting Generate Tokens And Literal Bytes Construct New File f ACK Searching Comparing Checksum List of f

11

Pe Performance of We WebR2sync

Edit Size (Byte) Sync Time (Second)

12

Edit Size (Byte) Sync Time (Second)

Issue: Server takes severely heavy overhead.

Se Server-si side Ov Overhead Profiling

Checksum searching and block comparison occupy 80% of the computing time

MD5 Computing Checksum Search

13

Ø Use faster hash functions to replace MD5 Ø Reduce checksum searching overhead

Re Replacing MD5 with S SipHash in Ch Chunk Com

• mparison
• n

Hash Function Collision Probability Cycles per Byte MD5 Low 5.58 Murmur3 High 0.33 Spooky High 0.14 SipHash Low 1.13 SipHash remain low Collision Probability at much faster speed

14

A comparison of pseudorandom hash functions

So Solve Possible Hash Collision

• Replace MD5 with SipHash, may cause potential

collisions (Probability p), so does MD5.

• Our Solution: Use Spooky (fastest method, collision

probability p’).

• The probability of collisions is p*p’
• Alternative: Use MD5 or other strong hash

functions as a global verification.

• Compute MD5 over whole file is expensive.

15

Re Reduce Ch Chunk Sea earching by Exploiting Loc

• cality of
• f Fi

File Edi dits.

16

MD5-4 Hash Table Adler32-1 Adler32-2 Adler32-3 Adler32-4 MD5-1 MD5-2 MD5-3 Block1 Block2 Block3 Block4

Checksum search Compare

95% synchronized files have less than 10 edits.

Ev Evaluation Setup

17

Basic experiment setup visualized in a map of China

Sy Sync c Time

18

1 10 100 1K 10K 100k

Edit Size (Byte)

10-1 100 101

Sync Time (Second)

WebRsync WebR2sync WebR2sync+ rsync

WebR2sync+ is 2-3 times faster than WebR2sync and 15-20 times faster than WebRsync

Th Throughput

19

2000 4000 6000 8000

Number of Concurrent Users

NoWebRsync WebRsync WebR2sync WebR2sync+ rsync

This throughput is as 4 times as that of WebR2sync/rsync and as 9 times as that of NoWebRsync.

Fu Future Work

• Evaluate our approach under different edit modes
• delete, insert, append
• Evaluate traffic efficiency
• all the methods should have similar traffic efficiency
• Understand the effects of three optimizations
• evaluate them separately

20

Di Discussion

• Probability of collisions of file checksums
• Characteristics of file operations in real-world

scenarios from the perspective of sync

• Locality measure for deciding whether to apply

locality-based optimization.

21

Co Conclusion

• WebR2sync+ is a practical solution for web-

based delta sync

• lightweight computation at the client side
• optimized overhead at the server side
• the server-side optimizations can be adopted in

the traditional cloud storage architecture

22

Thanks!

discussion

23

We WebRsync Detailed De Descripti tion

Block1 Block2 Block3 … Adler32 MD5 Adler32 MD5 Adler32 MD5 … … Weak Checksum Search Strong Checksum Compare 1 block offset YES YES NO NO Matched Tokens Literal Bytes Construct New File Client Server 1 byte offset Rolling Adler32 O(1): Adler(i)=>Adler(i+1)

24

We WebR2sync: Flowchart and Data st structure

Construct New Files Client Server Weak Checksum Search Strong Checksum Compare YES NO NO 1 byte offset No further Operation YES Block 1 Block 2 Block 3 Block 4 Block 1 Block 2 Block 3 Block 4 When find a match, record the associated index

25

Sy Sync c Time deco composed

26

1 10 100 1K 10K 100K

Edit Size (Byte)

0.05 0.1 0.15 0.2

Sync Time (Second)

Server Network Client

WebR2sync+ client takes stable and shorter time. Because of the Server-side optimization, computing time is much shorter both in client and server.
