POROSITY PLATE BAFFLE DESIGN FOR FISH SCREEN FLOW CONTROL Peter Christensen, PE R2 Resource Consultants PLAN VIEW OF FLOATING SURFACE COLLECTOR (FSC) NET PRIMARY SECONDARY SCREENS SAMPLING AND HOLDING TRANSITION SCREENS PLAN &

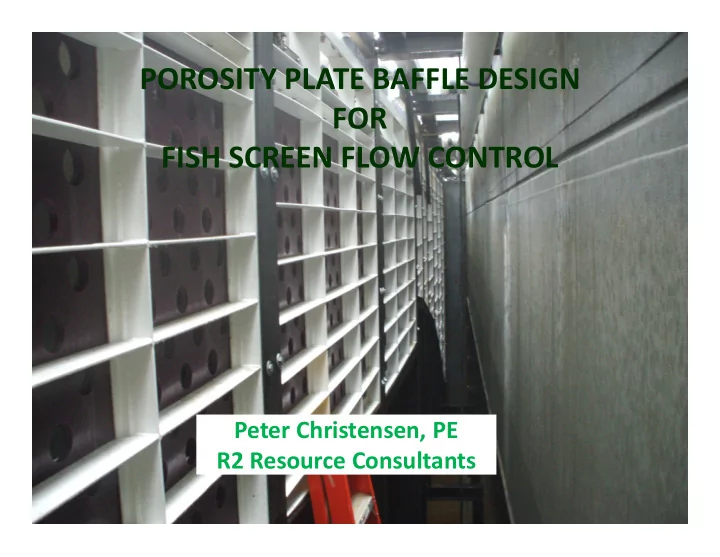

SLIDE 1

Peter Christensen, PE R2 Resource Consultants

POROSITY PLATE BAFFLE DESIGN FOR FISH SCREEN FLOW CONTROL

SLIDE 2

PLAN VIEW OF FLOATING SURFACE COLLECTOR (FSC)

PRIMARY SCREENS NET TRANSITION SECONDARY SCREENS SAMPLING AND HOLDING

SLIDE 3

PLAN & PROFILE VIEW OF FSC SCREEN CHANNEL

SLIDE 4

SCREEN/BAFFLE SUPPORT STEEL

PLAN PROFILE 12” WIDE FLANGE COLUMN (TYP) 12” WIDE FLANGE COLUMN (TYP)

SLIDE 5

SECONDARY SCREEN/BAFFLE ARRANGEMENT

SCREEN BOLTS TO FRONT OF COLUMN PRIMARY SUPPORTS SECONDARY SUPPORTS BAFFLE BOLTS TO BACK OF COLUMN

SLIDE 6

SCREEN ATTACHED TO FRONT OF COLUMN BAFFLE ATTACHED TO BACK OF COLUMN

INSTALLED SCREEN/BAFFLE ARRANGEMENT

SLIDE 7

SCREENS INSTALLED ON COLUMNS

SLIDE 8

BAFFLES INSTALLED BEHIND SCREENS

SLIDE 9

SCREEN AND BAFFLE PANELS INSTALLED

SCREEN PANEL BAFFLE PANEL BAFFLE ADJUSTMENT SCREW W12 COLUMN

SLIDE 10

PRIMARY BAFFLE DRAWING

SLIDE 11

SECONDARY BAFFLE DRAWING

SLIDE 12

ADJUSTABLE UHMW PERF PLATE FIXED UHMW PERF PLATE 3”+/- DIA. PERF PLATE HOLES STIFFENER AND RETAINER BARS

BAFFLE ARRANGEMENT

FLOW

Critical that Both Plates be the Same Material Preferably a High- Strength Plastic for Flexibility and Sealing

SLIDE 13

ATTACHMENT OF ADJUSTABLE UHMW PERF PLATE

UHMW PERF PLATE ATTACHMENTS

ATTACHMENT OF FIXED UHMW PERF PLATE ADJUSTABLE UHMW PERF PLATE FIXED UHMW PERF PLATE ADJUSTMENT SCREW

SLIDE 14

TYPICAL PRIMARY BAFFLE PANEL

SLIDE 15

BAFFLE PANEL SHOWING ADJUSTMENT SCREWS

SLIDE 16

BAFFLE PANEL FRAME FABRICATION

SLIDE 17

TYPICAL SECONDARY BAFFLE PANEL

SLIDE 18

ADJUSTMENT SCREW

SLIDE 19

UHMW PERF PLATES

SLIDE 20

COMPARISON POROSITY PLATES VS. LOUVERS Louvers:

Vertical Slot along Each Edge of the Louver Blade
Flow Not Evenly Distributed over Screen Area
Small Adjustment can Have Large Impacts on Flow
Difficult to Fine Tune
Hydraulics Difficult to Pre-Design or Model Baffle Settings
Need to Field Set – Timely and Cost Consuming

Porosity Plate Baffles:

Small Baffle Holes Over Entire Area
Evenly Distributes Flow over Screen Area
Adjustments Have Smaller Impact on Flow – Easier to Fine Tune
Can Pre-Design Settings for Desired Flow Conditions
Required Field Adjustments are Minimal

SLIDE 21

Starboard Initial Baffle Settings Port Initial Baffle Settings Baffle Panel Number Porosity (percent) Turns from Full Open (nearest 1/8 turn) Centerline Opening (inches) Baffle Panel Number Porosity (percent) Turns from Full Open (nearest 1/8 turn) Centerline Opening (inches) P1-A 13.20 6 7/8 1.85 P2-A 13.20 6 7/8 1.85 P1-B 13.20 6 7/8 1.85 P2-B 13.20 6 7/8 1.85 P3-A 13.20 6 7/8 1.85 P4-A 13.20 6 7/8 1.85 P3-B 13.20 6 7/8 1.85 P4-B 13.20 6 7/8 1.85 P5-A 13.20 6 7/8 1.85 P6-A 13.20 6 7/8 1.85 P5-B 13.20 6 7/8 1.85 P6-B 13.20 6 7/8 1.85 P7-A 13.25 6 7/8 1.86 P8-A 13.25 6 7/8 1.86 P7-B 13.25 6 7/8 1.86 P8-B 13.25 6 7/8 1.86 P9-A 13.25 6 7/8 1.86 P10-A 13.25 6 7/8 1.86 P9-B 13.25 6 7/8 1.86 P10-B 13.25 6 7/8 1.86 P11-A 13.05 7 1.84 P12-A 13.05 7 1.84 P11-B 13.05 7 1.84 P12-B 13.05 7 1.84 P13-A 12.75 7 1/8 1.81 P14-A 12.75 7 1/8 1.81 P13-B 12.75 7 1/8 1.81 P14-B 12.75 7 1/8 1.81 P15-A 12.40 7 3/8 1.77 P16-A 12.40 7 3/8 1.77 P15-B 12.40 7 3/8 1.77 P16-B 12.40 7 3/8 1.77

Starboard Pump Sump Differential 0.54 Feet Below Reservoir Port Pump Sump Differential 0.54 Feet Below Reservoir Centerline Opening
