polarization gratings Frans Snik Mike Escuti + LEOPARD group + GPL group Universiteit Leiden NCSU / ImagineOptix classical phase classical phase classical phase classical phase geometric phase geometric phase geometric phase geometric

slide-1
SLIDE 1

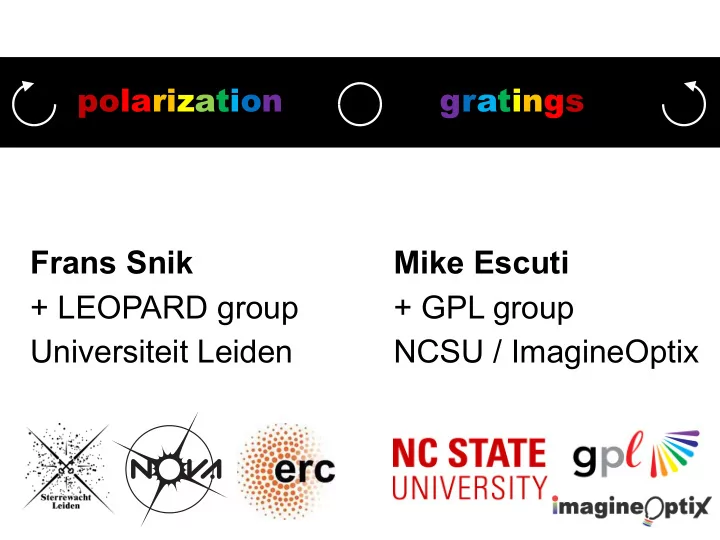

polarization gratings Frans Snik + LEOPARD group Universiteit Leiden Mike Escuti + GPL group NCSU / ImagineOptix

slide-2
SLIDE 2

classical phase

slide-3
SLIDE 3

classical phase

slide-4
SLIDE 4

classical phase

slide-5
SLIDE 5

classical phase

slide-6
SLIDE 6

geometric phase

slide-7
SLIDE 7

geometric phase

slide-8
SLIDE 8

geometric phase

slide-9
SLIDE 9

geometric phase

slide-10
SLIDE 10

the polarization grating

courtesy: Michael Escuti (NCSU)

slide-11
SLIDE 11

liq liquid id-cr crystal o

  • ptics

cs

  • 1. any phase pattern thanks to direct-write

technique 2. achromatization thanks to self-aligning multi- twist liquid crystal retarder

Miskiewicz & Escuti (2014) Komanduri et al. (2013)

slide-12
SLIDE 12

diffraction efficiency

Escuti et al. (2016)

slide-13
SLIDE 13

transmission

Packham et al. (2010)

slide-14
SLIDE 14

direct-write resolution + accuracy

Miskiewicz & Escuti (2014) Escuti et al. (2016)

slide-15
SLIDE 15

ExPo pIFU

courtesy: Michiel Rodenhuis

slide-16
SLIDE 16

courtesy: Gerard van Harten

slide-17
SLIDE 17

courtesy: Gerard van Harten

slide-18
SLIDE 18

courtesy: Gerard van Harten

slide-19
SLIDE 19

courtesy: Gerard van Harten

slide-20
SLIDE 20

courtesy: ImagineOptix

slide-21
SLIDE 21
slide-22
SLIDE 22

credit: Studio Roosegaarde, Frans Snik, Michiel Rodenhuis

slide-23
SLIDE 23

WIRC-pol design

45° QWP PG

courtesy: Max Millar-Blanchaer (CalTech)

slide-24
SLIDE 24

courtesy: Max Millar-Blanchaer (CalTech)

slide-25
SLIDE 25

courtesy: Max Millar-Blanchaer (CalTech)

slide-26
SLIDE 26

courtesy: Max Millar-Blanchaer (CalTech)

slide-27
SLIDE 27

hyperspectralpolarimetric imaging

courtesy: Jihwan Kim (NCSU)

slide-28
SLIDE 28

LC Bragg gratings

Xiang et al. (2017)

slide-29
SLIDE 29

What if you’re not interested in polarization or m=-1?

Split off half the light effectively with a polarizing beam-splitter + a QWP, and use that light for

  • WFS
  • imaging
  • whatever…
slide-30
SLIDE 30

Apodizing Phase Plate coronagraph

classical phase

  • chromatic
  • impossible to manufacture extreme patterns
  • only 180° instantaneous search space

+p

  • p
slide-31
SLIDE 31

+p

  • p

vector-APP coronagraph

slide-32
SLIDE 32

vector-APP coronagraph

geometric phase

  • inherently achromatic
  • use liquid crystals for extreme patterns
  • two complementary PSFs
slide-33
SLIDE 33

th the e vA vAPP PP pr prototype pe

slide-34
SLIDE 34

th the e vA vAPP PP pr prototype pe

Otten, Snik et al. Opt. Express (2014)

slide-35
SLIDE 35

th the e vA vAPP PP pr prototype pe

Otten, Snik et al. Opt. Express (2014)

slide-36
SLIDE 36

th the e vA vAPP PP pr prototype pe

Otten, Snik et al. Opt. Express (2014)

slide-37
SLIDE 37

th the e vA vAPP PP pr prototype pe

Otten, Snik et al. Opt. Express (2014)

slide-38
SLIDE 38

th the e vA vAPP PP pr prototype pe

Otten, Snik et al. Opt. Express (2014)

slide-39
SLIDE 39

grating-vAPP (gvAPP)

Otten, Snik et al. SPIE (2014)

slide-40
SLIDE 40

Ma MagAO on

  • n-sk

sky (M (May 6, 2015) ) 3.9 μm μm

Otten, Snik et al. (2017)

slide-41
SLIDE 41

vAPP for LBT courstesy: David Doelman

slide-42
SLIDE 42
  • pol. grating + vAPP
  • pol. grating

48% 48% ~10-4 ~2% ~2%

do doubl uble-gr grating ng-vA vAPP PP

Doelman, Snik, et al. (in prep.)

slide-43
SLIDE 43

Oñ=UKQJã=i_q=L=ijfR`~ã SKRJã=jjq=L=jjqéçä UKOJã=pìÄ~êì=L=p`bñ^l SKRJã=j~Ö~ää~å L=j~Ö^l L=j~Ö^lJu QKOJã=teq=L=ibñf PMJÅã=eá`f_~p UKOJã=siq=L=pmebRb=ìéÖê~ÇÉ L=bRfp

slide-44
SLIDE 44

vote at ideas.lego.com
