Planning I: Planning I: The Planning Process The Planning Process AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 1 Outline Outline I Review of PSP Levels I Definition of a Plan I Why Planning Comes First in the PSP I Reasons for

slide-1

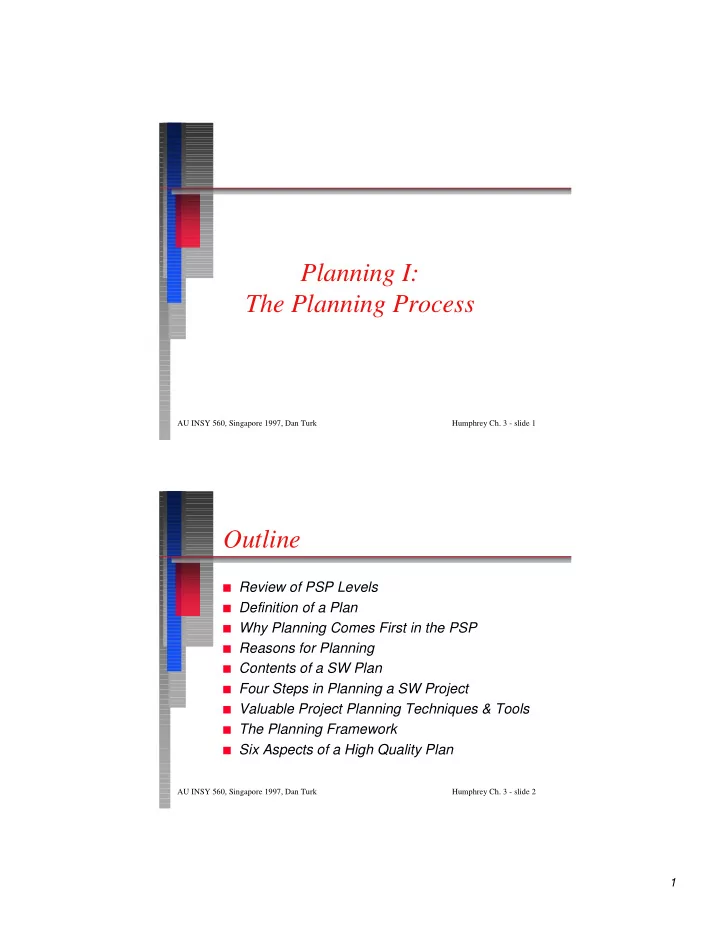

SLIDE 1

1

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 1

Planning I: The Planning Process Planning I: The Planning Process

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 2

Outline Outline

I Review of PSP Levels I Definition of a Plan I Why Planning Comes First in the PSP I Reasons for Planning I Contents of a SW Plan I Four Steps in Planning a SW Project I Valuable Project Planning Techniques & Tools I The Planning Framework I Six Aspects of a High Quality Plan

slide-2
SLIDE 2

2

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 3

Review of PSP Levels (Humphrey, 1995, p. 11) Review of PSP Levels (Humphrey, 1995, p. 11)

PSP0

Current process Time recording Defect recording Defect type standard

PSP1

Size estimating Test report

PSP2

Code reviews Design reviews

PSP3

Cyclic development

PSP2.1

Design templates

PSP1.1

Task planning Schedule planning

PSP0.1

Coding standard Size measurement Process improvement proposal (PIP)

Baseline Planning Quality Mgt Cyclic

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 4

Definition of a Plan Definition of a Plan

I A plan is a predetermined set of activities which,

when followed, are expected to lead to the accomplishment of one or more goals.

– Turk I Plans may be vague or well-defined. I A well-defined plan indicates these activities and

their sequencing in sufficient detail so that it is clear to those who must use or assess the plan what must be done and that the plan may be reliably repeated.

– Turk

slide-3
SLIDE 3

3

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 5

Three Reasons Why Planning Comes First in the PSP (Humphrey, 1995, p. 57) Three Reasons Why Planning Comes First in the PSP (Humphrey, 1995, p. 57)

I Even modestly-sized SW projects

cannot be managed without good plans.

I You can learn planning skills and

improve them with practice.

I You do better SW work when you

have good planning skills.

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 6

Reasons for Planning

(cf. Humphrey, 1995, p. 57-60)

Reasons for Planning

(cf. Humphrey, 1995, p. 57-60) I Before the project

  • To provide a basis for agreeing on the cost and schedule for a

job, and thus to help make commitments you can keep.

– Identify tasks & dependency relationships – Plan schedule, completion date – Identify costs, & budget (bid & profit)

  • To provide a framework for obtaining required resources.
  • To record initial commitment.

I During the project

  • To guide your work (provides an organizing structure).
  • To help track your progress.
  • To provide a framework for management control of the project.

I After the project

  • To provide a reference point for evaluating the project.
slide-4
SLIDE 4

4

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 7

Reasons for Planning (cont.)

(cf. Humphrey, 1995, p. 59-60)

Reasons for Planning (cont.)

(cf. Humphrey, 1995, p. 59-60) I “The connection between plans and commitments is…

extremely important.”

I “When you start a major project you are all alone…” I “With a plan, you can negotiate with people and

convince them to give your needs priority over their

  • ther existing commitments. In short, a plan is the

essential first step in creating a project.”

I Plans are usually incomplete & inaccurate. I Specific written plans facilitate checking for

completeness, accuracy, etc. (e.g. IBM’s project estimate which only covered coding & unit testing, but not the 2x additional budget needed for documentation,

  • ther testing, & QA…)

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 8

Contents of a SW Plan - Dependent on Plan’s Users & Their Needs

(cf. Humphrey, 1995, p. 60-61)

Contents of a SW Plan - Dependent on Plan’s Users & Their Needs

(cf. Humphrey, 1995, p. 60-61)

Your needs:

I

Job sizing

  • How big?
  • How long?

I

Job structure

  • Tasks, ordering.

I

Job status

  • Where am I?
  • When will I finish?
  • Are the costs under

control?

I

Assessment

  • How good was my

plan?

  • What should I do

differently or the same in the future?

Your customer’s needs:

I

Commitment

  • What is to be delivered, when, and at what

cost?

I

Quality

  • How good is the product likely to be?
  • Is it what we want?

I

Monitoring

  • Can we monitor progress?
  • Is work planned that will ensure

accomplishment of our needs?

  • Can we make interim checks?
  • Will we have early warnings of quality,

schedule, and cost problems? Can we do something about it?

I

Subsequent evaluation

  • Will we be able to evaluate later on how well

the job was done and what caused various problems?

slide-5
SLIDE 5

5

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 9

General Contents of a SW Plan

(cf. Humphrey, 1995, p. 61-62)

General Contents of a SW Plan

(cf. Humphrey, 1995, p. 61-62)

I Based on doing a defined piece of

work.

I Clear, measurable steps. I A way to check the plan with the

customer.

I A way to make periodic progress

statements.

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 10

Four Steps in Planning a Software Project (cf. Humphrey, 1995, p. 62) Four Steps in Planning a Software Project (cf. Humphrey, 1995, p. 62)

1.Write explicit statement of work to be done. Check statement with customer. 2.Break work into multiple smaller tasks and estimate each separately. 3.Base estimates on historical data. 4.Record estimates and compare later with actual results.

I Following these steps helps build a stable

and effective estimating process.

slide-6
SLIDE 6

6

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 11

Valuable Project Planning Techniques and Tools

(cf. Nicholas, 1990; Clark, 1996)

Valuable Project Planning Techniques and Tools

(cf. Nicholas, 1990; Clark, 1996)

I Activity-based Planning I Project Networks (Activity-Based)

  • Gantt

– Task Breakdown

  • CPM (Critical Path Method)

– Sequencing Dependencies

  • PERT (Program Evaluation & Review

Technique)

– CPM + Probability-based I Project-Management Software

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 12

The Planning Framework

(cf. Humphrey, 1995, p. 65)

The Planning Framework

(cf. Humphrey, 1995, p. 65)

Define Requirements Produce Conceptual Design Estimate Product Size Estimate Resources Produce Schedule Develop Product Analyze the Process Resources Available Historical Productivity Database Historical Size Database Tracking Reports Customer Need Delivered Product Management Customer Items Tasks Size, Resource, Schedule Data

NOTE: Real life is NOTE: Real life is not as linear as this not as linear as this framework suggests. framework suggests.

slide-7
SLIDE 7

7

AU INSY 560, Singapore 1997, Dan Turk Humphrey Ch. 3 - slide 13

Six Aspects of a High Quality Plan (cf. Humphrey, 1995, p. 65-67, 73) Six Aspects of a High Quality Plan (cf. Humphrey, 1995, p. 65-67, 73)

  • 1. Complete
  • All necessary information is included.
  • 2. Accessible
  • Can be found, in proper format, not cluttered with extraneous material.
  • 3. Clear
  • Neat, clear, readable, organized, ...
  • READ THE TEXT’S PARAGRAPH AND TAKE IT TO HEART!
  • 4. Specific
  • Absolutely clear on what, when, by whom, & cost.
  • 5. Precise
  • Level of granularity or detail of the measure compared with the total

magnitude of measurement.

  • 6. Accurate
  • Amount of over- / under-estimation. Reliability over multiple people &
  • projects. Chapters 5-6 focus on this.

I

Well-designed forms help accomplish all of these.
