SLIDE 1

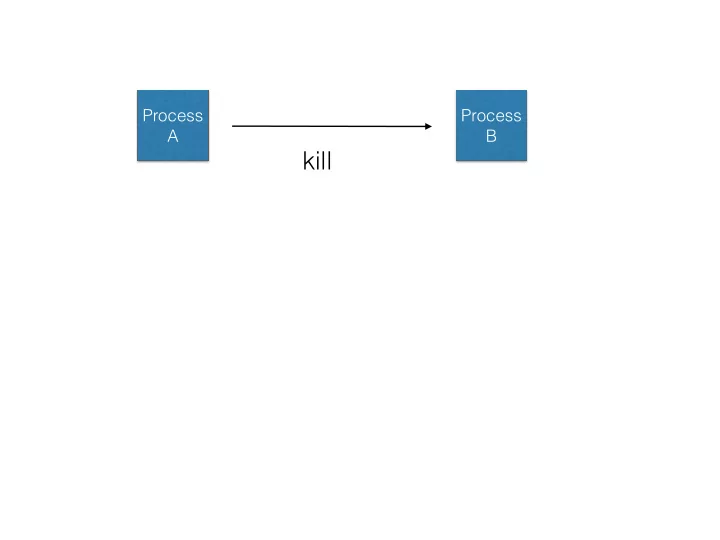

Process A Process B
kill
Process A Process B
kill
Run default signal handler!
kill Run default signal handler! Process Process A B kill - - PowerPoint PPT Presentation
kill Run default signal handler! Process Process A B kill - - PowerPoint PPT Presentation
Process Process A B kill Run default signal handler! Process Process A B kill signal(SIGINT, func) Process Process A B signal(SIGINT, func) Process Process A B kill Run fun signal handler! Terminate process Generate Core
SLIDE 2
SLIDE 3
Process A Process B
signal(SIGINT, func)
SLIDE 4
Process A Process B
signal(SIGINT, func) kill
Run fun signal handler!
SLIDE 5
Terminate process Generate Core Dump Ignore Stop
SLIDE 6
void sigint_handler(int sig) { char c; signal(sig, SIG_IGN); printf(Ouch, you just hit Ctrl-C?. Do you really want to quit [y/n]?); c = getchar(); if (c == y || c = Y) exit(0); else signal(SIGINT, sigint_handler); }
SLIDE 7
int main(int argc, char **argv) { int pid, status; int newfd; if ((newfd = open("output_file.txt", O_CREAT|O_TRUNC|O_WRONLY, 0644)) < 0) { exit(1); } printf("Luke, I am your..."); dup2(newfd, 1); printf("father"); exit(0); }
SLIDE 8
int main(int argc, char **argv) { int pid, status; int newfd; char *cmd[] = { "/bin/ls", "-al", "/", 0 }; if (argc != 2) { fprintf(stderr, "usage: %s output_file\n", argv[0]); exit(1); } if ((newfd = open(argv[1], O_CREAT|O_TRUNC|O_WRONLY, 0644)) < 0) { perror(argv[1]); /* open failed */ exit(1); } printf("writing output of the command %s to \"%s\"\n", cmd[0], argv[1]); dup2(newfd, 1); execvp(cmd[0], cmd); perror(cmd[0]); /* execvp failed */ exit(1); }
SLIDE 9
int fd = open(“hello.txt”, FLAGS)
a b c d e f g h j k l m
SLIDE 10
read(fd, buffer, 2)
a b c d e f g h j k l m
SLIDE 11
read(fd, buffer, 2)
a b c d e f g h j k l m
ab
SLIDE 12
write(fd, “12”, 2)
a b c d e f g h j k l m
SLIDE 13
write(fd, “12”, 2)
a b 1 2 e f g h j k l m
SLIDE 14
lseek(fd, 2, SEEK_CUR)
a b 1 2 e f g h j k l m
SLIDE 15
lseek(fd, 2, SEEK_CUR)
a b 1 2 e f g h j k l m
SLIDE 16
lseek(fd, 10, SEEK_END)
a b 1 2 e f g h j k l m
SLIDE 17
lseek(fd, 10, SEEK_END)
a b 1 2 e f g h j k l m
note that we don’t write \0 in the middle until we make a write
SLIDE 18
write(fd, “lo”, 2)
a b 1 2 e f g h j k l m \0 \0 \0 \0 \0 \0 \0 \0 \0 \0 l
SLIDE 19
Files Vs File Descriptor
SLIDE 20
file descriptors
FD 1 2 Process B stdin stdout stderr a.txt b.txt Kernel File Table Process File Table
SLIDE 21
- pen(“b.txt”, O_CREAT|O_WR)
FD 1 2 Process B 3 stdin stdout stderr a.txt b.txt Kernel File Table Process File Table
SLIDE 22
dup(2)
FD 1 2 Process B 3 stdin stdout stderr a.txt b.txt Kernel File Table Process File Table 4
SLIDE 23
dup2(3, STDOUT_FD)
FD 1 2 Process B 3 stdin stdout stderr a.txt b.txt Kernel File Table Process File Table 4
