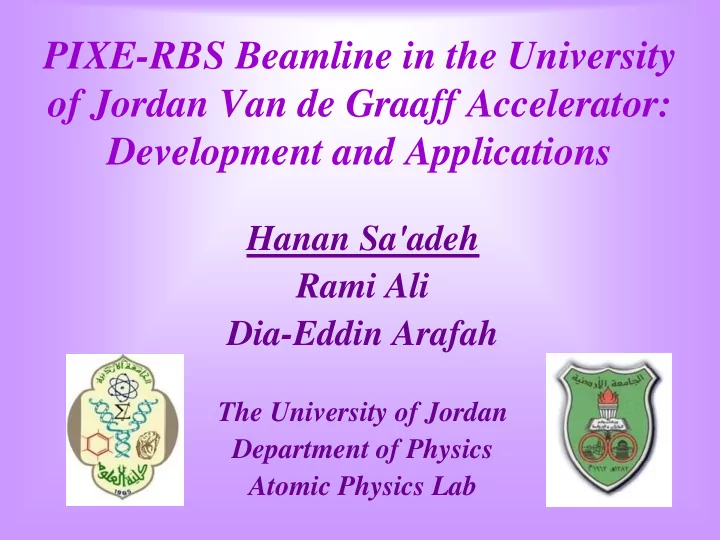

PIXE-RBS Beamline in the University of Jordan Van de Graaff Accelerator: Development and Applications Hanan Sa'adeh Rami Ali Dia-Eddin Arafah The University of Jordan Department of Physics Atomic Physics Lab Outline JUVAC RBS &

slide-1
SLIDE 1

PIXE-RBS Beamline in the University

  • f Jordan Van de Graaff Accelerator:

Development and Applications

Hanan Sa'adeh Rami Ali Dia-Eddin Arafah

The University of Jordan Department of Physics Atomic Physics Lab

slide-2
SLIDE 2

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014

2

Outline

  • JUVAC
  • RBS & PIXE techniques
  • PIXE-RBS Beamline
  • Results and Discussion
  • Development & Applications
  • Summary & Future Prospects
slide-3
SLIDE 3

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014

3

Outline

  • JUVAC
  • RBS & PIXE techniques
  • PIXE-RBS Beamline
  • Results and Discussion
  • Development & Applications
  • Summary & Future Prospects
slide-4
SLIDE 4

The University of Jordan Van de Graaff Accelerator

4

(JUVAC)

slide-5
SLIDE 5

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014

5

JUVAC

  • Electrostatic Linear Accelerator
  • German Grant, GTZ, 1980s.
  • Energy 0.3-4.75 MeV
  • Ions (H+, He2+, O+, N+…)
  • 3 Operational Beamlines

(RBS, COLTRIMS, PIXE-RBS)

slide-6
SLIDE 6

6

Accelerator Tube Ion Source Collection Screen High Voltage Terminal Shell Corona Points Charging Screen Alternator Charging Belt Tank Drive Motor Accelerating Tube Accelerator Tube Ion Source Collection Screen High Voltage Terminal Shell Corona Points Charging Screen Alternator Charging Belt Tank Drive Motor Accelerating Tube

Chu, et al., 1978

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014

Van de Graaff Accelerator

slide-7
SLIDE 7

7

slide-8
SLIDE 8

8

JUVAC Experimental Hall

slide-9
SLIDE 9

9 ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014

JUVAC Staff

Salem Kharabshah Huthifa Abdullah Samir Farash

slide-10
SLIDE 10

10

slide-11
SLIDE 11

11

slide-12
SLIDE 12

12

RBS & PIXE Techniques

slide-13
SLIDE 13

13 ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014

Source: http://www.hzdr.de

slide-14
SLIDE 14

14 ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014

Source: http://www.hzdr.de

slide-15
SLIDE 15

PIXE-RBS Beamline

slide-16
SLIDE 16

16

Motivation

  • PIXE can be used to detect elements (Na-U),

RBS to detect all elements heavier than the projectile ions.

  • PIXE is sensitive at the ppm level for most
  • elements. RBS is suitable for profiling.
  • The

necessity

  • f

a powerful analytical technique to characterize the elemental content (simultaneous identification & quantification)

  • f

fine and coarse air particulates.

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-17
SLIDE 17

17

PIXE-RBS Beamline @ JUVAC

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-18
SLIDE 18

18

PIXE

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-19
SLIDE 19

Development & Applications

slide-20
SLIDE 20

20

PIXE-RBS Beamline Development

  • Modification of the collision chamber of PIXE

beamline to combine PIXE & RBS simultaneously.

  • Installation of Si (Li) X-ray detector and Gupix

software package (funded by the IAEA).

  • Improving vacuum in the collision chamber.

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-21
SLIDE 21

21

PIXE-RBS Beamline Applications

  • Material analysis (stoichiometry
  • f thin

layers).

  • Environmental studies (analysis of aerosols

accumulated on filters).

  • ……

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-22
SLIDE 22

Summary & Future Prospects

slide-23
SLIDE 23

23

  • RBS & PIXE are non-destructive techniques to study

materials.

  • PIXE-RBS combination allows the determination of

depth distribution and concentration from hydrogen to heavy elements.

  • PIXE-RBS

combination gives complementary information in aerosols analysis.

Summary

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-24
SLIDE 24

24

Future Prospect

  • Modification of the collision chamber of

PIXE-RBS beamline to be used for gaseous targets.

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-25
SLIDE 25

25

Acknowledgements

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-26
SLIDE 26

Atomic Physics Group at JU

26

Rami Ali Dia-Eddin Arafah Hanan Sa’adeh

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-27
SLIDE 27

27

Jordan

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-28
SLIDE 28

28

Amman

ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-29
SLIDE 29

29 ICTP-NCP School on LHC Physics

  • H. Sa'adeh, Islamabad, November 2014
slide-30
SLIDE 30

Thank You
