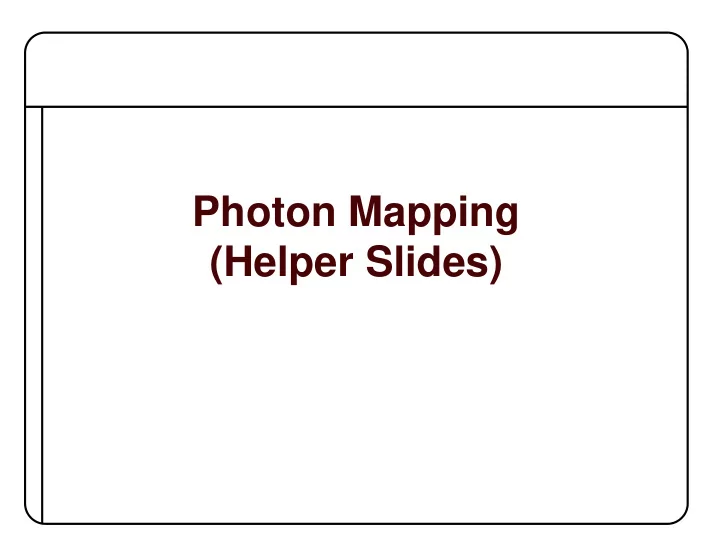

Photon Mapping (Helper Slides)

slide-2
SLIDE 2

Sampling Patterns

slide-3
SLIDE 3

Specular Reflection and Transmission

Available in ray tracer Use Fresnel’s Eqns for Fr

slide-4
SLIDE 4
slide-5
SLIDE 5

Russian Roulette

slide-6
SLIDE 6

RGB Roulette

slide-7
SLIDE 7

Caustics: Projection Maps

  • Cast caustic map photons

toward specular objects

  • Use object bounds and

rejection testing

  • Simple case: spheres

Jensen & Christensen, 1995

slide-8
SLIDE 8

Photon Mapping Summary

slide-9
SLIDE 9

Solving the Rendering Equation

  • Must compute reflected radiance, Lr
slide-10
SLIDE 10

Solving the Rendering Equation

  • Split BRDF into diffuse and specular parts:
slide-11
SLIDE 11

Solving the Rendering Equation

  • Split incoming radiance into three parts:
slide-12
SLIDE 12

Solving the Rendering Equation

  • Splittings produce four illumination components:
slide-13
SLIDE 13

The Four Illumination Components

slide-14
SLIDE 14
