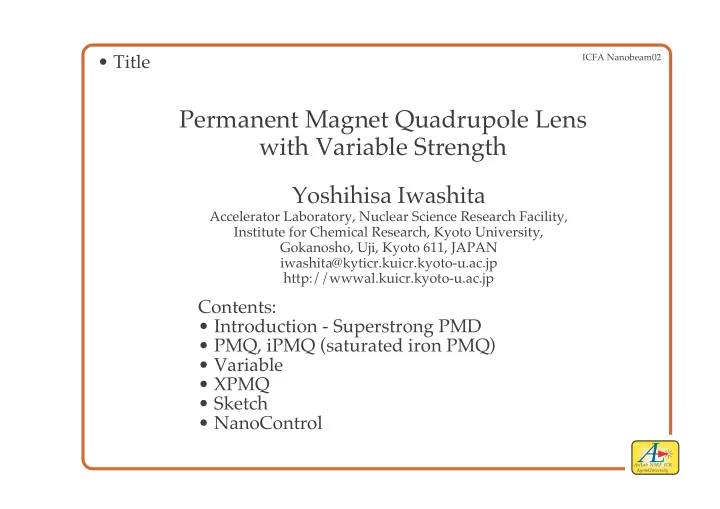

Permanent Magnet Quadrupole Lens with Variable Strength

Yoshihisa Iwashita

Accelerator Laboratory, Nuclear Science Research Facility, Institute for Chemical Research, Kyoto University, Gokanosho, Uji, Kyoto 611, JAPAN iwashita@kyticr.kuicr.kyoto-u.ac.jp http://wwwal.kuicr.kyoto-u.ac.jp

Contents:

• Introduction - Superstrong PMD
• PMQ, iPMQ (saturated iron PMQ)
• Variable
• XPMQ
• Sketch
• NanoControl
• Title

ICFA Nanobeam02

AccLab NSRF ICR KyotoUniversity

• PMD & B-H curve

Beam axis

Halbach's dipole REC magnet. B=Br ln(r1/r2) cos( /M) sin( /M)/ 1.37 T @r1, r2=1cm, 4cm

0.0 0.5 1.0 1.5 2.0 2.5 3.0

• 200
• 100

100 200 300 400

B [T] Soft iron B [T] NEOMAX35 B [T] H [k A/m]

AccLab NSRF ICR KyotoUniversity

Fe Beam axis

Modified Halbach's magnet.

• SuperPMD

1.64 T @r1, r2=1cm, 4cm (was 1.37T)

AccLab NSRF ICR KyotoUniversity

• 4.45T Dipole
• M. Kumada et al., CERN Courier, vol. 41, no.7,Sep. 2001, p. 9

Achieved 4.45T @-29 C (3.9T @room temperature)

AccLab NSRF ICR KyotoUniversity

• PMQ & iPMQ – Gradient (Field plot)

iPMQ16 16seg ID=6 OD=24 CY CLE = 7

Fe 10 120 ID:ø20 OD: ø240

B=2Br (1-r1/r2) cos2( /M) sin(2 /M) /(2 /M)

0.0 0.5 1.0 1.5 2.0 2.5 0.2 0.4 0.6 0.8 1

By (iPMQ1 w/Permendur) By (iPMQ w/Fe) [T] By (PMQ16) [T]

By X PM only 2.2 [T/cm] with Permendur 2.5 [T/cm] with Fe 2.4 [T/cm]

AccLab NSRF ICR KyotoUniversity

• IP

Superconducting Q Room temp. Q

AccLab NSRF ICR KyotoUniversity

0m IP

ø10

Module1 Module4 4m

8 m rad

2m ø40 ø48 ø56 Module2 Module3

leaving beam incoming

ø32

• Final Focus PMQ

need some mergine for leaving beam

AccLab NSRF ICR KyotoUniversity iPMQ16 16se 0 .5 OD = 4.0 CY CLE = 6

• Let the beam go through

iPMQ16 16seg 0 .5 OD = 4.0 CY CLE = 7 iPMQ16 16seg .5 OD = 4.0 CY CLE = 7 iPMQ16 16seg .5 OD = 4.0 CY CLE = 7

ixPMQ xPMQ1 xPMQ2 nPMQ

sPMQ16 16seg ID= 0 .5 OD = 1.3 LE = 6

sPMQ

0.0 0.5 1.0 1.5 2.0 0.1 0.2 0.3 0.4 By [T] ixPMQ By [T] nPMQ By [T] xPMQ2 By [T] xPMQ1 By [T] sPMQ By [T] X [cm]

Beam pipe for leaving beam?

AccLab NSRF ICR KyotoUniversity

• Final Focus vPMQ

0m IP

ø10

Module1 ø32 Module4 4m

8 m rad

2m ø40 ø48 ø56 Module2 Module3 F F F F F • • • • • F D F D F • • • • •

leaving beam incoming 5~10cm/unit —> 20~40units/2m ... some units may be fixed strongest F F F F F F F F F F • • • • •

• • •

middle1

F F F D F D F D F D • • • • •

middle2

F D F D F D F D F F F • • • • •

• • •

weakest

F D F D F D F D F D • • • • •

centroid move

}

Stepwise variable Higher resolution by binary increment of the length: 1,2,4,... cm

AccLab NSRF ICR KyotoUniversity

• X-Y stage supplied by NanoControl Co.Ltd.

Piezo Actuator Supersonic Motor or Pneumatic system stroke:15µm/2cm

AccLab NSRF ICR KyotoUniversity

• Some issues

 Strength 10-5 ?  Displacement 0.2 nm ?  Rotation (skew) 3µ rad ?

above three needs temperature compensation

 Step size?  Multipole component? (dodecapole)  Radiation damage?  temperature coefficient?  Helical Quadrupole(round beam)?

AccLab NSRF ICR KyotoUniversity

D F F

NdFeB SmCo SmCo 2 : 1 : 2

• Temperature Coefficient Compensation

NdFeB:

• 0.11%/ C

SmCo:

• 0.03~0.04%/ C

Basic idea from E.Antokin x4 difference

}

heat source along the axis

AccLab NSRF ICR KyotoUniversity

• Quad center monitor

Many Hall probes r=5mm beam pipe Accuracy of 10-4 may locate the magnetic center with 5 mm x 10-4 =0.5 µm or better including multipoles. Radiation damage? Dirfts?
